IslandPath Analysis: Aromatoleum aromaticum EbN1

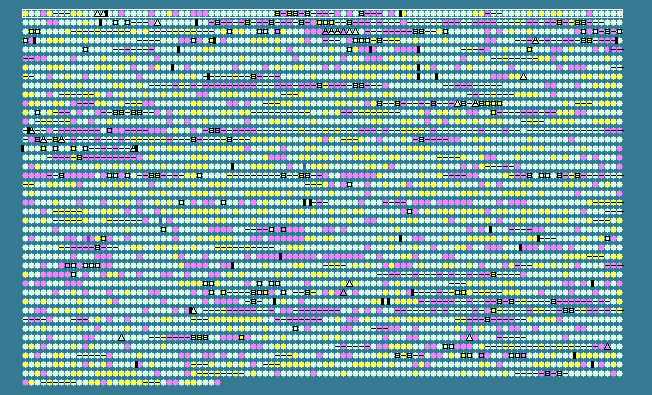

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.74   STD DEV: 4.42
Azoarcus sp. EbN1, complete genome - 1..4296230
4133 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 68.61	0	2..412	-	136	56475433	-	ebB253	-	hypothetical protein
2	 61.88	0	487..1176	+	229	56475434	-	ebA2	-	putative bacteriophage-related transcriptional repressor
3	 62.30	0	1572..2120	+	182	56475435	-	ebA5	-	hypothetical protein
4	 60.69	0	2251..2685	-	144	56475436	pilE1	ebA6	-	class II pilin protein PilE
5	 69.61	+1	2899..3441	+	180	56475437	-	ebA7	-	hypothetical protein
6	 66.48	0	3596..4651	+	351	56475438	-	ebA8	-	hypothetical protein
7	 65.81	0	4947..5297	+	116	56475439	-	ebB1	-	hypothetical protein
8	 65.84	0	5335..6183	+	282	56475440	-	ebA11	-	hypothetical protein
9	 70.09	+1	6589..7728	+	379	56475441	-	ebA15	-	hypothetical protein
10	 68.23	0	8474..9112	+	212	56475442	-	ebA22	-	hypothetical protein
11	 65.71	0	9144..9665	+	173	56475443	-	ebA23	-	hypothetical protein
12	 63.95	0	9868..10752	-	294	56475444	-	ebA26	-	hypothetical protein
13	 64.48	0	10796..11803	+	335	56475445	int	ebA27	-	phage-related integrase
14	 66.83	0	11947..13206	-	419	56475446	int	ebA29	-	phage integrase
15	 62.16	0	13335..14132	-	265	56475447	-	ebA31	-	serine protease
16	 65.62	0	14129..15085	-	318	56475448	-	ebA33	-	lytic transglycosylase
17	 59.41	-1	15142..16422	-	426	56475449	-	ebA35	-	UDP-glucose/GDP-mannose dehydrogenase family protein
18	 62.83	0	16476..19262	-	928	56475450	-	ebA36	-	hypothetical protein
19	 63.58	0	19265..20623	-	452	56475451	-	ebA37	-	response regulatory protein
20	 62.01	0	20616..22826	-	736	56475452	-	ebA38	-	sensory transduction histidine kinase
21	 62.27	0	22816..24201	-	461	56475453	sthA	ebA40	-	putative glycosyltransferase
22	 58.19	-1	24283..24459	-	58	56475454	-	ebA41	-	hypothetical protein
23	 63.17	0	24509..25453	-	314	56475455	lipP	ebA43	-	lipase
24	 62.73	0	25558..25887	-	109	56475456	-	ebA45	-	hypothetical protein
25	 68.99	0	25902..26159	-	85	56475457	-	ebA46	-	hypothetical protein
26	 52.08	-2	26183..26278	-	31	56475458	-	ebA47	-	hypothetical protein
27	 64.73	0	26435..28864	-	809	56475459	phbC	ebA48	-	putative poly(3-hydroxyalkanoate) synthetase
28	 64.56	0	29268..30170	+	300	56475460	-	ebA50	-	hypothetical protein
29	 58.67	-1	30217..30516	-	99	56475461	-	ebA51	-	hypothetical protein
30	 55.91	-1	30394..30672	+	92	56475462	-	ebD23	-	hypothetical protein
31	 54.26	-2	30538..30666	-	42	56475463	-	ebA52	-	hypothetical protein
32	 66.12	0	30663..30845	-	60	56475464	-	ebA53	-	hypothetical protein
33	 65.59	0	30799..31263	+	154	56475465	-	ebA54	-	hypothetical protein
34	 64.81	0	31295..32155	-	286	56475466	-	ebA56	-	putative kinase
35	 61.67	0	32575..32814	-	79	56475467	-	ebD24	-	hypothetical protein
36	 64.59	0	32849..33475	-	208	56475468	-	ebA59	-	SAM-dependent methyltransferase
37	 64.96	0	33775..34302	-	175	56475469	def	ebA62	-	peptide deformylase
38	 67.10	0	34345..34803	-	152	56475470	dtd	ebA64	-	D-tyrosyl-tRNA deacylase
39	 63.61	0	35278..36324	-	348	56475471	-	ebA65	-	hypothetical protein
40	 64.57	0	36321..37226	-	301	56475472	-	ebA67	-	hypothetical protein
41	 63.45	0	37576..37824	-	82	56475473	-	ebB2	-	hypothetical protein
42	 68.03	0	38061..38795	-	244	56475474	istB	ebA70	-	transposition helper protein
43	 68.46	0	38818..40377	-	519	56475475	istA	ebA72	-	transposase
44	 60.52	0	40583..40891	-	102	56475476	-	ebB3	-	hypothetical protein
45	 68.83	0	40976..42268	-	430	56475477	tnp1	ebA75	-	IS4 family transposase
46	 64.05	0	42788..43894	-	368	56475478	tnp2	ebA78	-	transposase (IS4)
47	 51.06	-2	44590..45012	-	140	56475479	-	ebA82	-	hypothetical protein
48	 63.82	0	45169..46293	-	374	56475480	tnp3	ebA84	-	transposase (IS4)
49	 62.59	0	47029..47469	+	146	56475481	-	ebA88	-	hypothetical protein
50	 59.47	-1	47354..48631	-	425	56475482	-	ebA89	-	hypothetical protein
51	 60.34	0	47881..48291	+	136	56475483	-	ebA90	-	hypothetical protein
52	 61.30	0	48364..48624	+	86	56475484	-	ebD25	-	hypothetical protein
53	 60.67	0	48802..49335	+	177	56475485	-	ebA93	-	hypothetical protein
54	 61.70	0	49380..49661	+	93	56475486	-	ebA95	-	hypothetical protein
55	 60.80	0	49697..50071	+	124	56475487	-	ebA96	-	hypothetical protein
56	 61.99	0	49993..51597	-	534	56475488	trbL	ebA97	-	plasmid like TrbL protein, component of conjugation system
57	 63.82	0	51663..52787	+	374	56475489	tnp4	ebA99	-	transposase (IS4)
58	 60.64	0	53145..53426	-	93	56475490	-	ebA101	-	hypothetical protein
59	 61.06	0	53423..53761	-	112	56475491	-	ebB4	-	hypothetical protein
60	 60.00	-1	54087..54731	-	214	56475492	-	ebA104	-	hypothetical protein
61	 64.63	0	54728..55021	-	97	56475493	-	ebA106	-	hypothetical protein
62	 60.20	-1	55040..55240	+	66	56475494	-	ebA107	-	hypothetical protein
63	 62.63	0	55271..55369	+	32	56475495	-	ebA108	-	hypothetical protein
64	 70.45	+1	55740..56795	-	351	56475496	sua5	ebA110	-	putative translation factor (SUA5)
65	 66.24	0	56782..57942	-	386	56475497	purK	ebA114	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
66	 67.27	0	58025..58519	-	164	56475498	purE	ebA116	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
67	 66.99	0	58524..59462	-	312	56475499	folD	ebA118	-	FolD bifunctional protein
68	 68.14	0	59459..60067	-	202	56475500	iorB	ebA121	-	indolepyruvate oxidoreductase subunit B
69	 66.99	0	60073..61944	-	623	56475501	iorA	ebA122	-	indolepyruvate ferredoxin oxidoreductase, subunit alpha
70	 64.31	0	62348..62983	-	211	56475502	-	ebA125	-	two-component response regulator
71	 67.58	0	62958..65489	-	843	56475503	-	ebA126	-	two-component sensor kinase
72	 66.46	0	65665..67098	+	477	56475504	-	ebA127	-	branched-chain amino acid ABC transporter,periplasmic amino acid-binding protein
73	 63.30	0	67518..70193	+	891	56475505	aceE	ebA133	-	pyruvate dehydrogenase subunit E1
74	 66.04	0	70215..71966	+	583	56475506	aceF	ebA135	-	dihydrolipoamide acetyltransferase
75	 67.15	0	71979..73826	+	615	56475507	lpd	ebA136	-	pyruvate dehydrogenase multienzyme complex,dihydrolipoamide dehydrogenase component
76	 70.27	+1	73942..75330	-	462	56475508	-	ebA137	-	hypothetical protein
77	 71.66	+1	75323..76945	-	540	56475509	-	ebA138	-	hypothetical protein
78	 51.06	-2	76963..77244	-	93	56475510	-	ebA139	-	hypothetical protein
79	 63.24	0	77241..77444	-	67	56475511	-	ebA140	-	hypothetical protein
80	 66.42	0	77514..78752	-	412	56475512	-	ebA142	-	hypothetical protein
81	 65.53	0	78749..79450	-	233	56475513	-	ebA145	-	hypothetical protein
82	 62.22	0	79715..80209	+	164	56475514	-	ebD26	-	hypothetical protein
83	 66.28	0	80212..80733	-	173	56475515	-	ebA148	-	hypothetical protein
84	 64.31	0	80946..81284	+	112	56475516	-	ebB5	-	putative pterin-4-alpha-carbinolamine dehydratase
85	 69.34	+1	81673..83469	+	598	56475517	poxB	ebA151	-	pyruvate decarboxylase
86	 66.86	0	83535..86075	+	846	56475518	-	ebA152	-	hypothetical protein
87	 70.87	+1	86114..87256	-	380	56475519	-	ebA154	-	hypothetical protein
88	 66.87	0	87261..89768	-	835	56475520	coxA	ebA156	-	putative cytochrome c oxidase subunit I
89	 71.67	+1	89765..90604	-	279	56475521	coxB	ebA158	-	chain II protein of putative cytochrome c oxidase
90	 68.65	0	90635..91138	+	167	56475522	-	ebA159	-	hypothetical protein
91	 62.20	0	91271..91762	+	163	56475523	-	ebA161	-	hypothetical protein
92	 65.41	0	92200..95226	+	1008	56475524	-	ebA163	-	sensory box/GGDEF family protein
93	 67.05	0	95412..97493	-	693	56475525	-	ebA165	-	putative solute:Na+ symporter
94	 65.53	0	97564..99492	-	642	56475526	-	ebA166	-	exonuclease
95	 60.22	-1	99736..100107	-	123	56475527	-	ebA168	-	response regulator domain-containing protein
96	 66.27	0	100137..102893	-	918	56475528	-	ebA169	-	fusion Na-dependent permease/histidine kinase domain-containing protein
97	 61.62	0	102905..103102	-	65	56475529	-	ebA170	-	hypothetical protein
98	 62.89	0	103136..103294	-	52	56475530	-	ebA171	-	hypothetical protein
99	 64.81	0	103300..105288	-	662	56475531	acsA	ebA172	-	acetyl-CoA synthetase
100	 65.30	0	105531..107063	+	510	56475532	fumA	ebA173	-	fumarate hydratase
64.74	MEAN

4.42	STD DEV
