IslandPath Analysis: Aliivibrio salmonicida LFI1238

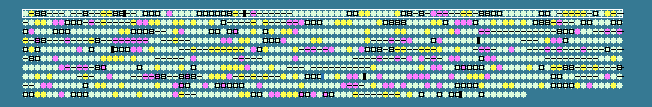

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.48   STD DEV: 3.51
Aliivibrio salmonicida LFI1238 chromosome 2, complete genome - 1..1206461
984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 37.26	0	1084..3069	+	661	209808848	rctB	VSAL_II0001	-	oriCII binding protein RctB
2	 43.97	+1	3426..3773	+	115	209808849	-	VSAL_II0002	-	putative endoribonuclease L-PSP
3	 37.78	0	7378..7692	+	104	209808850	-	VSAL_II0006	-	transposase
4	 35.94	0	7796..8677	+	293	209808851	-	VSAL_II0008	-	transposase
5	 38.38	0	10763..12406	-	547	209808852	-	VSAL_II0010	-	hypothetical protein
6	 39.06	0	12519..14438	-	639	209808853	recQ	VSAL_II0011	-	putative ATP-dependent DNA helicase
7	 39.61	0	14438..14851	-	137	209808854	-	VSAL_II0012	-	putative peptidyl-tRNA hydrolase
8	 39.78	0	14938..15294	+	118	209808855	-	VSAL_II0013	-	hypothetical protein
9	 38.54	0	15463..16461	+	332	209808856	-	VSAL_II0014	-	hypothetical protein
10	 41.73	0	16639..17757	+	372	209808857	-	VSAL_II0015	-	secretion protein, HlyD family
11	 40.55	0	18608..19798	-	396	209808858	-	VSAL_II0017	-	transposase
12	 37.46	0	19931..20536	-	201	209808859	-	VSAL_II0018	-	outer membrane protein OmpA family
13	 39.30	0	20539..21861	-	440	209808860	-	VSAL_II0019	-	outer membrane efflux protein
14	 42.80	+1	22375..31047	+	2890	209808861	-	VSAL_II0020	-	hemolysin-type calcium-binding protein
15	 43.40	+1	31164..31799	+	211	209808862	pdxH	VSAL_II0021	-	pyridoxamine 5'-phosphate oxidase
16	 39.78	0	32123..33610	-	495	209808863	-	VSAL_II0023	-	transposase
17	 36.21	0	33682..34029	-	115	209808864	-	VSAL_II0024	-	transposase
18	 36.55	0	34583..35080	-	165	209808865	-	VSAL_II0026	-	hypothetical protein
19	 37.35	0	35194..36138	-	314	209808866	-	VSAL_II0027	-	protein alx
20	 41.07	0	36529..37692	+	387	209808867	-	VSAL_II0028	-	hypothetical protein
21	 39.72	0	41155..42642	-	495	209808868	-	VSAL_II0031	-	transposase
22	 36.21	0	42714..43061	-	115	209808869	-	VSAL_II0032	-	transposase
23	 37.78	0	43058..43372	-	104	209808870	-	VSAL_II0033	-	transposase
24	 40.00	0	44608..45717	-	369	209808871	-	VSAL_II0034	-	secretion protein, HlyD family
25	 34.15	-1	45894..46502	+	202	209808872	-	VSAL_II0035	-	putative transcriptional regulator, TetR family
26	 39.09	0	46584..47504	-	306	209808873	-	VSAL_II0036	-	membrane protein
27	 39.65	0	47611..50316	-	901	209808874	malT	VSAL_II0037	-	HTH-type transcriptional regulator MalT (maltose regulon positive regulator)
28	 39.85	0	50713..53166	+	817	209808875	malP	VSAL_II0038	-	maltodextrin phosphorylase
29	 40.35	0	53224..55404	+	726	209808876	malQ	VSAL_II0039	-	4-alpha-glucanotransferase
30	 35.94	0	57716..58597	-	293	209808877	-	VSAL_II0041	-	transposase
31	 37.46	0	58697..59011	+	104	209808878	-	VSAL_II0042	-	transposase
32	 36.21	0	59008..59355	+	115	209808879	-	VSAL_II0043	-	transposase
33	 39.72	0	60913..62400	-	495	209808880	-	VSAL_II0046	-	transposase
34	 36.21	0	62472..62819	-	115	209808881	-	VSAL_II0047	-	transposase
35	 37.78	0	62816..63130	-	104	209808882	-	VSAL_II0048	-	transposase
36	 42.44	+1	63564..66209	-	881	209808883	chb	VSAL_II0050	-	N,N'-diacetylchitobiase precursor (chitobiase)
37	 38.72	0	66735..67235	+	166	209808884	-	VSAL_II0051	-	inner membrane protein
38	 36.11	0	67915..68814	-	299	209808885	-	VSAL_II0052	-	response regulator protein
39	 34.51	-1	68853..71309	-	818	209808886	-	VSAL_II0053	-	membrane associated response regulator,histidine kinase
40	 41.72	0	71442..78503	-	2353	209808887	-	VSAL_II0054	-	hypothetical protein
41	 36.19	0	78698..79012	+	104	209808888	-	VSAL_II0055	-	hypothetical protein
42	 37.17	0	79067..80395	+	442	209808889	-	VSAL_II0056	-	putative type I secretion protein, HlyD family
43	 37.47	0	80402..82627	+	741	209808890	-	VSAL_II0057	-	putative membrane associated response regulator
44	 36.47	0	82627..83997	+	456	209808891	-	VSAL_II0058	-	putative type I toxin secretion system, outer membrane efflux protein
45	 37.75	0	83994..85577	+	527	209808892	-	VSAL_II0059	-	putative type I toxin secretion system, membrane transport protein
46	 38.67	0	85578..87731	+	717	209808893	-	VSAL_II0060	-	putative type I toxin secretion system,ATP-binding protein
47	 37.86	0	87782..88576	-	264	209808894	-	VSAL_II0061	-	exported glycosyl hydrolase, family 16
48	 40.67	0	88569..90053	-	494	209808895	-	VSAL_II0062	-	membrane protein
49	 39.92	0	90232..91932	+	566	209808896	-	VSAL_II0063	-	putative type I secretion system, ATP-binding protein
50	 37.75	0	91947..93236	+	429	209808897	-	VSAL_II0064	-	putative type I secretion protein, HlyD family
51	 37.04	0	93246..93488	+	80	209808898	-	VSAL_II0065	-	membrane protein
52	 36.36	0	93524..94282	+	252	209808899	-	VSAL_II0066	-	membrane protein
53	 38.27	0	94418..94579	-	53	209808900	-	VSAL_II0067	-	hypothetical protein
54	 41.67	0	94576..94767	-	63	209808901	-	VSAL_II0068	-	hypothetical protein
55	 39.65	0	94820..96307	-	495	209808902	-	VSAL_II0069	-	transposase
56	 35.92	0	96379..96726	-	115	209808903	-	VSAL_II0070	-	transposase
57	 42.10	+1	97685..99019	-	444	209808904	astB	VSAL_II0073	-	succinylarginine dihydrolase
58	 42.87	+1	99366..100550	+	394	209808905	-	VSAL_II0074	-	membrane protein
59	 39.94	0	100746..101366	-	206	209808906	-	VSAL_II0075	-	hypothetical protein
60	 37.44	0	101509..102360	+	283	209808907	-	VSAL_II0076	-	integral membrane protein
61	 41.72	0	102347..103216	-	289	209808908	-	VSAL_II0077	-	HTH-type transcriptional regulator, AraC-family
62	 41.39	0	103330..104484	+	384	209808909	-	VSAL_II0078	-	putative aminotransferase
63	 44.62	+1	104527..105651	+	374	209808910	-	VSAL_II0079	-	zinc carboxypeptidase
64	 39.72	0	105883..107370	-	495	209808911	-	VSAL_II0080	-	transposase
65	 36.21	0	107442..107789	-	115	209808912	-	VSAL_II0081	-	transposase
66	 41.69	0	108268..109188	-	306	209808913	-	VSAL_II0083	-	putative permease
67	 40.45	0	109326..110519	+	397	209808914	-	VSAL_II0084	-	transposase
68	 39.88	0	110722..110889	+	55	209808915	-	VSAL_II0085	-	hypothetical protein
69	 27.68	-2	110942..111295	+	117	209808916	-	VSAL_II0086	-	hypothetical protein
70	 18.95	-2	111425..111577	+	50	209808917	-	VSAL_II0087	-	hypothetical protein
71	 29.05	-2	111582..111908	+	108	209808918	-	VSAL_II0088	-	hypothetical protein
72	 39.78	0	112006..112983	-	325	209808919	fruR	VSAL_II0089	-	fructose repressor
73	 40.81	0	113254..114390	+	378	209808920	fruB	VSAL_II0090	-	PTS system, fructose-specific IIA/FPR component
74	 43.66	+1	114394..115371	+	325	209808921	fruK	VSAL_II0091	-	1-phosphofructokinase
75	 44.54	+1	115402..117141	+	579	209808922	fruA	VSAL_II0092	-	PTS system, fructose-specific IIBC component
76	 40.52	0	117309..117767	-	152	209808923	-	VSAL_II0093	-	hypothetical protein
77	 37.78	0	118500..118814	+	104	209808924	-	VSAL_II0095	-	transposase
78	 36.21	0	118811..119158	+	115	209808925	-	VSAL_II0096	-	transposase
79	 35.94	0	119315..120196	+	293	209808926	-	VSAL_II0097	-	transposase
80	 39.72	0	120237..121724	+	495	209808927	-	VSAL_II0098	-	transposase
81	 39.73	0	122303..123475	-	390	209808928	-	VSAL_II0099	-	putative lipoprotein
82	 41.57	0	123595..123861	-	88	209808929	-	VSAL_II0100	-	hypothetical protein
83	 41.50	0	124530..125705	-	391	209808930	-	VSAL_II0101	-	peptidase
84	 39.35	0	125864..127009	+	381	209808931	-	VSAL_II0102	-	peptide methionine sulfoxide reductase
85	 38.23	0	127079..127834	-	251	209808932	-	VSAL_II0103	-	HTH-type transcriptional regulator, DeoR-family
86	 41.51	0	128086..129027	+	313	209808933	-	VSAL_II0104	-	putative 6-phosphogluconate dehydrogenase
87	 40.39	0	129529..130719	-	396	209808934	-	VSAL_II0106	-	transposase
88	 40.62	0	130965..132158	-	397	209808935	-	VSAL_II0107	-	transposase
89	 39.43	0	135157..137238	+	693	209808936	-	VSAL_II0110	-	TonB dependent receptor
90	 40.10	0	137339..138106	+	255	209808937	-	VSAL_II0111	-	hypothetical protein
91	 42.11	+1	138108..139463	+	451	209808938	tolR2	VSAL_II0112	-	biopolymer transport protein TolR
92	 42.75	+1	139463..139972	+	169	209808939	exbB2	VSAL_II0113	-	TonB system transport protein ExbB2
93	 42.96	+1	139969..140373	+	134	209808940	exbD2	VSAL_II0114	-	TonB system transport protein ExbD2
94	 45.89	+2	140373..140993	+	206	209808941	tonB2	VSAL_II0115	-	TonB protein
95	 40.32	0	140990..142192	+	400	209808942	-	VSAL_II0116	-	hypothetical protein
96	 40.62	0	142368..143561	-	397	209808943	-	VSAL_II0117	-	transposase
97	 39.84	0	143791..144435	+	214	209808944	-	VSAL_II0118	-	membrane protein
98	 42.86	+1	144469..144993	+	174	209808945	-	VSAL_II0119	-	hypothetical protein
99	 42.01	+1	144999..145874	+	291	209808946	-	VSAL_II0120	-	hypothetical protein
100	 39.31	0	145932..146249	+	105	209808947	-	VSAL_II0121	-	hypothetical protein
38.48	MEAN

3.51	STD DEV
