IslandPath Analysis: Alkaliphilus oremlandii OhILAs

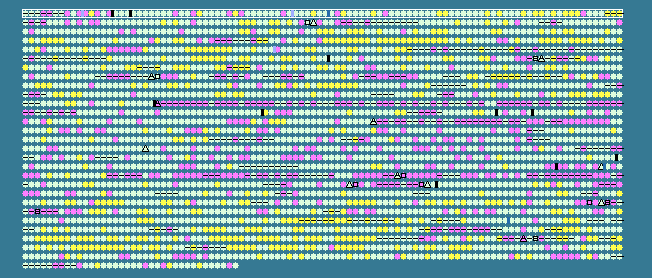

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 36.54   STD DEV: 3.90
Alkaliphilus oremlandii OhILAs, complete genome - 1..3123558
2836 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.28	0	49..1404	+	451	158319060	-	Clos_0001	-	chromosomal replication initiation protein
2	 34.87	0	1642..2748	+	368	158319061	-	Clos_0002	-	DNA polymerase III subunit beta
3	 33.33	0	2846..3061	+	71	158319062	-	Clos_0003	-	RNA-binding S4 domain-containing protein
4	 32.88	0	3236..4333	+	365	158319063	-	Clos_0004	-	DNA replication and repair protein RecF
5	 32.14	-1	4422..4757	+	111	158319064	-	Clos_0005	-	hypothetical protein
6	 35.85	0	4884..6794	+	636	158319065	-	Clos_0006	-	DNA gyrase, B subunit
7	 36.46	0	6807..9266	+	819	158319066	-	Clos_0007	-	DNA gyrase, A subunit
8	 24.53	-2	9496..9813	+	105	158319067	-	Clos_0008	-	anti-sigma-factor antagonist
9	 34.50	0	9821..10249	+	142	158319068	-	Clos_0009	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
10	 32.10	-1	10249..11061	+	270	158319069	-	Clos_0010	-	FliA/WhiG family RNA polymerase sigma factor
11	 32.37	-1	16349..16867	+	172	158319070	-	Clos_0011	-	3H domain-containing protein
12	 40.78	+1	16911..17957	+	348	158319071	-	Clos_0012	-	phosphotransferase system, EIIC
13	 30.26	-1	18122..18316	-	64	158319072	-	Clos_0013	-	hypothetical protein
14	 37.79	0	18900..20177	+	425	158319073	-	Clos_0014	-	seryl-tRNA synthetase
15	 25.60	-2	20282..20449	+	55	158319074	-	Clos_0015	-	hypothetical protein
16	 38.09	0	20878..22308	+	476	158319075	-	Clos_0016	-	peptidase S41
17	 40.00	0	22464..22763	+	99	158319076	-	Clos_0017	-	YCII-related
18	 36.77	0	22876..23340	+	154	158319077	-	Clos_0018	-	CMP/dCMP deaminase zinc-binding
19	 35.02	0	23941..24945	+	334	158319078	-	Clos_0019	-	lipoyltransferase and lipoate-protein ligase
20	 34.04	0	25004..26275	-	423	158319079	-	Clos_0020	-	hypothetical protein
21	 33.88	0	26419..26781	-	120	158319080	-	Clos_0021	-	hypothetical protein
22	 33.17	0	27112..27720	+	202	158319081	-	Clos_0022	-	SirA family protein
23	 34.07	0	27736..28005	+	89	158319082	-	Clos_0023	-	hypothetical protein
24	 37.57	0	28022..28210	+	62	158319083	-	Clos_0024	-	hypothetical protein
25	 34.86	0	28424..29599	+	391	158319084	-	Clos_0025	-	GntR family transcriptional regulator
26	 31.17	-1	29851..31608	+	585	158319085	-	Clos_0026	-	PAS modulated sigma54 specific transcriptional regulator
27	 38.13	0	31947..33113	+	388	158319086	-	Clos_0027	-	respiratory-chain NADH dehydrogenase domain-containing protein
28	 36.31	0	33239..35122	+	627	158319087	-	Clos_0028	-	glycine/sarcosine/betaine reductase complex protein B alpha and beta subunits
29	 30.88	-1	35154..35438	+	94	158319088	-	Clos_0029	-	hypothetical protein
30	 41.18	+1	35419..36144	+	241	158319089	-	Clos_0030	-	D-proline reductase (dithiol)
31	 34.51	0	36201..36962	+	253	158319090	-	Clos_0031	-	D-proline reductase (dithiol)
32	 37.37	0	36977..37447	+	156	158319091	-	Clos_0032	-	D-proline reductase (dithiol)
33	 35.32	0	37448..38455	+	335	158319092	-	Clos_0033	-	proline racemase
34	 35.92	0	38545..39432	+	295	158319093	-	Clos_0034	-	membrane protein
35	 30.18	-1	39789..40073	+	94	158319094	-	Clos_0035	-	ribosomal protein S6
36	 40.34	0	40093..40506	+	137	158319095	-	Clos_0036	-	single-strand binding protein
37	 29.11	-1	40522..40758	+	78	158319096	-	Clos_0037	-	ribosomal protein S18
38	 37.12	0	40868..42715	-	615	158319097	-	Clos_0038	-	ABC transporter related
39	 38.04	0	42696..44522	-	608	158319098	-	Clos_0039	-	ABC transporter related
40	 34.68	0	44755..45642	-	295	158319099	-	Clos_0040	-	signal transduction histidine kinase regulating citrate/malate metabolism
41	 34.45	0	45639..46355	-	238	158319100	-	Clos_0041	-	LytTR family two component transcriptional regulator
42	 38.44	0	46667..47527	+	286	158319101	-	Clos_0042	-	shikimate 5-dehydrogenase
43	 36.93	0	47677..48093	+	138	158319102	-	Clos_0043	-	hypothetical protein
44	 32.32	-1	48196..48789	+	197	158319103	-	Clos_0044	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
45	 33.85	0	48996..49571	+	191	158319104	-	Clos_0045	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
46	 33.33	0	55320..55952	-	210	158319105	-	Clos_0046	-	hypothetical protein
47	 36.65	0	56775..57257	+	160	158319106	-	Clos_0047	-	hypothetical protein
48	 36.60	0	57367..59235	+	622	158319107	-	Clos_0048	-	putative sigma54 specific transcriptional regulator
49	 40.52	+1	59560..61341	+	593	158319108	-	Clos_0049	-	thiamine pyrophosphate binding domain-containing protein
50	 38.92	0	61343..61933	+	196	158319109	-	Clos_0050	-	indolepyruvate oxidoreductase subunit B
51	 35.15	0	62147..62860	+	237	158319110	-	Clos_0051	-	uncharacterized membrane protein
52	 37.43	0	68709..70196	+	495	158319111	-	Clos_0052	-	methyl-accepting chemotaxis sensory transducer
53	 31.41	-1	70382..70693	+	103	158319112	-	Clos_0053	-	hypothetical protein
54	 40.33	0	70950..73409	+	819	158319113	-	Clos_0054	-	copper-translocating P-type ATPase
55	 39.35	0	73505..73720	+	71	158319114	-	Clos_0055	-	copper ion binding protein
56	 37.04	0	73869..76433	+	854	158319115	-	Clos_0056	-	AraC family transcriptional regulator
57	 39.61	0	76529..77548	-	339	158319116	-	Clos_0057	-	aminodeoxychorismate lyase
58	 33.33	0	77817..78884	+	355	158319117	-	Clos_0058	-	acyltransferase 3
59	 40.37	0	80271..81719	+	482	158319118	-	Clos_0059	-	Orn/Lys/Arg decarboxylase major region
60	 39.65	0	81740..82372	+	210	158319119	-	Clos_0060	-	dTMP kinase
61	 32.73	0	82377..82706	+	109	158319120	-	Clos_0061	-	hypothetical protein
62	 35.76	0	82725..83714	+	329	158319121	-	Clos_0062	-	DNA polymerase III, delta prime subunit
63	 37.63	0	83708..84592	+	294	158319122	-	Clos_0063	-	PSP1 domain-containing protein
64	 39.95	0	84900..86153	+	417	158319123	-	Clos_0064	-	putative oxidoreductase
65	 38.57	0	86842..87948	+	368	158319124	-	Clos_0065	-	glycine cleavage system aminomethyltransferase T
66	 38.02	0	87991..88374	+	127	158319125	-	Clos_0066	-	glycine cleavage system H protein
67	 39.15	0	88376..89716	+	446	158319126	-	Clos_0067	-	glycine dehydrogenase subunit 1
68	 38.74	0	89716..91176	+	486	158319127	-	Clos_0068	-	glycine dehydrogenase subunit 2
69	 39.42	0	91313..93415	+	700	158319128	-	Clos_0069	-	putative sigma54 specific transcriptional regulator
70	 42.83	+1	93603..95381	+	592	158319129	-	Clos_0070	-	indolepyruvate ferredoxin oxidoreductase
71	 43.18	+1	95383..95961	+	192	158319130	-	Clos_0071	-	indolepyruvate oxidoreductase subunit B
72	 39.91	0	95997..97061	+	354	158319131	-	Clos_0072	-	butyrate kinase
73	 37.90	0	97091..98206	+	371	158319132	-	Clos_0073	-	histidinol-phosphate aminotransferase
74	 37.35	0	98781..99974	+	397	158319133	-	Clos_0074	-	putative PAS/PAC sensor protein
75	 34.03	0	100086..100802	+	238	158319134	-	Clos_0075	-	methyltransferase type 11
76	 35.72	0	100814..101692	+	292	158319135	-	Clos_0076	-	hypothetical protein
77	 35.66	0	101842..102444	-	200	158319136	-	Clos_0077	-	pentapeptide repeat-containing protein
78	 40.25	0	103112..104008	+	298	158319137	-	Clos_0078	-	5,10-methylenetetrahydrofolate reductase
79	 39.29	0	104052..104723	+	223	158319138	-	Clos_0079	-	vitamin B12 dependent methionine synthase activation region
80	 43.00	+1	104803..107181	+	792	158319139	-	Clos_0080	-	homocysteine S-methyltransferase
81	 38.27	0	107279..108595	-	438	158319140	-	Clos_0081	-	membrane protein-like protein
82	 37.69	0	108588..108908	-	106	158319141	-	Clos_0082	-	PadR-like family transcriptional regulator
83	 38.68	0	109064..109999	-	311	158319142	-	Clos_0083	-	alpha/beta hydrolase fold
84	 43.51	+1	110205..111383	+	392	158319143	-	Clos_0084	-	acetyl-CoA acetyltransferase
85	 36.39	0	111488..112957	+	489	158319144	-	Clos_0085	-	PAS modulated sigma54 specific transcriptional regulator
86	 40.93	+1	113253..114806	+	517	158319145	-	Clos_0086	-	coenzyme A transferase
87	 40.85	+1	114821..116137	+	438	158319146	-	Clos_0087	-	citrate transporter
88	 37.49	0	116245..117087	+	280	158319147	-	Clos_0088	-	3-hydroxybutyryl-CoA dehydrogenase
89	 40.08	0	117132..117872	+	246	158319148	-	Clos_0089	-	short-chain dehydrogenase/reductase SDR
90	 37.17	0	118268..118684	+	138	158319149	-	Clos_0090	-	dehydratase
91	 42.37	+1	118721..119860	+	379	158319150	-	Clos_0091	-	acyl-CoA dehydrogenase domain-containing protein
92	 40.74	+1	119874..120656	+	260	158319151	-	Clos_0092	-	electron transfer flavoprotein alpha/beta-subunit
93	 41.82	+1	120671..121672	+	333	158319152	-	Clos_0093	-	electron transfer flavoprotein alpha subunit
94	 32.02	-1	121751..122512	-	253	158319153	-	Clos_0094	-	hypothetical protein
95	 36.48	0	122783..123481	+	232	158319154	-	Clos_0095	-	two component transcriptional regulator
96	 37.79	0	123483..124874	+	463	158319155	-	Clos_0096	-	integral membrane sensor signal transduction histidine kinase
97	 36.27	0	124875..126443	+	522	158319156	-	Clos_0097	-	hypothetical protein
98	 53.94	+2	126494..126823	-	109	158319157	-	Clos_0098	-	hypothetical protein
99	 51.66	+2	127238..128383	+	381	158319158	-	Clos_0099	-	triple helix repeat-containing collagen
100	 50.87	+2	128668..129990	+	440	158319159	-	Clos_0100	-	triple helix repeat-containing collagen
36.54	MEAN

3.90	STD DEV
