IslandPath Analysis: Alkaliphilus metalliredigens QYMF

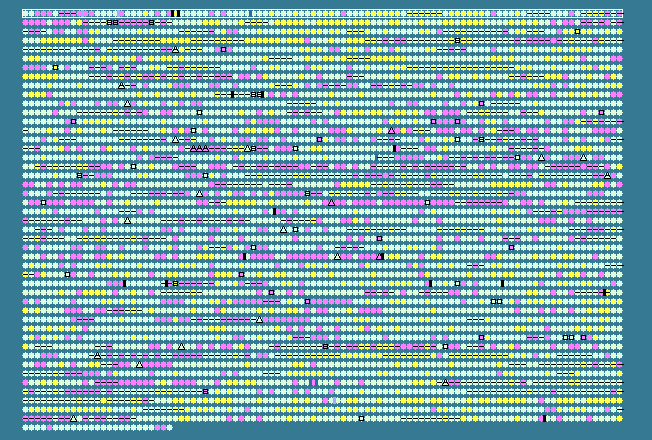

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 36.81   STD DEV: 3.99
Alkaliphilus metalliredigens QYMF, complete genome - 1..4929566
4625 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.60	0	50..1396	+	448	150387854	dnaA	Amet_0001	-	chromosomal replication initiation protein
2	 33.42	0	1629..2735	+	368	150387855	-	Amet_0002	-	DNA polymerase III subunit beta
3	 29.05	-1	2819..3028	+	69	150387856	-	Amet_0003	-	RNA-binding S4 domain-containing protein
4	 32.16	-1	3115..4221	+	368	150387857	-	Amet_0004	-	DNA replication and repair protein RecF
5	 30.56	-1	4310..4597	+	95	150387858	-	Amet_0005	-	hypothetical protein
6	 35.53	0	4652..6559	+	635	150387859	-	Amet_0006	-	DNA gyrase, B subunit
7	 33.17	0	6576..9068	+	830	150387860	-	Amet_0007	-	DNA gyrase, A subunit
8	 28.93	-1	9333..9650	+	105	150387861	-	Amet_0008	-	anti-sigma-factor antagonist
9	 32.86	0	9691..10116	+	141	150387862	-	Amet_0009	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
10	 31.34	-1	10116..10916	+	266	150387863	-	Amet_0010	-	RinA family phage transcriptional regulator
11	 20.26	-2	16755..16907	+	50	150387864	-	Amet_0011	-	hypothetical protein
12	 26.75	-2	17117..17344	+	75	150387865	-	Amet_0012	-	hypothetical protein
13	 38.49	0	17548..18012	+	154	150387866	-	Amet_0013	-	hypothetical protein
14	 37.15	0	18180..19043	+	287	150387867	-	Amet_0014	-	hypothetical protein
15	 35.42	0	19183..20526	+	447	150387868	-	Amet_0015	-	glycine dehydrogenase (decarboxylating)
16	 38.04	0	20526..21971	+	481	150387869	-	Amet_0016	-	glycine dehydrogenase subunit 2
17	 33.00	0	27844..28755	+	303	150387870	-	Amet_0017	-	quinolinate synthetase complex, A subunit
18	 34.29	0	28770..30332	+	520	150387871	-	Amet_0018	-	L-aspartate oxidase
19	 34.64	0	30355..31194	+	279	150387872	-	Amet_0019	-	nicotinate-nucleotide pyrophosphorylase
20	 38.54	0	31205..31723	+	172	150387873	-	Amet_0020	-	3H domain-containing protein
21	 40.57	0	31739..32788	+	349	150387874	-	Amet_0021	-	phosphotransferase system, EIIC
22	 37.37	0	32891..35689	+	932	150387875	-	Amet_0022	-	hypothetical protein
23	 31.40	-1	35753..35959	-	68	150387876	-	Amet_0023	-	hypothetical protein
24	 38.49	0	36527..37807	+	426	150387877	-	Amet_0024	-	seryl-tRNA synthetase
25	 31.56	-1	38018..38752	+	244	150387878	-	Amet_0025	-	hypothetical protein
26	 42.98	+1	38949..39404	+	151	150387879	-	Amet_0026	-	CMP/dCMP deaminase, zinc-binding
27	 36.01	0	40091..40726	+	211	150387880	-	Amet_0027	-	SirA family protein
28	 37.08	0	40741..41007	+	88	150387881	-	Amet_0028	-	hypothetical protein
29	 35.25	0	41021..41905	+	294	150387882	-	Amet_0029	-	MscS mechanosensitive ion channel
30	 38.46	0	42014..42208	+	64	150387883	-	Amet_0030	-	hypothetical protein
31	 37.19	0	42372..43565	+	397	150387884	-	Amet_0031	-	GntR family transcriptional regulator
32	 33.33	0	43948..44232	+	94	150387885	-	Amet_0032	-	ribosomal protein S6
33	 37.19	0	44256..44696	+	146	150387886	-	Amet_0033	-	single-strand binding protein
34	 29.00	-1	44715..44945	+	76	150387887	-	Amet_0034	-	ribosomal protein S18
35	 39.95	0	45115..46218	+	367	150387888	-	Amet_0035	-	YibE/F family protein
36	 33.57	0	46365..46781	+	138	150387889	-	Amet_0036	-	hypothetical protein
37	 36.65	0	47045..47647	+	200	150387890	-	Amet_0037	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
38	 39.67	0	47781..48395	+	204	150387891	-	Amet_0038	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
39	 39.37	0	59604..60812	-	402	150387892	-	Amet_0039	-	acetylornithine deacetylase or succinyl-diaminopimelate desuccinylase
40	 39.58	0	60905..62329	-	474	150387893	-	Amet_0040	-	C4-dicarboxylate anaerobic carrier
41	 40.23	0	62690..64081	+	463	150387894	-	Amet_0041	-	amidohydrolase 3
42	 41.45	+1	64185..65354	+	389	150387895	-	Amet_0042	-	amidohydrolase
43	 36.98	0	65576..67054	+	492	150387896	-	Amet_0043	-	methyl-accepting chemotaxis sensory transducer
44	 34.22	0	67152..67490	+	112	150387897	-	Amet_0044	-	hypothetical protein
45	 37.04	0	67581..67796	+	71	150387898	-	Amet_0045	-	heavy metal transport/detoxification protein
46	 43.26	+1	67921..68937	-	338	150387899	-	Amet_0046	-	aminodeoxychorismate lyase
47	 37.56	0	69263..70279	+	338	150387900	-	Amet_0047	-	UBA/THIF-type NAD/FAD binding protein
48	 37.60	0	70432..71064	+	210	150387901	-	Amet_0048	-	SNARE associated Golgi protein
49	 42.56	+1	71109..71585	-	158	150387902	-	Amet_0049	-	AsnC family transcriptional regulator
50	 38.56	0	71582..72040	-	152	150387903	-	Amet_0050	-	AsnC family transcriptional regulator
51	 45.54	+2	72033..73040	-	335	150387904	-	Amet_0051	-	radical SAM domain-containing protein
52	 43.09	+1	73037..74245	-	402	150387905	-	Amet_0052	-	radical SAM domain-containing protein
53	 38.79	0	74566..75975	+	469	150387906	-	Amet_0053	-	hypothetical protein
54	 32.89	0	76126..76353	+	75	150387907	-	Amet_0054	-	hypothetical protein
55	 33.58	0	76435..76839	+	134	150387908	-	Amet_0055	-	SirA family protein
56	 38.38	0	76860..77771	+	303	150387909	-	Amet_0056	-	cysteine synthase A
57	 36.33	0	77883..79118	+	411	150387910	-	Amet_0057	-	cysteine synthase
58	 40.39	0	79684..80958	+	424	150387911	-	Amet_0058	-	glutamyl-tRNA reductase
59	 41.70	+1	80971..81699	+	242	150387912	-	Amet_0059	-	siroheme synthase
60	 44.48	+1	81632..82582	+	316	150387913	-	Amet_0060	-	porphobilinogen deaminase
61	 45.13	+2	82626..84134	+	502	150387914	-	Amet_0061	-	uroporphyrin-III C-methyltransferase
62	 42.36	+1	84135..85109	+	324	150387915	-	Amet_0062	-	delta-aminolevulinic acid dehydratase
63	 42.63	+1	85091..86413	+	440	150387916	-	Amet_0063	-	glutamate-1-semialdehyde-2,1-aminomutase
64	 39.20	0	86836..87210	+	124	150387917	-	Amet_0064	-	cobalamin (vitamin B12) biosynthesis CbiX protein
65	 43.23	+1	87298..88701	+	467	150387918	-	Amet_0065	-	cobyrinic acid a,c-diamide synthase
66	 42.91	+1	88804..89325	+	173	150387919	-	Amet_0066	-	hypothetical protein
67	 41.50	+1	89315..90061	+	248	150387920	-	Amet_0067	-	hypothetical protein
68	 40.30	0	90100..90975	+	291	150387921	-	Amet_0068	-	GHMP kinase
69	 43.96	+1	90992..91612	+	206	150387922	-	Amet_0069	-	precorrin-8X methylmutase CbiC/CobH
70	 44.53	+1	91627..92760	+	377	150387923	-	Amet_0070	-	cobalamin biosynthesis protein CbiD
71	 40.10	0	92753..93373	+	206	150387924	-	Amet_0071	-	precorrin-6y C5,15-methyltransferase (decarboxylating), CbiE subunit
72	 44.33	+1	93366..93974	+	202	150387925	-	Amet_0072	-	precorrin-6Y C5,15-methyltransferase (decarboxylating), CbiT subunit
73	 40.39	0	93964..94686	+	240	150387926	-	Amet_0073	-	precorrin-2 C20-methyltransferase
74	 44.40	+1	94679..95446	+	255	150387927	-	Amet_0074	-	precorrin-4 C11-methyltransferase
75	 43.94	+1	95443..96507	+	354	150387928	-	Amet_0075	-	cobalamin (vitamin B12) biosynthesis CbiG protein
76	 44.80	+2	96579..97319	+	246	150387929	-	Amet_0076	-	precorrin-3B C17-methyltransferase
77	 43.63	+1	97316..98092	+	258	150387930	-	Amet_0077	-	precorrin-6x reductase
78	 34.93	0	98625..99125	+	166	150387931	-	Amet_0078	-	hypothetical protein
79	 32.26	-1	99267..99452	+	61	150387932	-	Amet_0079	-	hypothetical protein
80	 36.72	0	99506..99682	-	58	150387933	-	Amet_0080	-	hypothetical protein
81	 39.20	0	99846..101276	+	476	150387934	-	Amet_0081	-	Orn/Lys/Arg decarboxylase, major region
82	 39.62	0	101366..102001	+	211	150387935	-	Amet_0082	-	dTMP kinase
83	 42.42	+1	101998..102327	+	109	150387936	-	Amet_0083	-	hypothetical protein
84	 35.66	0	102347..103336	+	329	150387937	-	Amet_0084	-	DNA polymerase III, delta prime subunit
85	 37.35	0	103330..104226	+	298	150387938	-	Amet_0085	-	PSP1 domain-containing protein
86	 38.26	0	104393..105001	+	202	150387939	-	Amet_0086	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
87	 37.10	0	105104..105847	+	247	150387940	-	Amet_0087	-	putative RNA polymerase sigma factor SigI
88	 38.30	0	105840..106865	+	341	150387941	-	Amet_0088	-	hypothetical protein
89	 34.52	0	106957..107799	+	280	150387942	-	Amet_0089	-	hypothetical protein
90	 37.37	0	107951..108718	+	255	150387943	-	Amet_0090	-	methyltransferase small
91	 40.12	0	108711..109550	+	279	150387944	-	Amet_0091	-	uroporphyrin-III C/tetrapyrrole methyltransferase
92	 31.67	-1	109662..109901	-	79	150387945	-	Amet_0092	-	AbrB family transcriptional regulator
93	 36.93	0	110289..111707	+	472	150387946	-	Amet_0093	-	polynucleotide adenylyltransferase/metal dependent phosphohydrolase
94	 39.68	0	111825..113273	-	482	150387947	-	Amet_0094	-	putative nicotinate phosphoribosyltransferase
95	 40.97	+1	113529..114104	+	191	150387948	-	Amet_0095	-	nucleoside recognition domain-containing protein
96	 43.02	+1	114104..114640	+	178	150387949	-	Amet_0096	-	nucleoside recognition domain-containing protein
97	 47.71	+2	114705..115664	+	319	150387950	-	Amet_0097	-	peptidase S58, DmpA
98	 24.51	-2	115941..116507	-	188	150387951	-	Amet_0098	-	accessory gene regulator B
99	 36.56	0	116857..117228	+	123	150387952	-	Amet_0099	-	bacteriocin
100	 24.86	-2	117324..119636	+	770	150387953	-	Amet_0100	-	hypothetical protein
36.81	MEAN

3.99	STD DEV
