IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

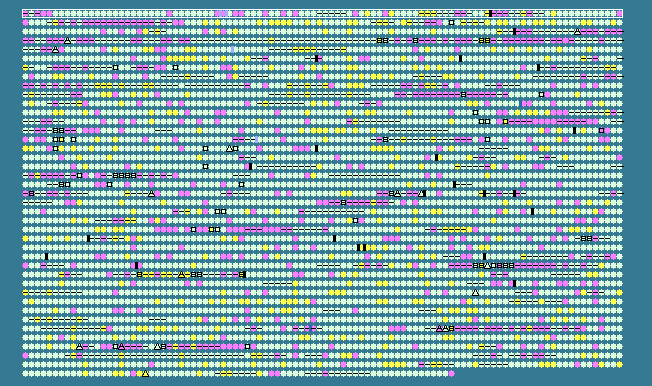

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.90   STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 41.30	-1	552..689	-	45	196154826	-	MADE_00001	-	hypothetical protein
2	 43.76	0	759..2360	+	533	196154827	-	MADE_00002	-	Chromosomal replication initiator protein dnaA
3	 40.96	-1	2393..3493	+	366	196154828	-	MADE_00003	-	DNA polymerase III, beta subunit
4	 35.96	-2	3509..3622	+	37	196154829	-	MADE_00004	-	hypothetical protein
5	 39.63	-1	3691..4707	+	338	196154830	-	MADE_00005	-	Recombinational DNA repair ATPase
6	 44.94	0	4716..7136	+	806	196154831	-	MADE_00006	-	DNA gyrase subunit B
7	 43.52	0	7346..7816	-	156	196154832	-	MADE_00007	-	hypothetical protein
8	 45.89	0	7872..9950	-	692	196154833	-	MADE_00008	-	hypothetical protein
9	 46.36	0	9953..10858	-	301	196154834	-	MADE_00009	-	glycyl-tRNA synthetase beta subunit
10	 43.35	0	11004..11612	+	202	196154835	-	MADE_00010	-	constitutive 3-methyl-adenine DNA glycosylase I
11	 45.94	0	11699..12166	-	155	196154836	-	MADE_00011	-	hypothetical protein
12	 45.63	0	12185..12688	-	167	196154837	-	MADE_00012	-	hypothetical protein
13	 43.16	0	12816..13517	-	233	196154838	-	MADE_00013	-	methyltransferase-related protein
14	 45.67	0	13812..14435	-	207	196154839	-	MADE_00014	-	cytochrome c4 cytochrome C, class I in atlantica
15	 44.44	0	14610..15248	+	212	196154840	-	MADE_00015	-	GTP-binding protein
16	 44.86	0	15632..18424	-	930	196154841	-	MADE_00016	-	DNA polymerase I
17	 46.33	0	18846..19499	+	217	196154842	-	MADE_00017	-	enhancing lycopene biosynthesis protein 2
18	 47.80	0	19688..21139	+	483	196154843	-	MADE_00018	-	Trk system potassium uptake protein TrkH
19	 48.04	0	21285..22664	-	459	196154844	-	MADE_00019	-	Trk system; major constitutive K+ transport system; potassium transport inner membrane protein subunit; six
20	 47.58	0	22730..24049	-	439	196154845	-	MADE_00020	-	16S rRNA m(5)C 967 methyltransferase
21	 46.86	0	24052..24990	-	312	196154846	-	MADE_00021	-	methionyl-tRNA formyltransferase
22	 44.51	0	25011..25520	-	169	196154847	-	MADE_00022	-	N-terminal methionine peptide deformylase
23	 43.84	0	25707..26810	+	367	196154848	-	MADE_00023	-	Peptidoglycan-binding LysM
24	 46.13	0	26850..27959	+	369	196154849	-	MADE_00024	-	DNA protecting protein DprA
25	 40.67	-1	27961..28437	+	158	196154850	-	MADE_00025	-	smg protein
26	 44.20	0	28532..29074	+	180	196154851	-	MADE_00026	-	putative DNA topoisomerase; C4 zinc finger domain protein
27	 46.86	0	29097..29702	+	201	196154852	-	MADE_00027	-	putative double-stranded RNA-binding protein with unique protein fold, with YrdC/RibB domain
28	 47.80	0	29699..30631	+	310	196154853	-	MADE_00028	-	coproporphyrinogen III oxidase
29	 44.44	0	30867..31541	+	224	196154854	-	MADE_00029	-	outer membrane protein OmpW
30	 44.68	0	31657..32088	-	143	196154855	-	MADE_00030	-	putative hemoglobin-like oxygen-binding protein
31	 44.17	0	32087..32926	+	279	196154856	-	MADE_00031	-	shikimate 5-dehydrogenase
32	 41.44	-1	32923..33465	-	180	196154857	-	MADE_00032	-	putative carbonic anhydrase/acetyltransferase
33	 37.35	-2	33757..34653	+	298	196154858	-	MADE_00033	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
34	 35.04	-2	36845..36961	-	38	196154859	-	MADE_00034	-	hypothetical protein
35	 42.18	0	40595..41125	-	176	196154860	-	MADE_00035	-	conserved protein of unknown function ; putative secreted protein
36	 39.87	-1	41262..42041	-	259	196154861	-	MADE_00036	-	hypothetical protein
37	 37.63	-2	42073..42864	-	263	196154862	-	MADE_00037	-	hypothetical protein
38	 44.71	0	43004..45964	-	986	196154863	-	MADE_00038	-	putative DNA polymerase III alpha chain
39	 44.47	0	46122..47576	-	484	196154864	-	MADE_00039	-	Nucleotidyltransferase/DNA polymerase involved in DNA repair
40	 46.52	0	47579..48283	-	234	196154865	-	MADE_00040	-	RecA/RadA recombinase
41	 34.15	-2	48282..48404	+	40	196154866	-	MADE_00041	-	hypothetical protein
42	 43.66	0	48533..49045	-	170	196154867	-	MADE_00042	-	hypothetical protein
43	 44.06	0	49048..50799	-	583	196154868	-	MADE_00043	-	hypothetical protein
44	 37.50	-2	50839..51174	-	111	196154869	-	MADE_00044	-	hypothetical protein
45	 46.70	0	51363..53000	+	545	196154870	-	MADE_00045	-	probable aminopeptidase
46	 39.58	-1	53290..54057	+	255	196154871	-	MADE_00046	-	putative lipopolysaccharide biosynthesis glycosyltransferase
47	 43.71	0	54169..54756	-	195	196154872	-	MADE_00047	-	nucleoid occlusion protein
48	 47.88	0	54878..56101	-	407	196154873	-	MADE_00048	-	DNA/pantothenate metabolism flavoprotein
49	 42.48	0	56307..56984	+	225	196154874	-	MADE_00049	-	DNA repair protein RadC
50	 48.33	+1	57077..57436	+	119	196154875	-	MADE_00050	-	hypothetycal protein
51	 43.91	0	57530..58219	+	229	196154876	-	MADE_00051	-	putative lipoprotein
52	 45.05	0	58219..58764	+	181	196154877	-	MADE_00052	-	hypothetical protein
53	 42.08	0	58788..58970	+	60	196154878	-	MADE_00053	-	WbfC protein Wbf genes involved in EPS (not LPS)
54	 46.65	0	58967..61069	+	700	196154879	-	MADE_00054	-	Fusion of WbfC- and WbfB-like uncharacterized
55	 43.46	0	61397..61633	+	78	196154880	-	MADE_00055	-	ribosomal protein L28
56	 38.46	-1	61645..61800	+	51	196154881	-	MADE_00056	-	50S ribosomal subunit protein L33
57	 44.30	0	62066..62530	+	154	196154882	-	MADE_00057	-	hypothetical protein
58	 49.51	+1	62531..63340	+	269	196154883	-	MADE_00058	-	formamidopyrimidine-DNA glycosylase
59	 44.17	0	63367..63855	-	162	196154884	-	MADE_00059	-	phosphopantetheine adenylyltransferase
60	 46.05	0	63961..64605	-	214	196154885	-	MADE_00060	-	3-deoxy-D-manno-octulosonic-acid kinase
61	 35.04	-2	64664..64780	+	38	196154886	-	MADE_00061	-	hypothetical protein
62	 49.05	+1	64780..65784	+	334	196154887	-	MADE_00062	-	putative ADP-heptose:LPS heptosyltransferase
63	 44.51	0	65874..66347	+	157	196154888	-	MADE_00063	-	hypothetical protein
64	 46.94	0	66344..67519	+	391	196154889	-	MADE_00064	-	hypothetical protein
65	 43.44	0	67529..69973	+	814	196154890	-	MADE_00065	-	GGDEF/EAL domain protein
66	 48.37	+1	70132..71328	+	398	196154891	-	MADE_00066	-	2-amino-3-ketobutyrate coenzyme A ligase
67	 48.54	+1	71325..72350	+	341	196154892	-	MADE_00067	-	L-threonine 3-dehydrogenase
68	 49.68	+1	72350..72661	+	103	196154893	-	MADE_00068	-	glpE protein
69	 49.19	+1	72834..73697	+	287	196154894	-	MADE_00069	-	putative glpG protein
70	 43.48	0	73818..74231	-	137	196154895	-	MADE_00070	-	flagellar basal body-associated protein FilL
71	 44.91	0	74380..74949	+	189	196154896	-	MADE_00071	-	hypothetical chorismate pyruvate lyase
72	 47.39	0	74946..75806	+	286	196154897	-	MADE_00072	-	4-hydroxybenzoate octaprenyltransferase
73	 39.03	-1	76025..76375	+	116	196154898	-	MADE_00073	-	hypothetical protein
74	 41.18	-1	76377..76682	+	101	196154899	-	MADE_00074	-	DNA-binding protein
75	 46.83	0	76793..77044	-	83	196154900	-	MADE_00075	-	hypothetical protein
76	 48.21	0	77156..79171	+	671	196154901	-	MADE_00076	-	ATP-dependent DNA helicase Rep
77	 45.48	0	79215..81815	-	866	196154902	-	MADE_00077	-	Intracellular signaling protein (GAF,GGDEF,EAL domains)
78	 50.74	+1	81919..82326	-	135	196154903	-	MADE_00078	-	cytochrome c5
79	 41.39	-1	82701..83693	-	330	196154904	-	MADE_00079	-	Amidophosphoribosyl transferase
80	 40.89	-1	83884..84108	-	74	196154905	-	MADE_00080	-	hypothetical protein
81	 38.60	-1	84100..84213	+	37	196154906	-	MADE_00081	-	hypothetical protein
82	 47.07	0	84477..85874	+	465	196154907	-	MADE_00082	-	Na+/H+ antiporter NhaC
83	 47.86	0	85980..86399	-	139	196154908	-	MADE_00083	-	protein of unknown function DUF395, YeeE/YedE
84	 51.98	+2	86420..86848	-	142	196154909	-	MADE_00084	-	protein of unknown function DUF395, YeeE/YedE
85	 40.18	-1	86938..87390	-	150	196154910	-	MADE_00085	-	YhdE (NsrR)
86	 46.69	0	87520..88320	+	266	196154911	-	MADE_00086	-	hypothetical protein
87	 47.60	0	88331..89185	+	284	196154912	-	MADE_00087	-	metallo-beta-lactamase family protein
88	 47.73	0	89197..90870	+	557	196154913	-	MADE_00088	-	uncharacterized NAD(FAD)-dependent dehydrogenase
89	 50.76	+1	91240..91503	+	87	196154914	-	MADE_00089	-	putative outer membrane receptor protein
90	 45.62	0	91567..92046	+	159	196154915	-	MADE_00090	-	predicted membrane protein
91	 41.98	0	92123..92608	+	161	196154916	-	MADE_00091	-	hypothetical protein
92	 43.60	0	92705..94369	-	554	196154917	-	MADE_00092	-	cysteine transport (export) protein
93	 44.68	0	94377..96068	-	563	196154918	-	MADE_00093	-	MdlB protein
94	 42.81	0	96071..97072	-	333	196154919	-	MADE_00094	-	ubiquinol oxidase subunit II, cyanide insensitive
95	 45.70	0	97075..98400	-	441	196154920	-	MADE_00095	-	putative transmembrane cytochrome bd-ii oxidase (subunit i) oxidoreductase protein
96	 44.86	0	98714..99112	-	132	196154921	-	MADE_00096	-	Rhodanese-related sulfurtransferase
97	 42.01	0	99118..99981	-	287	196154922	-	MADE_00097	-	Zn-dependent hydrolase, glyoxylase family protein
98	 45.62	0	100044..100694	-	216	196154923	-	MADE_00098	-	alkyl hydroperoxide reductase
99	 43.85	0	100829..101275	+	148	196154924	-	MADE_00099	-	hypothetical protein
100	 39.57	-1	101320..102153	-	277	196154925	-	MADE_00100	-	putative thiol:disulfide interchange protein
44.90	MEAN

3.40	STD DEV
