IslandPathversion 1.0

IslandPath Analysis: Acinetobacter sp. ADP1

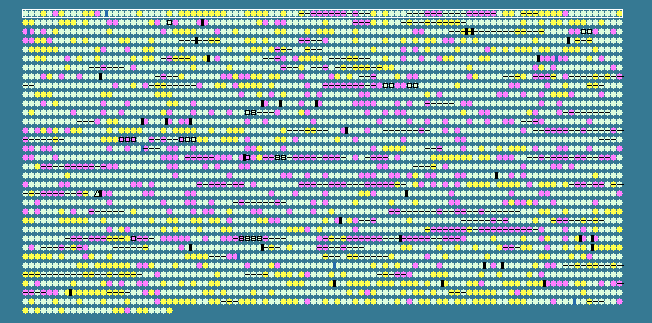

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.81 STD DEV: 4.14
Acinetobacter sp. ADP1, complete genome - 1..3598621
3325 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 43.85	0	201..1598	+	465	50083298	dnaA	ACIAD0001	-	DNA replication initiator protein, transcriptional regulator of replication and housekeeping genes
2	 44.13	0	1834..2982	+	382	50083299	dnaN	ACIAD0002	-	DNA polymerase III, beta chain
3	 42.06	0	2998..4074	+	358	50083300	recF	ACIAD0003	-	DNA replication, recombinaison and repair protein
4	 44.67	0	4127..6595	+	822	50083301	gyrB	ACIAD0004	-	DNA gyrase, subunit B (type II topoisomerase)
5	 42.62	0	6712..6948	-	78	50083302	-	ACIAD0005	-	hypothetical protein
6	 34.50	-1	6969..7139	+	56	50083303	-	ACIAD0006	-	hypothetical protein
7	 45.37	+1	7336..9270	-	644	50083304	-	ACIAD0007	-	ABC transporter ATP-binding protein
8	 43.03	0	9651..10661	+	336	50083305	-	ACIAD0008	-	putative RND type efflux pump involved in aminoglycoside resistance (AdeT)
9	 43.03	0	10910..11920	+	336	50083306	adeT	ACIAD0009	-	RND type efflux pump involved in aminoglycoside resistance
10	 41.96	0	12039..12374	+	111	50083307	-	ACIAD0010	-	iron-sulfur cluster insertion protein ErpA
11	 45.98	+1	12436..13566	-	376	50083308	anmK	ACIAD0011	-	anhydro-N-acetylmuramic acid kinase
12	 45.35	+1	13646..14860	+	404	50083309	tyrS	ACIAD0013	-	tyrosyl-tRNA synthetase
13	 37.25	0	15431..15685	+	84	50083310	-	ACIAD0014	-	hypothetical protein
14	 41.05	0	15927..17882	+	651	50083311	-	ACIAD0015	-	putative 5'-nucleotidase NucA precursor
15	 38.86	0	23916..24530	+	204	50083312	-	ACIAD0017	-	putative glutathione S-transferase
16	 41.99	0	24584..24895	+	103	50083313	-	ACIAD0018	-	hypothetical protein
17	 38.49	0	25116..25658	-	180	50083314	-	ACIAD0019	-	putative flavoprotein
18	 42.65	0	25757..26239	-	160	50083315	fkpB	ACIAD0020	-	FKBP-type peptidyl-prolyl cis-trans isomerase (rotamase)
19	 40.19	0	26232..26771	-	179	50083316	lspA	ACIAD0021	-	prolipoprotein signal peptidase (Signal peptidase II.)
20	 44.82	0	26764..29601	-	945	50083317	ileS	ACIAD0022	-	isoleucyl-tRNA synthetase
21	 44.01	0	29666..30667	-	333	50083318	ribF	ACIAD0023	-	bifunctional riboflavin kinase/FMN adenylyltransferase
22	 43.20	0	30876..32000	+	374	50083319	-	ACIAD0024	-	putative malic acid transport protein
23	 43.45	0	32045..32845	+	266	50083320	-	ACIAD0025	-	alpha/beta family hydrolase
24	 41.26	0	32918..33535	-	205	50083321	-	ACIAD0026	-	TetR/AcrR family transcriptional regulator
25	 44.50	0	33988..35097	+	369	50083322	-	ACIAD0027	-	putative enzyme (monooxygenase)
26	 43.50	0	35094..35831	+	245	50083323	-	ACIAD0028	-	putative amidohydrolase (isochorismatase)
27	 46.46	+1	35844..36224	+	126	50083324	-	ACIAD0029	-	hypothetical protein
28	 44.97	+1	36303..36869	+	188	50083325	-	ACIAD0030	-	putative flavin:NADH reductase (oxydoreductase)
29	 46.45	+1	36899..38263	+	454	50083326	-	ACIAD0031	-	putative purine permease
30	 47.08	+1	38279..39151	+	290	50083327	-	ACIAD0032	-	putative 3-hydroxyisobutyrate dehydrogenase
31	 44.69	0	39182..39991	-	269	50083328	ssuB	ACIAD0034	-	alkanesulfonate ABC transporter ATP-binding protein
32	 46.44	+1	39995..40795	-	266	50083329	ssuC	ACIAD0035	-	alkanesulfonate ABC transporter membrane protein
33	 48.11	+1	40792..41982	-	396	50083330	ssuD	ACIAD0036	-	alkanesulfonate monooxygenase
34	 44.35	0	42005..43012	-	335	50083331	ssuA	ACIAD0037	-	alkanesulfonate ABC transporter periplasmic-binding protein
35	 42.33	0	43039..44061	-	340	50083332	ssuA	ACIAD0038	-	alkanesulfonate ABC transporter periplasmic-binding protein
36	 43.95	0	44434..45789	-	451	50083333	argA	ACIAD0039	-	N-acetylglutamate synthase
37	 43.56	0	45901..46203	-	100	50083334	-	ACIAD0040	-	putative signal peptide
38	 45.10	+1	46379..46786	-	135	50083335	-	ACIAD0041	-	putative signal peptide
39	 46.99	+1	47056..47802	-	248	50083336	-	ACIAD0042	-	short chain dehydrogenase
40	 46.61	+1	47833..48540	-	235	50083337	-	ACIAD0043	-	putative phosphoglycolate phosphatase 2 (PGP 2)
41	 45.05	+1	48537..49253	-	238	50083338	ubiG	ACIAD0044	-	3-demethylubiquinone-9 3-methyltransferase
42	 41.22	0	49432..50052	+	206	50083339	dsbA	ACIAD0045	-	thiol:disulfide interchange protein, periplasmic, alkali-inducible
43	 42.67	0	50137..50811	-	224	50083340	-	ACIAD0046	-	putative transcriptional regulator
44	 46.23	+1	50905..51540	-	211	50083341	-	ACIAD0047	-	hypothetical protein
45	 42.42	0	51732..52754	+	340	50083342	-	ACIAD0048	-	putative oxidoreductase
46	 42.19	0	52789..53940	+	383	50083343	-	ACIAD0049	-	putative linoleoyl-CoA desaturase
47	 44.71	0	54008..54763	+	251	50083344	rph	ACIAD0050	-	ribonuclease PH (RNase PH), tRNA nucleotidyltransferase
48	 38.60	0	54987..55442	+	151	50083345	-	ACIAD0051	-	hypothetical protein
49	 35.52	-1	55435..55983	+	182	50083346	-	ACIAD0052	-	hypothetical protein
50	 27.01	-2	55985..56617	+	210	50083347	-	ACIAD0053	-	zinc protease
51	 22.74	-2	56618..57070	+	150	50083348	-	ACIAD0054	-	hypothetical protein
52	 20.93	-2	57346..57474	+	42	50083349	-	ACIAD0055	-	hypothetical protein
53	 25.79	-2	57531..57689	+	52	50083350	-	ACIAD0056	-	hypothetical protein
54	 31.54	-2	57779..58168	+	129	50083351	-	ACIAD0057	-	hypothetical protein
55	 39.25	0	58242..58427	+	61	50083352	-	ACIAD0058	-	hypothetical protein
56	 31.40	-2	58409..58615	+	68	50083353	-	ACIAD0059	-	hypothetical protein
57	 38.10	0	58923..59048	+	41	50083354	-	ACIAD0060	-	hypothetical protein
58	 42.16	0	59058..59261	+	67	50083355	-	ACIAD0061	-	hypothetical protein
59	 44.60	0	59258..60127	-	289	50083356	nadC	ACIAD0062	-	nicotinate-nucleotide pyrophosphorylase (quinolinate phosphoribosyltransferase)
60	 43.99	0	60290..60880	+	196	50083357	ampD	ACIAD0063	-	N-acetyl-anhydromuranmyl-L-alanine amidase
61	 46.06	+1	60933..62480	+	515	50083358	-	ACIAD0064	-	MviN family virulence factor
62	 44.21	0	62660..63358	-	232	50083359	fklB	ACIAD0065	-	FKBP-type 22KD peptidyl-prolyl cis-trans isomerase (rotamase)
63	 43.50	0	63404..64111	-	235	50083360	fkpA	ACIAD0066	-	FKBP-type peptidyl-prolyl cis-trans isomerase (rotamase)
64	 39.53	0	64281..66491	-	736	50083361	ptk	ACIAD0068	-	tyrosine-protein kinase, autophosphorylates
65	 42.13	0	66506..66937	-	143	50083362	ptp	ACIAD0069	-	low molecular weight protein-tyrosine-phosphatase
66	 43.03	0	66934..68037	-	367	50083363	wza	ACIAD0070	-	polysaccharide export protein
67	 37.97	0	68507..69670	+	387	50083364	ugd	ACIAD0072	-	UDP-glucose 6-dehydrogenase
68	 28.47	-2	69689..70573	+	294	50083365	-	ACIAD0073	-	glycosyl transferase family protein
69	 26.77	-2	70563..71492	+	309	50083366	-	ACIAD0074	-	glycosyl transferase family protein
70	 25.02	-2	71489..72739	+	416	50083367	-	ACIAD0075	-	putative polysaccharide transport protein
71	 40.15	0	72769..73839	+	356	50083368	rmlB	ACIAD0076	-	dTDP-D-glucose-4,6-dehydratase
72	 40.15	0	73858..74766	+	302	50083369	rmlD	ACIAD0078	-	dTDP-4-dehydrorhamnose reductase (dTDP-4-keto-L-rhamnose reductase) (dTDP-6-deoxy-L-mannose dehydrogenase) (dTDP-L-rhamnose synthetase)
73	 40.33	0	74767..75666	+	299	50083370	rmlA	ACIAD0079	-	dTDP-glucose pyrophosphorylase (glucose-1-phosphate thymidylyltransferase)
74	 37.94	0	75737..76300	+	187	50083371	rmlC	ACIAD0080	-	dTDP-4-keto-6-deoxy-D-glucose-3,5-epimerase
75	 29.91	-2	76314..77393	+	359	50083372	-	ACIAD0081	-	glycosyl transferase family protein
76	 26.69	-2	77383..78330	+	315	50083373	-	ACIAD0082	-	rhamnosyl transferase
77	 22.77	-2	78350..79315	+	321	50083374	-	ACIAD0083	-	putative polysaccharide polymerase
78	 29.02	-2	79335..80354	+	339	50083375	-	ACIAD0084	-	mannosyl transferase
79	 33.96	-1	80367..81164	+	265	50083376	-	ACIAD0085	-	glycosyl transferase family protein
80	 42.14	0	81192..82610	-	472	50083377	epsM	ACIAD0086	-	bifunctional mannose-6-phosphate isomerase/mannose-1-phosphate guanylyl transferase
81	 44.93	0	82926..84218	+	430	50083378	-	ACIAD0087	-	putative UDP-glucose/GDP-mannose dehydrogenase
82	 47.09	+1	84248..85279	+	343	50083379	-	ACIAD0088	-	putative NAD-dependent epimerase/dehydratase (WbpP)
83	 43.21	0	85279..86574	+	431	50083380	-	ACIAD0089	-	MviN family virulence factor
84	 47.96	+1	86571..87671	+	366	50083381	-	ACIAD0090	-	glycosyl transferase family protein
85	 45.97	+1	87684..88775	+	363	50083382	-	ACIAD0091	-	glycosyl transferase family protein
86	 49.52	+2	88784..89920	+	378	50083383	-	ACIAD0092	-	glycosyl transferase family protein
87	 46.34	+1	89914..90528	+	204	50083384	-	ACIAD0093	-	putative UDP-galactose phosphate transferase (WeeH)
88	 46.43	+1	90509..91195	+	228	50083385	-	ACIAD0094	-	putative acetyltransferase (WeeI)
89	 48.30	+1	91199..92374	+	391	50083386	per	ACIAD0095	-	perosamine synthetase (WeeJ)
90	 45.24	+1	92376..94265	+	629	50083387	-	ACIAD0096	-	putative dTDP-glucose-4,6-dehydratase/UDP-glucose 4-epimerase (WeeK) (WbpM)
91	 36.63	-1	94679..96043	+	454	50083388	-	ACIAD0098	-	putative UDP-glucose lipid carrier transferase/glucose-1-phosphate transferase in colanic acid gene cluster (WcaJ)
92	 42.68	0	96123..97010	+	295	50083389	galU	ACIAD0099	-	UTP-glucose-1-phosphate uridylyltransferase
93	 41.51	0	97037..98308	+	423	50083390	-	ACIAD0100	-	putative UDP-glucose 6-dehydrogenase (Ugd) (Udg)
94	 41.40	0	98305..99978	+	557	50083391	pgi	ACIAD0101	-	glucose-6-phosphate isomerase
95	 44.12	0	99971..100990	+	339	50083392	galE	ACIAD0102	-	UDP-glucose 4-epimerase (galactowaldenase) (UDP-galactose 4-epimerase)
96	 44.11	0	101027..102733	+	568	50083393	-	ACIAD0103	-	hypothetical protein
97	 42.94	0	102792..104165	-	457	50083394	manB	ACIAD0104	-	bifunctional phosphomannomutase/phosphoglucomutase
98	 41.00	0	104308..105207	-	299	50083395	-	ACIAD0105	-	LysR family transcriptional regulator
99	 43.66	0	105761..107416	+	551	50083396	lldP	ACIAD0106	-	L-lactate permease
100	 49.40	+2	107440..108192	+	250	50083397	lldR	ACIAD0107	-	DNA-binding transcriptional repressor LldR
40.81	MEAN

4.14	STD DEV
