IslandPathversion 1.0

IslandPath Analysis: Actinobacillus pleuropneumoniae serovar 7 str. AP76

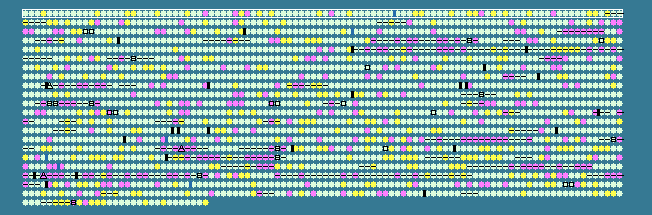

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.72 STD DEV: 3.73
Actinobacillus pleuropneumoniae serovar 7 str. AP76, complete genome - 1..2331981
2131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.81	0	2..1486	+	494	190149270	-	APP7_0001	-	chromosomal replication initiator protein
2	 44.02	0	1503..2606	+	367	190149271	-	APP7_0002	-	DNA polymerase III subunit beta
3	 43.86	0	2940..4022	+	360	190149272	-	APP7_0003	-	DNA replication and repair protein RecF
4	 46.60	+1	4078..4650	-	190	190149273	-	APP7_0004	-	superoxide dismutase [Cu-Zn] precursor
5	 43.76	0	4833..5945	+	370	190149274	-	APP7_0005	-	Aspartate-semialdehyde dehydrogenase Asd
6	 43.32	0	6072..7202	-	376	190149275	-	APP7_0006	-	outer membrane protein P2
7	 43.57	0	7347..8528	+	393	190149276	-	APP7_0007	-	Lipid-A-disaccharide synthase
8	 43.18	0	8558..9613	+	351	190149277	-	APP7_0008	-	putative protease SohB
9	 44.44	0	9849..10307	+	152	190149278	-	APP7_0009	-	hypothetical protein
10	 45.12	0	10333..11274	+	313	190149279	-	APP7_0010	-	S-adenosyl-methyltransferase MraW
11	 40.32	0	11287..11601	+	104	190149280	-	APP7_0011	-	cell division protein FtsL
12	 44.74	0	11605..13665	+	686	190149281	-	APP7_0012	-	peptidoglycan synthetase FtsI
13	 45.51	+1	13689..15191	+	500	190149282	-	APP7_0013	-	UDP-N-acetylmuramyl-tripeptide synthetase
14	 44.66	0	15406..16800	+	464	190149283	-	APP7_0014	-	UDP-MurNAc-pentapeptide synthetase
15	 43.31	0	16897..17979	+	360	190149284	-	APP7_0015	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
16	 44.32	0	18063..19373	+	436	190149285	-	APP7_0016	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamatesynthetase
17	 43.94	0	19375..20553	+	392	190149286	-	APP7_0017	-	cell division protein FtsW
18	 48.30	+1	20708..21763	+	351	190149287	-	APP7_0018	-	UDP-N-acetylglucosamine--N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N- acetylglucosamine transferase
19	 47.06	+1	21815..23242	+	475	190149288	-	APP7_0019	-	UDP-N-acetylmuramate--L-alanine ligase
20	 44.74	0	23350..24261	+	303	190149289	-	APP7_0020	-	D-alanine--D-alanine ligase
21	 41.26	0	24261..25055	+	264	190149290	-	APP7_0021	-	cell division protein FtsQ
22	 42.59	0	25081..26355	+	424	190149291	-	APP7_0022	-	cell division protein FtsA
23	 46.78	+1	26394..27605	+	403	190149292	-	APP7_0023	-	cell division protein FtsZ
24	 39.41	0	27639..28559	+	306	190149293	-	APP7_0024	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
25	 41.58	0	28721..30394	+	557	190149294	-	APP7_0025	-	DNA repair protein RecN
26	 43.73	0	30536..31939	-	467	190149295	-	APP7_0026	-	ABC transporter ATP-binding protein
27	 42.75	0	31939..32724	-	261	190149296	-	APP7_0027	-	nickel transport system permease protein
28	 45.46	+1	32727..33674	-	315	190149297	-	APP7_0028	-	ABC transporter permease protein
29	 39.94	0	33768..35342	-	524	190149298	-	APP7_0029	-	ABC transporter periplasmic protein
30	 44.40	0	35537..37117	-	526	190149299	-	APP7_0030	-	peptide chain release factor 3
31	 35.47	-1	37300..37767	+	155	190149300	-	APP7_0031	-	integral membrane protein
32	 40.50	0	37814..38329	+	171	190149301	-	APP7_0032	-	hypothetical protein
33	 42.56	0	38456..39040	+	194	190149302	-	APP7_0033	-	peptidyl-tRNA hydrolase
34	 43.86	0	39149..40240	+	363	190149303	-	APP7_0034	-	GTP-dependent nucleic acid-binding protein EngD
35	 39.50	0	40312..40749	+	145	190149304	-	APP7_0035	-	putative protein-S-isoprenylcysteine methyltransferase
36	 37.68	-1	40799..41074	-	91	190149305	-	APP7_0036	-	hypothetical protein
37	 48.39	+1	41105..41569	-	154	190149306	-	APP7_0037	-	outer membrane lipoprotein
38	 37.35	-1	41596..42192	-	198	190149307	-	APP7_0038	-	hypothetical protein
39	 43.17	0	42290..44017	+	575	190149308	-	APP7_0039	-	arginyl-tRNA synthetase
40	 46.43	+1	44161..45336	+	391	190149309	-	APP7_0040	-	hypothetical GTP-binding protein
41	 39.87	0	45411..46022	+	203	190149310	-	APP7_0041	-	hypothetical protein
42	 46.51	+1	46127..46870	-	247	190149311	-	APP7_0042	-	23S rRNA (guanosine-2'-O-)-methyltransferase
43	 39.85	0	46949..48313	-	454	190149312	-	APP7_0043	-	phosphatidylserine synthase
44	 43.27	0	48465..51281	-	938	190149313	-	APP7_0044	-	isoleucyl-tRNA synthetase
45	 42.89	0	51341..52303	-	320	190149314	-	APP7_0045	-	riboflavin biosynthesis protein
46	 40.05	0	52636..53916	+	426	190149315	-	APP7_0046	-	transcriptional regulator NadR
47	 44.21	0	53913..54611	+	232	190149316	-	APP7_0047	-	hypothetical diadenosine tetraphosphatase
48	 41.42	0	54784..55500	+	238	190149317	-	APP7_0048	-	aerobic respiration control protein ArcA
49	 41.43	0	55552..56070	+	172	190149318	-	APP7_0049	-	hypothetical protein
50	 45.62	+1	56153..56689	-	178	190149319	-	APP7_0050	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
51	 42.98	0	56744..57427	+	227	190149320	-	APP7_0051	-	hypothetical protein
52	 32.86	-2	57469..58311	+	280	190149321	-	APP7_0052	-	hypothetical protein
53	 42.25	0	58389..60350	+	653	190149322	-	APP7_0053	-	GTP-binding protein
54	 40.15	0	60509..60772	+	87	190149323	-	APP7_0054	-	glutaredoxin
55	 46.30	+1	60831..61547	-	238	190149324	-	APP7_0055	-	ribonuclease PH
56	 41.44	0	61751..62614	+	287	190149325	-	APP7_0056	-	hypothetical protein
57	 41.67	0	62623..63510	+	295	190149326	-	APP7_0057	-	hypothetical protein
58	 41.38	0	63560..63820	-	86	190149327	-	APP7_0058	-	putative ferredoxin
59	 40.00	0	63967..64596	-	209	190149328	-	APP7_0059	-	nitrate/nitrite response regulator protein
60	 43.01	0	64800..66938	+	712	190149329	-	APP7_0060	-	putative N6-adenine-specific DNA methylase
61	 40.62	0	66996..67475	+	159	190149330	-	APP7_0061	-	putative tRNA/rRNA methyltransferase
62	 40.51	0	67615..68562	-	315	190149331	-	APP7_0062	-	transaldolase
63	 38.90	0	74701..76299	+	532	190149332	-	APP7_0063	-	periplasmic dipeptide transport protein
64	 40.70	0	76464..78065	+	533	190149333	-	APP7_0064	-	periplasmic dipeptide transport protein
65	 41.39	0	78193..79197	+	334	190149334	-	APP7_0065	-	dipeptide transport system permease protein DppB
66	 45.57	+1	79275..80165	+	296	190149335	-	APP7_0066	-	dipeptide transport system permease protein DppC
67	 45.59	+1	80176..81162	+	328	190149336	-	APP7_0067	-	dipeptide transport ATP-binding protein DppD
68	 44.85	0	81175..82164	+	329	190149337	-	APP7_0068	-	dipeptide transport ATP-binding protein DppF
69	 38.44	0	82237..82647	-	136	190149338	-	APP7_0069	-	phosphate-starvation-inducible protein PsiE
70	 39.97	0	82725..83357	-	210	190149339	-	APP7_0070	-	hypothetical protein
71	 43.77	0	83412..83756	-	114	190149340	-	APP7_0071	-	hypothetical protein
72	 46.34	+1	83843..84880	-	345	190149341	-	APP7_0072	-	branched-chain-amino-acid aminotransferase
73	 40.84	0	85022..85354	-	110	190149342	-	APP7_0073	-	monothiol glutaredoxin-like protein
74	 44.44	0	85426..86091	-	221	190149343	-	APP7_0074	-	recombination protein RecR
75	 46.97	+1	86102..86431	-	109	190149344	-	APP7_0075	-	uncharacterized protein YbaB
76	 47.44	+1	86600..87457	-	285	190149345	-	APP7_0076	-	protein TonB2
77	 37.95	-1	87467..87856	-	129	190149346	-	APP7_0077	-	biopolymer transport protein ExbD2
78	 39.29	0	87901..88353	-	150	190149347	-	APP7_0078	-	biopolymer transport protein ExbB2
79	 45.26	0	88541..88867	+	108	190149348	-	APP7_0079	-	thiosulfate sulfurtransferase GlpE
80	 39.60	0	88911..89756	+	281	190149349	-	APP7_0080	-	putative thioredoxin-like protein
81	 48.28	+1	89830..90237	-	135	190149350	-	APP7_0081	-	PTS-dependent dihydroxyacetone kinase, phosphotransferase subunit DhaM
82	 44.82	0	90246..90872	-	208	190149351	-	APP7_0082	-	PTS-dependent dihydroxyacetone kinase, ADP- binding subunit DhaL
83	 45.10	0	90874..91944	-	356	190149352	-	APP7_0083	-	PTS-dependent dihydroxyacetone kinase, dihydroxyacetone-binding subunit DhaK
84	 44.65	0	92114..93067	+	317	190149353	trxB	APP7_0084	-	hypothetical protein
85	 46.61	+1	93175..93927	+	250	190149354	-	APP7_0085	-	3-deoxy-manno-octulosonate cytidylyltransferase
86	 44.23	0	94552..95322	-	256	190149355	-	APP7_0086	-	NADH pyrophosphatase
87	 40.77	0	95340..96038	-	232	190149356	-	APP7_0087	-	ribosomal large subunit pseudouridine synthase E
88	 42.05	0	96039..96887	-	282	190149357	-	APP7_0088	-	hypothetical protein
89	 38.06	0	96887..97351	-	154	190149358	fxsA	APP7_0089	-	Protein fxsA
90	 41.59	0	97374..98705	-	443	190149359	-	APP7_0090	-	Xaa-Pro dipeptidase
91	 42.92	0	98729..98968	+	79	190149360	-	APP7_0091	-	sulfurtransferase
92	 41.50	0	99018..99458	-	146	190149361	-	APP7_0092	-	hypothetical protein
93	 43.46	0	99460..100002	-	180	190149362	-	APP7_0093	-	putative GTP-binding protein EngB
94	 42.69	0	100361..100777	-	138	190149363	-	APP7_0094	-	hypothetical protein
95	 48.13	+1	100815..101645	-	276	190149364	-	APP7_0095	-	zinc transporter family protein ZIP
96	 46.95	+1	101796..103631	-	611	190149365	-	APP7_0096	-	Dihydroxy-acid dehydratase
97	 41.55	0	103749..103967	-	72	190149366	-	APP7_0097	-	Acetolactate synthase isozyme II small subunit (AHAS-II)
98	 46.22	+1	103985..105637	-	550	190149367	-	APP7_0098	-	Acetolactate synthase isozyme II large subunit (AHAS-II)
99	 42.17	0	106064..107545	+	493	190149368	-	APP7_0099	-	Cytochrome c-552 precursor
100	 44.14	0	107566..108213	+	215	190149369	-	APP7_0100	-	cytochrome c-type protein NrfB precursor
41.72	MEAN

3.73	STD DEV
