IslandPath Analysis: Acaryochloris marina MBIC11017

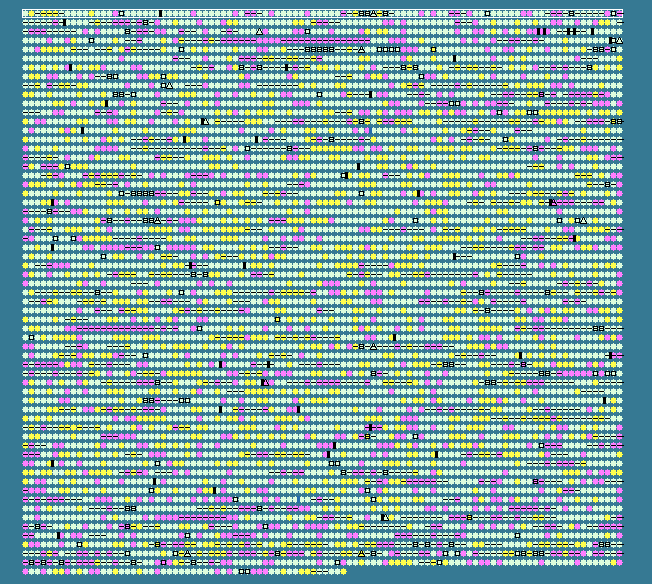

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.38   STD DEV: 4.45
Acaryochloris marina MBIC11017, complete genome - 1..6503724
6254 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 47.76	0	1627..2319	-	230	158333234	-	AM1_0003	-	NUDIX hydrolase
2	 50.94	0	2404..3255	+	283	158333235	-	AM1_0004	-	hypothetical protein
3	 49.81	0	3233..4009	+	258	158333236	-	AM1_0005	-	ADP-ribosylglycohydrolase
4	 55.18	+1	4171..6042	+	623	158333237	-	AM1_0006	-	hypothetical protein
5	 53.35	+1	6057..7085	+	342	158333238	-	AM1_0007	-	hypothetical protein
6	 52.31	+1	7272..8051	+	259	158333239	-	AM1_0008	-	hypothetical protein
7	 44.92	0	8126..8617	-	163	158333240	-	AM1_0009	-	CBS domain-containing protein
8	 46.90	0	8664..9083	-	139	158333241	aroH	AM1_0010	-	chorismate mutase
9	 48.30	0	9275..10096	-	273	158333242	sppA	AM1_0011	-	signal peptide peptidase SppA, 36K type
10	 44.20	0	10013..10150	+	45	158333243	-	AM1_0012	-	hypothetical protein
11	 50.75	0	10405..11535	+	376	158333244	-	AM1_0013	-	hypothetical protein
12	 52.12	+1	11542..12792	-	416	158333245	-	AM1_0014	-	uracil-xanthine permease
13	 47.03	0	12895..14004	-	369	158333246	-	AM1_0015	-	hypothetical protein
14	 45.17	0	14131..16395	-	754	158333247	-	AM1_0016	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor
15	 47.05	0	16489..18813	-	774	158333248	-	AM1_0017	-	sensor histidine kinase, putative
16	 40.05	-1	18826..19227	-	133	158333249	-	AM1_0018	-	response regulator
17	 48.81	0	19516..20316	+	266	158333250	-	AM1_0019	-	IS4 family transposase
18	 48.94	0	20343..21668	-	441	158333251	-	AM1_0020	-	PhoH family protein
19	 46.32	0	21929..22390	-	153	158333252	-	AM1_0021	-	hypothetical protein
20	 49.12	0	22537..25671	-	1044	158333253	-	AM1_0022	-	WD repeat-containing protein
21	 44.90	0	25697..27079	-	460	158333254	-	AM1_0023	-	TPR domain-containing protein
22	 50.59	0	27421..28359	-	312	158333255	-	AM1_0024	-	nol1/nop2/sun family protein
23	 48.01	0	28533..29159	+	208	158333256	-	AM1_0025	-	hypothetical protein
24	 49.40	0	29423..30424	+	333	158333257	-	AM1_0028	-	PfkB family kinase
25	 50.10	0	30398..30874	-	158	158333258	-	AM1_0027	-	hypothetical protein
26	 46.20	0	30977..31660	+	227	158333259	-	AM1_0029	-	LuxR family transcriptional regulator
27	 49.10	0	31872..33323	+	483	158333260	-	AM1_0030	-	pentapeptide repeat-containing protein
28	 49.22	0	33359..34762	-	467	158333261	pao	AM1_0031	-	pheophorbide A oxygenase
29	 32.31	-2	35158..35352	+	64	158333262	-	AM1_0032	-	hypothetical protein
30	 44.77	0	35374..35880	-	168	158333263	-	AM1_0033	-	HAD superfamily hydrolase
31	 47.87	0	35904..37004	-	366	158333264	-	AM1_0034	-	periplasmic solute-binding protein, putative
32	 44.32	0	37033..37587	-	184	158333265	-	AM1_0035	-	hypothetical protein
33	 48.28	0	37712..38146	-	144	158333266	-	AM1_0036	-	Holliday junction resolvase-like protein
34	 48.89	0	38152..39366	-	404	158333267	-	AM1_0037	-	acetyltransferase
35	 50.64	0	39603..40769	-	388	158333268	-	AM1_0038	-	hypothetical protein
36	 39.53	-1	40992..41120	-	42	158333269	-	AM1_0039	-	hypothetical protein
37	 46.57	0	41419..43209	-	596	158333270	-	AM1_0040	-	carbohydrate porin
38	 36.11	-2	43400..43543	-	47	158333271	-	AM1_0041	-	hypothetical protein
39	 37.95	-2	43917..44111	+	64	158333272	-	AM1_0042	-	hypothetical protein
40	 50.45	0	44143..44808	+	221	158333273	nblB	AM1_0043	-	HEAT repeat-containing PBS lyase
41	 49.85	0	44798..45481	+	227	158333274	-	AM1_0044	-	short-chain dehydrogenase/reductase SDR
42	 37.78	-2	45530..45799	+	89	158333275	-	AM1_0045	-	hypothetical protein
43	 44.99	0	45878..46366	+	162	158333276	-	AM1_0046	-	ATP binding protein, putative
44	 46.59	0	46449..46976	+	175	158333277	-	AM1_0047	-	hypothetical protein
45	 45.70	0	47266..49698	+	810	158333278	-	AM1_0048	-	GAF domain-containing protein
46	 50.59	0	49791..50555	-	254	158333279	-	AM1_0049	-	nucleoside-diphosphate-sugar epimerase, putative
47	 45.33	0	50687..50986	-	99	158333280	-	AM1_0050	-	hypothetical protein
48	 42.65	-1	51179..51940	-	253	158333281	-	AM1_0051	-	hypothetical protein
49	 48.48	0	52360..52623	-	87	158333282	-	AM1_0052	-	hypothetical protein
50	 47.06	0	52907..53416	+	169	158333283	-	AM1_0053	-	hypothetical protein
51	 48.77	0	53429..54646	-	405	158333284	-	AM1_0054	-	hypothetical protein
52	 46.41	0	54650..55873	-	407	158333285	-	AM1_0055	-	leucine-rich repeat-containing protein
53	 49.17	0	55937..56479	-	180	158333286	-	AM1_0056	-	hypothetical protein
54	 37.72	-2	56549..56662	+	37	158333287	-	AM1_0057	-	hypothetical protein
55	 46.55	0	56869..57216	+	115	158333288	-	AM1_0058	-	hypothetical protein
56	 50.92	0	57306..57686	+	126	158333289	-	AM1_0059	-	hypothetical protein
57	 48.39	0	57742..58671	+	309	158333290	-	AM1_0060	-	IS4 family transposase
58	 46.41	0	59103..59408	+	101	158333291	-	AM1_0061	-	transposase
59	 48.83	0	59402..60259	+	285	158333292	-	AM1_0062	-	integrase, catalytic region
60	 54.61	+1	60296..60436	-	46	158333293	-	AM1_0063	-	hypothetical protein
61	 48.76	0	61041..62291	-	416	158333294	-	AM1_0064	-	transposase mutator family protein
62	 44.03	0	62478..62795	-	105	158333295	-	AM1_0065	-	cupin family protein
63	 49.02	0	62815..63222	-	135	158333296	-	AM1_0066	-	hypothetical protein
64	 50.50	0	63308..65101	-	597	158333297	typA	AM1_0067	-	GTP-binding protein TypA/BipA
65	 46.83	0	65314..70041	+	1575	158333298	-	AM1_0068	-	two-component hybrid histidine kinase sensor and regulator
66	 46.61	0	70390..71421	+	343	158333299	-	AM1_0069	-	diguanylate cyclase
67	 43.84	0	71535..71972	+	145	158333300	-	AM1_0070	-	hypothetical protein
68	 44.63	0	71990..73042	-	350	158333301	idiA	AM1_0071	-	iron deficiency induced protein A
69	 42.12	-1	73482..73811	+	109	158333302	-	AM1_0072	-	hypothetical protein
70	 46.20	0	73899..75623	-	574	158333303	-	AM1_0073	-	mechanosensitive ion channel, putative
71	 49.18	0	75663..80873	-	1736	158333304	-	AM1_0074	-	hypothetical protein
72	 37.04	-2	81323..83506	+	727	158333305	-	AM1_0075	-	hemagglutination activity domain-containing protein
73	 42.67	-1	83571..83720	+	49	158333306	-	AM1_0076	-	hypothetical protein
74	 48.06	0	83717..84205	+	162	158333307	-	AM1_0077	-	hypothetical protein
75	 42.86	-1	84192..84338	+	48	158333308	-	AM1_0078	-	hypothetical protein
76	 45.28	0	84449..85570	+	373	158333309	corA	AM1_0079	-	magnesium and cobalt transport protein CorA
77	 47.50	0	85674..86513	+	279	158333310	-	AM1_0080	-	hypothetical protein
78	 48.81	0	86654..87454	+	266	158333311	-	AM1_0081	-	IS4 family transposase
79	 46.51	0	87745..88260	+	171	158333312	-	AM1_0082	-	TPR repeat-containing protein
80	 45.82	0	88341..89213	+	290	158333313	-	AM1_0083	-	rhomboid family protein
81	 48.41	0	89647..91185	+	512	158333314	-	AM1_0084	-	phosphoglucomutase/phosphomannomutase family protein
82	 46.32	0	91200..92054	-	284	158333315	secD	AM1_0085	-	protein-export membrane protein SecD, putative
83	 47.11	0	92204..93379	+	391	158333316	-	AM1_0086	-	esterase/lipase/thioesterase, putative
84	 38.46	-2	93457..93573	-	38	158333317	-	AM1_0087	-	hypothetical protein
85	 41.41	-1	93723..95060	+	445	158333318	-	AM1_0088	-	hypothetical protein
86	 45.09	0	95193..95660	+	155	158333319	-	AM1_0089	-	pyridoxamine 5'-phosphate oxidase family protein, N-terminus
87	 50.75	0	95663..97660	-	665	158333320	-	AM1_0090	-	glycogen debranching protein
88	 47.80	0	97763..98467	-	234	158333321	-	AM1_0091	-	carbonic anhydrase
89	 41.33	-1	98427..98576	-	49	158333322	-	AM1_0092	-	hypothetical protein
90	 34.09	-2	98546..98677	+	43	158333323	-	AM1_0093	-	hypothetical protein
91	 46.06	0	98833..98997	+	54	158333324	-	AM1_0094	-	hypothetical protein
92	 45.22	0	99022..100266	-	414	158333325	-	AM1_0095	-	transposase
93	 50.43	0	100520..100636	+	38	158333326	-	AM1_0096	-	hypothetical protein
94	 45.83	0	100633..101184	+	183	158333327	-	AM1_0097	-	hypothetical protein
95	 49.17	0	101177..101296	+	39	158333328	-	AM1_0098	-	hypothetical protein
96	 48.61	0	101485..102453	-	322	158333329	-	AM1_0099	-	hypothetical protein
97	 46.06	0	102580..102744	+	54	158333330	-	AM1_0100	-	hypothetical protein
98	 36.25	-2	103272..103853	-	193	158333331	-	AM1_0101	-	hypothetical protein
99	 48.76	0	104366..105616	+	416	158333332	-	AM1_0102	-	transposase mutator family protein
100	 41.88	-1	105735..105851	-	38	158333333	-	AM1_0103	-	hypothetical protein
47.38	MEAN

4.45	STD DEV
