IslandPath Analysis: Thermotoga maritima MSB8

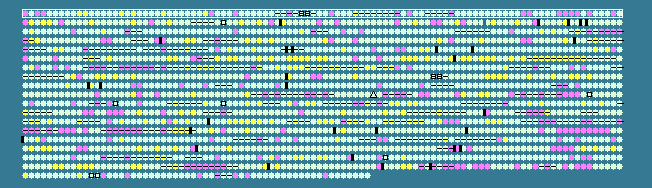

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.09   STD DEV: 3.37
Thermotoga maritima, complete genome - 0..1860725
1858 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 37.30 -2      323..448      	 +	41	15642776	-	TM0001	-	hypothetical protein
2	 42.86         483..608      	 -	41	15642777	-	TM0002	-	hypothetical protein
3	 39.02 -2     1767..1889     	 +	40	15642778	-	TM0003	-	hypothetical protein
4	 34.38 -2     1927..2022     	 +	31	15642779	-	TM0004	-	hypothetical protein
5	 46.75        3155..5107     	 -	650	15642780	-	TM0005	L	DNA helicase, putative
6	 47.50        5104..6141     	 -	345	15642781	-	TM0006	H	muconate cycloisomerase
7	 46.77        6145..7461     	 -	438	15642782	-	TM0007	E	hypothetical protein
8	 46.67        7495..8169     	 +	224	15642783	-	TM0008	R	conserved hypothetical protein
9	 47.79        8205..8633     	 -	142	15642784	-	TM0009	S	hypothetical protein
10	 50.66 +1     8630..10453    	 -	607	15642785	-	TM0010	C	NADP-reducing hydrogenase, subunit C
11	 50.65 +1    10472..10858    	 -	128	15642786	-	TM0011	C	NADP-reducing hydrogenase, subunit B
12	 48.78       10855..11385    	 -	176	15642787	-	TM0012	C	NADP-reducing hydrogenase, subunit A
13	 46.06       11547..12308    	 +	253	15642788	-	TM0013	C	conserved hypothetical protein
14	 44.32       12318..13154    	 +	278	15642789	-	TM0014	N	methyl-accepting chemotaxis protein, putative
15	 49.05       13245..13823    	 +	192	15642790	-	TM0015	C	pyruvate ferredoxin oxidoreductase, gamma subunit
16	 46.08       13830..14135    	 +	101	15642791	-	TM0016	C	pyruvate ferredoxin oxidoreductase, delta subunit
17	 50.55 +1    14132..15316    	 +	394	15642792	-	TM0017	C	pyruvate ferredoxin oxidoreductase, alpha subunit
18	 48.92       15331..16305    	 +	324	15642793	-	TM0018	C	pyruvate ferredoxin oxidoreductase, beta subunit
19	 50.19 +1    16347..17117    	 +	256	15642794	-	TM0019	Q	oxidoreductase, short chain dehydrogenase/reductase family
20	 48.18       17114..17497    	 +	127	15642795	-	TM0020	D	conserved hypothetical protein
21	 44.34       17494..17802    	 +	102	15642796	-	TM0021	S	conserved hypothetical protein
22	 45.78       17799..19349    	 -	516	15642797	-	TM0022	L	DNA mismatch repair protein
23	 48.10       19428..21398    	 -	656	15642798	-	TM0023	N	methyl-accepting chemotaxis protein
24	 49.82 +1    21459..23387    	 -	642	15642799	-	TM0024	G	laminarinase
25	 47.28       23400..25565    	 -	721	15642800	-	TM0025	G	beta-glucosidase
26	 43.00       25549..25755    	 -	68	15642801	-	TM0026	-	hypothetical protein
27	 46.72       25755..26561    	 -	268	15642802	-	TM0027	E	oligopeptide ABC transporter, ATP-binding protein
28	 44.81       26558..27550    	 -	330	15642803	-	TM0028	E	oligopeptide ABC transporter, ATP-binding protein
29	 47.09       27554..28396    	 -	280	15642804	-	TM0029	E	oligopeptide ABC transporter, permease protein
30	 44.74       28400..29416    	 -	338	15642805	-	TM0030	E	oligopeptide ABC transporter, permease protein
31	 49.97 +1    29479..31299    	 -	606	15642806	-	TM0031	E	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
32	 40.66 -1    31324..32469    	 -	381	15642807	-	TM0032	K	transcriptional regulator, XylR-related
33	 46.46       32828..34015    	 +	395	15642808	-	TM0033	E	hypothetical protein
34	 47.21       34103..35176    	 +	357	15642809	-	TM0034	R	iron-sulfur cluster-binding protein
35	 45.88       35265..36722    	 +	485	15642810	-	TM0035	-	hypothetical protein
36	 41.52 -1    36719..37243    	 +	174	15642811	-	TM0036	R	conserved hypothetical protein
37	 44.52       37240..38490    	 +	416	15642812	-	TM0037	T	conserved hypothetical protein
38	 46.56       38501..38863    	 +	120	15642813	-	TM0038	H	6-pyruvoyl tetrahydrobiopterin synthase, putative
39	 45.13       38860..39639    	 +	259	15642814	-	TM0039	S	conserved hypothetical protein
40	 45.16       39643..40479    	 +	278	15642815	-	TM0040	H	dihydropteroate synthase
41	 45.64       40539..40928    	 +	129	15642816	-	TM0041	H	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
42	 44.91       40912..41991    	 -	359	15642817	-	TM0042	E	aminopeptidase P, putative
43	 43.53       42004..43749    	 -	581	15642818	-	TM0043	Q	ABC transporter, ATP-binding protein
44	 44.81       43768..44403    	 -	211	15642819	-	TM0044	-	hypothetical protein
45	 41.78 -1    44428..44652    	 +	74	15642820	-	TM0045	-	hypothetical protein
46	 47.50       44686..44805    	 -	39	15642821	-	TM0046	-	hypothetical protein
47	 48.03       44790..46007    	 -	405	15642822	-	TM0047	L	transposase, putative
48	 48.01       45992..46318    	 -	108	15642823	-	TM0048	L	transposase
49	 45.93       46296..47081    	 +	261	15642824	-	TM0049	C	iron-sulfur cluster-binding protein
50	 44.52       47182..47646    	 +	154	15642825	-	TM0050	P	iron(II) transport protein A
51	 45.92       47615..49624    	 +	669	15642826	-	TM0051	P	iron(II) transport protein B
52	 41.14 -1    49621..49953    	 +	110	15642827	-	TM0052	-	hypothetical protein
53	 44.20       49950..51044    	 +	364	15642828	-	TM0053	-	esterase, putative
54	 44.50       51041..51631    	 +	196	15642829	-	TM0054	-	hypothetical protein
55	 44.59       51632..53656    	 -	674	15642830	-	TM0055	G	alpha-glucuronidase
56	 49.92 +1    53713..55695    	 -	660	15642831	-	TM0056	E	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein, putative
57	 45.23       55700..56716    	 -	338	15642832	-	TM0057	E	oligopeptide ABC transporter, ATP-binding protein
58	 44.28       56713..57708    	 -	331	15642833	-	TM0058	E	oligopeptide ABC transporter, ATP-binding protein
59	 45.82       57722..58810    	 -	362	15642834	-	TM0059	E	oligopeptide ABC transporter, permease protein
60	 46.10       58839..59825    	 -	328	15642835	-	TM0060	E	oligopeptide ABC transporter, permease protein
61	 49.18       60144..63323    	 +	1059	15642836	-	TM0061	G	endo-1,4-beta-xylanase A
62	 47.04       63379..63918    	 +	179	15642837	-	TM0062	-	hypothetical protein
63	 39.82 -1    63965..64411    	 -	148	15642838	-	TM0063	-	hypothetical protein
64	 46.90       64423..65778    	 -	451	15642839	-	TM0064	G	uronate isomerase, putative
65	 41.70 -1    65880..66620    	 +	246	15642840	-	TM0065	K	transcriptional regulator, IclR family
66	 47.73       66683..67300    	 +	205	15642841	-	TM0066	G	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
67	 46.86       67297..68316    	 +	339	15642842	-	TM0067	G	2-keto-3-deoxygluconate kinase
68	 44.75       68329..69948    	 +	539	15642843	-	TM0068	G	D-mannonate oxidoreductase, putative
69	 45.52       69945..71027    	 +	360	15642844	-	TM0069	G	D-mannonate hydrolase
70	 42.62 -1    71049..72092    	 -	347	15642845	-	TM0070	G	endo-1,4-beta-xylanase B
71	 46.59       72312..74189    	 +	625	15642846	-	TM0071	E	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
72	 42.36 -1    74266..75273    	 +	335	15642847	-	TM0072	E	oligopeptide ABC transporter, permease protein
73	 46.53       75281..76144    	 +	287	15642848	-	TM0073	E	oligopeptide ABC transporter, permease protein
74	 46.95       76155..77153    	 +	332	15642849	-	TM0074	E	oligopeptide ABC transporter, ATP-binding protein
75	 48.29       77140..78102    	 +	320	15642850	-	TM0075	E	oligopeptide ABC transporter, ATP-binding protein
76	 48.91       78140..80476    	 +	778	15642851	-	TM0076	G	xylosidase
77	 49.28       80481..81458    	 +	325	15642852	-	TM0077	Q	acetyl xylan esterase
78	 45.78       81441..82211    	 -	256	15642853	-	TM0078	P	iron(III) ABC transporter, ATP-binding protein
79	 46.85       82213..83181    	 -	322	15642854	-	TM0079	P	iron(III) ABC transporter, permease protein
80	 48.28       83178..84167    	 -	329	15642855	-	TM0080	P	iron(III) ABC transporter, periplasmic-binding protein, putative
81	 46.00       84320..84769    	 -	149	15642856	-	TM0081	S	conserved hypothetical protein
82	 47.98       84774..85688    	 -	304	15642857	-	TM0082	N	flagellar hook-associated protein 3
83	 48.39       85694..88270    	 -	858	15642858	-	TM0083	N	flagellar hook-associated protein 1
84	 40.46 -1    88368..88718    	 -	116	15642859	-	TM0084	-	hypothetical protein
85	 42.55 -1    88715..88996    	 -	93	15642860	-	TM0085	K	hypothetical protein
86	 46.13       89061..90482    	 +	473	15642861	-	TM0086	R	virulence factor MviN-related protein
87	 48.68       90463..91296    	 -	277	15642862	-	TM0087	R	conserved hypothetical protein
88	 44.06       91293..95150    	 -	1285	15642863	-	TM0088	N	comE protein, putative
89	 44.81       95157..95618    	 -	153	15642864	-	TM0089	-	hypothetical protein
90	 40.77 -1    95615..96031    	 -	138	15642865	-	TM0090	-	hypothetical protein
91	 37.70 -2    96028..96576    	 -	182	15642866	-	TM0091	-	hypothetical protein
92	 38.81 -2    96548..97441    	 -	297	15642867	-	TM0092	-	hypothetical protein
93	 38.28 -2    97530..97913    	 -	127	15642868	-	TM0093	-	hypothetical protein
94	 44.25       97910..99109    	 -	399	15642869	-	TM0094	N	general secretion pathway protein F, putative
95	 40.46 -1    99111..99587    	 -	158	15642870	-	TM0095	S	conserved hypothetical protein
96	 44.08       99584..100504   	 -	306	15642871	-	TM0096	R	conserved hypothetical protein
97	 44.66      100494..101111   	 -	205	15642872	-	TM0097	H	conserved hypothetical protein
98	 47.17      101068..102375   	 -	435	15642873	-	TM0098	R	conserved hypothetical protein
99	 42.25 -1   102372..103145   	 -	257	15642874	-	TM0099	-	hypothetical protein
100	 45.91      103127..105193   	 -	688	15642875	-	TM0100	L	DNA ligase


 46.09 MEAN

 3.37  STD DEV
