IslandPath Analysis: Nostoc sp. PCC 7120

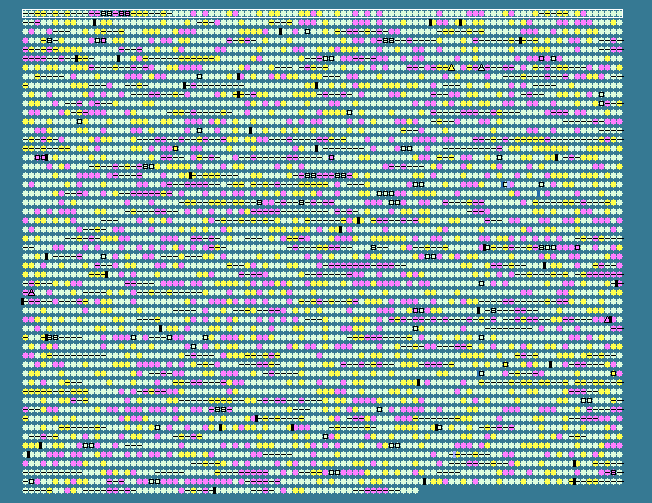

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 42.00   STD DEV: 4.11
Nostoc sp. PCC 7120 complete genome - 0..6413771
5366 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 40.38         981..1718     	 -	245	17227498	-	all0002	-	unknown protein
2	 42.33        2617..2805     	 -	62	17227499	-	asl0003	-	unknown protein
3	 47.89 +1     3418..4365     	 -	315	17227500	atpC	all0004	-	ATP synthase subunit gamma
4	 46.55 +1     4454..5974     	 -	506	17227501	atpA	all0005	-	ATP synthase subunit alpha
5	 44.57        6138..6689     	 -	183	17227502	atpD	all0006	-	ATP synthase subunit delta
6	 46.81 +1     6686..7249     	 -	187	17227503	atpF	all0007	-	ATP synthase subunit b
7	 45.33        7359..7850     	 -	163	17227504	atpG	all0008	-	ATP synthase subunit b
8	 47.56 +1     7996..8241     	 -	81	17227505	atpH	asl0009	-	ATP synthase subunit c
9	 42.99        8324..9079     	 -	251	17227506	atpI	all0010	-	ATP synthase subunit a
10	 40.65        9132..9500     	 -	122	17227507	atp1	all0011	-	ATP synthase subunit 1
11	 43.33       10130..11329    	 -	399	17227508	-	all0012	-	hypothetical protein
12	 34.71 -1    11560..11850    	 +	96	17227509	-	asr0013	-	unknown protein
13	 30.30 -2    11847..12275    	 +	142	17227510	-	alr0014	-	unknown protein
14	 43.54       12728..13168    	 -	146	17227511	-	all0015	-	transposase
15	 45.31       13138..13521    	 -	127	17227512	-	all0016	-	transposase
16	 28.74 -2    13600..14121    	 -	173	17227513	-	all0017	-	unknown protein
17	 32.32 -2    14319..14714    	 +	131	17227514	-	alr0018	-	transposase
18	 34.95 -1    14903..15274    	 +	123	17227515	-	alr0019	-	transposase
19	 46.34 +1    15778..19176    	 +	1132	17227516	apcE	alr0020	-	phycobilisome core-membrane linker protein
20	 50.62 +2    19615..20100    	 +	161	17227517	apcA	alr0021	-	allophycocyanin alpha subunit
21	 47.24 +1    20166..20654    	 +	162	17227518	apcB	alr0022	-	allophycocyanin beta subunit
22	 44.93       20870..21076    	 +	68	17227519	apcC	asr0023	-	phycobilisome core linker protein Lc7.8
23	 42.00       21221..22039    	 +	272	17227520	-	alr0024	-	hypothetical protein
24	 47.17 +1    22144..22584    	 -	146	17227521	-	all0025	-	hypothetical protein
25	 40.09       22723..22944    	 -	73	17227522	-	asl0026	-	unknown protein
26	 42.28       23018..23263    	 -	81	17227523	-	asl0027	-	unknown protein
27	 40.15       23449..23844    	 -	131	17227524	-	all0028	-	unknown protein
28	 42.59       24350..28033    	 +	1227	17227525	-	alr0029	-	WD-40 repeat protein
29	 38.13       28285..30057    	 +	590	17227526	-	alr0030	-	similar to Mg-protoporphyrin IX monomethyl ester oxidative cyclase
30	 41.51       30263..31741    	 +	492	17227527	-	alr0031	-	glycogen (starch) synthase
31	 37.15 -1    31875..33290    	 -	471	17227528	-	all0032	-	isochorismate synthase
32	 41.61       33548..34477    	 +	309	17227529	menA	alr0033	-	DHNA phythltransferase
33	 45.28       34486..35448    	 +	320	17227530	menC	alr0034	-	O-succinylbenzoic acid synthase
34	 40.91       35433..36884    	 +	483	17227531	menE	alr0035	-	O-succinylbenzoyl-CoA synthetase
35	 46.53 +1    36976..38331    	 -	451	17227532	murF	all0036	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2, 6-diaminopimelate--D-alanyl-D-alanine ligase
36	 37.36 -1    38535..38981    	 -	148	17227533	-	all0037	-	unknown protein
37	 43.32       39857..40927    	 +	356	17227534	rfbB	alr0038	-	dTDP-glucose 4-6-dehydratase
38	 43.49       40951..41826    	 +	291	17227535	-	alr0039	-	putative hydrolase
39	 42.34       41960..43492    	 -	510	17227536	-	all0040	-	unknown protein
40	 45.98       43542..44498    	 -	318	17227537	-	all0041	-	hypothetical protein
41	 43.35       44511..45458    	 -	315	17227538	-	all0042	-	hypothetical protein
42	 45.71       46643..46852    	 +	69	17227539	-	asr0043	-	hypothetical protein
43	 45.74       46892..47278    	 +	128	17227540	-	alr0044	-	hypothetical protein
44	 45.32       47278..47736    	 +	152	17227541	-	alr0045	-	hypothetical protein
45	 38.78       47902..48195    	 -	97	17227542	-	asl0046	-	hypothetical protein
46	 43.98       48470..50065    	 -	531	17227543	-	all0047	-	hypothetical protein
47	 49.01 +1    50091..50696    	 -	201	17227544	-	all0048	-	hypothetical protein
48	 47.08 +1    51283..53319    	 -	678	17227545	mutS	all0049	-	DNA mismatch repair protein
49	 38.05       53882..54919    	 -	345	17227546	-	all0050	-	unknown protein
50	 46.65 +1    55119..56282    	 +	387	17227547	-	alr0051	-	IMP dehydrogenase
51	 45.06       56642..56965    	 +	107	17227548	trxA	alr0052	-	thioredoxin
52	 43.46       57224..58309    	 +	361	17227549	-	alr0053	-	hypothetical protein
53	 46.52 +1    58472..59791    	 +	439	17227550	-	alr0054	-	hypothetical protein
54	 38.99       60168..61811    	 +	547	17227551	-	alr0055	-	hypothetical protein
55	 42.98       61836..62198    	 +	120	17227552	-	alr0056	-	similar to DOPA-dioxygenase
56	 34.52 -1    62218..62385    	 +	55	17227553	-	asr0057	-	unknown protein
57	 42.50       62394..63419    	 +	341	17227554	-	alr0058	-	D-lactate dehydrogenase
58	 38.14       63555..65738    	 -	727	17227555	-	all0059	-	hypothetical protein
59	 42.71       66556..66843    	 -	95	17227556	-	asl0060	-	hypothetical protein
60	 33.57 -2    67154..67987    	 -	277	17227557	-	all0061	-	site-specific DNA-methyltransferase
61	 41.55       68148..68354    	 +	68	17227558	-	asr0062	-	hypothetical protein
62	 44.28       68534..68935    	 +	133	17227559	rbfA	alr0063	-	ribosome binding facror A
63	 44.73       69988..70224    	 +	78	17227560	-	asr0064	-	hypothetical protein
64	 44.73       70601..70951    	 -	116	17227561	-	all0065	-	hypothetical protein
65	 41.83       71103..71702    	 -	199	17227562	-	all0066	-	dCTP deaminase
66	 43.20       71745..72281    	 -	178	17227563	-	all0067	-	cob(I)alamin adenosyltransferase
67	 43.60       72595..73149    	 +	184	17227564	-	alr0068	-	adenylate kinase
68	 43.68       73290..74033    	 +	247	17227565	-	alr0069	-	ribonuclease PH
69	 43.17       74146..74958    	 -	270	17227566	-	all0070	-	superoxide dismutase
70	 33.49 -2    75171..75794    	 -	207	17227567	-	all0071	-	unknown protein
71	 45.33       75965..76639    	 +	224	17227568	-	alr0072	-	two-component response regulator
72	 43.06       76760..77551    	 +	263	17227569	hisB	alr0073	-	imidazoleglycerol-phosphate dehydratase
73	 41.20       78171..79187    	 +	338	17227570	-	alr0074	-	putative glycosyl transferase
74	 42.89       79339..80814    	 +	491	17227571	-	alr0075	-	hypothetical protein
75	 38.37       80974..81747    	 +	257	17227572	-	alr0076	-	hypothetical protein
76	 32.77 -2    81759..82652    	 +	297	17227573	-	alr0077	-	ABC transporter (ATP-binding protein)
77	 34.59 -1    82725..83282    	 +	185	17227574	-	alr0078	-	unknown protein
78	 43.53       83290..84525    	 +	411	17227575	-	alr0079	-	esterase
79	 40.57       84908..85294    	 +	128	17227576	-	alr0080	-	hypothetical protein
80	 43.84       85949..86167    	 +	72	17227577	-	asr0081	-	unknown protein
81	 48.53 +1    86231..87421    	 -	396	17227578	ribD	all0082	-	riboflavin biosynthesis protein
82	 37.68 -1    87523..87936    	 +	137	17227579	-	alr0083	-	fdxN element excision controlling factor XisH homolog
83	 41.80       87929..88306    	 +	125	17227580	-	alr0084	-	fdxN element excision controlling factor XisI homolog
84	 44.05       88561..89073    	 -	170	17227581	-	all0085	-	unknown protein
85	 44.40       89188..90009    	 -	273	17227582	mreC	all0086	-	rod shape-determining protein
86	 46.74 +1    90105..91148    	 -	347	17227583	mreB	all0087	-	rod shape-determining protein
87	 42.22       91483..91842    	 +	119	17227584	-	alr0088	-	single-stranded DNA-binding protein
88	 46.55 +1    91903..92568    	 -	221	17227585	-	all0089	-	hypothetical protein
89	 41.52       92574..92744    	 -	56	17227586	-	asl0090	-	unknown protein
90	 46.09       93059..94516    	 +	485	17227587	-	alr0091	-	Na+/H+-exchanging protein
91	 46.66 +1    95168..97051    	 +	627	17227588	-	alr0092	-	N-acetylmuramoyl-L-alanine amidase
92	 45.22       97350..99233    	 +	627	17227589	-	alr0093	-	N-acetylmuramoyl-L-alanine amidase
93	 46.30 +1    99384..100262   	 +	292	17227590	-	alr0094	-	glutamate racemase
94	 34.76 -1   100490..100699   	 -	69	17227591	-	asl0095	-	unknown protein
95	 44.86      101711..102682   	 +	323	17227592	sds	alr0096	-	solanesyl diphosphate synthase
96	 43.59      102778..102933   	 -	51	17227593	-	asl0097	-	unknown protein
97	 40.61      103430..103594   	 +	54	17227594	-	asr0098	-	unknown protein
98	 43.43      103683..104663   	 +	326	17227595	-	alr0099	-	unknown protein
99	 42.37      104656..104832   	 +	58	17227596	-	asr0100	-	unknown protein
100	 42.99      104851..105627   	 +	258	17227597	-	alr0101	-	unknown protein


 42.00 MEAN

 4.11  STD DEV
