IslandPath Analysis: Neisseria meningitidis serogroup A strain Z2491

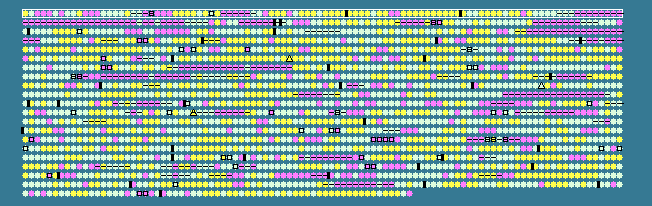

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.74   STD DEV: 7.10
Neisseria meningitidis serogroup A strain Z2491 complete genome - 0..2184406
2065 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 56.39          38..358      	 -	106	15793035	NMA0001	NMA0001	G	hypothetical protein NMA0001
2	 52.30         414..2438     	 -	674	15793036	nuoL	NMA0002	C	NADH dehydrogenase I chain L
3	 39.77 -1     2487..2828     	 -	113	15793037	NMA0003	NMA0003	-	hypothetical protein NMA0003
4	 46.35        2952..3527     	 -	191	15793038	NMA0004	NMA0004	D	hypothetical protein NMA0004
5	 47.71        3561..3866     	 -	101	15793039	nuoK	NMA0005	C	NADH dehydrogenase I chain K
6	 50.89        3863..4534     	 -	223	15793040	nuoJ	NMA0006	C	NADH dehydrogenase I chain J
7	 32.49 -2     4570..5277     	 -	235	15793041	NMA0007	NMA0007	-	hypothetical protein NMA0007
8	 51.46        5308..5787     	 -	159	15793042	nuoI	NMA0008	C	NADH dehydrogenase I chain I
9	 51.72        5867..6943     	 -	358	15793043	nuoH	NMA0009	C	NADH dehydrogenase I chain H
10	 55.31        6946..9207     	 -	753	15793044	nuoG	NMA0010	C	NADH dehydrogenase I chain G
11	 38.89 -1     9489..9758     	 -	89	15793045	NMA0011	NMA0011	L	hypothetical protein NMA0011
12	 39.33 -1     9778..9927     	 -	49	15793046	NMA0012	NMA0012	-	hypothetical protein NMA0012
13	 33.11 -2    10044..10481    	 -	145	15793047	NMA0013	NMA0013	-	hypothetical protein NMA0013
14	 53.76       10481..11782    	 -	433	15793048	nuoF	NMA0014	C	NADH dehydrogenase I chain F
15	 51.69       12172..12645    	 -	157	15793049	nuoE	NMA0015	C	NADH dehydrogenase I chain E
16	 54.73       12645..13901    	 -	418	15793050	nuoD	NMA0016	C	NADH dehydrogenase I chain D
17	 51.01       13891..14484    	 -	197	15793051	nuoC	NMA0017	C	NADH dehydrogenase I chain C
18	 56.31       14497..14979    	 -	160	15793052	nuoB	NMA0018	C	NADH dehydrogenase I chain B
19	 51.82       14970..15326    	 -	118	15793053	nuoA	NMA0019	C	NADH dehydrogenase I chain A
20	 48.82       15777..17261    	 -	494	15793054	NMA0020	NMA0020	E	putative integral membrane protein
21	 46.86       17251..17871    	 -	206	15793055	NMA0021	NMA0021	-	putative integral membrane protein
22	 36.77 -2    18070..18447    	 -	125	15793056	NMA0022	NMA0022	L	putative IS1016 transposase
23	 26.97 -2    18500..18829    	 +	109	15793057	NMA0023	NMA0023	-	hypothetical protein NMA0023
24	 30.56 -2    18983..19198    	 +	71	15793058	NMA0024	NMA0024	-	hypothetical protein NMA0024
25	 45.74       19388..19927    	 -	179	15793059	NMA0025	NMA0025	-	hypothetical protein NMA0025
26	 57.34       20284..22491    	 -	735	15793060	uvrD	NMA0027	L	DNA helicase II
27	 56.94       22675..23322    	 +	215	15793061	NMA0028	NMA0028	E	hypothetical protein NMA0028
28	 56.67       23319..24248    	 +	309	15793062	NMA0029	NMA0029	E	hypothetical protein NMA0029
29	 58.81       24235..24972    	 +	245	15793063	NMA0030	NMA0030	R	hypothetical protein NMA0030
30	 54.69       25101..26294    	 +	397	15793064	NMA0031	NMA0031	E	putative transmembrane transport protein
31	 55.70       26402..27094    	 +	230	15793065	NMA0032	NMA0032	R	hypothetical protein NMA0032
32	 51.24       27359..28324    	 +	321	15793066	NMA0033	NMA0033	L	putative transposase for IS1655
33	 57.04       28626..31316    	 -	896	15793067	glnE	NMA0035	O	putative glutamate-ammonia-ligase adenylyltransferase
34	 39.88 -1    31491..31826    	 -	111	15793068	NMA0036	NMA0036	-	hypothetical protein NMA0036
35	 40.30 -1    32080..32553    	 -	157	15793069	NMA0037	NMA0037	-	hypothetical protein NMA0037
36	 40.78 -1    32606..32887    	 -	93	15793070	NMA0038	NMA0038	-	hypothetical protein NMA0038
37	 36.11 -2    32974..33297    	 -	107	15793071	NMA0039	NMA0039	-	hypothetical protein NMA0039
38	 33.33 -2    33299..33430    	 -	43	15793072	NMA0040	NMA0040	-	hypothetical protein NMA0040
39	 50.56       33435..33614    	 -	59	15793073	NMA0041	NMA0041	-	hypothetical protein NMA0041
40	 52.88       33630..34637    	 -	335	15793074	pyrD	NMA0042	F	dihydroorotate dehydrogenase
41	 47.26       34869..35105    	 +	78	15793075	acpP	NMA0043	I	acyl carrier protein
42	 59.94 +1    35272..36519    	 +	415	15793076	fabF	NMA0044	I	3-oxoacyl-[acyl-carrier-protein] synthase II
43	 57.26       36762..37718    	 -	318	15793077	NMA0046	NMA0046	R	putative transmembrane transport protein
44	 60.51 +1    38144..39361    	 +	405	15793078	NMA0047	NMA0047	G	putative transmembrane transport protein
45	 46.56       39717..40850    	 +	377	15793079	pglA	NMA0048	M	glycosyltransferase
46	 55.16       41790..42641    	 -	283	15793080	NMA0049	NMA0049	K	RNA polymerase sigma factor
47	 58.28       42989..44503    	 +	504	15793081	katA	NMA0050	P	catalase
48	 56.06       44683..45012    	 +	109	15793082	NMA0051	NMA0051	-	hypothetical protein NMA0051
49	 59.44 +1    44988..45554    	 +	188	15793083	NMA0052	NMA0052	S	putative integral membrane protein
50	 54.35       45672..45947    	 -	91	15793084	NMA0053	NMA0053	-	hypothetical protein NMA0053
51	 56.60       45987..48023    	 -	678	15793085	prlC	NMA0054	E	oligopeptidase A
52	 55.83       48111..49097    	 -	328	15793086	NMA0055	NMA0055	M	putative integral membrane protein
53	 56.17       49253..51643    	 +	796	15793087	gyrB	NMA0056	L	DNA gyrase subunit B
54	 60.68 +1    51962..53281    	 +	439	15793088	sdaA	NMA0057	E	L-serine dehydratase
55	 55.69       54687..56663    	 -	658	15793089	NMA0060	NMA0060	P	putative transmembrane transport protein
56	 63.45 +1    56812..57651    	 +	279	15793090	NMA0061	NMA0061	C	putative ferredoxin
57	 56.59       57851..58882    	 +	343	15793091	gapA	NMA0062	G	glyceraldehyde 3-phosphate dehydrogenase
58	 57.85       59138..59863    	 -	241	15793092	aat	NMA0063	O	leucyl/phenylalanyl-tRNA--protein transferase
59	 51.95       59933..60367    	 -	144	15793093	fur	NMA0064	P	ferric uptake regulation protein
60	 57.41       60586..60963    	 +	125	15793094	NMA0065	NMA0065	J	putative lipoprotein
61	 61.23 +1    60973..61782    	 +	269	15793095	dapB	NMA0066	E	dihydrodipicolinate reductase
62	 36.33 -2    62042..62341    	 -	99	15793096	NMA0067	NMA0067	-	hypothetical protein NMA0067
63	 33.33 -2    62455..62700    	 -	81	15793097	NMA0068	NMA0068	-	hypothetical protein NMA0068
64	 58.53       62708..63862    	 -	384	15793098	lpxB	NMA0069	M	lipid-A-disaccharide synthase
65	 57.50       63928..64920    	 -	330	15793099	rluC	NMA0070	J	ribosomal large subunit pseudouridine synthase C
66	 59.28 +1    65414..68173    	 +	919	15793100	rne	NMA0071	J	ribonuclease E
67	 60.40 +1    68960..69949    	 -	329	15793101	pdxA	NMA0072	H	pyridoxal phosphate biosynthetic protein
68	 55.60       70109..71536    	 +	475	15793102	NMA0073	NMA0073	E	putative amino-acid transport protein
69	 57.55       71870..73756    	 +	628	15793103	gidA	NMA0074	D	glucose inhibited division protein A homolog
70	 57.78       73825..74409    	 +	194	15793104	rnhB	NMA0075	L	ribonuclease HII
71	 59.17 +1    75357..76130    	 -	257	15793105	NMA0076	NMA0076	D	parA family protein
72	 56.89       76229..76852    	 -	207	15793106	gidB	NMA0077	M	glucose inhibited division protein B homolog
73	 60.29 +1    76948..77433    	 -	161	15793107	NMA0078	NMA0078	-	putative integral membrane protein
74	 61.79 +1    77843..78970    	 +	375	15793108	NMA0079	NMA0079	S	putative integral membrane protein
75	 54.12       79151..79708    	 +	185	15793109	frr	NMA0080	J	ribosome recycling factor
76	 54.48       79764..80510    	 +	248	15793110	uppS	NMA0081	I	putative undecaprenyl diphosphate synthase
77	 56.39       80513..81310    	 +	265	15793111	cdsA	NMA0082	I	phosphatidate cytidylyltransferase
78	 58.31       81366..82550    	 +	394	15793112	dxr	NMA0083	I	1-deoxy-D-xylulose 5-phosphate reductoisomerase
79	 59.36 +1    82585..83925    	 +	446	15793113	NMA0084	NMA0084	M	putative integral membrane protein
80	 56.14       83982..86375    	 +	797	15793114	omp85	NMA0085	M	outer membrane protein OMP85
81	 53.29       86441..86941    	 +	166	15793115	NMA0086	NMA0086	M	putative outer membrane protein
82	 59.96 +1    86974..88017    	 +	347	15793116	lpxD	NMA0087	M	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
83	 57.56       88053..88502    	 +	149	15793117	fabZ	NMA0088	I	(3R)-hydroxymyristoyl-[acyl carrier protein] dehydratase
84	 36.27 -2    88813..89493    	 +	226	15793118	NMA0089	NMA0089	-	hypothetical protein NMA0089
85	 59.07 +1    89536..90312    	 +	258	15793119	lpxA	NMA0090	M	acyl-[acyl-carrier-protein]--UDP-N-acetylglucosam O-acyltransferase
86	 53.95       90669..92060    	 +	463	15793120	NMA0091	NMA0091	E	putative amino-acid transporter
87	 55.13       92139..93395    	 +	418	15793121	dadA	NMA0092	E	D-amino acid dehydrogenase small subunit
88	 54.44       93576..94385    	 +	269	15793122	NMA0093	NMA0093	P	putative integral membrane protein
89	 55.00       94482..97319    	 +	945	15793123	valS	NMA0094	J	valyl-tRNA synthetase
90	 50.64       97474..97629    	 +	51	15793124	NMA0095	NMA0095	-	hypothetical protein NMA0095
91	 50.77       97690..98079    	 -	129	15793125	NMA0096	NMA0096	-	hypothetical protein NMA0096
92	 52.66       98653..99573    	 -	306	15793126	oxyR	NMA0098	K	putative hydrogen peroxide-inducible genes activator
93	 43.94 -1    99577..99840    	 -	87	15793127	minE	NMA0099	D	putative cell division topological specificity factor
94	 46.69       99844..100659   	 -	271	15793128	minD	NMA0100	D	septum site-determining protein
95	 45.10      100688..101401   	 -	237	15793129	minC	NMA0101	D	putative cell division inhibitor
96	 46.34      101548..101916   	 -	122	15793130	rplQ	NMA0102	J	50S ribosomal protein L17
97	 42.45 -1   101940..102926   	 -	328	15793131	rpoA	NMA0103	K	DNA-directed RNA polymerase alpha chain
98	 44.61 -1   102952..103572   	 -	206	15793132	rpsD	NMA0104	J	30S ribosomal protein S4
99	 44.95      103592..103987   	 -	131	15793133	rpsK	NMA0105	J	30S ribosomal protein S11
100	 46.56      104007..104369   	 -	120	15793134	rpsM	NMA0106	J	30S ribosomal protein S13


 51.74 MEAN

 7.10  STD DEV
