IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

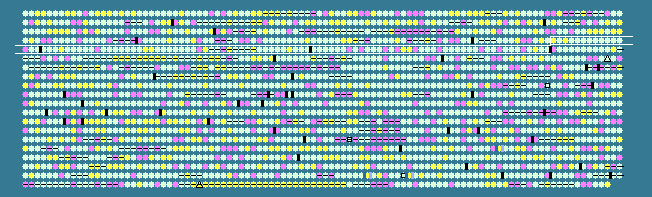

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
389	 50.15	0	391100..391759	+	219	56551285	-	ZMO0389	-	constituent protein
390	 49.44	0	391753..393174	+	473	56551286	-	ZMO0390	-	hypothetical protein
391	 50.36	0	393144..393419	+	91	56551287	-	ZMO0391	-	hypothetical protein
392	 48.61	0	393398..393901	+	167	56551288	-	ZMO0392	-	hypothetical protein
393	 46.88	0	393902..394573	+	223	56551289	-	ZMO0393	-	hypothetical protein
394	 46.37	0	394586..395260	+	224	56551290	-	ZMO0394	-	hypothetical protein
395	 49.00	0	395407..395757	-	116	56551292	-	ZMO0396	-	hypothetical protein
396	 49.86	0	395440..395808	+	122	56551291	-	ZMO0395	-	hypothetical protein
397	 48.77	0	395805..396251	+	148	56551293	-	ZMO0397	-	hypothetical protein
398	 48.12	0	396205..396657	+	150	56551294	-	ZMO0398	-	RTX toxin
399	 48.10	0	396662..397663	+	333	56551295	-	ZMO0399	-	neck appendage protein precursor
400	 47.95	0	397668..400322	+	884	56551296	-	ZMO0400	-	hypothetical protein
401	 39.42	-1	400332..402383	-	683	56551297	-	ZMO0401	-	signal transduction protein
402	 47.90	0	402603..403268	-	221	56551298	ftsJ	ZMO0402	-	23S rRNA methylase
403	 49.37	0	403265..404368	-	367	56551299	ppx	ZMO0403	-	exopolyphosphatase
404	 43.64	0	405047..405211	+	54	56551300	-	ZMO0404	-	hypothetical protein
405	 49.01	0	405319..407640	+	773	56551301	clpA	ZMO0405	-	ATPase
406	 46.35	0	407730..408551	-	273	56551302	-	ZMO0406	-	ABC-type multidrug transport system
407	 54.55	+1	408703..409395	+	230	56551303	-	ZMO0407	-	hypothetical protein
408	 48.39	0	409612..410820	+	402	56551304	argD	ZMO0408	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
409	 49.42	0	410842..411792	+	316	56551305	argF	ZMO0409	-	ornithine carbamoyltransferase
410	 45.67	0	411921..412844	+	307	56551306	hslO	ZMO0410	-	chaperone protein Hsp33
411	 48.66	0	412919..414901	+	660	56551307	gyrB	ZMO0411	-	DNA topoisomerase IV subunit B
412	 45.77	0	415097..415723	-	208	56551308	-	ZMO0412	-	multiple antibiotic transporter
413	 42.20	0	415912..416238	-	108	56551309	-	ZMO0413	-	hypothetical protein
414	 45.34	0	416262..417302	-	346	56551310	-	ZMO0414	-	hypothetical protein
415	 47.37	0	417299..417412	-	37	56551311	-	ZMO0415	-	hypothetical protein
416	 44.85	0	417463..418209	+	248	56551312	ftsE	ZMO0416	-	cell division involved ATPase
417	 43.55	0	418191..419081	+	296	56551313	ftsX	ZMO0417	-	cell division protein
418	 45.26	0	419113..419724	+	203	56551314	-	ZMO0418	-	hypothetical protein
419	 46.75	0	419773..420525	+	250	56551315	plsC	ZMO0419	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
420	 48.64	0	420574..421455	-	293	56551316	tyrC	ZMO0420	-	cyclohexadienyl dehydrogenase
421	 50.00	0	421456..422565	-	369	56551317	hisC	ZMO0421	-	histidinol-phosphate aminotransferase
422	 50.00	0	423132..423539	+	135	56551318	-	ZMO0422	-	transcriptional regulator
423	 46.50	0	423539..425011	+	490	56551319	-	ZMO0423	-	cysteine desulfurase activator complex subunit SufB
424	 45.33	0	425035..425184	+	49	56551320	-	ZMO0424	-	ABC transporter ATP-binding protein
425	 49.18	0	425168..425779	+	203	56551321	-	ZMO0425	-	ABC-type transport system
426	 48.57	0	425776..426891	+	371	56551322	-	ZMO0426	-	ABC-type transport system permease component
427	 48.53	0	426888..428111	+	407	56551323	csdB	ZMO0427	-	selenocysteine lyase
428	 47.36	0	428108..428542	+	144	56551324	-	ZMO0428	-	metal-sulfur cluster biosynthetic enzyme
429	 44.44	0	428581..428922	+	113	56551325	-	ZMO0429	-	hypothetical protein
430	 42.90	0	429047..429715	+	222	56551326	-	ZMO0430	-	hydrolase
431	 50.66	0	429749..430579	+	276	56551327	dapD	ZMO0431	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
432	 43.12	0	430647..431525	-	292	56551328	rocF	ZMO0432	-	arginase/agmatinase/formimionoglutamate hydrolase
433	 47.16	0	431867..432517	-	216	56551329	gmk	ZMO0433	-	guanylate kinase
434	 36.81	-1	432556..432699	-	47	56551330	-	ZMO0434	-	hypothetical protein
435	 58.09	+2	432671..433078	-	135	56551331	-	ZMO0435	-	hypothetical protein
436	 45.36	0	433243..433641	-	132	56551332	-	ZMO0436	-	hypothetical protein
437	 43.69	0	433799..434020	+	73	56551333	-	ZMO0437	-	hypothetical protein
438	 45.83	0	434159..434278	+	39	56551334	-	ZMO0438	-	hypothetical protein
439	 51.64	0	434275..435399	+	374	56551335	rluC	ZMO0439	-	pseudouridylate synthase
440	 44.33	0	435509..435799	+	96	56551336	-	ZMO0440	-	hypothetical protein
441	 45.82	0	435826..436530	+	234	56551337	-	ZMO0441	-	chaperone
442	 44.96	0	436559..437203	+	214	56551338	-	ZMO0442	-	putative phosphatase
443	 46.05	0	437287..438324	-	345	56551339	nrdF	ZMO0443	-	ribonucleotide-diphosphate reductase subunit beta
444	 48.62	0	438653..439699	+	348	56551340	-	ZMO0444	-	hypothetical protein
445	 50.70	0	439696..441261	+	521	56551341	-	ZMO0445	-	hypothetical protein
446	 45.98	0	441293..442699	+	468	56551342	algI	ZMO0446	-	putative alginate O-acetyltransferase
447	 49.68	0	442717..443028	+	103	56551343	-	ZMO0447	-	hypothetical protein
448	 48.84	0	443044..443733	-	229	56551344	-	ZMO0448	-	cell wall hydrolyses
449	 47.01	0	444524..445291	+	255	56551345	-	ZMO0449	-	hypothetical protein
450	 49.08	0	445314..446558	+	414	56551346	-	ZMO0450	-	hypothetical protein
451	 45.95	0	446537..446647	-	36	56551347	-	ZMO0451	-	hypothetical protein
452	 43.48	0	446661..446798	+	45	56551348	-	ZMO0452	-	hypothetical protein
453	 48.28	0	446865..448229	+	454	56551349	engA	ZMO0453	-	GTP-binding protein EngA
454	 49.77	0	449330..449968	-	212	56551350	fhs	ZMO0454	-	formate-tetrahydrofolate ligase
455	 39.64	-1	450154..450264	-	36	56551351	-	ZMO0455	-	hypothetical protein
456	 47.80	0	450398..450715	+	105	56551352	vanB	ZMO0456	-	vanillate O-demethylase oxidoreductase
457	 42.83	0	450841..451335	+	164	56551353	grp	ZMO0457	-	glutamate uptake regulatory protein
458	 46.35	0	451332..452030	-	232	56551354	-	ZMO0458	-	lipoprotein releasing system ATP-binding protein
459	 46.60	0	452023..453273	-	416	56551355	lolC	ZMO0459	-	ABC-type transport system
460	 48.94	0	453475..454602	-	375	56551356	proS	ZMO0460	-	prolyl-tRNA synthetase
461	 30.67	-2	454572..454721	-	49	56551357	-	ZMO0461	-	hypothetical protein
462	 46.97	0	455092..456726	-	544	56551358	pyrG	ZMO0462	-	CTP synthetase
463	 36.05	-1	456735..456881	+	48	56551359	-	ZMO0463	-	hypothetical protein
464	 52.21	+1	456865..457293	-	142	56551360	secG	ZMO0464	-	preprotein translocase subunit
465	 51.73	0	457473..458222	-	249	56551361	tpi	ZMO0465	-	triosephosphate isomerase
466	 30.95	-2	458279..458404	-	41	56551362	-	ZMO0466	-	hypothetical protein
467	 47.01	0	458508..460466	+	652	56551363	-	ZMO0467	-	peptidyl-prolyl isomerase
468	 48.03	0	460463..462013	+	516	56551364	trpE	ZMO0468	-	anthranilate synthase component I
469	 44.21	0	462052..462483	-	143	56551365	-	ZMO0469	-	hypothetical protein
470	 37.41	-1	462592..462738	-	48	56551366	-	ZMO0470	-	hypothetical protein
471	 48.75	0	462737..463696	+	319	56551367	-	ZMO0471	-	transcriptional regulator
472	 45.96	0	463735..464415	-	226	56551368	-	ZMO0472	-	hypothetical protein
473	 45.95	0	464625..465044	-	139	56551369	ribH	ZMO0473	-	riboflavin synthase beta-chain
474	 48.77	0	465046..466185	-	379	56551370	ribB	ZMO0474	-	GTP cyclohydrolase II
475	 48.47	0	466182..466802	-	206	56551371	ribC	ZMO0475	-	riboflavin synthase subunit alpha
476	 48.97	0	466891..467862	-	323	56551372	ribD	ZMO0476	-	riboflavin-specific deaminase/reductase
477	 41.31	0	467893..468243	-	116	56551373	-	ZMO0477	-	hypothetical protein
478	 45.00	0	468425..469144	+	239	56551374	-	ZMO0478	-	two-component response regulator
479	 43.75	0	469148..470500	+	450	56551375	-	ZMO0479	-	peptidoglycan binding domain-containing protein
480	 42.84	0	470493..472784	+	763	56551376	-	ZMO0480	-	two-component signal transduction histidine kinase
481	 43.99	0	472747..473328	-	193	56551377	-	ZMO0481	-	hypothetical protein
482	 48.15	0	473340..474338	-	332	56551378	glpX	ZMO0482	-	fructose 1,6-bisphosphatase II
483	 47.25	0	474460..475752	-	430	56551379	hom	ZMO0483	-	homoserine dehydrogenase
484	 41.07	-1	475910..476620	+	236	56551380	-	ZMO0484	-	magnesium transporter
485	 48.52	0	476871..478049	+	392	56551381	-	ZMO0485	-	acyl-CoA dehydrogenase
486	 50.11	0	478113..478988	+	291	56551382	-	ZMO0486	-	hypothetical protein
487	 49.45	0	478981..479793	+	270	56551383	-	ZMO0487	-	citrate lyase beta chain
488	 44.18	0	479911..480915	-	334	56551384	-	ZMO0488	-	GTP binding protein
46.43	MEAN

5.31	STD DEV
