IslandPath Analysis: Zymomonas mobilis subsp. mobilis ZM4

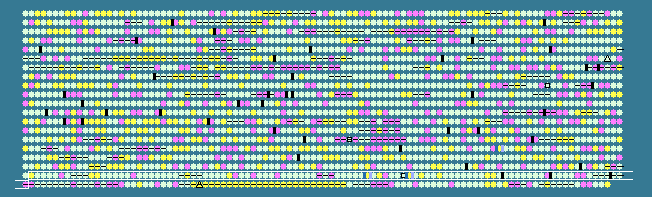

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.43 STD DEV: 5.31
Zymomonas mobilis subsp. mobilis ZM4, complete genome - 1..2056416
1998 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1802	 56.90	+1	1844077..1844250	-	57	56552698	-	ZMO1802	-	hypothetical protein
1803	 47.01	0	1844281..1844397	-	38	56552699	-	ZMO1803	-	hypothetical protein
1804	 47.21	0	1844396..1845829	+	477	56552700	-	ZMO1804	-	amino acid transporter
1805	 48.32	0	1845889..1846542	-	217	56552701	cbbZ	ZMO1805	-	phosphoglycolate phosphatase
1806	 46.67	0	1846769..1847368	-	199	56552702	-	ZMO1806	-	putative acetyltransferase
1807	 42.77	0	1847550..1849934	+	794	56552703	-	ZMO1807	-	TonB-dependent receptor
1808	 46.07	0	1849985..1850251	-	88	56552704	-	ZMO1808	-	hypothetical protein
1809	 49.04	0	1850264..1850938	-	224	56552705	rnfE	ZMO1809	-	SoxR-reducing system protein RsxE
1810	 49.45	0	1850928..1851560	-	210	56552706	rnfG	ZMO1810	-	NADH:ubiquinone oxidoreductase subunit
1811	 49.77	0	1851635..1852711	-	358	56552707	rnfD	ZMO1811	-	NADH:ubiquinone oxidoreductase subunit
1812	 53.07	+1	1852711..1854174	-	487	56552708	rnfC	ZMO1812	-	NADH:ubiquinone oxidoreductase subunit
1813	 52.49	+1	1854185..1854847	-	220	56552709	rnfB	ZMO1813	-	NADH:ubiquinone oxidoreductase subunit
1814	 47.59	0	1854864..1855445	-	193	56552710	rnfA	ZMO1814	-	NADH:ubiquinone oxidoreductase subunit
1815	 47.51	0	1855914..1858121	-	735	56552711	-	ZMO1815	-	TonB-dependent receptor
1816	 46.10	0	1858831..1860537	+	568	56552712	-	ZMO1816	-	transcriptional regulator
1817	 47.28	0	1860746..1862215	+	489	56552713	nifB	ZMO1817	-	nitrogen fixation protein
1818	 48.72	0	1862255..1862449	+	64	56552714	fdxN	ZMO1818	-	ferredoxin
1819	 42.35	0	1862483..1862737	+	84	56552715	nifZ	ZMO1819	-	nitrogen fixation protein
1820	 46.95	0	1862758..1862970	+	70	56552716	fixU	ZMO1820	-	nitrogen fixation protein
1821	 47.85	0	1862970..1863830	+	286	56552717	-	ZMO1821	-	hypothetical protein
1822	 45.87	0	1863843..1865972	-	709	56552718	-	ZMO1822	-	TonB-dependent receptor
1823	 49.77	0	1866350..1867237	+	295	56552719	nifH	ZMO1823	-	nitrogenase reductase
1824	 49.32	0	1867248..1868723	+	491	56552720	nifD	ZMO1824	-	nitrogenase FeMo alpha subunit
1825	 49.41	0	1868783..1870318	+	511	56552721	nifK	ZMO1825	-	nitrogenase FeMo beta subunit protein
1826	 48.80	0	1870387..1871841	+	484	56552722	nifE	ZMO1826	-	nitrogenase FeMo cofactor synthesis protein
1827	 47.70	0	1871838..1873208	+	456	56552723	nifN	ZMO1827	-	nitrogenase FeMo cofactor synthesis protein
1828	 50.71	0	1873201..1873695	+	164	56552724	nifX	ZMO1828	-	nitrogenase FeMo cofactor synthesis protein
1829	 48.60	0	1873685..1874149	+	154	56552725	-	ZMO1829	-	hypothetical protein
1830	 49.61	0	1873988..1874503	-	171	56552726	fdxB	ZMO1830	-	ferredoxin
1831	 46.26	0	1874486..1875073	+	195	56552727	nifQ	ZMO1831	-	nitrogen fixation protein
1832	 46.30	0	1875249..1875572	+	107	56552728	-	ZMO1832	-	hypothetical protein
1833	 48.97	0	1875630..1875872	+	80	56552729	nifU	ZMO1833	-	nitrogen fixation protein
1834	 46.80	0	1875895..1877052	+	385	56552730	nifS	ZMO1834	-	nitrogenase metalloclusters biosynthesis protein
1835	 50.30	0	1877109..1878269	+	386	56552731	nifV	ZMO1835	-	homocitrate synthase
1836	 40.54	-1	1878314..1878646	+	110	56552732	nifW	ZMO1836	-	nitrogenase stabilizing/protective protein
1837	 48.39	0	1878718..1879587	+	289	56552733	modD	ZMO1837	-	molybdenum transport system protein
1838	 45.07	0	1879711..1879923	-	70	56552734	-	ZMO1838	-	molybdopterin binding protein
1839	 38.46	-1	1880116..1880232	+	38	56552735	-	ZMO1839	-	hypothetical protein
1840	 43.41	0	1880305..1880850	-	181	56552736	-	ZMO1840	-	putative isochorismatase family protein
1841	 46.63	0	1880963..1881496	-	177	56552737	-	ZMO1841	-	sigma E factor positive regulator
1842	 49.67	0	1881468..1882514	-	348	56552738	nosX	ZMO1842	-	maturation factor of nitrous oxide reductase
1843	 20.95	-2	1882665..1882769	+	34	56552739	-	ZMO1843	-	hypothetical protein
1844	 47.08	0	1882850..1883926	-	358	56552740	-	ZMO1844	-	oxidoreductase
1845	 46.26	0	1884064..1884357	-	97	56552741	-	ZMO1845	-	alkylphosphonate uptake protein
1846	 46.82	0	1884490..1885275	-	261	56552742	-	ZMO1846	-	ABC-type Fe3+ transport system ATPase component
1847	 47.63	0	1885239..1886252	-	337	56552743	-	ZMO1847	-	ABC-type Fe3+ transport system permease component
1848	 47.19	0	1886259..1887131	-	290	56552744	-	ZMO1848	-	ABC-type Fe3+ transport system solute-binding protein
1849	 47.60	0	1888120..1889850	+	576	56552745	-	ZMO1849	-	hypothetical protein
1850	 41.60	0	1889959..1890321	-	120	56552746	-	ZMO1850	-	hypothetical protein
1851	 43.69	0	1890318..1890800	-	160	56552747	nifF	ZMO1851	-	flavodoxin FldA
1852	 21.77	-2	1890873..1891019	+	48	56552748	-	ZMO1852	-	hypothetical protein
1853	 43.92	0	1891065..1891961	-	298	56552749	dapA	ZMO1853	-	dihydrodipicolinate synthase
1854	 47.87	0	1892106..1893350	-	414	56552750	-	ZMO1854	-	transcriptional regulator
1855	 45.11	0	1893683..1894438	+	251	56552751	yfeJ	ZMO1855	-	glutamine amidotransferase
1856	 49.80	0	1894602..1895864	-	420	56552752	-	ZMO1856	-	hypothetical protein
1857	 48.10	0	1896023..1896916	+	297	56552753	-	ZMO1857	-	transcriptional regulator
1858	 53.33	+1	1902155..1902289	+	44	56552754	-	ZMO1858	-	hypothetical protein
1859	 44.62	0	1904490..1905614	+	374	56552755	rpfN	ZMO1859	-	carbohydrate-selective porin
1860	 50.21	0	1905686..1906396	-	236	56552756	-	ZMO1860	-	nodulin 21 like protein
1861	 42.19	0	1906936..1907940	-	334	56552757	-	ZMO1861	-	dioxygenase
1862	 46.85	0	1909010..1909120	-	36	56552758	-	ZMO1862	-	hypothetical protein
1863	 44.17	0	1909237..1909725	-	162	56552759	-	ZMO1863	-	putative phosphatase
1864	 48.75	0	1910097..1910576	+	159	56552760	-	ZMO1864	-	transposase
1865	 53.33	+1	1916005..1916139	+	44	56552761	-	ZMO1865	-	hypothetical protein
1866	 49.06	0	1917655..1919295	-	546	56552762	-	ZMO1866	-	metallo-beta-lactamase hydrolase subunit
1867	 50.36	0	1919343..1920170	-	275	56552763	-	ZMO1867	-	pantothenate kinase
1868	 44.53	0	1920199..1921002	-	267	56552764	birA	ZMO1868	-	biotin protein ligase
1869	 45.56	0	1920999..1921832	-	277	56552765	-	ZMO1869	-	ribonuclease I
1870	 50.81	0	1921847..1922830	-	327	56552766	nadC	ZMO1870	-	nicotinate-nucleotide pyrophosphorylase
1871	 47.05	0	1922852..1923850	-	332	56552767	nadA	ZMO1871	-	quinolinate synthetase
1872	 48.01	0	1923865..1924491	-	208	56552768	-	ZMO1872	-	hypothetical protein
1873	 43.84	0	1924527..1924859	-	110	56552769	-	ZMO1873	-	glutaredoxin-related protein
1874	 47.86	0	1924908..1925141	-	77	56552770	bolA	ZMO1874	-	stress-induced morphogen protein
1875	 49.86	0	1925146..1925514	-	122	56552771	-	ZMO1875	-	hypothetical protein
1876	 47.59	0	1925874..1926371	+	165	56552772	-	ZMO1876	-	hypothetical protein
1877	 45.19	0	1926528..1927379	-	283	56552773	-	ZMO1877	-	glutamine cyclotransferase
1878	 50.11	0	1927522..1929387	+	621	56552774	valS	ZMO1878	-	valyl-tRNA synthetase
1879	 51.60	0	1930308..1931309	+	333	56552775	hemB	ZMO1879	-	delta-aminolevulinic acid dehydratase
1880	 48.28	0	1931302..1931910	+	202	56552776	-	ZMO1880	-	hypothetical protein
1881	 45.30	0	1932660..1932776	+	38	56552777	-	ZMO1881	-	hypothetical protein
1882	 46.71	0	1932784..1933770	+	328	56552778	-	ZMO1882	-	putative transport protein
1883	 46.07	0	1933893..1934834	-	313	56552779	serA	ZMO1883	-	phosphoglycerate dehydrogenase
1884	 46.07	0	1934889..1935524	-	211	56552780	-	ZMO1884	-	hypothetical protein
1885	 49.49	0	1935705..1936781	-	358	56552781	ncr	ZMO1885	-	NADH:flavin oxidoreductase
1886	 48.74	0	1936968..1938077	-	369	56552782	-	ZMO1886	-	putative transport protein
1887	 45.86	0	1938082..1938648	-	188	56552783	entB	ZMO1887	-	isochorismatase
1888	 39.33	-1	1938976..1939125	-	49	56552784	-	ZMO1888	-	hypothetical protein
1889	 45.78	0	1939171..1940046	-	291	56552785	-	ZMO1889	-	SAM-dependent methyltransferase
1890	 47.43	0	1940073..1941299	-	408	56552786	-	ZMO1890	-	Zn-dependent peptidase
1891	 48.36	0	1941296..1942726	-	476	161611315	thrC	ZMO1891	-	threonine synthase
1892	 45.30	0	1942913..1943263	-	116	56552788	-	ZMO1892	-	hypothetical protein
1893	 40.10	-1	1943314..1943505	-	63	56552790	-	ZMO1894	-	hypothetical protein
1894	 37.25	-1	1943496..1943597	+	33	56552789	-	ZMO1893	-	hypothetical protein
1895	 45.34	0	1943628..1944635	+	335	56552791	-	ZMO1895	-	sugar kinase
1896	 43.03	0	1944756..1945673	-	305	56552792	secF	ZMO1896	-	preprotein translocase subunit
1897	 48.36	0	1945690..1947273	-	527	56552793	secD	ZMO1897	-	preprotein translocase subunit SecD
1898	 43.68	0	1947280..1947627	-	115	56552794	yajC	ZMO1898	-	preprotein translocase subunit
1899	 47.74	0	1948507..1949478	-	323	56552795	fabH	ZMO1899	-	3-oxoacyl-[acyl-carrier-protein] synthase III
1900	 47.73	0	1949475..1950530	-	351	56552796	plsX	ZMO1900	-	putative glycerol-3-phosphate acyltransferase PlsX
1901	 42.09	0	1950933..1952006	-	357	56552797	-	ZMO1901	-	hypothetical protein
46.43	MEAN

5.31	STD DEV
