IslandPathversion 1.0

IslandPath Analysis: Xylella fastidiosa 9a5c

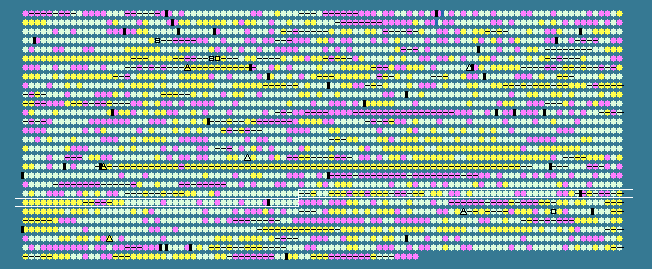

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2047	 50.68	0	1960762..1961130	+	122	15838652	-	XF2060	-	conjugal transfer protein
2048	 50.17	0	1961772..1965251	+	1159	77747581	-	XF2061	-	DNA primase
2049	 58.57	+1	1965266..1965475	+	69	15838654	-	XF2062	-	transcriptional repressor
2050	 51.39	0	1966034..1966249	-	71	15838655	-	XF2064	-	hypothetical protein
2051	 50.74	0	1966289..1966558	-	89	15838656	-	XF2065	-	hypothetical protein
2052	 57.28	0	1966667..1966975	-	102	15838657	-	XF2066	-	hypothetical protein
2053	 59.71	+1	1966979..1967251	-	90	15838658	-	XF2067	-	hypothetical protein
2054	 62.28	+1	1967248..1967703	-	151	15838659	-	XF2068	-	hypothetical protein
2055	 43.51	-1	1968283..1968567	-	94	15838660	-	XF2069	-	hypothetical protein
2056	 55.91	0	1969111..1969296	-	61	15838661	-	XF2070	-	hypothetical protein
2057	 59.67	+1	1969289..1969531	-	80	15838662	-	XF2071	-	hypothetical protein
2058	 39.89	-1	1969569..1969751	+	60	15838663	-	XF2072	-	hypothetical protein
2059	 57.28	0	1969791..1970003	-	70	15838664	-	XF2073	-	hypothetical protein
2060	 55.89	0	1970188..1970484	-	98	15838665	-	XF2074	-	hypothetical protein
2061	 57.71	0	1970472..1970750	-	92	15838666	-	XF2075	-	hypothetical protein
2062	 52.12	0	1971038..1971202	+	54	15838667	-	XF2076	-	hypothetical protein
2063	 38.64	-2	1971533..1972192	+	219	15838668	-	XF2077	-	hypothetical protein
2064	 35.32	-2	1972173..1972574	+	133	15838669	-	XF2078	-	hypothetical protein
2065	 50.51	0	1972694..1973083	+	129	15838670	-	XF2079	-	hypothetical protein
2066	 57.45	0	1972992..1973273	-	93	15838671	-	XF2080	-	hypothetical protein
2067	 58.62	+1	1973260..1973520	-	86	15838672	-	XF2081	-	DNA-damage-inducible protein
2068	 50.93	0	1973850..1974656	-	268	15838673	-	XF2082	-	short chain dehydrogenase
2069	 58.86	+1	1974702..1977764	-	1020	15838674	-	XF2083	-	cation efflux system protein
2070	 56.91	0	1977761..1978867	-	368	15838675	-	XF2084	-	component of multidrug efflux system
2071	 50.65	0	1978950..1979567	-	205	15838676	-	XF2085	-	AcrR family transcriptional regulator
2072	 41.75	-1	1980176..1980769	+	197	15838677	-	XF2086	-	hypothetical protein
2073	 48.15	0	1981669..1981938	-	89	15838678	-	XF2087	-	hypothetical protein
2074	 50.00	0	1982043..1982492	-	149	77747582	-	XF2088	-	hypothetical protein
2075	 56.56	0	1982816..1983775	-	319	15838680	-	XF2089	-	5'-nucleotidase
2076	 54.56	0	1983861..1984628	-	255	77747583	ppnK	XF2090	-	inorganic polyphosphate/ATP-NAD kinase
2077	 54.11	0	1984713..1989704	-	1663	77747584	-	XF2091	-	hypothetical protein
2078	 48.72	0	1989812..1990006	+	64	15838683	-	XF2092	-	hypothetical protein
2079	 53.46	0	1990486..1991712	+	408	15838684	-	XF2093	-	precursor of drug resistance protein
2080	 51.61	0	1991727..1994894	+	1055	15838685	-	XF2094	-	multidrug-efflux transporter
2081	 51.73	0	1994975..1995610	-	211	15838686	-	XF2095	-	carbonic anhydrase
2082	 53.22	0	1995607..1996506	-	299	15838687	-	XF2096	-	putative GTP cyclohydrolase
2083	 46.12	0	1996752..1997009	+	85	15838688	-	XF2097	-	hypothetical protein
2084	 48.31	0	1997252..1997458	-	68	15838689	-	XF2098	-	hypothetical protein
2085	 54.62	0	1997839..1998726	+	295	15838690	-	XF2099	-	biotin synthesis protein
2086	 52.76	0	1998801..1999706	+	301	15838691	-	XF2100	-	aspartyl/asparaginyl beta-hydroxylase
2087	 52.55	0	2000035..2000643	-	202	15838692	-	XF2101	-	hypothetical protein
2088	 50.62	0	2000640..2000882	-	80	15838693	-	XF2102	-	hypothetical protein
2089	 50.30	0	2001237..2001572	+	111	15838694	-	XF2103	-	hypothetical protein
2090	 45.05	-1	2001754..2001864	+	36	15838695	-	XF2104	-	hypothetical protein
2091	 47.80	0	2001907..2002065	-	52	15838696	-	XF2105	-	hypothetical protein
2092	 57.88	0	2002111..2004000	+	629	15838697	-	XF2106	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2093	 53.99	0	2004188..2004400	-	70	15838698	-	XF2107	-	hypothetical protein
2094	 48.39	0	2005047..2005232	+	61	15838699	-	XF2108	-	hypothetical protein
2095	 63.00	+1	2005406..2005732	-	108	15838700	-	XF2109	-	hypothetical protein
2096	 55.16	0	2006148..2006486	-	112	15838701	-	XF2110	-	hypothetical protein
2097	 32.97	-2	2007425..2007703	+	92	15838702	-	XF2111	-	hypothetical protein
2098	 40.97	-1	2007754..2008146	+	130	15838703	-	XF2112	-	hypothetical protein
2099	 55.29	0	2008224..2008478	-	84	15838704	-	XF2113	-	hypothetical protein
2100	 63.35	+1	2008482..2008994	-	170	15838705	-	XF2114	-	hypothetical protein
2101	 61.78	+1	2008987..2011812	-	941	15838706	-	XF2115	-	hypothetical protein
2102	 62.03	+1	2011802..2012038	-	78	15838707	-	XF2116	-	hypothetical protein
2103	 65.16	+2	2012035..2012565	-	176	15838708	-	XF2117	-	hypothetical protein
2104	 57.49	0	2012590..2013036	-	148	15838709	-	XF2118	-	hypothetical protein
2105	 65.00	+2	2013033..2013512	-	159	15838710	-	XF2119	-	hypothetical protein
2106	 64.50	+1	2013822..2014973	-	383	15838711	-	XF2120	-	hypothetical protein
2107	 62.22	+1	2014957..2016462	-	501	15838712	-	XF2121	-	virulence-associated protein E
2108	 64.58	+1	2016462..2017514	-	350	15838713	-	XF2122	-	hypothetical protein
2109	 64.41	+1	2017713..2017934	-	73	15838714	-	XF2123	-	hypothetical protein
2110	 59.37	+1	2017998..2018600	-	200	15838715	-	XF2124	-	hypothetical protein
2111	 59.80	+1	2018679..2018984	-	101	15838716	-	XF2125	-	hypothetical protein
2112	 56.10	0	2019016..2019261	-	81	15838717	-	XF2126	-	hypothetical protein
2113	 48.53	0	2019346..2020365	+	339	15838718	-	XF2127	-	hypothetical protein
2114	 39.39	-2	2020571..2020735	+	54	15838719	-	XF2128	-	hypothetical protein
2115	 61.04	+1	2020875..2021105	+	76	15838720	-	XF2129	-	hypothetical protein
2116	 56.44	0	2021130..2021354	+	74	15838721	-	XF2130	-	hypothetical protein
2117	 58.26	0	2021351..2021695	+	114	15838722	-	XF2131	-	hypothetical protein
2118	 53.60	0	2021692..2022372	+	226	15838723	-	XF2132	-	hypothetical protein
2119	 54.13	0	2022417..2024354	-	645	15838724	-	XF2133	-	ABC transporter ATP-binding protein
2120	 54.83	0	2024516..2026897	+	793	15838725	-	XF2134	-	ferric enterobactin receptor
2121	 51.23	0	2026987..2027757	-	256	15838726	-	XF2135	-	polyketide synthase (PKS)
2122	 50.88	0	2027916..2028086	+	56	15838727	-	XF2136	-	hypothetical protein
2123	 52.98	0	2028310..2030676	+	788	15838728	-	XF2137	-	ferric enterobactin receptor
2124	 44.05	-1	2030698..2030865	-	55	15838729	-	XF2138	-	hypothetical protein
2125	 50.69	0	2031006..2031149	+	47	15838730	-	XF2139	-	hypothetical protein
2126	 54.92	0	2031755..2033473	+	572	15838731	-	XF2140	-	cation:proton antiporter
2127	 49.22	0	2033851..2034945	+	364	15838732	-	XF2141	-	ABC transporter phosphate binding protein
2128	 53.74	0	2035057..2036031	+	324	15838733	-	XF2142	-	ABC transporter phosphate permease
2129	 51.27	0	2036031..2036894	+	287	15838734	-	XF2143	-	ABC transporter phosphate permease
2130	 48.50	0	2036915..2037745	+	276	77747585	-	XF2144	-	phosphate ABC transporter ATP-binding protein
2131	 50.49	0	2037765..2038475	+	236	15838736	-	XF2145	-	phosphate regulon transcriptional regulator
2132	 51.42	0	2038701..2039336	+	211	15838737	-	XF2146	-	ribonuclease T
2133	 35.03	-2	2039646..2039822	-	58	15838738	-	XF2147	-	hypothetical protein
2134	 53.84	0	2039854..2040726	+	290	15838739	ksgA	XF2148	-	dimethyladenosine transferase
2135	 53.91	0	2040763..2041146	+	127	15838740	apaG	XF2149	-	ApaG
2136	 54.04	0	2041161..2042039	+	292	15838741	apaH	XF2150	-	diadenosine tetraphosphatase
2137	 48.55	0	2042614..2043888	+	424	15838742	-	XF2151	-	hypothetical protein
2138	 51.85	0	2043924..2044112	-	62	15838743	-	XF2152	-	hypothetical protein
2139	 53.72	0	2044119..2044898	-	259	15838744	-	XF2153	-	3-deoxy-D-manno-octulosonic-acid kinase
2140	 54.23	0	2044890..2045942	+	350	15838745	-	XF2154	-	saccharide biosynthesis regulatory protein
2141	 46.77	0	2045960..2046346	-	128	15838746	-	XF2155	-	hypothetical protein
2142	 53.39	0	2047227..2047919	+	230	77747586	-	XF2156	-	protein phosphatase
2143	 51.39	0	2047997..2048716	-	239	15838748	-	XF2157	-	DNA polymerase III subunit epsilon
2144	 52.16	0	2048713..2049174	-	153	15838749	rnhA	XF2158	-	ribonuclease H
2145	 52.53	0	2049179..2049829	-	216	77747587	-	XF2159	-	hypothetical protein
2146	 51.61	0	2049841..2050617	+	258	15838751	-	XF2160	-	hydroxyacylglutathione hydrolase
52.19	MEAN

6.22	STD DEV
