IslandPathversion 1.0

IslandPath Analysis: Vibrio vulnificus CMCP6

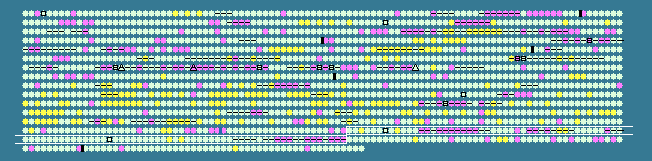

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.71 STD DEV: 3.40
Vibrio vulnificus CMCP6 chromosome II, complete sequence - 1..1844853
1557 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1355	 47.19	0	1607736..1609229	-	497	27367826	-	VV2_1473	-	catalase
1356	 47.88	0	1609621..1609950	+	109	27367827	-	VV2_1475	-	hypothetical protein
1357	 51.62	+1	1610058..1611473	+	471	27367828	-	VV2_1476	-	hypothetical protein
1358	 50.26	0	1611652..1612035	-	127	27367829	-	VV2_1477	-	lactoylglutathione lyase
1359	 50.00	0	1612035..1612946	-	303	27367830	-	VV2_1478	-	transcriptional regulator
1360	 50.79	0	1613369..1614508	+	379	27367831	-	VV2_1479	-	major facilitator superfamily permease
1361	 45.81	0	1614685..1616022	+	445	27367832	-	VV2_1480	-	transposase
1362	 50.00	0	1616073..1616420	-	115	27367833	-	VV2_1481	-	ATPase of the AAA+ class
1363	 51.68	+1	1616427..1618388	-	653	27367834	-	VV2_1482	-	regulatory P domain-containing protein
1364	 50.00	0	1618892..1620145	+	417	27367835	-	VV2_1483	-	phospholipase/lecithinase/hemolysin
1365	 51.01	0	1620420..1621613	+	397	27367836	-	VV2_1484	-	2-amino-3-ketobutyrate coenzyme A ligase
1366	 50.48	0	1621665..1622696	+	343	27367837	tdh	VV2_1485	-	L-threonine 3-dehydrogenase
1367	 43.36	-1	1622768..1623196	-	142	27367838	-	VV2_1486	-	hypothetical protein
1368	 36.50	-2	1623291..1623701	-	136	27367839	-	VV2_1487	-	hypothetical protein
1369	 48.04	0	1624093..1624602	-	169	27367840	-	VV2_1488	-	hypothetical protein
1370	 38.26	-2	1624679..1624942	-	87	27367841	-	VV2_1489	-	hypothetical protein
1371	 42.99	-1	1625180..1625914	-	244	27367842	-	VV2_1491	-	hypothetical protein
1372	 42.46	-1	1626223..1626507	+	94	27367843	-	VV2_1492	-	DNA-damage-inducible protein J
1373	 40.86	-2	1626504..1626782	+	92	27367844	-	VV2_1493	-	plasmid stabilization system protein protein
1374	 36.82	-2	1627218..1627475	-	85	27367845	-	VV2_1495	-	hypothetical protein
1375	 35.23	-2	1627485..1627748	-	87	27367846	-	VV2_1496	-	hypothetical protein
1376	 37.34	-2	1628272..1629918	-	548	27367847	-	VV2_1497	-	ATPase involved in DNA repair
1377	 47.40	0	1630809..1631270	-	153	27367848	-	VV2_1500	-	lipocalin
1378	 49.93	0	1631542..1632258	-	238	27367849	-	VV2_1501	-	Outer membrane protein V
1379	 49.25	0	1632485..1633615	-	376	27367850	-	VV2_1502	-	Zn-dependent hydrolase
1380	 48.23	0	1633728..1634660	+	310	27367851	-	VV2_1503	-	LysR family transcriptional regulator
1381	 49.81	0	1634774..1635568	-	264	27367852	-	VV2_1504	-	hypothetical protein
1382	 50.16	0	1635561..1637087	-	508	27367853	-	VV2_1505	-	hypothetical protein
1383	 43.03	-1	1637322..1637744	-	140	27367854	-	VV2_1506	-	hypothetical protein
1384	 44.73	0	1638181..1638768	+	195	27367855	-	VV2_1508	-	putative two-component response regulator
1385	 41.37	-1	1638852..1640207	-	451	27367856	-	VV2_1509	-	GGDEF family protein
1386	 41.94	-1	1640242..1640601	-	119	27367857	-	VV2_1510	-	response regulator
1387	 45.05	0	1640737..1641897	-	386	27367858	-	VV2_1511	-	response regulator VieA
1388	 44.17	-1	1641890..1645543	-	1217	27367859	-	VV2_1512	-	sensor kinase VieS
1389	 44.28	-1	1645904..1646305	-	133	27367860	-	VV2_1513	-	hypothetical protein
1390	 51.82	+1	1646569..1660533	+	4654	27367861	-	VV2_1514	-	autotransporter adhesin
1391	 51.44	+1	1660545..1662698	+	717	27367862	-	VV2_1515	-	toxin secretion ATP-binding protein
1392	 51.09	0	1662695..1664023	+	442	27367863	-	VV2_1516	-	HlyD family secretion protein
1393	 50.57	0	1664041..1665351	+	436	27367864	-	VV2_1517	-	agglutination protein
1394	 48.53	0	1665389..1665967	+	192	27367865	-	VV2_1518	-	Outer membrane protein, putative
1395	 46.86	0	1665995..1666903	+	302	27367866	-	VV2_1519	-	ABC-type phosphate transport system, periplasmic component
1396	 49.38	0	1667136..1667858	+	240	27367867	-	VV2_1520	-	carbonic anhydrase
1397	 47.19	0	1667987..1669090	-	367	27367868	-	VV2_1521	-	small-conductance mechanosensitive channel
1398	 43.97	-1	1669350..1669697	+	115	27367869	-	VV2_1522	-	transcriptional regulator protein
1399	 49.48	0	1669960..1670826	+	288	27367870	-	VV2_1523	-	methyl-accepting chemotaxis protein
1400	 49.58	0	1670823..1671536	+	237	27367871	-	VV2_1524	-	methyl-accepting chemotaxis protein
1401	 49.17	0	1671608..1671967	-	119	27367872	-	VV2_1525	-	hypothetical protein
1402	 44.33	0	1672053..1672343	-	96	27367873	-	VV2_1526	-	hypothetical protein
1403	 45.29	0	1672535..1672810	+	91	27367874	-	VV2_1527	-	acetyltransferase
1404	 46.51	0	1672864..1673364	-	166	27367875	-	VV2_1528	-	histone acetyltransferase HPA2
1405	 49.75	0	1673653..1675644	+	663	27367876	-	VV2_1529	-	hypothetical protein
1406	 50.12	0	1675664..1676920	+	418	27367877	-	VV2_1530	-	periplasmic protease
1407	 48.56	0	1677072..1678253	+	393	27367878	-	VV2_1531	-	major facilitator superfamily permease
1408	 48.33	0	1678312..1679151	-	279	27367879	-	VV2_1532	-	ABC-type cobalt transport system
1409	 50.32	0	1679148..1680689	-	513	27367880	-	VV2_1533	-	ABC-type cobalt transport system, ATPase component
1410	 47.18	0	1680879..1681427	-	182	27367881	-	VV2_1534	-	hypothetical protein
1411	 49.69	0	1681661..1682791	-	376	27367882	-	VV2_1535	-	multidrug resistance efflux pump
1412	 45.83	0	1682791..1683174	-	127	27367883	-	VV2_1536	-	GTPase
1413	 46.40	0	1683381..1684964	-	527	27367884	-	VV2_1537	-	GGDEF family protein
1414	 47.93	0	1684945..1686444	-	499	27367885	-	VV2_1538	-	ATP-dependent transcriptional regulator
1415	 47.11	0	1686605..1688128	-	507	27367886	-	VV2_1539	-	transposase
1416	 47.82	0	1688128..1688838	-	236	27367887	-	VV2_1540	-	purine nucleoside phosphorylase
1417	 46.02	0	1689254..1690207	+	317	27367888	-	VV2_1541	-	hypothetical protein
1418	 48.76	0	1690197..1691000	+	267	27367889	-	VV2_1542	-	MerR family transcriptional regulator
1419	 50.14	0	1691003..1692418	+	471	27367890	-	VV2_1543	-	deoxyribodipyrimidine photolyase
1420	 49.89	0	1692419..1693336	+	305	27367891	-	VV2_1544	-	hypothetical protein
1421	 47.67	0	1693357..1693635	-	92	27367892	-	VV2_1545	-	murein lipoprotein
1422	 46.88	0	1693992..1695335	+	447	27367893	-	VV2_1546	-	DEAD-box ATP dependent DNA helicase
1423	 50.27	0	1695589..1697619	+	676	27367894	-	VV2_1548	-	protease II
1424	 49.81	0	1697620..1699755	+	711	27367895	-	VV2_1549	-	Outer membrane receptor protein
1425	 51.75	+1	1699772..1702063	+	763	27367896	-	VV2_1550	-	regulatory P domain-containing protein
1426	 51.03	0	1702079..1703530	+	483	27367897	-	VV2_1551	-	hypothetical protein
1427	 52.58	+1	1703532..1704092	+	186	27367898	-	VV2_1552	-	hypothetical protein
1428	 48.06	0	1704197..1705588	-	463	27367899	-	VV2_1553	-	methyl-accepting chemotaxis protein
1429	 48.47	0	1705566..1706087	-	173	27367900	-	VV2_1554	-	methyl-accepting chemotaxis protein
1430	 48.18	0	1706400..1708043	-	547	27367901	-	VV2_1555	-	methyl-accepting chemotaxis protein
1431	 45.62	0	1708513..1709334	+	273	27367902	-	VV2_1556	-	ABC-type phosphate transport system, periplasmic component
1432	 48.55	0	1709423..1710355	+	310	27367903	-	VV2_1557	-	ABC-type phosphate transport system, permease component
1433	 47.57	0	1710377..1711240	+	287	27367904	-	VV2_1558	-	ABC-type phosphate transport system, permease component
1434	 48.00	0	1711299..1712048	+	249	27367905	-	VV2_1559	-	ABC-type phosphate transport system, ATPase component
1435	 48.03	0	1712315..1714417	+	700	27367906	-	VV2_1560	-	GGDEF family protein
1436	 48.18	0	1714501..1716123	-	540	27367907	-	VV2_1561	-	hypothetical protein
1437	 48.23	0	1716143..1718095	-	650	27367908	-	VV2_1562	-	TPR repeat-containing protein
1438	 48.77	0	1718088..1719059	-	323	27367909	-	VV2_1563	-	von Willebrand factor type A (vWA) domain-containing protein
1439	 48.41	0	1719052..1719522	-	156	27367910	-	VV2_1564	-	hypothetical protein
1440	 45.75	0	1719528..1720445	-	305	27367911	-	VV2_1565	-	hypothetical protein
1441	 48.07	0	1720449..1721405	-	318	27367912	-	VV2_1566	-	MoxR-like ATPase
1442	 46.60	0	1721704..1723617	+	637	27367913	-	VV2_1567	-	methyl-accepting chemotaxis protein
1443	 41.29	-1	1723665..1723865	+	66	27367914	-	VV2_1568	-	chromosome segregation ATPase
1444	 33.78	-2	1724041..1724706	+	221	27367915	-	VV2_1569	-	DNA-binding HTH domain-containing protein
1445	 38.39	-2	1724928..1725560	+	210	27367916	-	VV2_1570	-	DNA-binding HTH domain-containing protein
1446	 45.38	0	1725847..1726419	+	190	27367917	-	VV2_1571	-	calcium binding protein
1447	 46.24	0	1726914..1728176	+	420	27367918	-	VV2_1572	-	ABC-type protease/lipase transport system, ATPase and permease component
1448	 41.98	-1	1728169..1729509	+	446	27367919	-	VV2_1573	-	membrane-fusion protein
1449	 38.58	-2	1729690..1730013	-	107	27367920	-	VV2_1574	-	hypothetical protein
1450	 43.76	-1	1730087..1731400	-	437	27367921	-	VV2_1575	-	O-antigen and teichoic acid export protein
1451	 44.77	0	1731411..1732442	-	343	27367922	-	VV2_1576	-	glycosyltransferase
1452	 33.09	-2	1732439..1733272	-	277	27367923	-	VV2_1577	-	hypothetical protein
1453	 42.94	-1	1733425..1734465	-	346	27367924	-	VV2_1578	-	glycosyltransferase
1454	 43.70	-1	1734489..1736669	-	726	27367925	-	VV2_1579	-	ATPase involved in chromosome partitioning
47.71	MEAN

3.40	STD DEV
