IslandPath Analysis: Thermoplasma volcanium GSS1

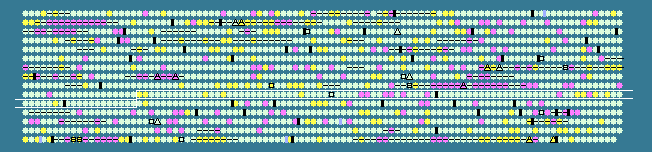

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
920	 45.50	+1	972668..973801	-	377	13541751	cbiD	TVN0920	-	cobalt-precorrin-6A synthase
921	 45.11	+1	973788..974543	-	251	13541752	-	TVN0921	-	precorrin-3B methylase
922	 44.12	0	974537..975250	-	237	13541753	-	TVN0922	-	precorrin isomerase
923	 41.90	0	975318..976076	-	252	13541754	-	TVN0923	-	uroporphyrinogen-III methylase
924	 40.00	0	976073..976717	-	214	13541755	-	TVN0924	-	siroheme synthase
925	 39.34	0	976779..977111	-	110	13541756	-	TVN0925	-	hypothetical protein
926	 40.82	0	977291..977878	-	195	13541757	-	TVN0926	-	aspartokinase beta subunit
927	 40.62	0	978001..979194	+	397	13541758	-	TVN0927	-	argininosuccinate synthase
928	 38.13	0	979191..980504	+	437	13541759	-	TVN0928	-	argininosuccinate lyase
929	 42.64	0	980491..981339	-	282	13541760	-	TVN0929	-	gluconolactonase
930	 39.62	0	981501..982439	+	312	13541761	-	TVN0930	-	Zn-dependent hydrolase
931	 44.81	+1	982485..983765	+	426	13541762	-	TVN0931	-	tryptophan synthase subunit beta
932	 44.23	0	984086..985801	+	571	13541763	-	TVN0932	-	Fe-S oxidoreductase
933	 39.30	0	985839..986240	+	133	13541764	-	TVN0933	-	hypothetical protein
934	 45.18	+1	986370..986825	+	151	13541765	-	TVN0934	-	transcription regulator
935	 42.94	0	986776..987795	+	339	13541766	-	TVN0935	-	ABC-type multidrug transport system, ATPase component
936	 40.05	0	987796..988599	+	267	13541767	-	TVN0936	-	ABC transporter permease
937	 40.82	0	988703..989851	+	382	13541768	-	TVN0937	-	Fe-S oxidoreductase
938	 41.47	0	989857..990507	+	216	13541769	-	TVN0938	-	metal-dependent transcription regulator
939	 41.39	0	990514..991977	-	487	13541770	-	TVN0939	-	amino acid transporter
940	 42.61	0	992082..992372	-	96	13541771	-	TVN0940	-	hypothetical protein
941	 39.18	0	992562..993143	+	193	13541772	-	TVN0941	-	hypothetical protein
942	 38.94	0	993131..993754	-	207	13541773	-	TVN0942	-	HAD superfamily hydrolase
943	 42.37	0	993767..994552	-	261	13541774	-	TVN0943	-	molybdopterin/thiamine biosynthesis dinucleotide-utilizing protein
944	 43.06	0	994641..995648	+	335	13541775	-	TVN0944	-	putative alcohol dehydrogenase
945	 39.10	0	995673..996071	-	132	13541776	-	TVN0945	-	metal-dependent transcription regulator
946	 40.74	0	996182..996343	+	53	13541777	-	TVN0946	-	hypothetical protein
947	 46.74	+1	996521..998758	+	745	13541778	-	TVN0947	-	ATPase of the AAA+ class involved in cell division
948	 42.54	0	999061..999549	-	162	13541779	-	TVN0948	-	hypothetical protein
949	 40.81	0	999664..1000425	-	253	13541780	-	TVN0949	-	translation initiation factor IF-2B subunit delta
950	 39.73	0	1000457..1001269	-	270	13541781	-	TVN0950	-	aldose 1-epimerase
951	 42.66	0	1001389..1001742	-	117	13541782	-	TVN0951	-	hypothetical protein
952	 41.12	0	1001758..1002939	-	393	13541783	-	TVN0952	-	transposase
953	 37.46	0	1003103..1003975	+	290	13541784	-	TVN0953	-	hypothetical protein
954	 40.16	0	1004364..1005578	+	404	13541785	-	TVN0954	-	glycosyltransferase
955	 40.00	0	1005629..1006378	+	249	13541786	-	TVN0955	-	SAM-dependent methyltransferase
956	 42.08	0	1006486..1007034	-	182	13541787	-	TVN0956	-	phosphoheptose isomerase
957	 35.28	-1	1007165..1007935	+	256	13541788	-	TVN0957	-	hypothetical protein
958	 36.46	-1	1007925..1008755	+	276	13541789	-	TVN0958	-	ABC transporter permease
959	 39.86	0	1008752..1009639	+	295	13541790	-	TVN0959	-	ABC-type multidrug transport system, ATPase component
960	 39.91	0	1009839..1010750	+	303	13541791	-	TVN0960	-	glycerate dehydrogenase
961	 36.96	-1	1010767..1011675	+	302	13541792	-	TVN0961	-	hypothetical protein
962	 34.81	-1	1011780..1012727	+	315	13541793	-	TVN0962	-	hypothetical protein
963	 40.10	0	1012742..1014811	+	689	13541794	-	TVN0963	-	hypothetical protein
964	 35.57	-1	1014789..1016708	+	639	13541795	-	TVN0964	-	hypothetical protein
965	 39.77	0	1016719..1017915	-	398	13541796	-	TVN0965	-	putative inner membrane protein
966	 39.51	0	1018247..1019152	+	301	13541797	-	TVN0966	-	phosphate uptake regulator
967	 39.47	0	1019249..1019998	+	249	13541798	-	TVN0967	-	permease
968	 33.74	-2	1020030..1020524	-	164	13541799	-	TVN0968	-	hypothetical protein
969	 39.65	0	1020565..1021134	-	189	13541800	-	TVN0969	-	hypothetical protein
970	 41.19	0	1021365..1022522	-	385	13541801	-	TVN0970	-	hypothetical protein
971	 39.98	0	1022523..1023365	-	280	13541802	-	TVN0971	-	endonuclease IV
972	 43.56	0	1023371..1024084	-	237	13541803	-	TVN0972	-	transcription regulator
973	 42.81	0	1024312..1025493	+	393	13541804	-	TVN0973	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
974	 38.43	0	1025483..1026247	+	254	13541805	-	TVN0974	-	amidohydrolase
975	 39.86	0	1026250..1026954	-	234	13541806	-	TVN0975	-	alpha/beta superfamily hydrolase
976	 44.08	0	1027096..1029756	+	886	13541807	-	TVN0976	-	pyruvate phosphate dikinase
977	 39.81	0	1029778..1030194	-	138	13541808	-	TVN0977	-	DNA-binding protein
978	 40.58	0	1030250..1030594	-	114	13541809	-	TVN0978	-	ferredoxin
979	 42.30	0	1030681..1031550	+	289	13541810	-	TVN0979	-	ribokinase family sugar kinase
980	 43.10	0	1031698..1032219	+	173	13541811	-	TVN0980	-	acetyltransferase
981	 43.28	0	1032254..1033459	+	401	13541812	eno	TVN0981	-	phosphopyruvate hydratase
982	 43.32	0	1033444..1034064	+	206	13541813	-	TVN0982	-	diphthine synthase
983	 40.26	0	1034191..1034796	-	201	13541814	-	TVN0983	-	transcription regulator
984	 42.62	0	1034799..1035347	-	182	13541815	-	TVN0984	-	molecular chaperone (small heat shock protein, hsp20-related)
985	 39.67	0	1035393..1038440	-	1015	13541816	-	TVN0985	-	transporter
986	 42.66	0	1038522..1039754	+	410	13541817	-	TVN0986	-	S-adenosyl-L-homocysteine hydrolase
987	 41.78	0	1039759..1041084	-	441	13541818	-	TVN0987	-	seryl-tRNA synthetase
988	 39.26	0	1041141..1042187	-	348	13541819	-	TVN0988	-	Kef-type K+ transporter NAD-binding component
989	 40.36	0	1042450..1043445	-	331	13541820	-	TVN0989	-	tyrosyl-tRNA synthetase
990	 36.78	-1	1043574..1043834	+	86	13541821	-	TVN0990	-	lipoate-protein ligase A
991	 43.47	0	1043836..1044624	+	262	13541822	-	TVN0991	-	lipoate-protein ligase A
992	 43.20	0	1044736..1046103	+	455	13541823	-	TVN0992	-	signal recognition particle protein Srp54
993	 46.35	+1	1046096..1047286	-	396	13541824	-	TVN0993	-	geranylgeranyl reductase
994	 44.60	+1	1047273..1047485	-	70	13541825	-	TVN0994	-	ferredoxin subunit of tungsten formylmethanofuran dehydrogenase
995	 37.25	-1	1047701..1048567	-	288	13541826	-	TVN0995	-	coiled-coil protein
996	 44.88	+1	1048762..1050051	+	429	13541827	asnC	TVN0996	-	asparaginyl-tRNA synthetase
997	 41.13	0	1050098..1050802	-	234	13541828	-	TVN0997	-	hypothetical protein
998	 47.58	+1	1050816..1051826	-	336	13541829	-	TVN0998	-	pyridoxine biosynthesis protein
999	 42.84	0	1051950..1053296	+	448	13541830	-	TVN0999	-	adenylosuccinate lyase
1000	 42.64	0	1053297..1053887	+	196	13541831	-	TVN1000	-	hypothetical protein
1001	 42.72	0	1053893..1054510	-	205	13541832	-	TVN1001	-	ATPase
1002	 41.92	0	1054535..1055338	-	267	13541833	-	TVN1002	-	thiamine monophosphate kinase
1003	 42.51	0	1055578..1057059	-	493	13541834	-	TVN1003	-	single-stranded DNA-specific exonuclease
1004	 38.94	0	1057056..1058108	-	350	13541835	-	TVN1004	-	Fe-S oxidoreductase
1005	 41.80	0	1058196..1059341	+	381	13541836	-	TVN1005	-	aspartate aminotransferase
1006	 44.84	+1	1059400..1060320	+	306	13541837	-	TVN1006	-	homoserine kinase
1007	 39.77	0	1060298..1061416	+	372	13541838	-	TVN1007	-	cystathionine beta-lyase or cystathionine gamma-synthase
1008	 38.38	0	1061681..1062076	-	131	13541839	-	TVN1008	-	hypothetical protein
1009	 40.12	0	1062110..1063258	-	382	13541840	-	TVN1009	-	translation-associated GTPase
1010	 43.50	0	1063293..1064915	-	540	13541841	-	TVN1010	-	Fe-S oxidoreductase
1011	 41.61	0	1065076..1065993	-	305	13541842	-	TVN1011	-	heat shock protein HtpX
1012	 38.42	0	1066198..1067415	+	405	13541843	-	TVN1012	-	ATPase
1013	 40.64	0	1067417..1068265	+	282	13541844	-	TVN1013	-	hypothetical protein
1014	 42.28	0	1068262..1068999	+	245	13541845	-	TVN1014	-	hypothetical protein
1015	 41.61	0	1068996..1070228	+	410	13541846	-	TVN1015	-	ATPase
1016	 38.57	0	1070221..1071519	-	432	13541847	-	TVN1016	-	NhaP-type Na+/H+ antiporter
1017	 41.43	0	1071522..1072250	-	242	13541848	nadE	TVN1017	-	NAD synthetase
1018	 41.73	0	1072456..1073301	-	281	13541849	-	TVN1018	-	5,10-methylene-tetrahydrofolate dehydrogenase
1019	 41.62	0	1073292..1074377	-	361	13541850	-	TVN1019	-	glucose 1-dehydrogenase
40.87	MEAN

3.44	STD DEV
