IslandPathversion 1.0

IslandPath Analysis: Thermoplasma volcanium GSS1

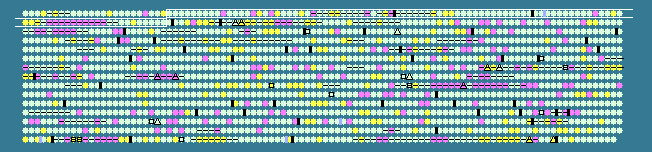

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
25	 43.08	0	25269..25781	-	170	13540856	-	TVN0025	-	hypothetical protein
26	 39.90	0	25913..26689	-	258	13540857	-	TVN0026	-	arsenite transporting ATPase
27	 42.83	0	26800..27936	+	378	13540858	-	TVN0027	-	cell division protein FtsZ
28	 41.26	0	28471..29151	+	226	13540859	-	TVN0028	-	orotidine 5'-phosphate decarboxylase
29	 41.27	0	29176..29868	+	230	13540860	-	TVN0029	-	secreted serine protease (ClpP class)
30	 37.94	0	29865..30797	-	310	13540861	cobD	TVN0030	-	cobalamin biosynthesis protein
31	 39.94	0	30868..32274	-	468	13540862	-	TVN0031	-	cobyric acid synthase
32	 41.55	0	32497..34869	+	790	13540863	valS	TVN0032	-	valyl-tRNA synthetase
33	 42.02	0	35198..36820	+	540	13540864	-	TVN0033	-	CTP synthetase
34	 36.67	-1	37710..38039	+	109	13540865	-	TVN0034	-	sterol carrier protein
35	 43.07	0	38125..41370	+	1081	13540866	-	TVN0035	-	DNA polymerase II large subunit
36	 41.34	0	41375..42148	+	257	13540867	-	TVN0036	-	GTPase
37	 40.98	0	42157..42771	-	204	13540868	-	TVN0037	-	hypothetical protein
38	 40.86	0	42761..43039	-	92	13540869	-	TVN0038	-	hypothetical protein
39	 36.65	-1	43106..43618	+	170	13540870	-	TVN0039	-	hypothetical protein
40	 44.91	+1	43806..44090	+	94	13540871	-	TVN0040	-	hypothetical protein
41	 38.50	0	44114..44713	-	199	13540872	-	TVN0041	-	regulator of amino acid metabolism
42	 37.36	-1	44802..45074	-	90	13540873	-	TVN0042	-	hypothetical protein
43	 49.71	+2	45165..45689	-	174	13540874	-	TVN0043	-	hypothetical protein
44	 39.23	0	46243..46971	+	242	13540875	-	TVN0044	-	TPR repeat-containing protein
45	 41.46	0	46979..47335	-	118	13540876	-	TVN0045	-	hypothetical protein
46	 41.63	0	47464..48222	+	252	13540877	-	TVN0046	-	exonuclease III
47	 44.57	+1	48225..49505	-	426	13540878	glyA	TVN0047	-	serine hydroxymethyltransferase
48	 42.98	0	49756..49983	+	75	13540879	-	TVN0048	-	H+-ATPase subunit K
49	 35.48	-1	49989..50546	+	185	13540880	-	TVN0049	-	V-type ATP synthase subunit E
50	 40.06	0	50548..51618	+	356	13540881	-	TVN0050	-	V-type ATP synthase subunit C
51	 40.32	0	51620..51934	+	104	13540882	-	TVN0051	-	V-type ATP synthase subunit F
52	 44.36	+1	51944..54274	+	776	13540883	-	TVN0052	-	V-type ATP synthase subunit A
53	 45.84	+1	54255..55637	+	460	13540884	-	TVN0053	-	V-type ATP synthase subunit B
54	 42.90	0	55622..56269	+	215	13540885	-	TVN0054	-	V-type ATP synthase subunit D
55	 40.48	0	56417..56752	+	111	13540886	-	TVN0055	-	V-type ATP synthase subunit H
56	 41.46	0	56755..58686	+	643	13540887	-	TVN0056	-	V-type ATP synthase subunit I
57	 39.83	0	58751..59350	+	199	13540888	-	TVN0057	-	glutamine amidotransferase subunit PdxT
58	 37.28	-1	59351..60439	+	362	13540889	-	TVN0058	-	aminomethyltransferase (glycine cleavage system T protein)
59	 38.98	0	60866..61804	-	312	13540890	-	TVN0059	-	UDP-glucose 4-epimerase
60	 40.69	0	61978..62181	+	67	13540891	-	TVN0060	-	nucleic-acid-binding protein (Zn-ribbon)
61	 44.82	+1	62254..62871	+	205	13540892	-	TVN0061	-	superoxide dismutase
62	 36.42	-1	62879..63493	+	204	13540893	-	TVN0062	-	N-glycosylase/DNA lyase
63	 42.31	0	63671..64561	-	296	13540894	-	TVN0063	-	phosphate permease
64	 41.77	0	64561..65125	-	188	13540895	-	TVN0064	-	hypothetical protein
65	 43.82	0	65335..65973	+	212	13540896	-	TVN0065	-	MarC family integral membrane protein
66	 39.39	0	65980..66474	+	164	13540897	-	TVN0066	-	2'-5' RNA ligase
67	 42.75	0	66522..67031	+	169	13540898	-	TVN0067	-	hypothetical protein
68	 41.30	0	67028..67504	-	158	13540899	-	TVN0068	-	nucleic-acid-binding protein
69	 48.17	+2	67506..68678	-	390	13540900	-	TVN0069	-	acetyl-CoA acetyltransferase
70	 41.67	0	69015..70322	+	435	13540901	-	TVN0070	-	proline/betaine transport permease
71	 47.00	+1	70571..71521	+	316	13540902	-	TVN0071	-	threonine synthase
72	 45.51	+1	71521..72555	+	344	13540903	-	TVN0072	-	hypothetical protein
73	 41.68	0	72606..74006	+	466	13540904	-	TVN0073	-	metal-binding protein containing
74	 44.31	+1	74056..75057	+	333	13540905	-	TVN0074	-	D-mannonate dehydratase
75	 43.38	0	75046..75831	-	261	13540906	-	TVN0075	-	aldose dehydrogenase
76	 42.83	0	75867..76361	-	164	13540907	-	TVN0076	-	hypothetical protein
77	 43.06	0	76358..77128	-	256	13540908	-	TVN0077	-	hypothetical protein
78	 39.19	0	77159..78166	-	335	13540909	-	TVN0078	-	histidinol-phosphate aminotransferase
79	 40.32	0	78297..79184	+	295	13540910	-	TVN0079	-	hypothetical protein
80	 40.00	0	79186..79590	+	134	13540911	-	TVN0080	-	hypothetical protein
81	 42.78	0	79558..80637	-	359	13540912	-	TVN0081	-	nucleoside-diphosphate-sugar pyrophosphorylase
82	 38.16	0	80863..81816	-	317	13540913	-	TVN0082	-	hypothetical protein
83	 43.57	0	81827..83194	-	455	13540914	-	TVN0083	-	cytochrome bd-type quinol oxidase, subunit 1
84	 42.23	0	83526..84143	+	205	13540915	-	TVN0084	-	transcription activator
85	 42.30	0	84357..84869	-	170	13540916	-	TVN0085	-	hypothetical protein
86	 40.92	0	85061..85666	+	201	13540917	-	TVN0086	-	alpha/beta superfamily hydrolase
87	 40.82	0	85663..86076	+	137	13540918	-	TVN0087	-	molybdopterin converting factor, large subunit
88	 44.09	0	89391..90245	-	284	13540919	-	TVN0088	-	ATPase involved in chromosome partitioning
89	 43.89	0	90326..91936	-	536	13540920	-	TVN0089	-	formyltetrahydrofolate synthetase
90	 40.81	0	91933..92547	-	204	13540921	-	TVN0090	-	formiminotetrahydrofolate cyclodeaminase
91	 42.02	0	92631..93539	-	302	13540922	-	TVN0091	-	glutamate formiminotransferase
92	 42.40	0	93749..96052	+	767	13540923	-	TVN0092	-	ribonucleotide-diphosphate reductase subunit alpha
93	 39.53	0	96070..96843	-	257	13540924	-	TVN0093	-	metal-dependent hydrolase
94	 42.10	0	97142..98920	-	592	13540925	-	TVN0094	-	chloride channel protein
95	 38.39	0	99129..100097	-	322	13540926	-	TVN0095	-	cell wall biosynthesis glycosyltransferase
96	 36.93	-1	100132..100770	-	212	13540927	-	TVN0096	-	2-phosphosulfolactate phosphatase
97	 42.66	0	100811..101839	-	342	13540928	-	TVN0097	-	Kef-type K+ transporter NAD-binding component
98	 41.99	0	102084..102626	+	180	13540929	-	TVN0098	-	hypothetical protein
99	 45.31	+1	102621..103931	-	436	13540930	-	TVN0099	-	dihydrolipoamide dehydrogenase
100	 43.84	0	103933..105141	-	402	13540931	-	TVN0100	-	branched-chain alpha-keto acid dehydrogenase subunit E2
101	 47.92	+2	105141..106100	-	319	13540932	-	TVN0101	-	thiamine pyrophosphate-dependent dehydrogenase, E1 component beta subunit
102	 46.15	+1	106097..107110	-	337	13540933	-	TVN0102	-	branched-chain alpha-ketoacid dehydrogenase, E1 component alpha subunit
103	 44.98	+1	107310..108185	-	291	13540934	-	TVN0103	-	methionine aminopeptidase
104	 41.74	0	108190..108867	-	225	13540935	-	TVN0104	-	hypothetical protein
105	 27.59	-2	110650..110910	-	86	13540936	-	TVN0105	-	hypothetical protein
106	 28.90	-2	110910..111878	-	322	13540937	-	TVN0106	-	hypothetical protein
107	 28.69	-2	111880..112590	-	236	13540938	-	TVN0107	-	hypothetical protein
108	 27.63	-2	112611..113768	-	385	13540939	-	TVN0108	-	hypothetical protein
109	 30.98	-2	113769..114659	-	296	13540940	-	TVN0109	-	hypothetical protein
110	 34.35	-1	114661..115350	-	229	13540941	-	TVN0110	-	hypothetical protein
111	 29.48	-2	115343..115783	-	146	13540942	-	TVN0111	-	hypothetical protein
112	 29.68	-2	115828..118155	-	775	13540943	-	TVN0112	-	HD superfamily hydrolase
113	 25.77	-2	118145..118858	-	237	13540944	-	TVN0113	-	hypothetical protein
114	 23.75	-2	119105..120325	+	406	13540945	-	TVN0114	-	hypothetical protein
115	 43.91	0	123780..124526	+	248	13540946	-	TVN0115	-	hypothetical protein
116	 41.55	0	124519..124725	+	68	13540947	-	TVN0116	-	hypothetical protein
117	 42.16	0	124714..126027	-	437	13540948	-	TVN0117	-	tRNA CCA-pyrophosphorylase
118	 43.33	0	126024..126383	-	119	13540949	nac	TVN0118	-	nascent polypeptide-associated complex protein
119	 47.75	+2	127036..127458	-	140	13540950	-	TVN0119	-	ferredoxin
120	 40.85	0	127681..128172	+	163	13540951	-	TVN0120	-	hypothetical protein
121	 38.46	0	128375..128764	-	129	13540952	-	TVN0121	-	hypothetical protein
122	 42.19	0	128958..130538	+	526	13540953	-	TVN0122	-	Acyl-coenzyme A synthetase
123	 43.79	0	130805..132220	+	471	13540954	-	TVN0123	-	phosphate ABC transporter permease
124	 38.46	0	132662..133675	+	337	13540955	-	TVN0124	-	adenine specific DNA methylase
40.87	MEAN

3.44	STD DEV
