IslandPath Analysis: Thermoplasma volcanium GSS1

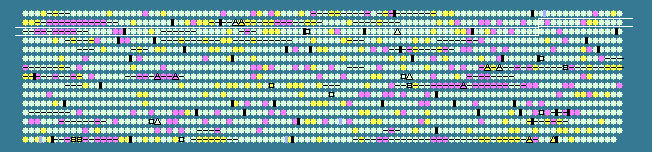

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
187	 40.11	0	192660..193013	+	117	13541018	-	TVN0187	-	peptidyl-tRNA hydrolase
188	 33.92	-2	193127..193297	-	56	13541019	-	TVN0188	-	hypothetical protein
189	 43.35	0	193469..196114	+	881	13541020	-	TVN0189	-	aconitate hydratase
190	 43.90	0	196177..197397	+	406	13541021	-	TVN0190	-	threonine dehydratase
191	 39.13	0	197394..197945	+	183	13541022	-	TVN0191	-	RNA methylase
192	 38.38	0	198066..198521	+	151	13541023	-	TVN0192	-	transcription regulator
193	 42.66	0	198518..199096	-	192	13541024	-	TVN0193	-	SAM-dependent methyltransferase
194	 37.37	-1	199215..199907	+	230	13541025	aroD	TVN0194	-	3-dehydroquinate dehydratase
195	 46.72	+1	200001..201218	+	405	13541026	-	TVN0195	-	isocitrate dehydrogenase
196	 45.20	+1	201215..201922	-	235	13541027	-	TVN0196	-	hypothetical protein
197	 42.16	0	201915..202775	-	286	13541028	-	TVN0197	-	ribose-phosphate pyrophosphokinase
198	 43.58	0	202930..203661	+	243	13541029	-	TVN0198	-	enoyl-CoA hydratase
199	 41.08	0	203649..204668	+	339	13541030	-	TVN0199	-	N-acetylglucosamine kinase
200	 43.84	0	204657..206426	-	589	13541031	-	TVN0200	-	phosphoenolpyruvate carboxykinase
201	 41.98	0	206628..207356	-	242	13541032	-	TVN0201	-	metal-dependent hydrolase related to alanyl-tRNA synthetase
202	 40.57	0	207459..208121	+	220	13541033	-	TVN0202	-	glutaredoxin
203	 32.05	-2	208360..208593	+	77	13541034	-	TVN0203	-	hypothetical protein
204	 34.15	-1	208707..209075	+	122	13541035	-	TVN0204	-	hypothetical protein
205	 38.59	0	209230..210789	+	519	13541036	-	TVN0205	-	sugar-binding protein
206	 29.52	-2	210797..211687	+	296	13541037	-	TVN0206	-	ABC-type sugar transporter, permease component
207	 30.48	-2	211689..212495	+	268	13541038	-	TVN0207	-	sugar permease
208	 30.96	-2	212538..213590	+	350	13541039	-	TVN0208	-	ABC-type sugar transporter, ATPase component
209	 28.60	-2	215286..218327	+	1013	13541040	-	TVN0209	-	Alpha-mannosidase
210	 37.54	0	218796..219152	-	118	13541041	-	TVN0210	-	transcription regulator
211	 42.88	0	219258..219791	+	177	13541042	-	TVN0211	-	hypothetical protein
212	 41.20	0	219794..220708	+	304	13541043	-	TVN0212	-	Pirin-related protein
213	 37.68	0	220714..221772	-	352	13541044	-	TVN0213	-	transcription regulator
214	 39.62	0	221806..222171	-	121	13541045	-	TVN0214	-	hypothetical protein
215	 39.93	0	222256..222861	+	201	13541046	-	TVN0215	-	hypothetical protein
216	 34.55	-1	222877..224106	-	409	13541047	-	TVN0216	-	major facilitator superfamily permease
217	 36.03	-1	224208..226058	+	616	13541048	-	TVN0217	-	glycosidase
218	 40.60	0	226399..227999	-	533	13541049	-	TVN0218	-	amino acid transporter
219	 42.54	0	228061..229287	-	408	13541050	-	TVN0219	-	multidrug efflux permease
220	 37.92	0	229397..229963	-	188	13541051	-	TVN0220	-	hypothetical protein
221	 41.54	0	230102..230905	+	267	13541052	-	TVN0221	-	Signal peptidase I
222	 46.86	+1	230902..231426	-	174	13541053	-	TVN0222	-	peroxiredoxin
223	 41.12	0	231588..232268	+	226	13541054	-	TVN0223	-	cell wall biosynthesis glycosyltransferase
224	 41.96	0	232273..233466	-	397	13541055	-	TVN0224	-	major facilitator superfamily permease
225	 40.00	0	233580..233939	+	119	13541056	-	TVN0225	-	hypothetical protein
226	 41.84	0	233936..235228	-	430	13541057	-	TVN0226	-	major facilitator superfamily permease
227	 38.43	0	235331..238018	-	895	13541058	-	TVN0227	-	chromosome segregation protein
228	 43.72	0	238008..239114	-	368	13541059	-	TVN0228	-	DNA repair exonuclease
229	 42.39	0	239138..240694	-	518	13541060	-	TVN0229	-	ATPase
230	 40.28	0	240654..241661	-	335	13541061	-	TVN0230	-	hypothetical protein
231	 43.06	0	241856..242719	+	287	13541062	-	TVN0231	-	3-hydroxyisobutyrate dehydrogenase
232	 42.88	0	242725..244368	+	547	13541063	-	TVN0232	-	NADH:flavin oxidoreductase
233	 38.56	0	245034..245435	-	133	13541064	-	TVN0233	-	hypothetical protein
234	 42.02	0	245889..246671	-	260	13541065	-	TVN0234	-	Zn-ribbon domain-containing protein
235	 44.83	+1	246963..247223	-	86	13541066	-	TVN0235	-	hypothetical protein
236	 40.34	0	247285..247983	+	232	13541067	-	TVN0236	-	DNA-binding protein
237	 40.54	0	248059..251055	+	998	13541068	-	TVN0237	-	thermopsin
238	 36.86	-1	251088..251597	-	169	13541069	-	TVN0238	-	hypothetical protein
239	 42.38	0	251796..252956	+	386	13541070	-	TVN0239	-	methylcitrate synthase
240	 41.51	0	252968..253285	-	105	13541071	-	TVN0240	-	hypothetical protein
241	 47.80	+2	253583..253969	-	128	13541072	-	TVN0241	-	hypothetical protein
242	 47.78	+2	253982..254161	-	59	13541073	-	TVN0242	-	hypothetical protein
243	 45.99	+1	254542..257496	+	984	13541074	-	TVN0243	-	hypothetical protein
244	 39.00	0	257661..257960	+	99	13541075	-	TVN0244	-	hypothetical protein
245	 42.86	0	257957..258796	+	279	13541076	-	TVN0245	-	hypothetical protein
246	 41.05	0	258863..260158	+	431	13541077	-	TVN0246	-	major facilitator superfamily permease
247	 39.53	0	260458..261216	-	252	13541078	-	TVN0247	-	SAM-dependent methyltransferase
248	 41.12	0	261621..262802	+	393	13541079	-	TVN0248	-	transposase
249	 39.41	0	262873..263349	+	158	13541080	-	TVN0249	-	HIT (histidine triad) family protein
250	 42.26	0	263385..264527	+	380	13541081	-	TVN0250	-	major facilitator superfamily permease
251	 44.00	0	264489..265904	-	471	13541082	-	TVN0251	-	mercuric reductase
252	 45.33	+1	265894..266118	-	74	13541083	-	TVN0252	-	copper chaperone
253	 36.69	-1	266253..266639	+	128	13541084	-	TVN0253	-	hypothetical protein
254	 41.57	0	266641..267720	-	359	13541085	-	TVN0254	-	membrane-associated Zn-dependent protease 1
255	 37.94	0	268261..269367	-	368	13541086	-	TVN0255	-	major facilitator superfamily permease
256	 41.83	0	269460..270671	+	403	13541087	-	TVN0256	-	multidrug efflux permease
257	 42.90	0	270675..271280	-	201	13541088	-	TVN0257	-	phosphoglycerate mutase
258	 41.04	0	271512..272783	-	423	13541089	-	TVN0258	-	hypothetical protein
259	 43.25	0	272984..273901	+	305	13541090	-	TVN0259	-	carbamate kinase
260	 41.90	0	273888..274541	-	217	13541091	-	TVN0260	-	phosphoribosyltransferase
261	 41.82	0	274704..275033	-	109	13541092	-	TVN0261	-	NTP pyrophosphohydrolase
262	 42.07	0	275700..276764	+	354	13541093	-	TVN0262	-	geranylgeranyl pyrophosphate synthase
263	 44.13	0	276761..277612	-	283	13541094	-	TVN0263	-	integrase/recombinase
264	 39.31	0	277703..278338	+	211	13541095	-	TVN0264	-	ribulose-phosphate 3-epimerase
265	 43.97	0	278316..279302	-	328	13541096	-	TVN0265	-	alcohol dehydrogenase
266	 39.48	0	279375..279911	-	178	13541097	-	TVN0266	-	hypothetical protein
267	 44.00	0	280069..280218	+	49	13541098	rpl40e	TVN0267	-	50S ribosomal protein L40e
268	 43.11	0	280223..280999	+	258	13541099	-	TVN0268	-	phosphoribosylformylglycinamidine synthase subunit I
269	 44.71	+1	280992..282239	+	415	13541100	-	TVN0269	-	dihydroorotase
270	 41.25	0	282227..282820	-	197	13541101	-	TVN0270	-	RNA methylase
271	 44.12	0	282820..283125	-	101	13541102	-	TVN0271	-	hypothetical protein
272	 43.83	0	283269..284192	-	307	13541103	-	TVN0272	-	ornithine carbamoyltransferase
273	 45.80	+1	284189..285046	-	285	13541104	-	TVN0273	-	succinyl-CoA synthetase subunit alpha
274	 44.54	+1	285047..286144	-	365	13541105	sucC	TVN0274	-	succinyl-CoA synthetase subunit beta
275	 30.63	-2	288250..289470	-	406	13541106	-	TVN0275	-	hypothetical protein
276	 41.85	0	291894..292433	-	179	13541107	-	TVN0276	-	hypothetical protein
277	 39.00	0	292522..293121	-	199	13541108	-	TVN0277	-	hypothetical protein
278	 46.05	+1	293611..293838	+	75	13541109	-	TVN0278	-	hypothetical protein
279	 37.36	-1	293828..294100	-	90	13541110	-	TVN0279	-	RNAse P protein subunit RPR2
280	 38.81	0	294141..294815	+	224	13541111	-	TVN0280	-	phosphoglycolate phosphatase
281	 43.26	0	294833..295648	-	271	13541112	-	TVN0281	-	solute-binding protein
282	 37.29	-1	295743..296525	+	260	13541113	-	TVN0282	-	hypothetical protein
283	 41.69	0	296872..297936	-	354	13541114	-	TVN0283	-	ABC-type Fe3+-siderophores transporter, permease component
284	 42.34	0	298043..299008	+	321	13541115	-	TVN0284	-	ABC-type Fe3+-siderophores transporter, solute-binding component
285	 41.28	0	299333..300628	-	431	13541116	-	TVN0285	-	arsenite transport permease
286	 44.09	0	300659..301132	-	157	13541117	-	TVN0286	-	peroxiredoxin
40.87	MEAN

3.44	STD DEV
