IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

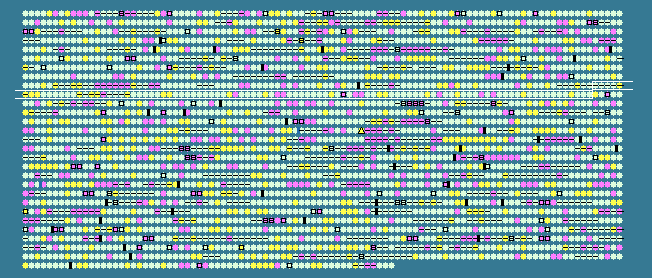

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
896	 58.10	0	956750..958873	+	707	86608400	fusA	CYB_0920	-	elongation factor G
897	 58.54	0	958905..960134	+	409	86608401	tuf	CYB_0921	-	elongation factor Tu
898	 55.97	0	960259..960576	+	105	86608402	rpsJ	CYB_0922	-	30S ribosomal protein S10
899	 61.56	0	960698..961558	+	286	86608403	dapB	CYB_0924	-	dihydrodipicolinate reductase
900	 63.40	+1	961555..962472	-	305	86608404	-	CYB_0923	-	methylenetetrahydrofolate reductase family protein
901	 64.60	+1	962550..964145	-	531	86608405	-	CYB_0925	-	hypothetical protein
902	 62.42	0	964370..965122	-	250	86608406	-	CYB_0926	-	hypothetical protein
903	 63.68	+1	965343..966683	-	446	86608407	-	CYB_0927	-	oxidoreductase, FAD-dependent
904	 61.30	0	966778..967392	-	204	86608408	-	CYB_0928	-	hypothetical protein
905	 60.79	0	967382..968164	-	260	86608409	tatC	CYB_0929	-	Sec-independent protein translocase TatC
906	 61.21	0	968327..969535	-	402	86608410	-	CYB_0930	-	polar amino acid ABC transporter permease
907	 61.89	0	969539..970711	-	390	86608411	-	CYB_0931	-	polar amino acid ABC transporter permease
908	 60.02	0	970810..971847	-	345	86608412	-	CYB_0932	-	polar amino acid ABC transporter periplasmic amino acid-binding protein
909	 55.89	0	972111..972899	+	262	86608413	-	CYB_0933	-	polar amino acid ABC transporter ATP-binding protein
910	 62.19	0	972908..973756	-	282	86608414	-	CYB_0934	-	hypothetical protein
911	 58.33	0	973785..974000	+	71	86608415	-	CYB_0935	-	hypothetical protein
912	 63.06	+1	974140..975555	+	471	86608416	-	CYB_0936	-	hydrophobic amino acid uptake ABC transporter periplasmic amino acid-binding protein
913	 63.60	+1	975617..976432	+	271	86608417	trpA	CYB_0937	-	tryptophan synthase subunit alpha
914	 50.34	-1	976520..976666	-	48	86608418	-	CYB_0938	-	hypothetical protein
915	 57.42	0	976892..977410	+	172	86608419	cpcB-1	CYB_0939	-	phycocyanin, beta subunit
916	 57.46	0	977556..978044	+	162	86608420	cpcA-1	CYB_0940	-	phycocyanin, alpha subunit
917	 61.48	0	978360..978629	+	89	86608421	cpcD	CYB_0941	-	phycobilisome 8.9 kDa linker polypeptide, phycocyanin-associated, rod
918	 63.48	+1	978721..979473	+	250	86608422	cpcE-1	CYB_0942	-	phycocyanin alpha subunit phycocyanobilin lyase, CpcE subunit
919	 61.88	0	979490..980179	+	229	86608423	cpcF	CYB_0943	-	phycocyanin alpha subunit phycocyanobilin lyase, CpcF subunit
920	 59.23	0	980238..980963	+	241	86608424	cpcG1	CYB_0944	-	phycobilisome rod-core linker polypeptide cpcG1
921	 59.62	0	981105..981416	+	103	86608425	-	CYB_0945	-	hypothetical protein
922	 57.45	0	981446..983149	+	567	86608426	-	CYB_0946	-	hypothetical protein
923	 57.92	0	983149..983868	+	239	86608427	-	CYB_0947	-	putatve protein phosphatase
924	 62.31	0	983880..984797	-	305	86608428	-	CYB_0948	-	histone deacetylase family protein
925	 62.28	0	984929..986818	+	629	86608429	-	CYB_0949	-	serine/threonine protein kinase
926	 61.44	0	986822..989176	+	784	86608430	-	CYB_0950	-	1A family penicillin-binding protein
927	 58.70	0	989823..991103	-	426	86608431	-	CYB_0952	-	major facilitator transporter
928	 57.63	0	991147..991323	-	58	86608432	-	CYB_0953	-	hypothetical protein
929	 58.38	0	992536..993054	-	172	86608433	-	CYB_0954	-	HNH endonuclease domain-containing protein
930	 61.14	0	993210..995417	+	735	86608434	-	CYB_0955	-	glycosy hydrolase family protein
931	 61.83	0	995445..996395	+	316	86608435	pip	CYB_0956	-	prolyl aminopeptidase
932	 56.94	0	996392..996535	+	47	86608436	-	CYB_0957	-	hypothetical protein
933	 59.21	0	996438..997175	+	245	86608437	-	CYB_0958	-	PDZ domain-containing protein
934	 60.52	0	997207..997515	+	102	86608438	-	CYB_0959	-	hypothetical protein
935	 64.41	+1	997526..999121	+	531	86608439	-	CYB_0961	-	hydantoinase/oxoprolinase family protein
936	 54.93	0	999058..999534	-	158	86608440	trx-2	CYB_0960	-	thioredoxin
937	 56.41	0	999485..1000225	-	246	86608441	-	CYB_0962	-	NnrU family protein
938	 56.72	0	1000294..1000695	+	133	86608442	-	CYB_0963	-	putative photosystem II protein
939	 60.00	0	1000925..1001389	+	154	86608443	-	CYB_0964	-	YHS domain-containing protein
940	 60.92	0	1001414..1002196	-	260	86608444	-	CYB_0965	-	sensor histidine kinase
941	 63.17	+1	1002317..1003060	-	247	86608445	-	CYB_0966	-	HemK family methyltransferase
942	 59.30	0	1003217..1004071	-	284	86608446	-	CYB_0967	-	chloroplast envelope protein translocase (CEPT or Tic-Toc) family protein
943	 53.65	-1	1004569..1004760	+	63	86608447	-	CYB_0968	-	hypothetical protein
944	 50.00	-2	1004790..1004909	+	39	86608448	-	CYB_0969	-	hypothetical protein
945	 60.18	0	1004906..1007419	+	837	86608449	-	CYB_0970	-	U32 family peptidase
946	 57.14	0	1007584..1008108	+	174	86608450	ilvH	CYB_0971	-	acetolactate synthase 3 regulatory subunit
947	 61.35	0	1008126..1008764	+	212	86608451	-	CYB_0972	-	putative lipoprotein
948	 60.84	0	1008790..1009407	-	205	86608452	-	CYB_0973	-	hypothetical protein
949	 60.54	0	1009689..1010732	+	347	86608453	glk	CYB_0974	-	glucokinase
950	 59.42	0	1010729..1011004	+	91	86608454	-	CYB_0975	-	hypothetical protein
951	 59.86	0	1011012..1012010	+	332	86608455	-	CYB_0976	-	cyclopropane-fatty-acyl-phospholipid synthase family protein
952	 63.96	+1	1012024..1013241	+	405	86608456	-	CYB_0978	-	2-octaprenyl-6-methoxyphenyl hydroxylase
953	 59.38	0	1013238..1014965	-	575	86608457	-	CYB_0977	-	hypothetical protein
954	 54.69	0	1015075..1016268	+	397	86608458	-	CYB_0979	-	ISSoc1, transposase
955	 57.96	0	1016270..1017004	-	244	86608459	-	CYB_0980	-	hypothetical protein
956	 47.62	-2	1017099..1017203	-	34	86608460	-	CYB_0981	-	hypothetical protein
957	 53.39	-1	1017330..1017698	-	122	86608461	-	CYB_0982	-	hypothetical protein
958	 61.82	0	1018038..1019276	+	412	86608462	coaBC	CYB_0983	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
959	 55.27	0	1019366..1020172	-	268	86608463	sppA-2	CYB_0984	-	signal peptide peptidase SppA, 36K type
960	 62.13	0	1020247..1020951	-	234	86608464	fabG	CYB_0985	-	3-ketoacyl-(acyl-carrier-protein) reductase
961	 63.72	+1	1021057..1021905	-	282	86608465	ksgA	CYB_0986	-	dimethyladenosine transferase
962	 59.47	0	1021950..1023713	-	587	86608466	-	CYB_0987	-	sensor histidine kinase
963	 59.26	0	1023740..1024873	-	377	86608467	-	CYB_0988	-	PilT domain-containing protein
964	 55.56	0	1025388..1025630	+	80	86608468	-	CYB_0989	-	NifU domain-containing protein
965	 61.48	0	1025763..1026860	+	365	86608469	-	CYB_0990	-	membrane-associated zinc metalloprotease, putative
966	 60.71	0	1026867..1027571	+	234	86608470	nth	CYB_0991	-	endonuclease III
967	 61.59	0	1027682..1028665	+	327	86608471	-	CYB_0992	-	hypothetical protein
968	 62.34	0	1028658..1030022	+	454	86608472	-	CYB_0993	-	hypothetical protein
969	 61.00	0	1030047..1031633	-	528	86608473	-	CYB_0994	-	hypothetical protein
970	 48.68	-2	1031709..1032803	-	364	86608474	-	CYB_0995	-	hypothetical protein
971	 59.37	0	1033030..1034934	+	634	86608475	-	CYB_0996	-	penicillin-binding protein
972	 55.31	0	1035046..1036269	-	407	86608476	-	CYB_0997	-	glycosyl transferase, group 2
973	 62.13	0	1036444..1038936	-	830	86608477	-	CYB_0998	-	HDIG domain-containing protein
974	 56.06	0	1039003..1039398	-	131	86608478	-	CYB_0999	-	hypothetical protein
975	 61.48	0	1039634..1040269	-	211	86608479	-	CYB_1000	-	4'-phosphopantetheinyl transferase family protein
976	 61.63	0	1040370..1041839	+	489	86608480	-	CYB_1001	-	putative cell envelope-related function transcriptional attenuator
977	 52.63	-1	1041947..1043806	+	619	86608481	htpG	CYB_1003	-	heat shock protein 90
978	 59.83	0	1043800..1044384	-	194	86608482	ribH	CYB_1002	-	riboflavin synthase subunit beta
979	 48.06	-2	1044645..1044773	+	42	86608483	-	CYB_1004	-	hypothetical protein
980	 57.43	0	1044770..1046068	+	432	86608484	glnA-1	CYB_1005	-	glutamine synthetase
981	 61.59	0	1046132..1046998	-	288	86608485	aroE	CYB_1006	-	shikimate 5-dehydrogenase
982	 55.16	0	1047061..1047564	-	167	86608486	-	CYB_1007	-	hypothetical protein
983	 58.85	0	1047612..1048967	-	451	86608487	-	CYB_1008	-	response regulator
984	 62.25	0	1049217..1049963	-	248	86608488	-	CYB_1009	-	putative outer membrane protein
985	 55.72	0	1050250..1050450	+	66	86608489	-	CYB_1010	-	hypothetical protein
986	 58.33	0	1050509..1050784	+	91	86608490	-	CYB_1011	-	hypothetical protein
987	 61.33	0	1050866..1052176	+	436	86608491	hemL	CYB_1012	-	glutamate-1-semialdehyde aminotransferase
988	 55.97	0	1052215..1052457	+	80	86608492	-	CYB_1014	-	hypothetical protein
989	 58.74	0	1052454..1053854	-	466	86608493	chlN	CYB_1013	-	light-independent protochlorophyllide reductase subunit N
990	 58.18	0	1053896..1054873	-	325	86608494	-	CYB_1015	-	protochlorophyllide oxidoreductase
991	 59.27	0	1055032..1055883	-	283	86608495	chlL	CYB_1016	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
992	 63.17	+1	1056240..1057526	-	428	86608496	-	CYB_1017	-	resolvase family site-specific recombinase
993	 61.75	0	1057548..1058462	-	304	86608497	murQ	CYB_1018	-	N-acetylmuramic acid-6-phosphate etherase
994	 58.24	0	1058438..1058698	-	86	86608498	-	CYB_1019	-	hypothetical protein
995	 60.19	0	1058903..1060246	+	447	86608499	-	CYB_1020	-	phosphoglycerate mutase family protein
58.48	MEAN

4.07	STD DEV
