IslandPath Analysis: Synechocystis sp. PCC 6803

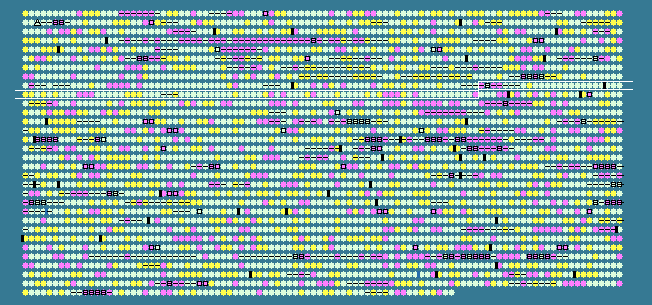

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
877	 44.14	0	965938..967473	-	511	16330045	-	sll1717	-	hypothetical protein
878	 45.93	0	967567..968352	-	261	16330046	-	sll1716	-	transposase
879	 38.82	-1	968487..968960	-	157	16330047	-	sll1715	-	hypothetical protein
880	 38.56	-1	968893..969294	-	133	16330048	-	sll1714	-	hypothetical protein
881	 51.56	0	969762..970820	-	352	16330049	hisC	sll1713	-	threonine-phosphate decarboxylase
882	 47.30	0	970882..971289	-	135	16330050	-	sll1712	-	DNA binding protein HU
883	 48.48	0	971460..972317	-	285	16330051	-	sll1469	-	hypothetical protein
884	 50.27	0	972485..973954	+	489	16330052	-	slr1535	-	hypothetical protein
885	 52.33	0	974053..975489	+	478	16330053	recQ	slr1536	-	ATP-dependent DNA helicase; RecQ
886	 45.75	0	975779..976648	+	289	16330054	-	slr1537	-	hypothetical protein
887	 50.59	0	976748..977842	+	364	16330055	cbiD	slr1538	-	cobalt-precorrin-6A synthase
888	 50.11	0	977932..978867	+	311	16330056	-	slr1540	-	hypothetical protein
889	 46.45	0	978941..979573	+	210	16330057	-	slr1541	-	hypothetical protein
890	 51.65	0	979685..980170	+	161	16330058	ispF	slr1542	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
891	 50.18	0	980276..981694	+	472	16330059	-	slr1543	-	DNA-damage-inducible protein
892	 48.35	0	981691..982629	-	312	16330060	bhy	sll1468	-	b-carotene hydroxylase
893	 48.83	0	982968..983180	+	70	16330061	-	ssr2595	-	high light inducible protein
894	 46.79	0	983229..983540	+	103	16330062	-	slr1544	-	hypothetical protein
895	 51.19	0	983804..984475	+	223	16330063	rpoE	slr1545	-	RNA polymerase sigma factor RpoE
896	 49.14	0	984562..985200	+	212	16330064	-	slr1546	-	hypothetical protein
897	 46.55	0	985224..986222	+	332	16330065	-	slr1547	-	hypothetical protein
898	 48.87	0	986492..987733	-	413	16330066	-	sll1466	-	hypothetical protein
899	 46.05	0	987740..987967	-	75	16330067	-	ssl2823	-	hypothetical protein
900	 49.02	0	988072..989505	-	477	16330068	-	sll1464	-	hypothetical protein
901	 51.78	0	989717..991603	-	628	16330069	ftsH	sll1463	-	cell division protein; FtsH
902	 51.73	0	991735..992772	-	345	16330070	hypE	sll1462	-	hydrogenase expression/formation protein; HypE
903	 50.23	0	992821..993483	-	220	16330071	-	sll1461	-	hypothetical protein
904	 51.92	0	993536..994213	-	225	16330072	surE	sll1459	-	stationary phase survival protein SurE
905	 49.11	0	994343..994906	+	187	16330073	def	slr1549	-	peptide deformylase
906	 54.55	+1	995022..995219	+	65	16330074	-	ssr2611	-	hypothetical protein
907	 50.29	0	995275..996807	+	510	16330075	lysS	slr1550	-	lysyl-tRNA synthetase
908	 48.69	0	996850..997806	-	318	16330076	rfbJ	sll1457	-	RfbJ protein
909	 47.52	0	998010..998918	-	302	16330077	-	sll1456	-	hypothetical protein
910	 41.03	-1	999029..1001563	+	844	16330078	-	slr1552	-	hypothetical protein
911	 39.10	-1	1001639..1002106	-	155	16330079	-	sll1455	-	hypothetical protein
912	 43.68	0	1002633..1004777	-	714	16330080	narB	sll1454	-	nitrate reductase
913	 44.94	0	1005181..1006179	-	332	16330081	nrtD	sll1453	-	nitrate transport protein; NrtD
914	 48.04	0	1006234..1008246	-	670	16330082	nrtC	sll1452	-	nitrate transport protein; NrtC
915	 48.67	0	1008321..1009148	-	275	16330083	nrtB	sll1451	-	nitrate transport protein; NrtB
916	 48.02	0	1009234..1010574	-	446	16330084	nrtA	sll1450	-	nitrate transport 45kD protein
917	 50.19	0	1010710..1011759	-	349	16330085	-	sll1634	-	hypothetical protein
918	 55.04	+1	1011975..1012619	+	214	16330086	-	slr1748	-	hypothetical protein
919	 56.04	+1	1012616..1012888	-	90	16330087	repA	ssl3177	-	rare lipoprotein A
920	 51.97	0	1013045..1014337	-	430	16330088	ftsZ	sll1633	-	cell division protein FtsZ
921	 50.25	0	1014587..1015396	-	269	16330089	-	sll1632	-	hypothetical protein
922	 50.71	0	1015511..1016782	+	423	16330090	prc	slr1751	-	carboxyl-terminal protease
923	 47.45	0	1016830..1017495	+	221	16330091	-	slr1752	-	hypothetical protein
924	 50.00	0	1017600..1018493	-	297	161344767	mraW	sll1144	-	S-adenosyl-methyltransferase MraW
925	 49.69	0	1018650..1019126	+	158	16330093	-	slr1218	-	hypothetical protein
926	 52.45	0	1019155..1019583	+	142	16330094	ureE	slr1219	-	urease accessory protein E
927	 50.73	0	1019808..1020761	+	317	16330095	-	slr1220	-	hypothetical protein
928	 48.98	0	1021421..1022008	+	195	16330096	-	slr1222	-	hypothetical protein
929	 46.68	0	1022278..1024659	-	793	16330097	uvrD	sll1143	-	DNA helicase II
930	 50.57	0	1024825..1025346	-	173	16330098	-	sll1142	-	hypothetical protein
931	 50.20	0	1025423..1026442	+	339	16330099	sulA	slr1223	-	cell division inhibitor
932	 50.53	0	1026511..1027737	+	408	16330100	malK	slr1224	-	cytoplasmic membrane protein for maltose uptake
933	 49.26	0	1027844..1029331	+	495	16330101	pknA	slr1225	-	protein kinase; PknA
934	 51.54	0	1029337..1030083	-	248	16330102	-	sll1138	-	hypothetical protein
935	 49.31	0	1030195..1030989	+	264	16330103	purC	slr1226	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
936	 52.71	0	1031202..1033787	+	861	16330104	IAP75	slr1227	-	chloroplast import-associated channel IAP75
937	 49.33	0	1033902..1035545	+	547	16330105	prfC	slr1228	-	peptide chain release factor 3
938	 46.63	0	1035593..1037089	+	498	16330106	-	slr1229	-	hypothetical protein
939	 44.79	0	1037189..1038052	+	287	16330107	-	slr1230	-	hypothetical protein
940	 51.24	0	1038038..1039042	-	334	16330108	-	sll1135	-	hypothetical protein
941	 51.96	0	1039196..1039732	+	178	16330109	-	slr1232	-	hypothetical protein
942	 42.42	-1	1040092..1040355	+	87	16330110	-	ssr2047	-	hypothetical protein
943	 51.56	0	1040531..1042258	+	575	16330111	sdhA	slr1233	-	succinate dehydrogenase flavoprotein subunit
944	 42.86	-1	1042306..1042557	+	83	16330112	bchB	ssr2049	-	protochlorophillide reductase 57 kD subunit
945	 49.86	0	1042609..1042953	+	114	16330113	-	slr1234	-	protein kinase C inhibitor
946	 51.59	0	1042999..1043880	+	293	16330114	-	slr1235	-	hypothetical protein
947	 50.37	0	1043917..1044450	+	177	16330115	-	slr1236	-	hypothetical protein
948	 54.24	+1	1044517..1044693	-	58	16330116	-	ssl2250	-	glycoprotein 64
949	 42.63	-1	1044915..1046366	-	483	16330117	-	sll1132	-	hypothetical protein
950	 46.39	0	1046402..1046830	-	142	16330118	-	sll1131	-	hypothetical protein
951	 50.26	0	1047005..1048357	+	450	16330119	codA	slr1237	-	cytosine deaminase
952	 47.41	0	1048406..1048753	-	115	16330120	-	sll1130	-	hypothetical protein
953	 52.43	0	1048750..1049016	-	88	16330121	-	ssl2245	-	hypothetical protein
954	 49.72	0	1049517..1050407	-	296	16330122	todF	sll1129	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
955	 47.50	0	1050490..1050729	+	79	16330123	-	ssr2060	-	hypothetical protein
956	 47.94	0	1050812..1051078	+	88	16330124	grxC	ssr2061	-	glutaredoxin 3
957	 51.19	0	1051159..1052121	+	320	16330125	gshB	slr1238	-	glutathione synthetase
958	 53.18	0	1052518..1052784	+	88	16330126	-	ssr2062	-	hypothetical protein
959	 51.69	0	1052927..1053754	-	275	16330127	menB	sll1127	-	naphthoate synthase
960	 53.36	+1	1053955..1055547	+	530	16330128	pntA	slr1239	-	NAD(P) transhydrogenase subunit alpha
961	 37.96	-2	1055574..1056113	+	179	16330129	-	slr1240	-	hypothetical protein
962	 38.22	-2	1056119..1056466	+	115	16330130	-	slr1241	-	hypothetical protein
963	 42.86	-1	1056714..1056944	+	76	16330131	-	ssr2067	-	hypothetical protein
964	 51.98	0	1056985..1058427	+	480	16330132	pntB	slr1434	-	pyridine nucleotide transhydrogenase beta subunit
965	 48.13	0	1058537..1059820	+	427	16330133	pmbA	slr1435	-	PmbA protein
966	 39.44	-1	1059922..1060773	+	283	16330134	-	slr1436	-	hypothetical protein
967	 46.02	0	1060901..1061239	+	112	16330135	-	slr1437	-	hypothetical protein
968	 51.61	0	1061242..1062111	+	289	16330136	-	slr1438	-	hypothetical protein
969	 46.28	0	1062238..1065204	-	988	16330137	ileS	sll1362	-	isoleucyl-tRNA synthetase
970	 46.67	0	1065398..1065622	+	74	16330138	-	ssr2406	-	hypothetical protein
971	 48.85	0	1065660..1069010	-	1116	16330139	dnaX	sll1360	-	DNA polymerase III subunit
972	 47.45	0	1069178..1069609	+	143	16330140	-	slr1440	-	hypothetical protein
973	 47.32	0	1069666..1071702	-	678	16330141	-	sll1359	-	hypothetical protein
974	 50.13	0	1071734..1072918	-	394	16330142	-	sll1358	-	hypothetical protein
975	 46.78	0	1073080..1075629	-	849	16330143	glgP	sll1356	-	glycogen phosphorylase
976	 44.36	0	1076065..1076454	+	129	16330144	-	slr1441	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
