IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

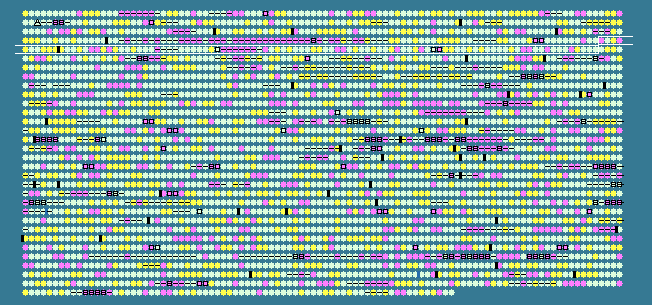

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
397	 44.64	0	432779..434308	-	509	16329567	-	sll0641	-	hypothetical protein
398	 48.78	0	434320..436158	-	612	16329568	Sac1	sll0640	-	sulfur deprivation response regulator
399	 53.49	+1	436234..437265	+	343	16329569	-	slr0688	-	hypothetical protein
400	 44.61	0	437705..437908	+	67	16329570	-	ssr1155	-	hypothetical protein
401	 55.39	+1	437922..439118	+	398	16329571	-	slr0689	-	hypothetical protein
402	 51.04	0	439184..440437	-	417	16329572	-	sll0639	-	hypothetical protein
403	 50.47	0	440610..441986	-	458	16329573	-	sll0638	-	hypothetical protein
404	 54.75	+1	442164..443933	+	589	16329574	ycf45	slr0692	-	hypothetical protein
405	 54.46	+1	443913..444944	-	343	16329575	thiE	sll0635	-	thiamine-phosphate pyrophosphorylase
406	 53.47	+1	445061..445924	-	287	16329576	btpA	sll0634	-	BtpA
407	 51.72	0	446230..446751	+	173	16329577	-	slr0695	-	hypothetical protein
408	 48.65	0	446807..447694	+	295	16329578	-	slr1590	-	hypothetical protein
409	 48.48	0	447831..448979	+	382	16329579	-	slr1591	-	hypothetical protein
410	 52.97	0	449166..450041	+	291	16329580	-	slr1592	-	hypothetical protein
411	 49.56	0	450740..451651	+	303	16329581	-	slr1593	-	hypothetical protein
412	 41.84	-1	451735..452922	+	395	16329582	-	slr1594	-	PatA subfamily protein
413	 42.42	-1	453214..454446	+	410	16329583	-	slr1595	-	Na/H antiporter
414	 53.12	0	454712..456586	-	624	16329584	-	sll1516	-	hypothetical protein
415	 41.72	-1	456975..458297	+	440	16329585	pxcA	slr1596	-	proton extrusion protein PcxA
416	 51.78	0	458408..458857	-	149	16329586	-	sll1515	-	hypothetical protein
417	 46.04	0	459200..460096	+	298	16329587	-	slr1597	-	hypothetical protein
418	 48.07	0	460250..460690	-	146	16329588	hsp17	sll1514	-	putative chaperone
419	 52.64	0	460956..461960	-	334	16329589	ccsA	sll1513	-	c-type cytochrome synthesis protein
420	 48.77	0	462147..462554	-	135	16329590	-	sll1512	-	hypothetical protein
421	 49.20	0	462809..463678	+	289	16329591	lipA	slr1598	-	lipoyl synthase
422	 44.98	0	463690..464307	-	205	16329592	-	sll1511	-	hypothetical protein
423	 39.14	-1	464437..465177	-	246	16329593	-	sll1510	-	hypothetical protein
424	 45.15	0	465232..465561	-	109	16329594	ycf20	sll1509	-	hypothetical protein
425	 46.38	0	465927..466493	+	188	16329595	-	slr1599	-	hypothetical protein
426	 49.56	0	466588..467037	+	149	16329596	-	slr1600	-	hypothetical protein
427	 50.00	0	467201..467296	+	31	16329597	psaM	smr0005	-	photosystem I reaction center subunit XII
428	 48.94	0	467436..467813	+	125	16329598	-	slr1601	-	hypothetical protein
429	 51.02	0	467836..468666	-	276	16329599	lpxC	sll1508	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
430	 49.08	0	469001..469546	-	181	16329600	-	sll1507	-	hypothetical protein
431	 50.26	0	469592..470914	+	440	16329601	-	slr1603	-	hypothetical protein
432	 52.24	0	471080..472930	+	616	16329602	ftsH	slr1604	-	cell division protein; FtsH
433	 46.99	0	473414..473662	+	82	16329603	-	ssr2699	-	transposase
434	 36.90	-2	473953..474204	-	83	16329604	vapC	ssl2923	-	virulence associated protein C
435	 34.21	-2	474205..474432	-	75	16329605	vapB	ssl2922	-	virulence associated protein B
436	 32.88	-2	474789..475007	-	72	16329606	-	ssl2920	-	hypothetical protein
437	 37.20	-2	475110..475445	-	111	16329607	-	sll1505	-	hypothetical protein
438	 37.54	-2	475435..475743	-	102	16329608	-	sll1504	-	hypothetical protein
439	 32.15	-2	475873..477399	-	508	16329609	-	sll1503	-	hypothetical protein
440	 50.59	0	477668..482320	-	1550	16329610	gltB	sll1502	-	glutamate synthase (ferredoxin)
441	 43.83	0	482542..482703	+	53	16329611	-	ssr2708	-	hypothetical protein
442	 49.80	0	482945..483199	+	84	16329612	-	ssr2711	-	hypothetical protein
443	 52.14	0	483326..484564	+	412	16329613	gdhB	slr1608	-	glucose dehydrogenase-B
444	 49.90	0	484799..486247	-	482	16329614	cbiA	sll1501	-	cobyrinic acid a,c-diamide synthase
445	 52.34	0	486244..487353	-	369	16329615	-	sll1500	-	hypothetical protein
446	 50.45	0	487287..489377	+	696	16329616	-	slr1609	-	long-chain-fatty-acid CoA ligase
447	 49.79	0	489722..490888	+	388	16329617	-	slr1041	-	PatA subfamily protein
448	 50.00	0	491006..491449	+	147	16329618	-	slr1042	-	CheY family protein
449	 52.84	0	491496..492059	+	187	16329619	-	slr1043	-	hypothetical protein
450	 53.49	+1	492130..494739	+	869	16329620	mcpA	slr1044	-	methyl-accepting chemotaxis protein
451	 49.75	0	494828..495619	+	263	16329621	-	slr1045	-	hypothetical protein
452	 45.41	0	495626..496006	+	126	16329622	-	slr1046	-	hypothetical protein
453	 41.65	-1	496450..497844	+	464	16329623	pleD	slr1047	-	PleD
454	 42.14	-1	498076..501096	+	1006	16329624	-	slr1048	-	hypothetical protein
455	 48.83	0	501178..501990	-	270	16329625	-	sll1011	-	hypothetical protein
456	 51.72	0	502042..502215	+	57	16329626	rpmF	ssr1736	-	50S ribosomal protein L32
457	 47.35	0	502314..503747	+	477	16329627	-	slr1050	-	hypothetical protein
458	 51.02	0	503883..504719	+	278	16329628	envM	slr1051	-	enoyl-(acyl carrier protein) reductase
459	 53.61	+1	504755..505267	+	170	16329629	-	slr1052	-	hypothetical protein
460	 50.00	0	505356..506159	+	267	16329630	-	slr1053	-	hypothetical protein
461	 48.03	0	506252..508027	-	591	16329631	frpC	sll1009	-	iron-regulated protein
462	 52.18	0	508515..512510	+	1331	16329632	chlH	slr1055	-	magnesium chelatase
463	 31.10	-2	512615..514633	+	672	16329633	-	slr1056	-	hypothetical protein
464	 48.45	0	514847..515944	-	365	16329634	-	sll1006	-	hypothetical protein
465	 49.01	0	516088..516897	-	269	16329635	mazG	sll1005	-	nucleoside triphosphate pyrophosphohydrolase
466	 53.00	0	517027..518211	-	394	16329636	-	sll1004	-	hypothetical protein
467	 39.22	-1	518287..520272	-	661	16329637	-	sll1003	-	sensory transduction histidine kinase
468	 47.17	0	520682..520840	-	52	16329638	-	ssl1923	-	hypothetical protein
469	 44.84	0	520918..521169	-	83	16329639	-	ssl1922	-	transposase
470	 43.97	0	521076..521357	-	93	16329640	-	ssl1920	-	transposase
471	 52.44	0	521483..522853	-	456	16329641	ycf22	sll1002	-	hypothetical protein
472	 51.98	0	523016..523798	-	260	16329642	-	sll1001	-	ABC transporter
473	 49.66	0	523821..524114	-	97	16329643	-	ssl1918	-	hypothetical protein
474	 48.84	0	524346..529595	+	1749	16329644	-	slr1753	-	hypothetical protein
475	 52.06	0	529696..530688	+	330	16329645	gpsA	slr1755	-	NAD+ dependent glycerol-3-phosphate dehydrogenase
476	 51.25	0	530717..531235	-	172	16329646	-	sll1647	-	hypothetical protein
477	 52.60	0	531446..532867	+	473	16329647	glnA	slr1756	-	glutamate--ammonia ligase
478	 50.03	0	533086..537474	+	1462	16329648	-	slr1759	-	hybrid sensory kinase
479	 50.21	0	537471..538418	+	315	16329649	-	slr1760	-	regulatory components of sensory transduction system
480	 50.00	0	538415..539020	+	201	16329650	ytfC	slr1761	-	FKBP-type peptidyl-prolyl cis-trans isomerase
481	 49.74	0	539288..539854	-	188	16329651	-	sll1643	-	hypothetical protein
482	 54.65	+1	540098..540763	+	221	16329652	-	slr1762	-	hypothetical protein
483	 47.30	0	540863..542065	+	400	16329653	-	slr1763	-	hypothetical protein
484	 34.35	-2	542105..542596	-	163	16329654	-	sll1642	-	hypothetical protein
485	 37.04	-2	542803..543342	+	179	16329655	capA	slr1764	-	cAMP binding protein
486	 49.72	0	543468..544871	-	467	16329656	gad	sll1641	-	glutamate decarboxylase
487	 48.44	0	545029..545253	+	74	16329657	-	ssr2962	-	hypothetical protein
488	 42.48	-1	545250..545588	+	112	16329658	-	slr1767	-	hypothetical protein
489	 48.86	0	545591..546556	-	321	16329659	-	sll1640	-	hypothetical protein
490	 50.28	0	546553..547278	-	241	16329660	ureD	sll1639	-	urease accessory protein D
491	 49.33	0	547425..547874	-	149	16329661	-	sll1638	-	hypothetical protein
492	 44.15	0	548236..549132	+	298	16329662	-	slr1768	-	hypothetical protein
493	 52.88	0	549129..549701	-	190	16329663	fbp	sll1636	-	ferripyochelin binding protein
494	 47.02	0	549994..550329	+	111	16329664	-	slr1770	-	hypothetical protein
495	 50.37	0	550563..552170	+	535	16329665	-	slr1771	-	hypothetical protein
496	 47.07	0	552220..552867	-	215	16329666	thyX	sll1635	-	FAD-dependent thymidylate synthase
48.22	MEAN

4.98	STD DEV
