IslandPath Analysis: Synechocystis sp. PCC 6803

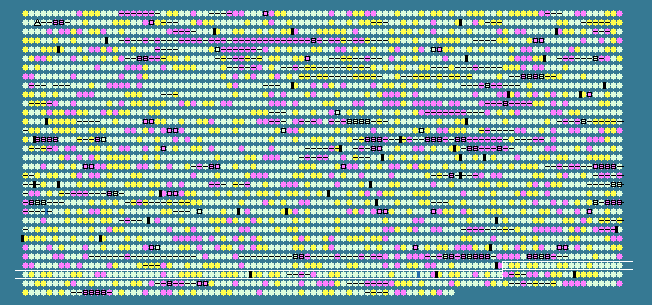

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2881	 48.18	0	3225628..3226314	-	228	16332047	-	sll0493	-	hypothetical protein
2882	 52.97	0	3226340..3227266	-	308	16332048	argF	sll0902	-	ornithine carbamoyltransferase
2883	 55.37	+1	3227379..3227909	-	176	16332049	purE	sll0901	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
2884	 47.27	0	3228010..3228375	+	121	16332050	ssb	slr0925	-	single-strand DNA-binding protein
2885	 54.04	+1	3228712..3229590	+	292	16332051	ubiA	slr0926	-	prenyltransferase
2886	 52.69	0	3229780..3230838	+	352	16332052	psbD2	slr0927	-	photosystem II D2 protein
2887	 50.17	0	3230963..3231550	+	195	16332053	-	slr0929	-	hypothetical protein
2888	 49.12	0	3231569..3232879	+	436	16332054	-	slr0930	-	hypothetical protein
2889	 49.10	0	3232902..3233180	+	92	16332055	-	ssr1558	-	hypothetical protein
2890	 52.92	0	3233177..3233809	-	210	16332056	hisG	sll0900	-	ATP phosphoribosyltransferase catalytic subunit
2891	 52.74	0	3233816..3235186	-	456	16332057	glmU	sll0899	-	UDP-N-acetylglucosamine pyrophosphorylase
2892	 45.24	0	3235429..3235680	+	83	16332058	-	ssr1562	-	hypothetical protein
2893	 50.99	0	3235746..3236855	-	369	16332059	-	sll0898	-	ribosome-associated GTPase
2894	 50.98	0	3236874..3237128	-	84	16332060	-	ssl1707	-	hypothetical protein
2895	 51.94	0	3237125..3238258	-	377	16332061	dnaJ	sll0897	-	DnaJ protein
2896	 50.00	0	3238365..3238868	-	167	16332062	-	sll0896	-	Holliday juction resolvase; RuvC
2897	 50.34	0	3238873..3239748	-	291	16332063	cysQ	sll0895	-	ammonium transport protein
2898	 49.66	0	3240181..3241068	+	295	16332064	trpC	slr0546	-	indole-3-glycerol-phosphate synthase
2899	 50.92	0	3241089..3242714	-	541	16332065	amt3	sll0537	-	ammonium/methylammonium permease
2900	 51.17	0	3242711..3243781	-	356	16332066	-	sll0536	-	hypothetical protein
2901	 47.68	0	3244079..3245416	-	445	16332067	clpX	sll0535	-	ATP-dependent protease ATP-binding subunit
2902	 53.30	+1	3245421..3246101	-	226	16332068	clpP	sll0534	-	ATP-dependent Clp protease proteolytic subunit
2903	 50.64	0	3246401..3247816	-	471	16332069	tig	sll0533	-	trigger factor
2904	 54.09	+1	3248484..3249326	+	280	16332070	asd	slr0549	-	aspartate beta-semialdehyde dehydrogenese
2905	 55.96	+1	3249386..3250291	+	301	16332071	dapA	slr0550	-	dihydrodipicolinate synthase
2906	 51.33	0	3250985..3252907	+	640	16332072	-	slr0551	-	hypothetical protein
2907	 48.44	0	3252992..3253726	+	244	16332073	-	slr0552	-	hypothetical protein
2908	 49.34	0	3253809..3254414	+	201	16332074	-	slr0553	-	hypothetical protein
2909	 51.72	0	3254560..3257670	+	1036	16332075	-	slr0554	-	hypothetical protein
2910	 52.41	0	3257692..3259887	-	731	16332076	-	sll0529	-	hypothetical protein
2911	 48.86	0	3260137..3261276	-	379	16332077	-	sll0528	-	hypothetical protein
2912	 46.73	0	3261406..3262062	+	218	16332078	-	slr0556	-	hypothetical protein
2913	 42.42	-1	3262064..3262459	-	131	16332079	-	sll0525	-	hypothetical protein
2914	 42.65	-1	3262471..3262749	-	92	16332080	-	ssl1004	-	hypothetical protein
2915	 51.56	0	3262819..3264162	-	447	16332081	-	sll0524	-	hypothetical protein
2916	 50.09	0	3264290..3267022	+	910	16332082	valS	slr0557	-	valyl-tRNA synthetase
2917	 48.72	0	3267244..3267555	-	103	16332083	ndhE	sll0522	-	NADH dehydrogenase subunit K
2918	 47.74	0	3267695..3268291	-	198	16332084	ndhG	sll0521	-	NADH dehydrogenase subunit J
2919	 46.74	0	3268386..3268967	-	193	16332085	ndhI	sll0520	-	NADH dehydrogenase subunit I
2920	 51.03	0	3269078..3270196	-	372	16332086	ndhA	sll0519	-	NADH dehydrogenase subunit H
2921	 50.87	0	3270451..3271596	+	381	16332087	pyrD	slr1418	-	dihydroorotate dehydrogenase 2
2922	 47.71	0	3271699..3272178	+	159	16332088	-	slr1419	-	hypothetical protein
2923	 45.23	0	3272165..3273442	+	425	16332089	-	slr1420	-	hypothetical protein
2924	 39.81	-1	3273693..3274016	+	107	16332090	-	slr1421	-	hypothetical protein
2925	 47.24	0	3274546..3275307	-	253	16332091	-	sll1344	-	hypothetical protein
2926	 47.09	0	3275314..3277923	-	869	16332092	ape2	sll1343	-	aminopeptidase
2927	 51.78	0	3278122..3279135	-	337	16332093	gap2	sll1342	-	glyceraldehyde-3-phosphate dehydrogenase
2928	 52.31	0	3279390..3280907	+	505	16332094	murC	slr1423	-	UDP-N-acetylmuramate--L-alanine ligase
2929	 51.89	0	3280979..3281932	+	317	16332095	-	slr1424	-	hypothetical protein
2930	 55.37	+1	3281954..3282307	+	117	16332096	-	slr1425	-	hypothetical protein
2931	 47.98	0	3282442..3282912	-	156	16332097	bfr	sll1341	-	bacterioferritin
2932	 50.17	0	3283104..3283406	-	100	16332098	-	sll1340	-	hypothetical protein
2933	 51.65	0	3283467..3284165	+	232	16332099	recR	slr1426	-	recombination protein RecR
2934	 53.90	+1	3284283..3284846	-	187	16332100	-	sll1338	-	hypothetical protein
2935	 52.79	0	3285051..3287168	-	705	16332101	-	sll1336	-	hypothetical protein
2936	 52.54	0	3287354..3289264	+	636	16332102	-	slr1428	-	hypothetical protein
2937	 47.25	0	3289256..3290785	-	509	16332103	-	sll1334	-	hypothetical protein
2938	 51.03	0	3291097..3291966	+	289	16332104	-	slr1429	-	hypothetical protein
2939	 52.68	0	3292177..3292884	-	235	16332105	-	sll1333	-	hypothetical protein
2940	 53.50	+1	3293078..3294505	+	475	16332106	-	slr1431	-	hypothetical protein
2941	 51.13	0	3294498..3295250	-	250	16332107	-	sll1330	-	OmpR subfamily
2942	 52.20	0	3295580..3296443	-	287	16332108	-	sll1329	-	monophosphatase
2943	 52.54	0	3296462..3297247	+	261	16332109	-	slr1451	-	hypothetical protein
2944	 45.42	0	3297312..3298097	-	261	16332110	-	sll1367	-	hypothetical protein
2945	 47.69	0	3298326..3299384	+	352	16332111	sbpA	slr1452	-	sulfate binding protein; SbpA
2946	 46.94	0	3299421..3299714	+	97	16332112	-	ssr2439	-	hypothetical protein
2947	 44.02	0	3299716..3300576	+	286	16332113	cysT	slr1453	-	sulfate transport system permease protein
2948	 44.89	0	3300563..3301393	+	276	16332114	cysW	slr1454	-	sulfate transport system permease protein
2949	 44.19	0	3301555..3302622	+	355	16332115	cysA	slr1455	-	sulfate transport system permease protein
2950	 48.67	0	3302812..3303339	+	175	16332116	-	slr1456	-	general secretion pathway protein G
2951	 51.17	0	3303481..3304680	+	399	16332117	chrA	slr1457	-	chromate transport protein
2952	 51.96	0	3304872..3305381	+	169	16332118	apcF	slr1459	-	phycobilisome core component
2953	 52.34	0	3305654..3308773	-	1039	16332119	-	sll1366	-	Snf2/Rad54 family helicase
2954	 47.74	0	3308878..3309474	+	198	16332120	-	slr1461	-	hypothetical protein
2955	 48.95	0	3309530..3311431	-	633	16332121	-	sll1365	-	hypothetical protein
2956	 50.12	0	3311660..3313345	+	561	16332122	-	slr1462	-	hypothetical protein
2957	 51.25	0	3313667..3315754	+	695	16332123	fus	slr1463	-	elongation factor G
2958	 50.00	0	3315938..3316735	+	265	16332124	-	slr1464	-	hypothetical protein
2959	 47.19	0	3317363..3317593	-	76	16332125	-	ssl2667	-	NifU protein
2960	 50.00	0	3317701..3318804	-	367	16332126	ilvC	sll1363	-	ketol-acid reductoisomerase
2961	 48.96	0	3318829..3319212	+	127	16332127	-	slr0651	-	hypothetical protein
2962	 52.40	0	3319281..3320051	+	256	16332128	hisA	slr0652	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2963	 51.68	0	3320075..3321736	-	553	16332129	nadB	sll0631	-	L-aspartate oxidase
2964	 48.86	0	3321844..3322281	-	145	16332130	-	sll0630	-	hypothetical protein
2965	 48.58	0	3322377..3322763	-	128	16332131	psaK	sll0629	-	photosystem I subunit X
2966	 49.37	0	3323275..3324552	+	425	16332132	rpoDI	slr0653	-	RNA polymerase sigma factor RpoD
2967	 48.69	0	3330281..3331042	+	253	16332133	-	slr0654	-	hypothetical protein
2968	 50.64	0	3331045..3331587	+	180	16332134	-	slr0655	-	hypothetical protein
2969	 43.19	-1	3331625..3332821	+	398	16332135	-	slr0656	-	hypothetical protein
2970	 53.36	+1	3333244..3335046	+	600	16332136	lysC	slr0657	-	aspartate kinase
2971	 46.89	0	3335247..3336242	+	331	16332137	-	slr0658	-	hypothetical protein
2972	 51.77	0	3336407..3338548	+	713	16332138	prlC	slr0659	-	oligopeptidase A
2973	 55.10	+1	3338682..3339485	+	267	16332139	proC	slr0661	-	pyrroline-5-carboxylate reductase
2974	 49.80	0	3339500..3340969	-	489	16332140	lim17	sll0626	-	LIM17 protein
2975	 48.23	0	3341166..3341843	-	225	16332141	-	sll0625	-	hypothetical protein
2976	 42.45	-1	3342125..3342442	-	105	16332142	-	sll0624	-	hypothetical protein
2977	 49.09	0	3342857..3344944	+	695	16332143	speA	slr0662	-	arginine decarboxylase
2978	 52.47	0	3345027..3345815	-	262	16332144	-	sll0623	-	hypothetical protein
2979	 49.74	0	3345861..3346817	-	318	16332145	nadA	sll0622	-	quinolinate synthetase
2980	 51.67	0	3346910..3347656	-	248	16332146	dsbD	sll0621	-	thiol:disulfide interchange protein; DsbD
48.22	MEAN

4.98	STD DEV
