IslandPath Analysis: Synechocystis sp. PCC 6803

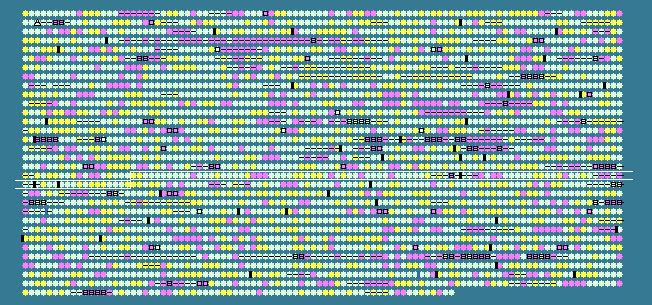

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1819	 53.59	+1	1997993..1998451	+	152	16330986	-	slr0935	-	hypothetical protein
1820	 52.48	0	1998460..1999347	+	295	16330987	nadC	slr0936	-	nicotinate-nucleotide pyrophosphorylase
1821	 49.84	0	1999477..2000730	+	417	16330988	-	slr0937	-	hypothetical protein
1822	 49.35	0	2000815..2002194	+	459	16330989	-	slr0938	-	hypothetical protein
1823	 50.76	0	2002241..2002894	-	217	16330990	cbiC	sll0916	-	precorrin-8X methylmutase
1824	 50.22	0	2002891..2004465	-	524	16330991	pqqE	sll0915	-	protease
1825	 50.41	0	2004626..2006095	+	489	16330992	crtQ	slr0940	-	zeta-carotene desaturase precursor
1826	 49.55	0	2006120..2006563	+	147	16330993	-	slr0941	-	hypothetical protein
1827	 49.39	0	2006824..2007807	+	327	16330994	-	slr0942	-	aldehyde reductase
1828	 49.72	0	2007850..2008752	+	300	16330995	fda	slr0943	-	fructose-1,6-bisphosphate aldolase
1829	 39.96	-1	2008874..2010004	-	376	16330996	-	sll0914	-	hypothetical protein
1830	 46.18	0	2010218..2011369	+	383	16330997	-	slr0944	-	hypothetical protein
1831	 50.08	0	2011521..2012141	+	206	16330998	-	slr0945	-	hypothetical protein
1832	 50.51	0	2012231..2012626	+	131	16330999	arsC	slr0946	-	arsenate reductase
1833	 54.61	+1	2012781..2013485	+	234	16331000	-	slr0947	-	OmpR subfamily
1834	 49.38	0	2013538..2014185	+	215	16331001	-	slr0948	-	hypothetical protein
1835	 45.21	0	2014182..2014787	-	201	16331002	-	sll0913	-	hypothetical protein
1836	 45.84	0	2014908..2016818	-	636	16331003	-	sll0912	-	ABC transporter
1837	 50.06	0	2017104..2017964	+	286	16331004	livH	slr0949	-	high-affinity branched-chain amino acid transport permease protein
1838	 52.85	0	2017964..2018788	+	274	16331005	-	slr0950	-	hypothetical protein
1839	 36.18	-2	2018851..2019237	-	128	16331006	-	sll0911	-	hypothetical protein
1840	 30.59	-2	2019253..2020344	-	363	16331007	-	sll0910	-	hypothetical protein
1841	 43.67	0	2020349..2021035	-	228	16331008	-	sll0909	-	hypothetical protein
1842	 51.66	0	2021252..2021944	+	230	16331009	ispD	slr0951	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1843	 49.23	0	2022028..2023071	+	347	16331010	fbp	slr0952	-	fructose-1,6-bisphosphatase
1844	 50.88	0	2023278..2024012	+	244	16331011	-	slr0953	-	hypothetical protein
1845	 48.36	0	2024264..2024476	+	70	16331012	-	ssr1600	-	hypothetical protein
1846	 53.01	0	2024549..2024980	+	143	16331013	-	slr0954	-	hypothetical protein
1847	 53.16	0	2024993..2026147	+	384	16331014	-	slr0955	-	hypothetical protein
1848	 50.64	0	2026227..2026538	+	103	16331015	-	slr0957	-	hypothetical protein
1849	 52.62	0	2026675..2028126	+	483	16331016	cysS	slr0958	-	cysteinyl-tRNA synthetase
1850	 53.91	+1	2028157..2028744	-	195	16331017	maf	sll0905	-	Maf-like protein
1851	 48.99	0	2028832..2030421	+	529	16331018	-	slr0959	-	hypothetical protein
1852	 38.78	-1	2030534..2030974	+	146	16331019	-	slr0960	-	hypothetical protein
1853	 50.71	0	2031001..2032473	-	490	16331020	-	sll1541	-	lignostilbene-alpha,beta-dioxygenase
1854	 52.58	0	2032601..2032891	+	96	16331021	clpS	ssr2723	-	ATP-dependent Clp protease adaptor protein ClpS
1855	 51.24	0	2032951..2034123	-	390	16331022	dpm1	sll1540	-	dolichyl-phosphate-mannose synthase
1856	 49.07	0	2034162..2034803	+	213	161344757	ppa	slr1622	-	inorganic pyrophosphatase
1857	 44.26	0	2035067..2035432	+	121	16331024	-	slr1623	-	hypothetical protein
1858	 51.20	0	2035474..2036850	+	458	16331025	-	slr1624	-	hypothetical protein
1859	 49.54	0	2036911..2038527	-	538	16331026	bgl	sll1538	-	beta-glucosidase
1860	 46.90	0	2038644..2039063	-	139	16331027	-	sll1537	-	hypothetical protein
1861	 46.36	0	2039078..2039530	+	150	16331028	-	slr1626	-	hypothetical protein
1862	 40.90	-1	2039541..2040161	+	206	16331029	-	slr1627	-	hypothetical protein
1863	 50.98	0	2040280..2041458	-	392	16331030	moeB	sll1536	-	hypothetical protein
1864	 51.60	0	2041594..2041998	+	134	16331031	-	slr1628	-	hypothetical protein
1865	 50.61	0	2041999..2042982	+	327	16331032	-	slr1629	-	hypothetical protein
1866	 49.04	0	2043107..2043838	-	243	16331033	rfbP	sll1535	-	galactosyl-1-phosphate transferase
1867	 49.96	0	2043938..2045074	-	378	16331034	-	sll1534	-	hypothetical protein
1868	 53.61	+1	2045078..2046364	-	428	16331035	pilT	sll1533	-	twitching mobility protein
1869	 47.73	0	2046961..2047335	+	124	16331036	-	slr1634	-	hypothetical protein
1870	 53.93	+1	2047495..2048130	-	211	16331037	-	sll1532	-	hypothetical protein
1871	 46.75	0	2048144..2048374	-	76	16331038	-	ssl2982	-	DNA-directed RNA polymerase subunit omega
1872	 32.35	-2	2048497..2049513	+	338	16331039	-	slr1635	-	transposase
1873	 46.22	0	2049510..2050130	+	206	16331040	-	slr1636	-	hypothetical protein
1874	 45.99	0	2050496..2050819	+	107	16331041	-	slr1638	-	hypothetical protein
1875	 45.38	0	2050948..2051412	+	154	16331042	smpB	slr1639	-	SsrA-binding protein
1876	 39.57	-1	2051479..2053305	-	608	16331043	-	sll1531	-	hypothetical protein
1877	 42.38	-1	2053319..2054479	-	386	16331044	-	sll1530	-	hypothetical protein
1878	 44.83	0	2054482..2057472	-	996	16331045	-	sll1528	-	hypothetical protein
1879	 41.57	-1	2057469..2060975	-	1168	16331046	-	sll1527	-	hypothetical protein
1880	 42.14	-1	2061101..2062621	-	506	16331047	-	sll1526	-	hypothetical protein
1881	 45.78	0	2062905..2065523	+	872	16331048	clpB	slr1641	-	ClpB protein
1882	 49.00	0	2065509..2065808	-	99	16331049	-	ssl2971	-	hypothetical protein
1883	 49.15	0	2066001..2066999	-	332	16331050	prk	sll1525	-	phosphoribulokinase
1884	 49.84	0	2067522..2068763	+	413	16331051	petH	slr1643	-	ferredoxin-NADP oxidoreductase
1885	 51.55	0	2068855..2069694	-	279	16331052	-	sll1524	-	hypothetical protein
1886	 53.84	+1	2070019..2070891	+	290	16331053	-	slr1644	-	hypothetical protein
1887	 54.66	+1	2070975..2071382	+	135	16331054	psbZ	slr1645	-	photosystem II 11 kD protein
1888	 50.57	0	2071379..2072074	+	231	16331055	rnc	slr1646	-	ribonuclease III
1889	 51.03	0	2072108..2072887	+	259	16331056	-	slr1647	-	hypothetical protein
1890	 52.11	0	2073161..2074603	+	480	16331057	-	slr1648	-	hypothetical protein
1891	 36.36	-2	2074694..2074957	+	87	16331058	-	ssr2754	-	hypothetical protein
1892	 49.58	0	2075381..2075971	+	196	16331059	-	slr1649	-	hypothetical protein
1893	 49.63	0	2075968..2076507	-	179	16331060	pgsA	sll1522	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1894	 53.07	0	2076547..2078340	-	597	16331061	-	sll1521	-	hypothetical protein
1895	 47.29	0	2078366..2080120	-	584	16331062	recN	sll1520	-	DNA repair protein; RecN
1896	 47.22	0	2080885..2082720	+	611	16331063	-	slr0442	-	hypothetical protein
1897	 35.23	-2	2082864..2083916	-	350	16331064	-	sll0428	-	hypothetical protein
1898	 38.17	-2	2084575..2084760	+	61	16331065	-	ssr0756	-	hypothetical protein
1899	 45.83	0	2085445..2085684	+	79	16331066	-	ssr0759	-	hypothetical protein
1900	 41.75	-1	2085826..2086110	+	94	16331067	-	ssr0761	-	hypothetical protein
1901	 47.03	0	2086305..2087129	-	274	16331068	psbO	sll0427	-	photosystem II manganese-stabilizing polypeptide
1902	 49.74	0	2087356..2087733	+	125	16331069	-	slr0443	-	hypothetical protein
1903	 48.21	0	2088130..2088492	-	120	16331070	-	sll0426	-	hypothetical protein
1904	 54.99	+1	2088680..2090023	+	447	16331071	aroA	slr0444	-	3-phosphoshikimate 1-carboxyvinyltransferase
1905	 48.85	0	2090026..2091630	-	534	16331072	-	sll0424	-	hypothetical protein
1906	 49.15	0	2091711..2092178	-	155	16331073	-	sll0423	-	hypothetical protein
1907	 51.11	0	2092519..2093508	-	329	16331074	-	sll0422	-	asparaginase
1908	 51.16	0	2093629..2094924	-	431	16331075	purB	sll0421	-	adenylosuccinate lyase
1909	 45.34	0	2095034..2095666	+	210	16331076	-	slr0445	-	hypothetical protein
1910	 51.89	0	2095723..2096040	-	105	16331077	ureB	sll0420	-	urease subunit beta
1911	 48.60	0	2096076..2096540	-	154	16331078	-	sll0419	-	hypothetical protein
1912	 53.50	+1	2096618..2097574	-	318	16331079	-	sll0418	-	sterol-C-methyltransferase
1913	 51.77	0	2097643..2098602	+	319	16331080	dnaX	slr0446	-	DNA polymerase III subunit delta'
1914	 51.75	0	2098921..2100261	+	446	16331081	amiC	slr0447	-	negative aliphatic amidase regulator
1915	 50.92	0	2100463..2101980	+	505	16331082	sms	slr0448	-	DNA repair protein RadA
1916	 50.76	0	2101977..2102567	-	196	16331083	-	sll0274	-	hypothetical protein
1917	 48.00	0	2102769..2104391	-	540	16331084	-	sll0273	-	Na+/H+ exchanger
1918	 52.32	0	2104439..2104912	-	157	16331085	-	sll0272	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
