IslandPath Analysis: Synechocystis sp. PCC 6803

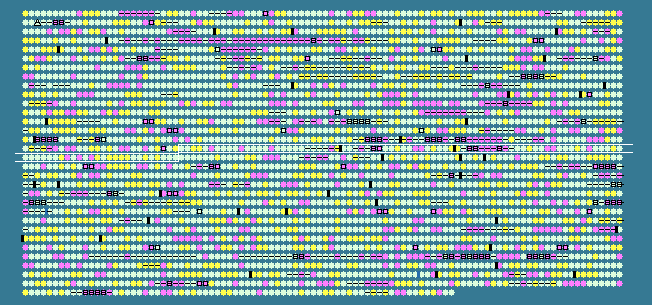

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1527	 49.09	0	1682870..1683529	-	219	16330694	ycf39	sll1218	-	hypothetical protein
1528	 47.49	0	1683583..1684260	-	225	16330695	-	sll1217	-	hypothetical protein
1529	 55.90	+1	1684497..1684691	+	64	16330696	-	ssr1375	-	hypothetical protein
1530	 53.33	+1	1684928..1685872	+	314	16330697	dacB	slr0804	-	D-alanyl-D-alanine carboxypeptidase
1531	 49.09	0	1685899..1687218	+	439	16330698	-	slr0806	-	hypothetical protein
1532	 42.28	-1	1687326..1687448	-	40	16330699	psaJ	sml0008	-	photosystem I reaction center subunit IX
1533	 49.40	0	1687556..1688053	-	165	16330700	psaF	sll0819	-	photosystem I subunit III
1534	 50.05	0	1688213..1689259	+	348	16330701	gcp	slr0807	-	O-sialoglycoprotein endopeptidase
1535	 47.31	0	1689313..1689870	+	185	16330702	rimM	slr0808	-	16S rRNA-processing protein
1536	 48.53	0	1689948..1690934	+	328	16330703	rfbB	slr0809	-	dTDP-glucose 4-6-dehydratase
1537	 43.61	0	1691083..1691442	+	119	16330704	-	slr0810	-	hypothetical protein
1538	 48.57	0	1691493..1692332	-	279	16330705	-	sll0818	-	hypothetical protein
1539	 46.93	0	1692332..1692559	-	75	16330706	-	ssl1520	-	hypothetical protein
1540	 48.68	0	1692627..1693538	-	303	16330707	miaA	sll0817	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1541	 50.00	0	1693546..1694661	-	371	16330708	-	sll0816	-	hypothetical protein
1542	 38.24	-2	1694717..1695511	-	264	16330709	-	sll0815	-	hypothetical protein
1543	 50.66	0	1695886..1696797	-	303	16330710	-	sll0814	-	hypothetical protein
1544	 51.05	0	1697011..1697913	-	300	16330711	ctaC	sll0813	-	cytochrome c oxidase subunit II
1545	 51.42	0	1697993..1698766	+	257	16330712	-	slr0812	-	pantothenate kinase
1546	 48.46	0	1698811..1699980	+	389	16330713	-	slr0813	-	ceramide glucosyltransferase
1547	 50.43	0	1699970..1700431	-	153	16330714	-	sll0812	-	hypothetical protein
1548	 44.86	0	1700893..1701135	+	80	16330715	ndhL	ssr1386	-	NADH dehydrogenase subunit; NdhL
1549	 48.63	0	1701192..1701557	+	121	16330716	-	slr0815	-	hypothetical protein
1550	 50.60	0	1701615..1702118	+	167	16330717	-	slr0816	-	hypothetical protein
1551	 46.67	0	1702300..1702644	-	114	16330718	-	sll0811	-	hypothetical protein
1552	 42.42	-1	1702666..1703226	-	186	16330719	-	sll0810	-	hypothetical protein
1553	 52.68	0	1703426..1704097	-	223	16330720	-	sll0809	-	hypothetical protein
1554	 51.65	0	1704375..1705799	+	474	16330721	entC	slr0817	-	menaquinone-specific isochorismate synthase
1555	 50.37	0	1705868..1707223	+	451	16330722	-	slr0818	-	hypothetical protein
1556	 46.62	0	1707266..1708876	+	536	161344759	lnt	slr0819	-	apolipoprotein N-acyltransferase
1557	 44.68	0	1708873..1709154	+	93	16330724	-	ssr1391	-	hypothetical protein
1558	 49.27	0	1709232..1710668	+	478	16330725	-	slr0820	-	glucosyltransferase
1559	 38.31	-1	1710814..1711014	-	66	16330726	-	ssl1507	-	transposase
1560	 36.68	-2	1711093..1711659	-	188	16330727	-	sll0808	-	transposase
1561	 50.30	0	1712080..1712409	+	109	16330728	-	slr0821	-	hypothetical protein
1562	 51.52	0	1712564..1713256	-	230	16330729	cfxE	sll0807	-	ribulose-phosphate 3-epimerase
1563	 51.92	0	1713409..1716270	+	953	16330730	-	slr0822	-	cation-transporting ATPase; E1-E2 ATPase
1564	 46.55	0	1716379..1716900	+	173	16330731	ycf3	slr0823	-	photosystem I assembly protein Ycf3
1565	 51.03	0	1716932..1718293	-	453	16330732	-	sll0804	-	hypothetical protein
1566	 43.75	0	1718310..1718789	-	159	16330733	-	sll0803	-	hypothetical protein
1567	 43.47	0	1718820..1719263	-	147	16330734	-	sll0802	-	hypothetical protein
1568	 50.00	0	1719356..1719541	-	61	16330735	-	ssl1498	-	hypothetical protein
1569	 53.59	+1	1719644..1720576	-	310	16330736	-	sll1263	-	hypothetical protein
1570	 49.38	0	1720640..1721125	-	161	16330737	-	sll1262	-	hypothetical protein
1571	 49.32	0	1721350..1722006	-	218	16330738	tsf	sll1261	-	elongation factor Ts
1572	 51.73	0	1722160..1722969	-	269	16330739	rpsB	sll1260	-	30S ribosomal protein S2
1573	 52.01	0	1723452..1724570	+	372	16330740	-	slr1336	-	H+/Ca2+ exchanger
1574	 46.56	0	1724597..1725178	-	193	16330741	dcd	sll1258	-	deoxycytidine triphosphate deaminase
1575	 36.77	-2	1725431..1725925	-	164	16330742	-	sll1257	-	transposase
1576	 36.39	-2	1725919..1726278	-	119	16330743	-	sll1256	-	transposase
1577	 40.13	-1	1726697..1727299	+	200	16330744	-	slr1338	-	hypothetical protein
1578	 35.08	-2	1727283..1727741	+	152	16330745	-	slr1339	-	hypothetical protein
1579	 37.99	-2	1727770..1728306	+	178	16330746	-	slr1340	-	hypothetical protein
1580	 32.15	-2	1729012..1730028	-	338	16330747	-	sll1255	-	transposase
1581	 42.07	-1	1730166..1731206	-	346	16330748	-	sll1254	-	hemolysin
1582	 49.70	0	1731311..1732648	+	445	16330749	-	slr1342	-	hypothetical protein
1583	 45.41	0	1732809..1734323	+	504	16330750	-	slr1343	-	hypothetical protein
1584	 50.02	0	1734382..1737210	-	942	16330751	pcnB	sll1253	-	polyA polymerase
1585	 51.79	0	1737338..1738117	-	259	16330752	-	sll1252	-	hypothetical protein
1586	 50.47	0	1738184..1739035	+	283	16330753	-	slr1344	-	hypothetical protein
1587	 49.61	0	1739130..1740020	-	296	16330754	-	sll1251	-	hypothetical protein
1588	 41.36	-1	1740188..1740349	-	53	16330755	-	ssl2471	-	hypothetical protein
1589	 41.34	-1	1740388..1740774	-	128	16330756	-	sll1250	-	hypothetical protein
1590	 51.62	0	1740834..1742375	-	513	16330757	panC/kcy	sll1249	-	bifunctional pantoate ligase/cytidylate kinase
1591	 51.60	0	1742434..1743369	+	311	16330758	icfA	slr1347	-	carbonic anhydrase
1592	 51.07	0	1743443..1744192	+	249	16330759	cysE	slr1348	-	serine acetyltransferase
1593	 52.32	0	1744498..1746093	+	531	16330760	pgi	slr1349	-	glucose-6-phosphate isomerase
1594	 50.76	0	1746308..1747363	+	351	16330761	desA	slr1350	-	fatty acid desaturase
1595	 42.79	-1	1747520..1748893	-	457	16330762	-	sll1247	-	hypothetical protein
1596	 51.28	0	1749146..1750510	+	454	16330763	murF	slr1351	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diamino-pimelate-D-alanyl-D-alanine ligase
1597	 50.13	0	1750681..1751067	-	128	16330764	cytM	sll1245	-	cytochrome; CytM
1598	 51.20	0	1751311..1751769	-	152	161344758	rplI	sll1244	-	50S ribosomal protein L9
1599	 52.17	0	1751951..1752826	+	291	16330766	-	slr1353	-	hypothetical protein
1600	 49.78	0	1752891..1754501	-	536	16330767	-	sll1242	-	hypothetical protein
1601	 50.48	0	1754634..1755152	+	172	16330768	-	slr1956	-	hypothetical protein
1602	 46.11	0	1755592..1755912	+	106	16330769	-	slr1957	-	hypothetical protein
1603	 48.26	0	1755982..1756584	+	200	16330770	-	slr1958	-	hypothetical protein
1604	 45.71	0	1756594..1757223	-	209	16330771	act	sll1900	-	acetyltransferase
1605	 49.78	0	1757284..1757514	-	76	16330772	hypC	ssl3580	-	hydrogenase expression/formation protein; HypC
1606	 50.79	0	1757592..1758542	-	316	16330773	ctaB	sll1899	-	protoheme IX farnesyltransferase
1607	 54.15	+1	1758693..1759691	-	332	16330774	-	sll1898	-	hypothetical protein
1608	 39.69	-1	1759941..1762424	+	827	16330775	-	slr1959	-	hypothetical protein
1609	 50.00	0	1762454..1762879	-	141	16330776	-	sll1897	-	hypothetical protein
1610	 43.86	0	1763340..1763624	-	94	16330777	-	ssl3573	-	hypothetical protein
1611	 50.31	0	1763726..1764838	+	370	16330778	-	slr1962	-	hypothetical protein
1612	 43.52	0	1764835..1766925	-	696	16330779	-	sll1895	-	hypothetical protein
1613	 53.46	+1	1767270..1768223	+	317	16330780	-	slr1963	-	hypothetical protein
1614	 45.93	0	1768291..1768695	+	134	16330781	-	slr1964	-	hypothetical protein
1615	 52.24	0	1768748..1770418	-	556	16330782	ribA	sll1894	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1616	 51.91	0	1770690..1771421	+	243	16330783	-	slr1966	-	hypothetical protein
1617	 54.45	+1	1771458..1772243	-	261	16330784	hisF	sll1893	-	imidazole glycerol phosphate synthase subunit HisF
1618	 52.48	0	1772457..1773203	-	248	16330785	-	sll1892	-	hypothetical protein
1619	 48.88	0	1773346..1776150	+	934	16330786	-	slr1968	-	hypothetical protein
1620	 51.25	0	1776081..1776839	-	252	16330787	-	sll1891	-	hypothetical protein
1621	 53.69	+1	1776983..1777537	-	184	16330788	cobN	sll1890	-	CobN protein
1622	 48.25	0	1777729..1779981	+	750	16330789	-	slr1969	-	hybrid sensory kinase
1623	 52.11	0	1780086..1780298	+	70	16330790	-	ssr3341	-	hypothetical protein
1624	 50.96	0	1780484..1781005	+	173	16330791	-	slr1970	-	hypothetical protein
1625	 51.17	0	1781209..1782060	+	283	16330792	-	slr1971	-	hypothetical protein
1626	 50.50	0	1782057..1783355	-	432	16330793	-	sll1888	-	sensory transduction histidine kinase
48.22	MEAN

4.98	STD DEV
