IslandPath Analysis: Synechococcus elongatus PCC 6301

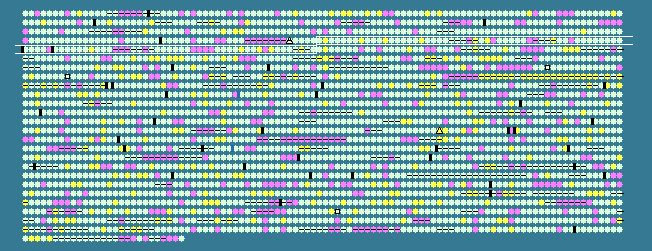

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
350	 58.52	0	391837..392757	+	306	56750359	-	syc0350_d	-	hypothetical protein
351	 60.75	+1	392726..393502	+	258	56750360	-	syc0351_d	-	tRNA/rRNA methyltransferase
352	 59.24	0	393561..395000	+	479	56750361	phdD	syc0352_d	-	dihydrolipoamide dehydrogenase
353	 57.66	0	395077..395964	+	295	56750362	trpC	syc0353_d	-	indole-3-glycerol-phosphate synthase
354	 59.07	0	396271..396507	-	78	56750363	-	syc0354_c	-	hypothetical protein
355	 54.79	0	396584..397282	-	232	56750364	-	syc0355_c	-	hypothetical protein
356	 58.90	0	397310..398107	-	265	56750365	pdxJ	syc0356_c	-	pyridoxal phosphate biosynthetic protein PdxJ
357	 59.90	0	398362..399129	+	255	56750366	-	syc0357_d	-	putative acyltransferase
358	 58.46	0	399207..399815	+	202	56750367	-	syc0358_d	-	hypothetical protein
359	 55.98	0	399905..400456	-	183	56750368	gmk	syc0359_c	-	guanylate kinase
360	 58.80	0	400625..402085	+	486	56750369	-	syc0360_d	-	leucyl aminopeptidase
361	 60.34	+1	402176..402760	+	194	56750370	-	syc0361_d	-	molybdopterin-guanine dinucleotide biosynthesis protein A
362	 53.18	0	402764..403156	-	130	56750371	-	syc0362_c	-	AP-4-A phosphorylase II-like protein
363	 55.19	0	403274..404449	-	391	56750372	-	syc0363_c	-	hypothetical protein
364	 58.80	0	404456..405154	-	232	56750373	ribD	syc0364_c	-	a part of riboflavin biosynthesis protein RibD
365	 58.70	0	405158..405433	-	91	56750374	-	syc0365_c	-	hypothetical protein
366	 55.26	0	405665..406567	-	300	56750375	-	syc0366_c	-	6-pyruvoyl-tetrahydropterin synthase-like protein
367	 59.81	0	406592..407335	-	247	56750376	-	syc0367_c	-	hypothetical protein
368	 56.84	0	407493..408011	-	172	56750377	ndhJ	syc0368_c	-	NADH dehydrogenase subunit J
369	 57.91	0	408004..408711	-	235	56750378	ndhK	syc0369_c	-	NADH dehydrogenase subunit B
370	 54.23	0	408702..409103	-	133	56750379	ndhC	syc0370_c	-	NADH dehydrogenase subunit A
371	 58.51	0	409277..409693	+	138	56750380	rub	syc0371_d	-	rubredoxin
372	 58.67	0	409726..410775	+	349	56750381	-	syc0372_d	-	Ycf48-like protein
373	 54.76	0	410840..411091	+	83	56750382	psbE	syc0373_d	-	cytochrome b559 subunit alpha
374	 55.56	0	411113..411247	+	44	56750383	psbF	syc0374_d	-	cytochrome b559 subunit beta
375	 49.21	-1	411260..411385	+	41	56750384	psbL	syc0375_d	-	photosystem II PsbL protein
376	 60.00	0	411462..411581	+	39	56750385	psbJ	syc0376_d	-	photosystem II reaction center protein J
377	 57.84	0	411671..412939	-	422	56750386	-	syc0377_c	-	hypothetical protein
378	 60.73	+1	413209..414657	+	482	56750387	lnt	syc0378_d	-	apolipoprotein N-acyltransferase
379	 50.53	-1	414696..416207	+	503	56750388	-	syc0379_d	-	hypothetical protein
380	 56.94	0	416486..416968	+	160	56750389	ispF	syc0380_d	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
381	 52.88	0	416934..418703	+	589	56750390	-	syc0381_d	-	oligopeptide-binding protein of oligopeptide ABC transporter
382	 58.37	0	418696..419478	+	260	56750391	cpmA	syc0382_d	-	circadian phase modifier CpmA
383	 53.76	0	419475..420032	+	185	56750392	-	syc0383_d	-	hypothetical protein
384	 58.07	0	420043..421368	-	441	56750393	-	syc0384_c	-	hypothetical protein
385	 50.00	-1	421674..421961	+	95	56750394	-	syc0385_d	-	AP-4-A phosphorylase II-like protein
386	 38.39	-2	421964..423388	-	474	56750395	-	syc0386_c	-	hypothetical protein
387	 58.50	0	424313..425488	-	391	56750396	-	syc0387_c	-	hypothetical protein
388	 56.36	0	425504..425959	-	151	56750397	-	syc0388_c	-	hypothetical protein
389	 60.20	+1	425963..426457	-	164	56750398	-	syc0389_c	-	hypothetical protein
390	 58.91	0	426506..427408	-	300	56750399	-	syc0390_c	-	hypothetical protein
391	 56.69	0	427513..428013	+	166	56750400	-	syc0391_d	-	transcriptional regulator
392	 41.57	-2	428321..431500	+	1059	56750401	-	syc0392_d	-	hypothetical protein
393	 55.90	0	431539..434724	-	1061	56750402	-	syc0393_c	-	hypothetical protein
394	 58.35	0	434711..437308	-	865	56750403	-	syc0394_c	-	hypothetical protein
395	 56.38	0	437610..438299	-	229	56750404	-	syc0395_c	-	hypothetical protein
396	 58.92	0	438263..439669	+	468	56750405	-	syc0396_d	-	hypothetical protein
397	 59.24	0	439666..441510	+	614	56750406	-	syc0397_d	-	hypothetical protein
398	 59.26	0	442110..443135	+	341	56750407	-	syc0398_d	-	hypothetical protein
399	 59.03	0	443339..444922	+	527	56750408	panC	syc0399_d	-	bifunctional pantoate ligase/cytidylate kinase
400	 55.25	0	445071..445727	+	218	56750409	-	syc0400_d	-	hypothetical protein
401	 56.65	0	445915..446892	+	325	56750410	rfbB	syc0401_d	-	dTDP-glucose 4,6-dehydratase
402	 52.87	0	446893..448110	-	405	56750411	-	syc0402_c	-	hypothetical protein
403	 55.37	0	448527..449234	+	235	56750412	-	syc0403_d	-	hypothetical protein
404	 53.88	0	449333..449590	+	85	56750413	-	syc0404_d	-	hypothetical protein
405	 48.01	-1	449636..449962	+	108	56750414	-	syc0405_d	-	promoter active fragment E3
406	 58.43	0	450350..451381	-	343	56750415	-	syc0406_c	-	hypothetical protein
407	 53.77	0	451604..452200	-	198	56750416	-	syc0407_c	-	hypothetical protein
408	 55.96	0	452279..453856	-	525	56750417	metG	syc0408_c	-	methionyl-tRNA synthetase
409	 56.91	0	453993..454679	+	228	56750418	-	syc0409_d	-	hypothetical protein
410	 58.30	0	454698..456455	+	585	56750419	-	syc0410_d	-	hypothetical protein
411	 55.89	0	456569..458239	+	556	56750420	-	syc0411_d	-	hypothetical protein
412	 60.33	+1	458214..459065	-	283	56750421	ycf62	syc0412_c	-	hypothetical protein
413	 59.04	0	459296..460042	+	248	56750422	ycf23	syc0413_d	-	hypothetical protein
414	 57.04	0	460180..462777	-	865	56750423	pepN	syc0414_c	-	aminopeptidase
415	 57.42	0	462873..463391	+	172	56750424	-	syc0415_d	-	cation transporter
416	 40.37	-2	465245..467389	+	714	56750425	-	syc0416_d	-	ABC transporter ATP-binding protein
417	 45.25	-2	467431..469134	+	567	56750426	-	syc0417_d	-	hypothetical protein
418	 45.05	-2	469185..469406	-	73	56750427	-	syc0418_c	-	ferredoxin-thioredoxin reductase variable subunit
419	 57.91	0	469545..471359	-	604	56750428	-	syc0419_c	-	hypothetical protein
420	 58.76	0	471416..472288	-	290	56750429	-	syc0420_c	-	hypothetical protein
421	 49.13	-1	472367..473455	-	362	56750430	-	syc0421_c	-	hypothetical protein
422	 57.62	0	473962..475431	-	489	56750431	tldD	syc0422_c	-	putative modulator of DNA gyrase TldD
423	 55.04	0	475581..476414	+	277	56750432	-	syc0423_d	-	ABC transporter permease protein
424	 57.05	0	476472..477407	-	311	56750433	-	syc0424_c	-	two-component sensor histidine kinase
425	 58.22	0	477504..479516	-	670	56750434	rnb	syc0425_c	-	ribonuclease II
426	 54.17	0	479538..479753	-	71	56750435	rpsR	syc0426_c	-	30S ribosomal protein S18
427	 54.87	0	479809..480003	-	64	56750436	rpmG	syc0427_c	-	50S ribosomal protein L33
428	 59.31	0	480181..482340	+	719	56750437	-	syc0428_d	-	serine/threonine kinase
429	 50.56	-1	482585..482944	+	119	56750438	-	syc0429_d	-	hypothetical protein
430	 49.12	-1	483510..484187	+	225	56750439	-	syc0430_d	-	hypothetical protein
431	 47.24	-2	484217..485740	+	507	56750440	-	syc0431_d	-	mercuric reductase
432	 42.84	-2	485761..486423	-	220	56750441	-	syc0432_c	-	hypothetical protein
433	 56.49	0	486628..487836	-	402	56750442	pgk	syc0433_c	-	phosphoglycerate kinase
434	 58.79	0	488084..488464	+	126	56750443	-	syc0434_d	-	hypothetical protein
435	 58.56	0	488461..489324	+	287	56750444	rbgA	syc0435_d	-	ribosomal biogenesis GTPase
436	 57.51	0	489331..490422	+	363	56750445	-	syc0436_d	-	hypothetical protein
437	 59.55	0	490419..491360	+	313	56750446	-	syc0437_d	-	ribosomal large subunit pseudouridine synthase D
438	 58.46	0	491357..492940	+	527	56750447	-	syc0438_d	-	serine/threonine kinase
439	 56.78	0	493277..493903	-	208	56750448	-	syc0439_c	-	two-component response regulator
440	 60.52	+1	494064..495137	-	357	56750449	hisC	syc0440_c	-	threonine-phosphate decarboxylase
441	 51.81	-1	495156..495431	-	91	56750450	-	syc0441_c	-	DNA binding protein HU
442	 60.42	+1	495714..496514	+	266	56750451	-	syc0442_d	-	hypothetical protein
443	 53.08	0	496655..497125	+	156	56750452	-	syc0443_d	-	hypothetical protein
444	 58.47	0	497269..498354	+	361	56750453	mrp	syc0444_d	-	ATP-binding protein involved in chromosome partitioning
445	 57.11	0	498386..499651	+	421	56750454	rodA	syc0445_d	-	rod shape determining protein
446	 58.74	0	499749..500480	+	243	56750455	-	syc0446_d	-	glucosamine-6-phosphate isomerase 2
447	 63.64	+1	500545..500973	-	142	56750456	-	syc0447_c	-	hypothetical protein
448	 58.38	0	500985..502142	-	385	56750457	-	syc0448_c	-	protease
449	 53.21	0	502252..503700	+	482	56750458	dnaA	syc0449_d	-	chromosomal replication initiation protein
55.98	MEAN

4.05	STD DEV
