IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

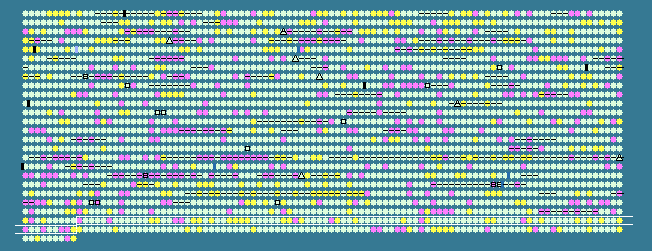

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2310	 23.53	-2	2520560..2520763	-	67	82752093	-	SAB2384c	-	hypothetical protein
2311	 36.23	0	2520959..2522236	-	425	82752094	-	SAB2385c	-	transport protein
2312	 32.68	0	2522783..2523394	+	203	82752095	-	SAB2386	-	alkaline phosphatase
2313	 32.88	0	2523470..2523691	+	73	82752096	-	SAB2387	-	hypothetical protein
2314	 31.32	0	2523912..2524607	+	231	82752097	-	SAB2388	-	ABC transporter
2315	 26.20	-2	2524609..2525379	+	256	82752098	-	SAB2389	-	membrane-spanning protein
2316	 34.50	0	2525882..2527846	+	654	82752099	-	SAB2390	-	fructose-bisphosphatase
2317	 35.65	0	2528189..2529268	+	359	82752100	-	SAB2391	-	hypothetical protein
2318	 36.03	0	2529373..2529966	-	197	82752101	-	SAB2392c	-	hypothetical protein
2319	 35.81	0	2529988..2530956	-	322	82752102	-	SAB2393c	-	glyoxylase family protein
2320	 35.86	0	2531034..2531468	-	144	82752103	-	SAB2394c	-	MarR family transcriptional regulator
2321	 33.33	0	2531694..2531978	+	94	82752104	-	SAB2395	-	hypothetical protein
2322	 37.79	+1	2532153..2532959	+	268	82752105	-	SAB2396	-	hypothetical protein
2323	 37.35	+1	2533078..2533749	-	223	82752106	-	SAB2397c	-	NADH-dependent flavin reductase
2324	 32.96	0	2533956..2534765	+	269	82752107	ddh	SAB2398	-	D-lactate dehydrogenase
2325	 34.58	0	2535012..2535812	-	266	82752108	-	SAB2399c	-	hypothetical protein
2326	 24.37	-2	2536133..2536768	+	211	82752109	-	SAB2400	-	ABC transporter ATP-binding protein
2327	 27.52	-1	2536783..2537505	+	240	82752110	-	SAB2401	-	hypothetical protein
2328	 32.69	0	2537666..2538286	-	206	82752111	srtA	SAB2402c	-	sortase
2329	 36.79	+1	2538480..2538971	+	163	82752112	-	SAB2403	-	phosphinothricin N-acetyltransferase
2330	 41.00	+2	2539469..2540368	-	299	82752113	-	SAB2404c	-	L-serine dehydratase alpha subunit
2331	 32.01	0	2540382..2541062	-	226	82752114	-	SAB2405c	-	L-serine dehydratase beta subunit
2332	 37.36	+1	2541065..2542108	-	347	82752115	-	SAB2406c	-	surface-exposed regulatory protein
2333	 33.94	0	2542989..2543153	+	54	82752116	-	SAB2407	-	hypothetical protein
2334	 34.26	0	2543199..2543951	+	250	82752117	-	SAB2408	-	hypothetical protein
2335	 37.67	+1	2544031..2544999	-	322	82752118	-	SAB2409c	-	hypothetical protein
2336	 36.52	+1	2545132..2545476	-	114	82752119	-	SAB2410c	-	hypothetical protein
2337	 36.74	+1	2545518..2545928	-	136	82752120	-	SAB2411c	-	hypothetical protein
2338	 36.53	+1	2546308..2548374	-	688	82752121	glcB	SAB2412c	-	PTS system glucose-specific IIABC component
2339	 34.48	0	2548674..2550413	-	579	82752122	-	SAB2413c	-	pyruvate oxidase
2340	 34.06	0	2550453..2551142	-	229	82752123	-	SAB2414c	-	hypothetical protein
2341	 33.45	0	2551743..2552627	-	294	82752124	-	SAB2416c	-	LysR family transcriptional regulator
2342	 35.16	0	2552788..2553006	+	72	82752125	-	SAB2417	-	hypothetical protein
2343	 34.26	0	2553396..2553827	+	143	82752126	-	SAB2418	-	secretory antigen SsaA-like protein
2344	 38.72	+1	2553966..2555246	-	426	82752127	mvaA	SAB2419c	-	hydroxymethylglutaryl-CoA reductase
2345	 37.45	+1	2555500..2556666	+	388	82752128	mvaS	SAB2420	-	3-hydroxy-3-methylglutaryl CoA synthase
2346	 28.83	-1	2556895..2557560	-	221	82752129	-	SAB2421c	-	hypothetical protein
2347	 38.89	+1	2557761..2558282	-	173	82752130	adaB	SAB2422c	-	methylated-DNA-protein-cysteine S-methyltransferase
2348	 35.99	0	2558644..2560752	+	702	82752131	clpL	SAB2423	-	ATP-dependent proteinase chain
2349	 34.79	0	2561002..2562996	-	664	82752132	feoB	SAB2424c	-	ferrous iron transport protein B
2350	 30.70	0	2563008..2563235	-	75	82752133	-	SAB2425c	-	hypothetical protein
2351	 34.10	0	2563452..2565941	-	829	82752134	-	SAB2426c	-	membrane transporter
2352	 29.33	-1	2566085..2566633	+	182	82752135	-	SAB2427	-	hypothetical protein
2353	 36.57	+1	2566988..2568532	-	514	82752136	-	SAB2428c	-	1-pyrroline-5-carboxylate dehydrogenase
2354	 36.08	0	2568722..2569303	-	193	82752137	-	SAB2429c	-	galactoside-O-acetyltransferase
2355	 30.85	0	2569548..2569748	+	66	82752138	-	SAB2430	-	hypothetical protein
2356	 37.57	+1	2569988..2572396	+	802	82752139	copA	SAB2431	-	copper-transporting ATPase
2357	 36.14	0	2572845..2573843	-	332	82752140	-	SAB2432c	-	D-lactate dehydrogenase
2358	 36.19	0	2573866..2575020	-	384	82752141	-	SAB2433c	-	aminotransferase
2359	 35.06	0	2575447..2576955	-	502	82752142	crtN	SAB2434c	-	squalene synthase
2360	 31.48	0	2576967..2577830	-	287	82752143	crtM	SAB2435c	-	squalene desaturase
2361	 36.44	+1	2577867..2578994	-	375	82752144	-	SAB2436c	-	hypothetical protein
2362	 34.87	0	2579000..2580493	-	497	82752145	-	SAB2437c	-	phytoene dehydrogenase
2363	 30.12	0	2580486..2580983	-	165	82752146	-	SAB2438c	-	hypothetical protein
2364	 36.59	+1	2581149..2581916	-	255	82752147	ssaA	SAB2439c	-	secretory antigen precursor
2365	 29.93	0	2582028..2582174	-	48	82752148	-	SAB2440c	-	hypothetical protein
2366	 32.78	0	2582277..2584088	-	603	82752149	-	SAB2441c	-	membrane-embedded acyltransferase
2367	 24.54	-2	2584592..2585080	-	162	82752150	-	SAB2442c	-	acetyltransferase
2368	 41.60	+2	2585356..2586057	-	233	82752151	isaA	SAB2443c	-	immunodominant antigen A
2369	 36.46	+1	2586665..2587720	-	351	82752152	-	SAB2444c	-	hypothetical protein
2370	 32.63	0	2588130..2588699	+	189	82752153	-	SAB2445	-	TetR family regulatory protein
2371	 35.13	0	2588897..2589397	+	166	82752154	-	SAB2446	-	hypothetical protein
2372	 32.90	0	2589617..2589847	+	76	82752155	-	SAB2447	-	hypothetical protein
2373	 34.66	0	2589978..2590355	-	125	82752156	-	SAB2448c	-	hypothetical protein
2374	 31.53	0	2590372..2590926	-	184	82752157	-	SAB2449c	-	hypothetical protein
2375	 35.63	0	2590935..2591195	-	86	82752158	-	SAB2450c	-	hypothetical protein
2376	 32.00	0	2591214..2591513	-	99	82752159	-	SAB2451c	-	hypothetical protein
2377	 29.57	-1	2591644..2592201	+	185	82752160	-	SAB2452	-	hypothetical protein
2378	 36.88	+1	2592194..2592898	+	234	82752161	-	SAB2453	-	short chain oxidoreductase
2379	 37.30	+1	2594021..2594851	+	276	82752162	-	SAB2455	-	hypothetical protein
2380	 36.03	0	2594998..2595888	-	296	82752163	-	SAB2456c	-	cobalmin synthesis protein
2381	 34.53	0	2595988..2597328	-	446	82752164	-	SAB2457c	-	hypothetical protein
2382	 35.32	0	2597322..2598428	-	368	82752165	-	SAB2458c	-	hypothetical protein
2383	 29.89	0	2598488..2598661	-	57	82752166	-	SAB2459c	-	hypothetical protein
2384	 26.94	-1	2598764..2599060	-	98	82752167	-	SAB2460c	-	hypothetical protein
2385	 36.59	+1	2599048..2599416	-	122	82752168	-	SAB2461c	-	hypothetical protein
2386	 31.88	0	2599431..2599706	-	91	82752169	-	SAB2462c	-	hypothetical protein
2387	 38.75	+1	2600046..2600912	-	288	82752170	-	SAB2463c	-	hypothetical protein
2388	 35.68	0	2601130..2602194	+	354	82752171	-	SAB2464	-	dihydroorotate dehydrogenase 2
2389	 30.80	0	2602349..2602624	+	91	82752172	-	SAB2465	-	hypothetical protein
2390	 33.47	0	2602810..2603532	-	240	82752173	-	SAB2466c	-	hypothetical protein
2391	 36.22	0	2603882..2604331	+	149	82752174	-	SAB2467	-	hypothetical protein
2392	 30.27	0	2604412..2604999	-	195	82752175	-	SAB2468c	-	hypothetical protein
2393	 36.54	+1	2605142..2606824	+	560	82752176	-	SAB2469	-	hypothetical protein
2394	 33.59	0	2606953..2607336	-	127	82752177	panD	SAB2470c	-	aspartate alpha-decarboxylase
2395	 36.62	+1	2607338..2608189	-	283	82752178	panC	SAB2471c	-	pantoate--beta-alanine ligase
2396	 36.39	+1	2608182..2609000	-	272	82752179	panB	SAB2472c	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2397	 37.63	+1	2609073..2609933	+	286	82752180	-	SAB2473	-	2-dehydropantoate 2-reductase
2398	 36.31	0	2610019..2610723	-	234	82752181	-	SAB2474c	-	alpha-acetolactate decarboxylase
2399	 35.31	0	2611001..2611960	-	319	82752182	ldh	SAB2475c	-	L-lactate dehydrogenase
2400	 37.47	+1	2612647..2614095	+	482	82752183	-	SAB2476	-	cationic amino acid transporter
2401	 28.06	-1	2615766..2616182	+	138	82752184	-	SAB2478	-	hypothetical protein
2402	 34.68	0	2616305..2617195	+	296	82752185	fda	SAB2479	-	fructose-1,6-bisphosphate aldolase
2403	 36.01	0	2617390..2618886	-	498	82752186	mqo	SAB2480c	-	malate:quinone oxidoreductase
2404	 27.71	-1	2619263..2619511	+	82	82752187	-	SAB2481	-	hypothetical protein
2405	 36.23	0	2619571..2621190	-	539	82752188	-	SAB2482c	-	acetate-CoA ligase
2406	 31.31	0	2621363..2621806	-	147	82752189	-	SAB2483c	-	hypothetical protein
2407	 26.19	-2	2621844..2622011	-	55	82752190	-	SAB2484c	-	hypothetical protein
2408	 27.23	-1	2622086..2622298	-	70	82752191	-	SAB2485c	-	hypothetical protein
2409	 38.89	+1	2622578..2624287	-	569	82752192	cudB	SAB2486c	-	choline dehydrogenase
33.03	MEAN

3.30	STD DEV
