IslandPath Analysis: Rhodobacter sphaeroides ATCC 17025

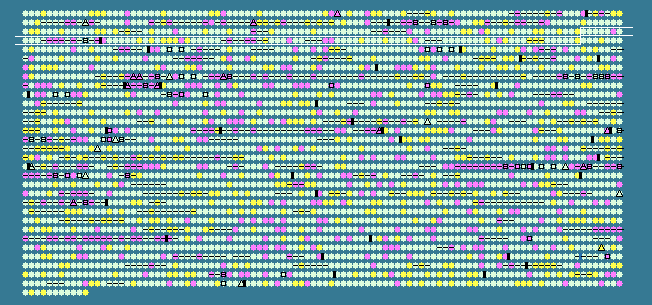

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.34 STD DEV: 3.47
Rhodobacter sphaeroides ATCC 17025, complete genome - 1..3217726
3111 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
294	 65.37	0	293651..294961	-	436	146276352	-	Rsph17025_0296	-	ATPase with chaperone activity-like protein
295	 66.67	0	294983..295474	-	163	146276353	-	Rsph17025_0297	-	hypothetical protein
296	 66.78	0	295489..296334	-	281	146276354	-	Rsph17025_0298	-	hypothetical protein
297	 68.08	0	296373..296939	-	188	146276355	-	Rsph17025_0299	-	TPR repeat-containing protein
298	 66.26	0	296946..297917	-	323	146276356	-	Rsph17025_0300	-	type II secretion system protein
299	 64.29	-1	297922..298890	-	322	146276357	-	Rsph17025_0301	-	type II secretion system protein
300	 67.15	0	298898..300352	-	484	146276358	-	Rsph17025_0302	-	type II secretion system protein E
301	 66.75	0	300373..301644	-	423	146276359	-	Rsph17025_0303	-	ATPase involved in chromosome partitioning-like protein
302	 65.41	0	301864..302502	-	212	146276360	-	Rsph17025_0304	-	OmpA/MotB domain-containing protein
303	 66.38	0	302506..303891	-	461	146276361	-	Rsph17025_0305	-	type II and III secretion system protein
304	 71.43	0	304084..304965	-	293	146276362	-	Rsph17025_0306	-	lytic transglycosylase, catalytic
305	 56.37	-2	305315..305518	+	67	146276363	-	Rsph17025_0307	-	hypothetical protein
306	 57.35	-2	305685..305888	+	67	146276364	-	Rsph17025_0308	-	hypothetical protein
307	 64.48	-1	305961..306785	+	274	146276365	-	Rsph17025_0309	-	Flp pilus assembly protein CpaB-like protein
308	 68.04	0	307200..307490	+	96	146276366	-	Rsph17025_0310	-	hypothetical protein
309	 60.89	-2	307708..307932	+	74	146276367	-	Rsph17025_0311	-	hypothetical protein
310	 66.78	0	308315..309178	+	287	146276368	-	Rsph17025_0313	-	hypothetical protein
311	 67.04	0	309303..310115	-	270	146276369	-	Rsph17025_0314	-	transposase
312	 67.85	0	311797..312303	+	168	146276370	-	Rsph17025_0316	-	hypothetical protein
313	 62.04	-1	312309..312632	+	107	146276371	-	Rsph17025_0317	-	hypothetical protein
314	 64.58	-1	313952..314335	+	127	146276372	-	Rsph17025_0320	-	hypothetical protein
315	 69.94	0	314742..315749	+	335	146276373	-	Rsph17025_0321	-	tRNA-dihydrouridine synthase A
316	 70.09	0	315835..316653	+	272	146276374	-	Rsph17025_0322	-	hypothetical protein
317	 67.00	0	316811..318301	-	496	146276375	-	Rsph17025_0323	-	replicative DNA helicase
318	 68.38	0	318570..319268	-	232	146276376	pyrE	Rsph17025_0324	-	orotate phosphoribosyltransferase
319	 71.47	0	319311..320351	-	346	146276377	-	Rsph17025_0325	-	dihydroorotase
320	 74.05	+1	320448..320975	+	175	146276378	-	Rsph17025_0326	-	metal dependent phosphohydrolase
321	 70.05	0	321139..322053	+	304	146276379	-	Rsph17025_0327	-	ATPase
322	 72.35	+1	322158..323354	+	398	146276380	-	Rsph17025_0328	-	VWA containing CoxE family protein
323	 71.10	0	323496..323924	+	142	146276381	-	Rsph17025_0329	-	hypothetical protein
324	 72.64	+1	324174..326366	+	730	146276382	-	Rsph17025_0330	-	OmpA/MotB domain-containing protein
325	 73.25	+1	326455..327426	+	323	146276383	-	Rsph17025_0331	-	hypothetical protein
326	 74.48	+1	327426..328436	+	336	146276384	-	Rsph17025_0332	-	molybdopterin binding domain-containing protein
327	 63.59	-1	328481..329065	-	194	146276385	infC	Rsph17025_0333	-	translation initiation factor IF-3
328	 75.16	+1	329188..329823	+	211	146276386	-	Rsph17025_0334	-	hypothetical protein
329	 65.30	0	329915..330721	-	268	146276387	-	Rsph17025_0335	-	oxidoreductase FAD-binding subunit
330	 68.14	0	330784..331191	-	135	146276388	-	Rsph17025_0336	-	hypothetical protein
331	 68.39	0	331188..331943	-	251	146276389	-	Rsph17025_0337	-	phosphoadenosine phosphosulfate reductase
332	 66.25	0	331933..333603	-	556	146276390	-	Rsph17025_0338	-	nitrite/sulfite reductase hemoprotein beta subunit
333	 70.26	0	333622..333927	-	101	146276391	-	Rsph17025_0339	-	hypothetical protein
334	 71.32	0	333924..334697	-	257	146276392	-	Rsph17025_0340	-	uroporphyrin-III C-methyltransferase
335	 64.29	-1	334831..335292	+	153	146276393	-	Rsph17025_0341	-	AsnC family transcriptional regulator
336	 70.92	0	335399..336622	-	407	146276394	-	Rsph17025_0342	-	cytochrome P450
337	 71.68	0	336878..337615	-	245	146276395	-	Rsph17025_0343	-	Triose-phosphate isomerase
338	 63.87	-1	337684..338040	-	118	146276396	-	Rsph17025_0344	-	iron-sulfur cluster assembly accessory protein
339	 63.36	-1	338161..338523	-	120	146276397	-	Rsph17025_0345	-	hypothetical protein
340	 70.09	0	338715..339971	+	418	146276398	-	Rsph17025_0346	-	metallophosphoesterase
341	 73.76	+1	339971..343354	+	1127	146276399	-	Rsph17025_0347	-	hypothetical protein
342	 68.31	0	343399..344496	-	365	146276400	-	Rsph17025_0348	-	translation-associated GTPase
343	 70.45	0	344766..345557	+	263	146276401	trpA	Rsph17025_0349	-	tryptophan synthase subunit alpha
344	 66.84	0	345785..346948	+	387	146276402	-	Rsph17025_0350	-	L-lactate dehydrogenase (cytochrome)
345	 63.56	-1	347086..347697	+	203	146276403	-	Rsph17025_0351	-	50S ribosomal protein L25/general stress protein Ctc
346	 69.76	0	347844..348521	+	225	146276404	-	Rsph17025_0352	-	peptidyl-tRNA hydrolase
347	 70.33	0	348531..349295	-	254	146276405	ppnK	Rsph17025_0353	-	inorganic polyphosphate/ATP-NAD kinase
348	 68.36	0	349462..350757	+	431	146276406	-	Rsph17025_0354	-	serine hydroxymethyltransferase
349	 70.97	0	350797..351168	-	123	146276407	-	Rsph17025_0355	-	hypothetical protein
350	 69.78	0	351262..352032	+	256	146276408	-	Rsph17025_0356	-	alpha/beta hydrolase fold
351	 64.12	-1	352071..352580	-	169	146276409	-	Rsph17025_0357	-	cytochrome B561
352	 61.02	-2	352610..352786	-	58	146276410	-	Rsph17025_0358	-	hypothetical protein
353	 69.82	0	353146..354507	-	453	146276411	-	Rsph17025_0359	-	DEAD/DEAH box helicase domain-containing protein
354	 67.90	0	354767..355498	-	243	146276412	-	Rsph17025_0360	-	hemolysin-type calcium-binding region
355	 67.33	0	355681..359010	-	1109	146276413	carB	Rsph17025_0361	-	carbamoyl phosphate synthase large subunit
356	 70.50	0	359165..360337	+	390	146276414	-	Rsph17025_0362	-	para-aminobenzoate synthase component I
357	 74.04	+1	360280..360957	+	225	146276415	-	Rsph17025_0363	-	hypothetical protein
358	 67.74	0	360997..361650	+	217	146276416	-	Rsph17025_0364	-	abortive infection protein
359	 66.50	0	361831..363606	+	591	146276417	aspS	Rsph17025_0365	-	aspartyl-tRNA synthetase
360	 69.93	0	363610..364314	+	234	146276418	-	Rsph17025_0366	-	GCN5-related N-acetyltransferase
361	 72.56	+1	364325..365020	-	231	146276419	-	Rsph17025_0367	-	response regulator receiver protein
362	 65.43	0	365171..365575	+	134	146276420	-	Rsph17025_0368	-	methylmalonyl-CoA epimerase
363	 68.79	0	365572..365853	+	93	146276421	-	Rsph17025_0369	-	hypothetical protein
364	 67.82	0	365894..366589	-	231	146276422	-	Rsph17025_0370	-	hypothetical protein
365	 72.37	+1	366586..367164	-	192	146276423	-	Rsph17025_0371	-	nitroreductase
366	 64.53	-1	367423..369012	+	529	146276424	-	Rsph17025_0372	-	extracellular solute-binding protein
367	 67.69	0	369013..370083	+	356	146276425	-	Rsph17025_0373	-	binding-protein-dependent transport systems inner membrane component
368	 70.87	0	370080..370982	+	300	146276426	-	Rsph17025_0374	-	binding-protein-dependent transport systems inner membrane component
369	 71.03	0	371104..371928	+	274	146276427	-	Rsph17025_0375	-	ABC transporter related
370	 71.43	0	371928..372683	+	251	146276428	-	Rsph17025_0376	-	ABC transporter related
371	 70.32	0	372680..373747	+	355	146276429	-	Rsph17025_0377	-	membrane dipeptidase
372	 71.77	0	373870..374967	-	365	146276430	-	Rsph17025_0378	-	histone deacetylase superfamily protein
373	 70.59	0	375027..375281	+	84	146276431	-	Rsph17025_0379	-	hypothetical protein
374	 69.71	0	375322..376242	-	306	146276432	-	Rsph17025_0380	-	beta-lactamase domain-containing protein
375	 67.53	0	376348..376809	-	153	146276433	-	Rsph17025_0381	-	hypothetical protein
376	 68.40	0	376918..378243	+	441	146276434	gltX	Rsph17025_0382	-	glutamyl-tRNA synthetase
377	 70.19	0	378244..378612	-	122	146276435	-	Rsph17025_0383	-	hypothetical protein
378	 72.06	+1	378700..380145	-	481	146276436	-	Rsph17025_0384	-	cobyric acid synthase
379	 71.14	0	380317..381321	+	334	146276437	-	Rsph17025_0385	-	LysR family transcriptional regulator
380	 55.56	-2	381420..381500	+	26	146276438	-	Rsph17025_0386	-	coenzyme PQQ biosynthesis protein A
381	 71.98	+1	381519..382421	+	300	146276439	-	Rsph17025_0387	-	pyrroloquinoline quinone biosynthesis protein PqqB
382	 67.84	0	382418..383185	+	255	146276440	-	Rsph17025_0388	-	pyrroloquinoline quinone biosynthesis protein PqqC
383	 70.03	0	383182..383478	+	98	146276441	-	Rsph17025_0389	-	coenzyme PQQ synthesis D
384	 70.34	0	383478..384620	+	380	146276442	-	Rsph17025_0390	-	pyrroloquinoline quinone biosynthesis protein PqqE
385	 74.67	+1	384673..385647	-	324	146276443	-	Rsph17025_0391	-	aminotransferase, class I and II
386	 76.73	+2	385657..386481	-	274	146276444	-	Rsph17025_0392	-	hypothetical protein
387	 72.89	+1	386478..386879	-	133	146276445	-	Rsph17025_0393	-	hypothetical protein
388	 66.86	0	387213..388232	-	339	146276446	-	Rsph17025_0394	-	endonuclease/exonuclease/phosphatase
389	 70.32	0	388233..388916	-	227	146276447	-	Rsph17025_0395	-	heat shock protein DnaJ domain-containing protein
390	 70.47	0	388948..389499	-	183	146276448	-	Rsph17025_0396	-	GCN5-related N-acetyltransferase
391	 69.46	0	389496..391037	-	513	146276449	-	Rsph17025_0397	-	Ppx/GppA phosphatase
392	 67.40	0	391168..393357	-	729	146276450	-	Rsph17025_0398	-	polyphosphate kinase
393	 73.27	+1	393417..394097	-	226	146276451	-	Rsph17025_0399	-	chromosomal replication initiator, DnaA
68.34	MEAN

3.47	STD DEV
