IslandPath Analysis: Ralstonia metallidurans CH34

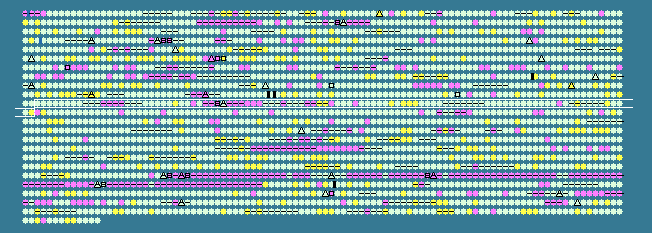

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.77 STD DEV: 3.52
Ralstonia metallidurans CH34 chromosome 2, complete sequence - 1..2580084
2313 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1003	 65.62	0	1109958..1111196	+	412	94313550	-	Rmet_4628	-	zinc-binding alcohol dehydrogenase
1004	 66.94	0	1111314..1112405	+	363	94313551	-	Rmet_4629	-	AraC family transcriptional regulator
1005	 66.57	0	1112466..1113527	-	353	94313552	-	Rmet_4630	-	hypothetical protein
1006	 63.36	0	1113882..1114940	+	352	94313553	-	Rmet_4631	-	hypothetical protein
1007	 64.68	0	1115083..1116090	+	335	94313554	-	Rmet_4632	-	AraC family transcriptional regulator
1008	 61.45	0	1116135..1116977	-	280	94313555	-	Rmet_4633	-	taurine catabolism dioxygenase TauD/TfdA
1009	 63.31	0	1117297..1118190	+	297	94313556	-	Rmet_4634	-	DNA/RNA non-specific endonuclease
1010	 66.67	0	1118211..1119947	-	578	94313557	-	Rmet_4635	-	sulphate transporter
1011	 66.21	0	1119983..1120855	-	290	94313558	-	Rmet_4636	-	hypothetical protein
1012	 62.22	0	1121123..1121392	+	89	94313559	-	Rmet_4637	-	thiamineS
1013	 65.52	0	1121427..1122560	+	377	94313560	-	Rmet_4638	-	hypothetical protein
1014	 57.64	-1	1122645..1123043	+	132	94313561	-	Rmet_4639	-	glyoxalase/bleomycin resistance protein/dioxygenase
1015	 53.98	-2	1122980..1123570	-	196	94313562	-	Rmet_4640	-	hypothetical protein
1016	 55.61	-2	1123708..1125588	-	626	94313563	-	Rmet_4641	-	ATP-dependent OLD family endonuclease
1017	 53.67	-2	1125802..1126332	-	176	94313564	-	Rmet_4642	-	hypothetical protein
1018	 65.90	0	1126932..1127456	-	174	94313565	-	Rmet_4643	-	hypothetical protein
1019	 61.80	0	1127507..1128040	-	177	94313566	-	Rmet_4644	-	carboxymuconolactone decarboxylase
1020	 65.33	0	1128059..1129105	-	348	94313567	-	Rmet_4645	-	hypothetical protein
1021	 65.72	0	1129116..1130069	-	317	94313568	-	Rmet_4646	-	short-chain dehydrogenase/reductase SDR
1022	 64.90	0	1130081..1131100	+	339	94313569	-	Rmet_4647	-	LacI family transcription regulator
1023	 65.97	0	1131136..1132290	-	384	94313570	-	Rmet_4648	-	filamentation induced by cAMP protein Fic
1024	 66.06	0	1132446..1133933	-	495	94313571	-	Rmet_4649	-	RND efflux system, outer membrane lipoprotein, NodT
1025	 65.92	0	1134056..1134589	+	177	94313572	-	Rmet_4650	-	putative transcriptional regulator
1026	 67.28	0	1134613..1135755	+	380	94313573	-	Rmet_4651	-	secretion protein HlyD
1027	 62.67	0	1135863..1137389	+	508	94313574	-	Rmet_4652	-	EmrB/QacA family drug resistance transporter
1028	 65.00	0	1137708..1139390	+	560	94313575	-	Rmet_4653	-	amidohydrolase 3
1029	 60.07	-1	1139453..1139725	-	90	94313576	-	Rmet_4654	-	hypothetical protein
1030	 63.79	0	1139743..1141269	+	508	94313577	-	Rmet_4655	-	argininosuccinate lyase
1031	 54.86	-2	1141326..1141706	+	126	94313578	-	Rmet_4656	-	antibiotic biosynthesis monooxygenase
1032	 56.65	-2	1142022..1144067	-	681	94313579	-	Rmet_4657	-	diguanylate cyclase/phosphodiesterase
1033	 59.93	-1	1144141..1144437	+	98	94313580	-	Rmet_4658	-	transposase IS3/IS911
1034	 61.74	0	1144434..1145327	+	297	94313581	-	Rmet_4659	-	integrase catalytic subunit
1035	 56.27	-2	1145365..1145874	-	169	94313582	-	Rmet_4660	-	hypothetical protein
1036	 58.41	-1	1146392..1148245	-	617	94313583	-	Rmet_4661	-	sigma 70 (RpoD)
1037	 58.48	-1	1148242..1149402	-	386	94313584	-	Rmet_4662	-	hypothetical protein
1038	 57.48	-1	1149462..1150277	-	271	94313585	-	Rmet_4663	-	putative spermidine synthase protein
1039	 59.13	-1	1150307..1150558	-	83	94313586	-	Rmet_4664	-	HPrNtr
1040	 54.95	-2	1150677..1150898	+	73	94313587	-	Rmet_4665	-	helix-turn-helix protein, CopG
1041	 63.18	0	1150922..1151437	-	171	94313588	-	Rmet_4666	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
1042	 64.60	0	1151437..1152981	-	514	94313589	-	Rmet_4667	-	NADH-ubiquinone oxidoreductase, chain 49kDa
1043	 61.44	0	1152986..1154440	-	484	94313590	-	Rmet_4668	-	hydrogenase 4 subunit F
1044	 57.73	-1	1154442..1155101	-	219	94313591	-	Rmet_4669	-	hydrogenase 4 membrane component
1045	 61.29	0	1155103..1156050	-	315	94313592	-	Rmet_4670	-	respiratory-chain NADH dehydrogenase, subunit 1
1046	 63.21	0	1156061..1158085	-	674	94313593	-	Rmet_4671	-	hydrogenase 4 subunit B
1047	 62.11	0	1158089..1158373	-	94	94313594	-	Rmet_4672	-	CopG-like DNA-binding
1048	 51.75	-2	1158871..1159299	+	142	94313595	-	Rmet_4673	-	hypothetical protein
1049	 55.62	-2	1159632..1160129	+	165	94313596	-	Rmet_4674	-	hypothetical protein
1050	 67.65	+1	1160402..1161214	-	270	94313597	-	Rmet_4675	-	hypothetical protein
1051	 67.56	+1	1161290..1162069	-	259	94313598	-	Rmet_4676	-	3-oxoadipate enol-lactonase
1052	 60.00	-1	1162085..1162369	-	94	94313599	-	Rmet_4677	-	muconolactone delta-isomerase
1053	 66.95	0	1162398..1163456	-	352	94313600	-	Rmet_4678	-	hypothetical protein
1054	 65.32	0	1163479..1163775	-	98	94313601	-	Rmet_4679	-	YciI-like protein
1055	 62.71	0	1163798..1165135	-	445	94313602	-	Rmet_4680	-	short chain fatty acid transporter
1056	 59.47	-1	1165264..1165527	+	87	94313603	-	Rmet_4681	-	hypothetical protein
1057	 62.00	0	1165520..1165990	-	156	94313604	-	Rmet_4682	-	DoxX
1058	 66.80	0	1166016..1166792	-	258	94313605	-	Rmet_4683	-	hypothetical protein
1059	 65.71	0	1166789..1167625	-	278	94313606	-	Rmet_4684	-	hypothetical protein
1060	 65.96	0	1167657..1167941	-	94	94313607	-	Rmet_4685	-	hypothetical protein
1061	 65.93	0	1168313..1168852	+	179	161621309	-	Rmet_4686	-	RNA polymerase sigma factor
1062	 67.76	+1	1168849..1169490	+	213	94313609	-	Rmet_4687	-	hypothetical protein
1063	 66.59	0	1169659..1173816	+	1385	94313610	-	Rmet_4688	-	hypothetical protein
1064	 67.69	+1	1173846..1178528	+	1560	94313611	-	Rmet_4689	-	hypothetical protein
1065	 67.52	+1	1178594..1179646	+	350	94313612	-	Rmet_4690	-	patatin
1066	 68.86	+1	1179650..1181107	+	485	94313613	-	Rmet_4691	-	citrate transporter
1067	 64.08	0	1181142..1181720	-	192	94313614	-	Rmet_4692	-	hypothetical protein
1068	 63.27	0	1181988..1182635	+	215	94313615	-	Rmet_4693	-	lytic transglycosylase, catalytic
1069	 64.95	0	1182720..1183595	-	291	94313616	-	Rmet_4694	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1070	 62.71	0	1183648..1184355	-	235	94313617	-	Rmet_4695	-	electron transport protein SCO1/SenC
1071	 66.85	0	1184403..1186028	-	541	94313618	-	Rmet_4696	-	hypothetical protein
1072	 66.55	0	1186025..1186873	-	282	94313619	-	Rmet_4697	-	hypothetical protein
1073	 66.28	0	1186889..1187668	-	259	94313620	-	Rmet_4698	-	putative signal peptide protein
1074	 64.42	0	1187717..1188205	-	162	94313621	-	Rmet_4699	-	putative transmembrane protein
1075	 63.95	0	1188218..1196314	-	2698	94313622	-	Rmet_4700	-	putative signal peptide protein
1076	 64.35	0	1196332..1197927	-	531	94313623	-	Rmet_4701	-	multicopper oxidase, type 3
1077	 62.24	0	1197974..1199488	-	504	94313624	-	Rmet_4702	-	multicopper oxidase, type 3
1078	 63.73	0	1199700..1200311	-	203	94313625	-	Rmet_4703	-	hypothetical protein
1079	 65.07	0	1200308..1200745	-	145	94313626	-	Rmet_4704	-	secretory pathway pseudopilin PulG
1080	 64.97	0	1200751..1201281	-	176	94313627	-	Rmet_4705	-	secretory pathway pseudopilin PulG
1081	 64.58	0	1201285..1203489	-	734	94313628	-	Rmet_4706	-	type II and III secretion system protein
1082	 66.67	0	1203490..1204098	-	202	94313629	-	Rmet_4707	-	hypothetical protein
1083	 64.37	0	1204095..1204661	-	188	94313630	-	Rmet_4708	-	putative transmembrane protein
1084	 63.65	0	1204658..1205188	-	176	94313631	-	Rmet_4709	-	putative transmembrane protein
1085	 64.26	0	1205185..1206099	-	304	94313632	-	Rmet_4710	-	putative signal peptide protein
1086	 64.97	0	1206080..1207786	-	568	94313633	-	Rmet_4711	-	type II secretion system protein E
1087	 64.01	0	1207793..1209034	-	413	94313634	-	Rmet_4712	-	type II secretion system protein
1088	 64.27	0	1209039..1209539	-	166	94313635	-	Rmet_4713	-	general secretion pathway protein G
1089	 62.43	0	1209646..1210989	+	447	94313636	-	Rmet_4714	-	putative PAS/PAC sensor protein
1090	 58.62	-1	1211030..1211824	-	264	94313637	-	Rmet_4715	-	two component LuxR family transcriptional regulator
1091	 62.86	0	1212434..1212880	-	148	94313638	-	Rmet_4716	-	hypothetical protein
1092	 66.32	0	1212941..1213522	-	193	94313639	-	Rmet_4717	-	hypothetical protein
1093	 68.65	+1	1213711..1214619	+	302	94313640	-	Rmet_4718	-	hypothetical protein
1094	 66.93	0	1214603..1215370	+	255	94313641	-	Rmet_4719	-	AraC family transcriptional regulator
1095	 63.40	0	1215451..1216551	+	366	94313642	-	Rmet_4720	-	hypothetical protein
1096	 62.21	0	1216850..1217275	+	141	94313643	-	Rmet_4721	-	hypothetical protein
1097	 63.76	0	1217557..1218072	-	171	94313644	-	Rmet_4722	-	putative lipoprotein
1098	 68.40	+1	1218305..1218997	-	230	94313645	-	Rmet_4723	-	TetR family transcriptional regulator
1099	 63.70	0	1219107..1220624	-	505	94313646	cls	Rmet_4724	-	cardiolipin synthetase
1100	 65.14	0	1220864..1221649	+	261	94313647	-	Rmet_4725	-	two component transcriptional regulator
1101	 63.47	0	1221670..1223700	-	676	94313648	-	Rmet_4726	-	diguanylate cyclase/phosphodiesterase
1102	 67.48	+1	1223803..1225407	+	534	94313649	-	Rmet_4727	-	methyl-accepting chemotaxis sensory transducer
63.77	MEAN

3.52	STD DEV
