IslandPath Analysis: Proteus mirabilis HI4320

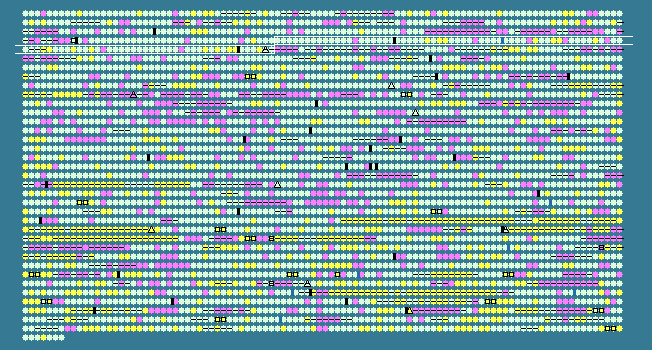

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
343	 40.18	0	406425..407651	+	408	197284258	nqrF	PMI0357	-	Na(+)-translocating NADH-quinone reductase subunit F
344	 38.51	0	407737..408759	+	340	197284259	apbE	PMI0358	-	thiamine biosynthesis lipoprotein
345	 37.28	0	408779..409006	+	75	197284260	-	PMI0359	-	hypothetical protein
346	 36.62	0	409163..409375	-	70	197284261	-	PMI0360	-	general stress response protein
347	 38.60	0	409469..410341	-	290	197284262	-	PMI0361	-	phosphodiesterase
348	 39.58	0	410577..411632	+	351	197284263	dinB	PMI0362	-	DNA polymerase IV
349	 38.70	0	411709..413871	-	720	197284264	-	PMI0363	-	TonB-dependent ferric siderephore receptor
350	 40.60	0	414121..415578	-	485	197284265	pepD	PMI0364	-	aminoacyl-histidine dipeptidase
351	 41.77	0	415932..416393	+	153	197284266	gpt	PMI0366	-	xanthine-guanine phosphoribosyltransferase
352	 38.69	0	416626..417876	+	416	197284267	yafA	PMI0367	-	esterase
353	 36.32	0	417948..418349	+	133	197284268	crl	PMI0368	-	curlin genes transcriptional regulator
354	 43.12	0	418462..419565	+	367	197284269	proB	PMI0369	-	glutamate 5-kinase
355	 43.14	0	419577..420830	+	417	197284270	proA	PMI0370	-	gamma-glutamyl phosphate reductase
356	 34.50	-1	420975..421487	+	170	197284271	aroL	PMI0371	-	shikimate kinase
357	 40.19	0	421594..423750	+	718	197284272	aas	PMI0372	-	Aas bifunctional protein [includes: 2-acylglycerophosphoethanolamine acyltransferase and acyl-[acyl-carrier-protein] synthetase
358	 41.06	0	423750..424952	+	400	197284273	-	PMI0373	-	MFS-family transporter
359	 40.24	0	424985..425491	+	168	197284274	-	PMI0374	-	competence-damaged protein
360	 40.82	0	425599..426666	+	355	197284275	recA	PMI0375	-	protein RecA (recombinase A)
361	 40.79	0	427567..430194	+	875	197284276	alaS	PMI0376	-	alanyl-tRNA synthetase
362	 42.86	0	430412..430600	+	62	197284277	csrA	PMI0377	-	carbon storage regulator
363	 38.65	0	431843..433423	+	526	197284278	gshA	PMI0378	-	glutamate--cysteine ligase
364	 39.73	0	433589..434104	+	171	197284279	luxS	PMI0379	-	S-ribosylhomocysteine lyase (autoinducer-2 production protein)
365	 38.90	0	434235..435509	-	424	197284280	-	PMI0380	-	transporter of ion substrates
366	 38.70	0	435545..436345	-	266	197284281	-	PMI0381	-	hypothetical protein
367	 42.80	0	436518..437879	+	453	197284282	ffh	PMI0382	-	signal recognition particle protein
368	 46.59	+1	438017..438265	+	82	197284283	rpsP	PMI0383	-	30S ribosomal protein S16
369	 41.03	0	438284..438829	+	181	197284284	rimM	PMI0384	-	16S rRNA processing protein
370	 47.54	+1	438869..439621	+	250	197284285	trmD	PMI0385	-	tRNA (guanine-N1)-methyltransferase
371	 43.22	0	439674..440027	+	117	197284286	rplS	PMI0386	-	50S ribosomal subunit protein L19
372	 39.00	0	440479..441573	+	364	197284287	aroF	PMI0387	-	phospho-2-dehydro-3-deoxyheptonate aldolase, Tyr-sensitive
373	 38.22	0	441609..442733	+	374	197284288	tyrA	PMI0388	-	T-protein [includes: chorismate mutase and prephenate dehydrogenase]
374	 36.83	0	443581..444924	+	447	197284289	dcuB	PMI0389	-	anaerobic C4-dicarboxylate transporter
375	 37.65	0	445018..446175	-	385	197284290	pheA	PMI0390	-	P-protein [includes: chorismate mutase and prephenate dehydratase]
376	 34.23	-1	446485..446820	-	111	197284291	-	PMI0391	-	sigma 54 modulation protein
377	 42.18	0	447090..447824	-	244	197284292	-	PMI0392	-	lipoprotein
378	 43.15	0	447955..448932	+	325	197284293	rluD	PMI0393	-	ribosomal large subunit pseudouridine synthase D
379	 42.49	0	448933..449664	+	243	197284294	-	PMI0394	-	hypothetical protein
380	 40.40	0	449810..452386	+	858	197284295	clpB	PMI0395	-	chaperone ClpB (heat-shock protein F84.1)
381	 39.08	0	458689..459036	-	115	197284296	-	PMI0396	-	hypothetical protein
382	 36.64	0	459184..460545	-	453	197284297	pssA	PMI0397	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
383	 41.07	0	460731..463391	-	886	197284298	-	PMI0398	-	acyl-CoA synthetase/acetyltransferase
384	 40.94	0	463436..464119	-	227	197284299	-	PMI0399	-	hypothetical protein
385	 28.05	-2	464257..465315	+	352	197284300	-	PMI0400	-	hypothetical protein
386	 43.21	0	465490..466593	+	367	197284301	-	PMI0401	-	tRNA/rRNA methyltransferase
387	 40.35	0	466701..468239	-	512	197284302	emrB	PMI0402	-	MFS-family transporter
388	 40.82	0	468236..469411	-	391	197284303	emrA	PMI0403	-	multidrug resistance protein A
389	 44.24	0	469587..470237	-	216	197284304	-	PMI0404	-	GntR-family transcriptional regulator
390	 44.97	+1	470323..471525	+	400	197284305	-	PMI0405	-	MFS-family transporter
391	 36.15	0	471566..472168	+	200	197284306	-	PMI0406	-	hydrolase
392	 36.93	0	472371..472898	-	175	197284307	emrR	PMI0407	-	MarR-family transcriptional regulator
393	 41.03	0	473391..474611	-	406	197284308	-	PMI0408	-	MFS-family transporter
394	 38.68	0	474978..477371	+	797	197284309	-	PMI0409	-	TonB-dependent receptor
395	 40.26	0	477460..478455	-	331	197284310	proX	PMI0410	-	glycine betaine/L-proline ABC transporter, substrate-binding protein
396	 44.31	0	478575..479804	-	409	197284311	proW	PMI0411	-	glycine betaine/L-proline ABC transporter, permease protein
397	 40.58	0	479797..480996	-	399	197284312	proV	PMI0412	-	glycine betaine/L-proline ABC transporter, ATP-binding protein
398	 33.95	-1	481605..482573	-	322	197284313	nrdF	PMI0413	-	ribonucleoside-diphosphate reductase beta chain
399	 38.65	0	482599..484725	-	708	197284314	nrdE	PMI0414	-	ribonucleoside-diphosphate reductase alpha chain
400	 41.48	0	484754..485158	-	134	197284315	nrdI	PMI0415	-	NrdI protein
401	 42.67	0	485170..485394	-	74	197284316	nrdH	PMI0416	-	glutaredoxin-like protein
402	 38.61	0	485676..486149	+	157	197284317	ogt	PMI0417	-	methylated-DNA--protein-cysteine methyltransferase
403	 39.52	0	486347..486556	+	69	197284318	cspE	PMI0418	-	cold shock protein
404	 45.60	+1	487014..487388	-	124	197284319	crcB	PMI0419	-	membrane protein (protein CrcB)
405	 43.27	0	487404..488369	-	321	197284320	lipA	PMI0420	-	lipoic acid synthetase
406	 41.24	0	488471..489115	-	214	197284321	lipB	PMI0421	-	lipoyltransferase
407	 39.33	0	489467..489733	-	88	197284322	-	PMI0422	-	hypothetical protein
408	 40.10	0	489929..491140	-	403	197284323	dacA	PMI0423	-	penicillin-binding protein
409	 43.59	0	491267..492280	-	337	197284324	rlpA	PMI0424	-	rare lipoprotein A precursor
410	 40.61	0	492291..493403	-	370	197284325	rodA	PMI0425	-	rod shape-determining protein
411	 42.67	0	493408..495303	-	631	197284326	pbpA	PMI0426	-	penicillin-binding protein
412	 46.07	+1	495341..495811	-	156	197284327	-	PMI0427	-	hypothetical protein
413	 41.51	0	495814..496131	-	105	197284328	-	PMI0428	-	hypothetical protein
414	 36.11	0	496531..497286	+	251	197284329	-	PMI0429	-	hypothetical protein
415	 41.22	0	497300..497971	-	223	197284330	nadD	PMI0430	-	nicotinate-nucleotide adenylyltransferase
416	 41.16	0	497964..498998	-	344	197284331	holA	PMI0431	-	DNA polymerase III delta subunit
417	 42.62	0	498995..499543	-	182	197284332	rlpB	PMI0432	-	rare lipoprotein B
418	 42.43	0	499556..502138	-	860	197284333	leuS	PMI0433	-	leucyl-tRNA synthetase
419	 38.71	0	502498..503223	-	241	197284334	gltL	PMI0434	-	glutamate/aspartate ABC transporter, ATP-binding protein
420	 37.78	0	503224..503898	-	224	197284335	gltK	PMI0435	-	glutamate/aspartate ABC transporter, permease protein
421	 41.57	0	503898..504638	-	246	197284336	gltJ	PMI0436	-	glutamate/aspartate ABC transporter, permease protein
422	 39.37	0	504757..505650	-	297	197284337	gltI	PMI0437	-	glutamate/aspartate ABC transporter, substrate-binding protein
423	 42.29	0	505995..506396	+	133	197284338	-	PMI0438	-	metal resistance protein
424	 42.02	0	506477..508513	+	678	197284339	-	PMI0439	-	metal resistance protein
425	 39.34	0	508513..509244	+	243	197284340	-	PMI0440	-	metal resistance protein
426	 39.48	0	509244..509747	+	167	197284341	-	PMI0441	-	metal resistance protein
427	 34.06	-1	509756..510439	-	227	197284342	-	PMI0442	-	hypothetical protein
428	 39.63	0	510516..512039	-	507	197284343	cutE	PMI0443	-	apolipoprotein N-acyltransferase (copper homeostasis protein)
429	 40.59	0	512047..512928	-	293	197284344	corC	PMI0444	-	magnesium and cobalt efflux protein
430	 39.32	0	512999..513466	-	155	197284345	-	PMI0445	-	hypothetical protein
431	 44.07	0	513459..514520	-	353	197284346	-	PMI0446	-	PhoH-like ATP-binding protein
432	 41.44	0	514549..515979	-	476	197284347	miaB	PMI0447	-	MiaB protein (methylthiolation of isopentenylated A37 derivatives in rRNA)
433	 43.63	0	516195..517379	+	394	197284348	ubiF	PMI0448	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
434	 41.03	0	517428..518258	-	276	197284349	-	PMI0449	-	esterase
435	 44.20	0	518312..519424	-	370	197284350	adhC	PMI0450	-	alcohol dehydrogenase (glutathione-dependent formaldehyde dehydrogenase)
436	 45.29	+1	519444..519719	-	91	197284351	-	PMI0451	-	hypothetical protein
437	 42.25	0	521124..522356	-	410	197284352	nagC	PMI0452	-	N-acetylglucosamine regulatory protein
438	 39.95	0	522366..523529	-	387	197284353	nagA	PMI0453	-	N-acetylglucosamine-6-phosphate deacetylase
439	 40.89	0	523652..524458	-	268	197284354	nagB	PMI0454	-	glucosamine-6-phosphate deaminase
440	 43.45	0	524804..526849	+	681	197284355	nagE	PMI0455	-	N-acetylglucosamine-specific PTS system, EIICBA component
441	 36.53	0	527077..528078	-	333	197284356	-	PMI0456	-	integrase
442	 37.40	0	528035..528280	-	81	197284357	-	PMI0456A	-	excisionase
39.69	MEAN

4.91	STD DEV
