IslandPath Analysis: Proteus mirabilis HI4320

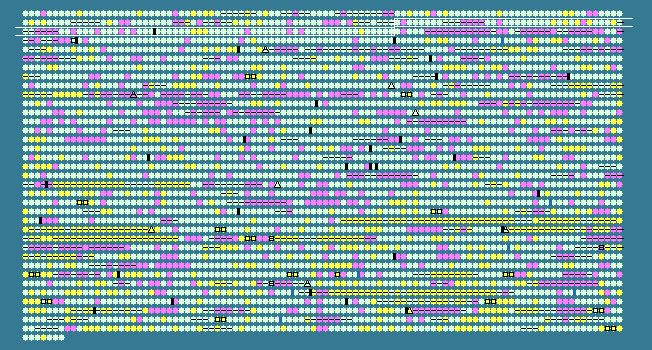

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
163	 37.89	0	203036..204001	-	321	197284078	-	PMI0166	-	membrane-associated peptidase
164	 36.01	0	204061..204621	-	186	197284079	-	PMI0167	-	hypothetical protein
165	 39.61	0	204845..205657	-	270	197284080	-	PMI0168	-	anaerobic dimethyl sulfoxide reductase subunit
166	 40.58	0	205660..206211	-	183	197284081	-	PMI0169	-	anaerobic dimethyl sulfoxide reductase chain b (dmso reductase iron-sulfur subunit)
167	 40.14	0	206214..208550	-	778	197284082	-	PMI0170	-	anaerobic dimethyl sulfoxide reductase, molybdopterin-binding subunit
168	 37.68	0	208781..209470	+	229	197284083	-	PMI0171	-	regulatory protein
169	 41.31	0	209535..210800	-	421	197284084	-	PMI0172	-	Dyp-type peroxidase
170	 36.80	0	210790..211713	-	307	197284085	-	PMI0173	-	hypothetical protein
171	 37.63	0	211703..212539	-	278	197284086	-	PMI0174	-	hypothetical protein
172	 40.52	0	212542..212889	-	115	197284087	-	PMI0175	-	hypothetical protein
173	 41.94	0	212955..213512	-	185	197284088	-	PMI0176	-	hypothetical protein
174	 29.80	-2	214455..214907	+	150	197284089	-	PMI0178	-	membrane protein
175	 28.12	-2	214900..215091	-	63	197284090	-	PMI0179	-	hypothetical protein
176	 33.54	-1	215102..215590	-	162	197284091	-	PMI0180	-	hypothetical protein
177	 32.84	-1	215645..215845	-	66	197284092	-	PMI0181	-	hypothetical protein
178	 39.39	0	216179..216475	-	98	197284093	-	PMI0182	-	transcriptional regulator
179	 40.04	0	217066..218943	+	625	197284094	gsp	PMI0183	-	bifunctional glutathionylspermidine synthetase/amidase [includes: glutathionylspermidine synthase and glutathionylspermidine amidase
180	 36.19	0	219014..219958	-	314	197284095	dsdC	PMI0184	-	D-serine deaminase activator (LysR-family transcriptional regulator)
181	 39.84	0	220180..221517	+	445	197284096	dsdX	PMI0186	-	DsdX permease
182	 41.50	0	221524..222858	+	444	197284097	dsdA	PMI0187	-	D-serine dehydratase
183	 40.06	0	223039..224079	-	346	197284098	afuC	PMI0188	-	ferric cation import ABC transporter, ATP-binding protein
184	 40.45	0	224095..226173	-	692	197284099	afuB	PMI0189	-	ferric ABC transporter, permease protein
185	 41.96	0	226248..227279	-	343	197284100	afuA	PMI0190	-	ferric ABC transporter, iron-binding protein
186	 41.93	0	227282..228619	-	445	197284101	-	PMI0191	-	MFS-family transporter
187	 39.02	0	228702..230249	-	515	197284102	-	PMI0192	-	two-component sensor kinase
188	 40.60	0	230251..230883	-	210	197284103	-	PMI0193	-	two-component response regulator
189	 43.83	0	231084..231464	-	126	197284104	panD	PMI0194	-	aspartate 1-decarboxylase
190	 40.73	0	231493..232344	-	283	197284105	panC	PMI0195	-	pantoate--beta-alanine ligase
191	 43.31	0	232388..233179	-	263	197284106	panB	PMI0196	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
192	 42.97	0	233537..234034	-	165	197284107	folK	PMI0197	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridi ne pyrophosphokinase
193	 43.18	0	234027..235367	-	446	197284108	pcnB	PMI0198	-	poly(A) polymerase
194	 36.06	0	235698..236027	-	109	197284109	-	PMI0199	-	hypothetical protein
195	 45.61	+1	236089..236544	-	151	197284110	dksA	PMI0200	-	DnaK suppressor protein
196	 38.96	0	236741..237451	-	236	197284111	sfsA	PMI0202	-	sugar fermentation stimulation protein
197	 42.47	0	237537..239966	+	809	197284112	hrpB	PMI0203	-	ATP-dependent RNA helicase
198	 42.41	0	240095..242407	+	770	197284113	mrcB	PMI0204	-	penicillin-binding protein
199	 44.44	0	242510..243796	-	428	197284114	hemL	PMI0205	-	glutamate-1-semialdehyde 2,1-aminomutase
200	 41.74	0	244074..244418	+	114	197284115	-	PMI0206	-	iron-sulphur protein
201	 41.81	0	245183..245701	+	172	197284116	hcp	PMI0207	-	conserved hypothetical protein (hemolysin co-regulated protein)
202	 37.52	0	245814..247940	+	708	197284117	-	PMI0208	-	VgrG-like protein
203	 26.34	-2	247940..248740	+	266	197284118	-	PMI0209	-	hypothetical protein
204	 29.48	-2	248741..250660	+	639	197284119	-	PMI0210	-	lipase
205	 31.19	-1	250641..251435	+	264	197284120	-	PMI0211	-	lipoprotein
206	 30.44	-1	251619..252413	+	264	197284121	-	PMI0212	-	lipoprotein
207	 40.07	0	252452..253282	-	276	197284122	-	PMI0213	-	periplasmic binding protein
208	 41.24	0	253382..254089	-	235	197284123	mtnN	PMI0214	-	MTA/SAH nucleosidase (5'-methylthioadenosine nucleosidase) (s-adenosylhomocysteine nucleosidase)
209	 35.59	0	254209..255717	+	502	197284124	dgt	PMI0215	-	deoxyguanosinetriphosphate triphosphohydrolase
210	 41.86	0	256105..257430	+	441	197284125	rumA	PMI0216	-	23S rRNA (uracil-5-)-methyltransferase
211	 41.37	0	257486..259726	+	746	197284126	relA	PMI0217	-	GTP pyrophosphokinase
212	 39.35	0	259837..260634	+	265	197284127	mazG	PMI0218	-	nucleotide pyrophosphohydrolase
213	 30.09	-1	260773..260988	+	71	197284128	-	PMI0219	-	hypothetical protein
214	 42.31	0	261146..262783	+	545	197284129	pyrG	PMI0220	-	CTP synthase
215	 41.86	0	262848..264149	+	433	197284130	eno	PMI0221	-	enolase
216	 40.42	0	264470..265852	+	460	197284131	-	PMI0222	-	Sodium:sulfate symporter-family protein
217	 34.80	0	266036..267673	+	545	197284132	-	PMI0223	-	alpha-keto acid decarboxylase
218	 39.85	0	267762..269096	-	444	197284133	mltD	PMI0224	-	membrane-bound lytic murein transglycosylase D precursor
219	 35.19	0	269170..269925	-	251	197284134	gloB	PMI0225	-	hydroxyacylglutathione hydrolase
220	 39.62	0	270041..270676	+	211	197284135	-	PMI0226	-	hypothetical protein
221	 42.50	0	270701..271180	-	159	197284136	rnhA	PMI0227	-	ribonuclease HI
222	 41.24	0	271246..272004	+	252	197284137	dnaQ	PMI0228	-	DNA polymerase III, epsilon subunit
223	 43.03	0	272591..273673	+	360	197284138	-	PMI0229	-	ABC transporter, permease protein (FecCD transport family)
224	 41.26	0	273673..274467	+	264	197284139	-	PMI0230	-	ABC transporter, ATP-binding subunit
225	 37.16	0	274538..275374	-	278	197284140	-	PMI0231	-	citrate lyase beta chain
226	 41.99	0	275588..277471	+	627	197284141	-	PMI0232	-	siderophore biosynthesis protein
227	 42.52	0	277482..279593	+	703	197284142	-	PMI0233	-	TonB-dependent siderophore receptor
228	 41.38	0	279605..281008	+	467	197284143	-	PMI0234	-	decarboxylase
229	 44.15	0	281020..282036	+	338	197284144	-	PMI0235	-	pyridoxal-phosphate dependent enzyme
230	 43.35	0	282033..283190	+	385	197284145	-	PMI0236	-	octopine/opine/tauropine dehydrogenase
231	 44.39	0	283192..284403	+	403	197284146	-	PMI0237	-	MFS-family transporter
232	 42.64	0	284414..285541	+	375	197284147	-	PMI0238	-	substrate-binding protein
233	 39.37	0	285544..285990	+	148	197284148	-	PMI0239	-	hypothetical protein
234	 42.61	0	286327..288321	+	664	197284149	tktA	PMI0240	-	transketolase
235	 40.49	0	288580..289599	+	339	197284150	epd	PMI0241	-	D-erythrose 4-phosphate dehydrogenase
236	 41.84	0	289702..290865	+	387	197284151	pgk	PMI0242	-	phosphoglycerate kinase
237	 39.17	0	290930..292009	+	359	197284152	fbaA	PMI0243	-	fructose-bisphosphate aldolase class II
238	 33.33	-1	292101..292313	-	70	197284153	-	PMI0244	-	hypothetical protein
239	 39.01	0	292575..294053	-	492	197284154	-	PMI0245	-	MFS-family transporter
240	 41.04	0	294677..295195	-	172	197284155	hpaC	PMI0246	-	4-hydroxyphenylacetate 3-monooxygenase, reductase component
241	 37.56	0	295282..295494	+	70	197284156	-	PMI0247	-	hypothetical protein
242	 37.44	0	295772..296209	+	145	197284157	hpcR	PMI0248	-	homoprotocatechuate degradative operon repressor (MarR family transcriptional regulator)
243	 41.52	0	296280..298283	-	667	197284158	betU	PMI0249	-	secondary glycine betaine transporter
244	 37.24	0	298652..299317	-	221	197284159	-	PMI0250	-	lipoprotein
245	 32.89	-1	299567..300241	+	224	197284160	-	PMI0251	-	hypothetical protein
246	 39.98	0	300324..301241	-	305	197284161	rnz	PMI0252	-	ribonuclease Z
247	 17.09	-2	301428..301544	+	38	197284162	-	PMI0253	-	hypothetical protein
248	 39.39	0	302482..303009	+	175	197284163	-	PMI0254	-	fimbrial protein
249	 39.73	0	303249..305876	+	875	197284164	-	PMI0255	-	fimbrial outer membrane usher protein
250	 38.38	0	306695..307249	+	184	197284165	-	PMI0257	-	fimbrial protein
251	 37.38	0	307263..307781	+	172	197284166	-	PMI0258	-	minor fimbrial subunit
252	 37.80	0	307792..308328	+	178	197284167	-	PMI0259	-	fimbrial protein
253	 39.58	0	308347..309195	+	282	197284168	-	PMI0260	-	fimbrial adhesin
254	 39.25	0	309216..309536	+	106	197284169	-	PMI0261	-	fimbrial operon regulator
255	 36.86	0	310101..310667	-	188	197284170	mrpI	PMI0262	-	fimbriae recombinase
256	 38.64	0	311346..311873	+	175	197284171	mrpA	PMI0263	-	major mannose-resistant/Proteus-like fimbrial protein
257	 45.45	+1	311959..312519	+	186	197284172	mrpB	PMI0264	-	fimbrial subunit
258	 41.13	0	312542..315157	+	871	197284173	mrpC	PMI0265	-	fimbrial outer membrane usher protein
259	 40.05	0	315213..315971	+	252	197284174	mrpD	PMI0266	-	fimbrial chaperone protein
260	 41.21	0	315985..316530	+	181	197284175	mrpE	PMI0267	-	fimbrial subunit
261	 38.07	0	316543..317028	+	161	197284176	mrpF	PMI0268	-	fimbrial subunit
262	 39.53	0	317039..317587	+	182	197284177	mrpG	PMI0269	-	fimbrial subunit
39.69	MEAN

4.91	STD DEV
