IslandPath Analysis: Propionibacterium acnes KPA171202

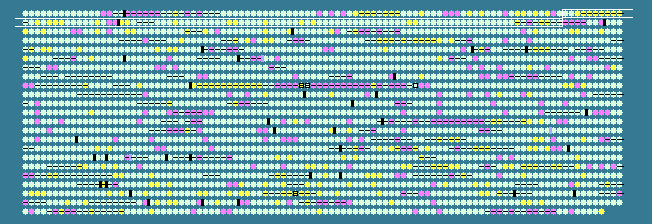

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 1..2560265
2297 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
91	 57.73	0	111808..112098	-	96	50841587	-	PPA0096	-	hypothetical protein
92	 59.37	0	112227..113678	+	483	50841588	-	PPA0097	-	catalase
93	 66.67	+2	113716..115461	-	581	50841589	-	PPA0098	-	ABC transporter
94	 67.12	+2	115458..117224	-	588	50841590	-	PPA0099	-	ABC transporter
95	 65.15	+1	117221..118207	-	328	50841591	-	PPA0100	-	magnesium-chelatase subunit ChlI
96	 66.82	+2	118209..120173	-	654	50841592	-	PPA0101	-	magnesium-chelatase 67 kDa subunit
97	 65.52	+1	120173..124195	-	1340	50841593	-	PPA0102	-	cobalamin biosynthesis protein CobN
98	 66.85	+2	124075..125169	-	364	50841594	-	PPA0103	-	radical SAM superfamily protein
99	 67.47	+2	125166..126167	-	333	50841595	-	PPA0104	-	ABC transporter
100	 65.18	+1	126164..127303	-	379	50841596	-	PPA0105	-	transporter (putative iron (III) permease)
101	 62.17	0	127386..128630	-	414	50841597	-	PPA0106	-	periplasmic-binding protein of ABC transporter
102	 62.17	0	128687..129955	-	422	50841598	-	PPA0107	-	periplasmic-binding protein
103	 65.63	+1	130239..131012	-	257	50841599	-	PPA0108	-	hypothetical protein
104	 59.10	0	131052..132836	-	594	50841600	-	PPA0109	-	myosin-crossreactive antigen
105	 64.15	+1	132955..134664	+	569	50841601	-	PPA0110	-	thiamine-phosphate pyrophosphorylase
106	 65.80	+1	134788..135018	+	76	50841602	-	PPA0111	-	hypothetical protein
107	 65.90	+1	135027..135680	+	217	50841603	thiE	PPA0112	-	thiamine-phosphate pyrophosphorylase
108	 62.60	0	135938..136897	-	319	50841604	-	PPA0113	-	hypothetical protein
109	 62.72	0	137230..137457	+	75	50841605	-	PPA0114	-	hypothetical protein
110	 61.34	0	137543..139213	+	556	50841606	-	PPA0115	-	potassium-transporting ATPase subunit A
111	 62.74	0	139216..141330	+	704	50841607	-	PPA0116	-	potassium-transporting ATPase B chain
112	 61.72	0	141343..141948	+	201	50841608	-	PPA0117	-	potassium-transporting ATPase C chain
113	 64.26	+1	141989..144481	+	830	50841609	-	PPA0118	-	two-component sensor, KdpD
114	 60.53	0	144478..145161	+	227	50841610	-	PPA0119	-	two-component response regulator, KdpE
115	 54.67	-1	145165..145689	+	174	50841611	-	PPA0120	-	hypothetical protein
116	 55.56	-1	145752..145958	+	68	50841612	-	PPA0121	-	hypothetical protein
117	 65.57	+1	146394..147767	-	457	50841613	-	PPA0122	-	M16 family peptidase
118	 63.79	+1	149143..149664	+	173	50841614	-	PPA0125	-	hypothetical protein
119	 59.80	0	149657..152002	+	781	50841615	-	PPA0126	-	putative penicillin-binding protein
120	 61.69	0	152012..153559	+	515	50841616	-	PPA0127	-	membrane spanning protein
121	 61.31	0	153556..154731	+	391	50841617	-	PPA0128	-	membrane spanning protein
122	 62.33	0	154728..156065	+	445	50841618	-	PPA0129	-	hypothetical protein
123	 61.44	0	156026..157288	-	420	50841619	-	PPA0130	-	putative glycosyl transferase
124	 61.97	0	157556..158683	+	375	50841620	-	PPA0131	-	putative glycosyl transferase
125	 60.70	0	158680..160002	+	440	50841621	-	PPA0132	-	hypothetical protein
126	 64.22	+1	159976..160752	-	258	50841622	-	PPA0133	-	hypothetical protein
127	 62.78	0	160926..161543	+	205	50841623	-	PPA0134	-	putative acetyltransferase
128	 62.08	0	161627..162739	+	370	50841624	-	PPA0135	-	aspartate aminotransferase
129	 62.94	0	162739..163731	+	330	50841625	-	PPA0136	-	NAD-dependent dehydrogenase
130	 58.28	0	163833..165215	+	460	50841626	-	PPA0137	-	hypothetical protein
131	 59.32	0	165419..166996	+	525	50841627	-	PPA0138	-	dipeptide/tripeptide permease
132	 62.39	0	167045..168424	+	459	50841628	-	PPA0139	-	reductase, ferredoxin
133	 61.55	0	168440..169240	+	266	50841629	-	PPA0140	-	putative ketoacyl reductase
134	 62.79	0	169304..169561	-	85	50841630	-	PPA0141	-	hypothetical protein
135	 63.93	+1	169597..171609	-	670	50841631	-	PPA0142	-	phosphotransferase system
136	 65.72	+1	171619..172569	-	316	50841632	-	PPA0143	-	putative phosphofructokinase
137	 60.37	0	172897..173658	-	253	50841633	-	PPA0144	-	DeoR family transcriptional regulator
138	 61.82	0	173823..175121	+	432	50841634	-	PPA0145	-	putative UDP-N-acetyl-D-mannosaminuronic acid dehydrogenase
139	 61.75	0	175105..176364	+	419	50841635	-	PPA0146	-	hypothetical protein
140	 59.23	0	176483..177598	+	371	50841636	-	PPA0147	-	putative glycosyl transferase
141	 64.25	+1	177696..178769	+	357	50841637	-	PPA0148	-	putative UDP-N-acetylglucosamine 2-epimerase
142	 62.75	0	178769..179890	+	373	50841638	-	PPA0149	-	putative glycosyl transferase group 1
143	 58.87	0	180035..181060	+	341	50841639	-	PPA0150	-	hypothetical protein
144	 59.60	0	181406..181702	-	98	50841640	-	PPA0151	-	hypothetical protein
145	 61.82	0	181699..183081	-	460	50841641	-	PPA0152	-	putative NADH dehydrogenase
146	 61.42	0	183208..183855	+	215	50841642	-	PPA0154	-	MutT/Nudix family protein
147	 65.16	+1	183837..186353	+	838	50841643	-	PPA0155	-	ATP-dependent helicase
148	 59.68	0	186661..187290	+	209	50841644	-	PPA0156	-	putative ABC-type transporter, permease component
149	 63.57	+1	187287..189386	+	699	50841645	-	PPA0157	-	ABC transporter
150	 62.16	0	189399..190574	-	391	50841646	-	PPA0158	-	putative glycosyl transferase
151	 62.62	0	190665..191084	-	139	50841647	-	PPA0159	-	hypothetical protein
152	 59.65	0	191062..191460	+	132	50841648	-	PPA0160	-	hypothetical protein
153	 61.81	0	191680..192687	-	335	50841649	-	PPA0161	-	dihydroorotate dehydrogenase 2
154	 62.77	0	192711..196325	-	1204	50841650	-	PPA0162	-	pyruvate-flavodoxin oxidoreductase
155	 63.26	+1	196341..198128	-	595	50841651	-	PPA0163	-	putative glutamate synthase (NADPH) small subunit
156	 58.40	0	198350..198724	+	124	50841652	-	PPA0164	-	hypothetical protein
157	 59.85	0	198746..199567	-	273	50841653	-	PPA0165	-	regulator protein
158	 61.57	0	199902..201590	+	562	50841654	-	PPA0166	-	putative L-lactate permease
159	 60.38	0	201645..202439	+	264	50841655	-	PPA0167	-	hypothetical protein
160	 60.94	0	202443..203978	+	511	50841656	-	PPA0168	-	putative iron-sulfur protein
161	 61.53	0	203975..204655	+	226	50841657	-	PPA0169	-	hypothetical protein
162	 61.54	0	204847..205509	+	220	50841658	-	PPA0170	-	putative ABC transporter
163	 62.11	0	205506..206735	+	409	50841659	-	PPA0171	-	hypothetical protein
164	 62.79	0	206732..207325	+	197	50841660	-	PPA0172	-	hypothetical protein
165	 65.30	+1	207350..208954	-	534	50841661	-	PPA0173	-	transport ATP-binding protein, CydCD
166	 65.27	+1	208951..210591	-	546	50841662	-	PPA0174	-	transport ATP-binding protein, CydCD
167	 62.29	0	210595..211668	-	357	50841663	-	PPA0175	-	cytochrome d ubiquinol oxidase, subunit II
168	 60.16	0	211681..213201	-	506	50841664	-	PPA0176	-	cytochrome d ubiquinol oxidase subunit I
169	 59.27	0	213336..214889	-	517	50841665	-	PPA0177	-	putative aminoacid permease
170	 58.67	0	215000..217000	-	666	50841666	-	PPA0178	-	putative ABC transporter
171	 59.47	0	216997..218733	-	578	50841667	-	PPA0179	-	ABC-type transporter
172	 56.58	-1	219005..220114	+	369	50841668	-	PPA0180	-	hypothetical protein
173	 56.76	-1	220111..220665	+	184	50841669	-	PPA2393	-	hypothetical protein
174	 61.58	0	220963..222495	+	510	50841670	lysS	PPA0181	-	lysyl-tRNA synthetase
175	 57.80	0	222534..222815	-	93	50841671	-	PPA0182	-	putative septation inhibitor protein
176	 61.13	0	222937..223767	+	276	50841672	-	PPA0183	-	membrane spanning protein DUF881
177	 61.51	0	223855..225753	-	632	50841673	-	PPA0184	-	putative serine/threonine protein kinase
178	 59.10	0	225800..227227	-	475	50841674	-	PPA0185	-	putative penicillin-binding protein
179	 59.34	0	227224..228615	-	463	50841675	-	PPA0186	-	putative cell division protein
180	 60.15	0	228612..230099	-	495	50841676	-	PPA0187	-	putative protein phosphatase
181	 59.51	0	230103..230591	-	162	50841677	-	PPA0188	-	hypothetical protein
182	 61.01	0	230594..231283	-	229	50841678	-	PPA0189	-	hypothetical protein
183	 65.52	+1	231455..232498	-	347	50841679	-	PPA0190	-	hypothetical protein
184	 62.31	0	232572..233534	-	320	50841680	-	PPA0191	-	hypothetical protein
185	 55.70	-1	234127..234828	-	233	50841681	-	PPA0192	-	hypothetical protein
186	 58.33	0	234838..235749	-	303	50841682	-	PPA0193	-	hypothetical protein
187	 63.90	+1	235924..236754	-	276	50841683	-	PPA0194	-	putative RHS related protein
188	 64.22	+1	236696..237961	-	421	50841684	-	PPA0195	-	putative RHS-family protein
189	 63.09	0	237966..239921	-	651	50841685	-	PPA0196	-	RHS-family protein
190	 57.61	0	240186..241112	+	308	50841686	-	PPA0197	-	hypothetical protein
60.05	MEAN

3.20	STD DEV
