IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

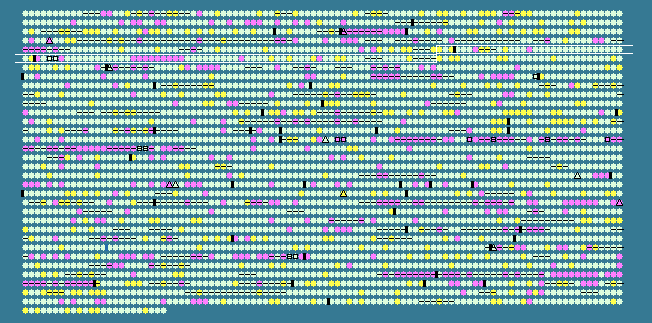

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
470	 69.66	+1	513974..514474	-	166	87198496	-	Saro_0471	-	hypothetical protein
471	 65.47	0	514536..515204	-	222	87198497	-	Saro_0472	-	ribosomal RNA methyltransferase RrmJ/FtsJ
472	 69.65	+1	515201..516508	-	435	87198498	-	Saro_0473	-	Ppx/GppA phosphatase
473	 65.72	0	516979..518454	-	491	87198499	-	Saro_0474	-	sulfatase
474	 66.67	0	518616..519611	-	331	87198500	-	Saro_0475	-	aldo/keto reductase
475	 68.03	0	519733..520689	+	318	87198501	-	Saro_0476	-	LysR family transcriptional regulator
476	 61.32	-1	520686..521564	+	292	87198502	-	Saro_0477	-	hypothetical protein
477	 69.36	+1	521569..522087	+	172	87198503	-	Saro_0478	-	GCN5-related N-acetyltransferase
478	 71.47	+1	522072..522821	-	249	87198504	-	Saro_0479	-	phosphomethylpyrimidine kinase
479	 67.11	0	522823..523047	-	74	87198505	-	Saro_0480	-	hypothetical protein
480	 66.59	0	523049..524386	-	445	87198506	-	Saro_0481	-	phosphoglucosamine mutase
481	 69.30	+1	524457..525746	+	429	87198507	-	Saro_0482	-	sodium:dicarboxylate symporter
482	 64.72	0	525874..526488	+	204	87198508	-	Saro_0483	-	superoxide dismutase
483	 66.50	0	526476..527696	-	406	87198509	-	Saro_0484	-	hypothetical protein
484	 68.31	0	527833..528441	-	202	87198510	-	Saro_0485	-	sigma-24 (FecI-like)
485	 57.47	-2	528434..528607	-	57	87198511	-	Saro_0486	-	hypothetical protein
486	 65.23	0	528858..530525	+	555	87198512	-	Saro_0487	-	signal transduction histidine kinase
487	 66.04	0	530563..531360	-	265	87198513	-	Saro_0488	-	two-component response regulator
488	 64.44	0	531406..531810	-	134	87198514	-	Saro_0489	-	response regulator receiver domain-containing protein
489	 66.67	0	531932..532702	+	256	87198515	-	Saro_0490	-	CRP/FNR family transcriptional regulator
490	 68.19	0	532919..533377	-	152	87198516	-	Saro_0491	-	response regulator receiver domain-containing protein
491	 62.63	0	533476..534690	-	404	87198517	-	Saro_0492	-	hypothetical protein
492	 65.86	0	534777..535892	+	371	87198518	-	Saro_0493	-	fatty acid desaturase
493	 68.64	+1	535912..536418	-	168	87198519	-	Saro_0494	-	rhodanese-like protein
494	 64.31	0	536474..537574	-	366	87198520	-	Saro_0495	-	permease YjgP/YjgQ
495	 64.74	0	537564..538808	-	414	87198521	-	Saro_0496	-	permease YjgP/YjgQ
496	 62.73	0	539046..539477	+	143	87198522	-	Saro_0497	-	hypothetical protein
497	 62.20	0	539558..539938	-	126	87198523	-	Saro_0498	-	ATP-dependent Clp protease adaptor protein ClpS
498	 64.01	0	540114..540980	-	288	87198524	-	Saro_0499	-	phasin
499	 64.83	0	541124..543028	-	634	87198525	-	Saro_0500	-	Poly(R)-hydroxyalkanoic acid synthase, class I
500	 64.01	0	543116..544357	+	413	87198526	-	Saro_0501	-	aminotransferase
501	 65.68	0	544498..545304	+	268	87198527	-	Saro_0502	-	enoyl-CoA hydratase
502	 69.05	+1	545339..546724	+	461	87198528	-	Saro_0503	-	ribonuclease II
503	 58.27	-2	547191..547607	+	138	87198529	-	Saro_0504	-	Excalibur
504	 62.53	0	548331..548717	+	128	87198530	-	Saro_0505	-	hypothetical protein
505	 62.31	0	548866..549255	-	129	87198531	-	Saro_0506	-	IS4 family transposase
506	 62.93	0	549276..549623	-	115	87198532	-	Saro_0507	-	IS5 family transposase
507	 59.46	-1	550240..550572	-	110	87198533	-	Saro_0509	-	ferredoxin
508	 62.15	0	550605..552242	-	545	87198534	-	Saro_0510	-	cyclohexanone monooxygenase
509	 66.15	0	552466..553236	-	256	87198535	-	Saro_0511	-	enoyl-CoA hydratase/isomerase
510	 63.05	0	553249..553995	-	248	87198536	-	Saro_0512	-	short-chain dehydrogenase/reductase SDR
511	 65.19	0	554310..555392	+	360	87198537	-	Saro_0513	-	alcohol dehydrogenase, zinc-containing
512	 62.40	0	555434..556699	+	421	87198538	-	Saro_0514	-	cytochrome P450
513	 62.73	0	556696..557178	+	160	87198539	-	Saro_0515	-	flavin reductase-like, FMN-binding
514	 61.90	-1	557175..557762	-	195	87198540	-	Saro_0516	-	TetR family transcriptional regulator
515	 63.03	0	557813..558748	-	311	87198541	-	Saro_0517	-	gluconolactonase
516	 63.58	0	558851..559693	-	280	87198542	-	Saro_0518	-	enoyl-CoA hydratase/isomerase
517	 62.65	0	559882..561576	+	564	87198543	-	Saro_0519	-	AMP-dependent synthetase and ligase
518	 63.18	0	561623..562768	+	381	87198544	-	Saro_0520	-	GTP cyclohydrolase II
519	 61.56	-1	562789..563454	-	221	87198545	-	Saro_0521	-	TetR family transcriptional regulator
520	 60.27	-1	563635..564759	+	374	87198546	-	Saro_0522	-	luciferase-like
521	 60.90	-1	564837..567248	+	803	87198547	-	Saro_0523	-	TonB-dependent receptor
522	 59.20	-1	567592..567765	-	57	87198548	-	Saro_0524	-	hypothetical protein
523	 57.69	-2	567941..568564	-	207	87198549	-	Saro_0525	-	hypothetical protein
524	 58.03	-2	568674..570248	+	524	87198550	-	Saro_0526	-	recombinase
525	 58.78	-2	570248..571147	+	299	87198551	-	Saro_0527	-	ParB family protein
526	 56.67	-2	571140..572099	+	319	87198552	-	Saro_0528	-	RepB plasmid partition
527	 56.51	-2	572780..573094	-	104	87198553	-	Saro_0529	-	hypothetical protein
528	 63.18	0	573909..575255	+	448	87198554	-	Saro_0530	-	hypothetical protein
529	 65.01	0	575338..576366	-	342	87198555	-	Saro_0531	-	acyltransferase 3
530	 62.12	0	576491..577765	-	424	87198556	-	Saro_0532	-	TetR family transcriptional regulator
531	 64.20	0	577801..580191	-	796	87198557	-	Saro_0533	-	sulfatase
532	 65.61	0	580304..582577	+	757	87198558	-	Saro_0534	-	sulfatase
533	 63.62	0	582643..585204	+	853	87198559	-	Saro_0535	-	TonB-dependent receptor
534	 63.50	0	585343..586290	+	315	87198560	-	Saro_0536	-	hypothetical protein
535	 64.40	0	586351..587277	-	308	87198561	-	Saro_0537	-	LysR family transcriptional regulator
536	 63.52	0	587562..588896	+	444	87198562	-	Saro_0538	-	Rieske (2Fe-2S) protein
537	 59.47	-1	588893..589378	+	161	87198563	-	Saro_0539	-	2-chlorobenzoate 1,2-dioxygenase
538	 67.30	0	589371..590162	+	263	87198564	benD	Saro_0540	-	1,6-dihydroxycyclohexa-2,4-diene-1-carboxylate dehydrogenase
539	 66.12	0	590232..591146	+	304	87198565	-	Saro_0541	-	LysR family transcriptional regulator
540	 64.92	0	591233..592552	+	439	87198566	-	Saro_0542	-	glycoside hydrolase family protein
541	 66.28	0	592634..593659	+	341	87198567	-	Saro_0543	-	galactose-1-phosphate uridylyltransferase
542	 69.03	+1	593656..594798	+	380	87198568	-	Saro_0544	-	galactokinase
543	 64.49	0	594815..597991	-	1058	87198569	-	Saro_0545	-	Outer membrane autotransporter barrel protein
544	 65.43	0	598289..598936	+	215	87198570	-	Saro_0546	-	RNA polymerase sigma factor
545	 76.32	+2	598936..599712	+	258	87198571	-	Saro_0547	-	hypothetical protein
546	 65.45	0	599767..600258	+	163	87198572	-	Saro_0548	-	asparaginase
547	 68.31	0	600266..600691	-	141	87198573	-	Saro_0549	-	putative acetyltransferase
548	 65.06	0	600682..602304	-	540	87198574	guaA	Saro_0550	-	bifunctional GMP synthase/glutamine amidotransferase protein
549	 68.79	+1	602665..603510	+	281	87198575	-	Saro_0551	-	glutamyl-tRNA synthetase, class Ic
550	 58.87	-2	603507..603737	+	76	87198576	-	Saro_0552	-	hypothetical protein
551	 67.56	0	603757..604317	+	186	87198577	-	Saro_0553	-	ATP:cob(I)alamin adenosyltransferase
552	 63.23	0	604391..605263	+	290	87198578	-	Saro_0554	-	3-hydroxyacyl-CoA dehydrogenase
553	 70.25	+1	605322..605684	+	120	87198579	-	Saro_0555	-	hypothetical protein
554	 68.97	+1	605947..606336	-	129	87198580	-	Saro_0556	-	hypothetical protein
555	 68.06	0	606585..607016	+	143	87198581	-	Saro_0557	-	nuclease (SNase-like)
556	 65.09	0	607023..607658	-	211	87198582	-	Saro_0558	-	TetR family transcriptional regulator
557	 66.95	0	607830..609581	+	583	87198583	-	Saro_0559	-	5'-nucleotidase
558	 68.55	+1	609600..610397	-	265	87198584	-	Saro_0560	-	hypothetical protein
559	 64.54	0	610390..611001	-	203	87198585	-	Saro_0561	-	phospholipid/glycerol acyltransferase
560	 63.72	0	611046..611723	-	225	87198586	-	Saro_0562	-	hypothetical protein
561	 65.99	0	611833..612276	+	147	87198587	-	Saro_0563	-	hypothetical protein
562	 68.42	0	612277..612960	-	227	87198588	-	Saro_0564	-	glutathione S-transferase-like
563	 66.67	0	612965..613513	-	182	87198589	-	Saro_0565	-	glutathione peroxidase
564	 64.09	0	613531..614190	-	219	87198590	-	Saro_0566	-	butyryl-CoA:acetate CoA transferase
565	 72.13	+2	614213..615109	-	298	87198591	-	Saro_0567	-	hypothetical protein
566	 64.28	0	615106..615816	-	236	87198592	-	Saro_0568	-	3-oxoacid CoA-transferase, subunit A
567	 67.35	0	615911..616783	+	290	87198593	-	Saro_0569	-	LysR family transcriptional regulator
568	 67.29	0	616832..617476	-	214	87198594	-	Saro_0570	-	epoxide hydrolase domain-containing phosphatase
569	 66.79	0	617619..618398	+	259	87198595	-	Saro_0571	-	hypothetical protein
65.30	MEAN

3.21	STD DEV
