IslandPath Analysis: Novosphingobium aromaticivorans DSM 12444

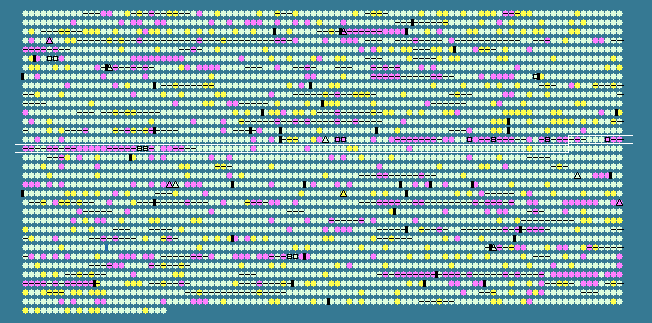

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 65.30 STD DEV: 3.21
Novosphingobium aromaticivorans DSM 12444, complete genome - 1..3561584
3324 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1492	 62.52	0	1543701..1545002	+	433	87199518	-	Saro_1500	-	Cl- channel, voltage gated
1493	 59.40	-1	1545008..1545943	-	311	87199519	-	Saro_1501	-	LysR family transcriptional regulator
1494	 63.72	0	1546358..1546900	+	180	87199520	-	Saro_1502	-	hypothetical protein
1495	 64.14	0	1547027..1547737	+	236	87199521	-	Saro_1503	-	HAD family hydrolase
1496	 65.15	0	1547734..1549518	+	594	87199522	-	Saro_1504	-	glycoside hydrolase 15-related
1497	 62.01	-1	1549515..1550909	+	464	87199523	-	Saro_1505	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
1498	 60.67	-1	1551018..1551734	+	238	87199524	-	Saro_1506	-	transposase
1499	 59.00	-1	1552191..1552529	+	112	87199525	-	Saro_1507	-	hypothetical protein
1500	 58.45	-2	1552530..1552967	-	145	87199526	-	Saro_1508	-	hypothetical protein
1501	 57.95	-2	1553048..1553437	-	129	87199527	-	Saro_1509	-	hypothetical protein
1502	 60.59	-1	1553514..1554188	-	224	87199528	-	Saro_1510	-	two component transcriptional regulator
1503	 64.93	0	1554185..1555621	-	478	87199529	-	Saro_1511	-	periplasmic sensor signal transduction histidine kinase
1504	 61.89	-1	1555630..1557534	-	634	87199530	-	Saro_1512	-	K+ potassium transporter
1505	 59.10	-1	1557945..1558790	-	281	87199531	-	Saro_1513	-	hypothetical protein
1506	 57.14	-2	1559005..1559424	-	139	87199532	-	Saro_1514	-	hypothetical protein
1507	 62.20	0	1559822..1560604	+	260	87199533	-	Saro_1515	-	Flp pilus assembly CpaB
1508	 60.55	-1	1560594..1562147	+	517	87199534	-	Saro_1516	-	type II and III secretion system protein
1509	 61.46	-1	1562137..1562424	+	95	87199535	-	Saro_1517	-	hypothetical protein
1510	 59.95	-1	1562441..1564003	+	520	87199536	-	Saro_1518	-	hypothetical protein
1511	 61.42	-1	1564000..1564533	+	177	87199537	-	Saro_1519	-	TadE-like
1512	 56.67	-2	1564530..1565159	+	209	87199538	-	Saro_1520	-	TadE-like
1513	 59.40	-1	1565208..1566404	+	398	87199539	-	Saro_1521	-	Flp pilus assembly protein ATPase CpaE-like
1514	 59.33	-1	1566401..1567804	+	467	87199540	-	Saro_1522	-	type II secretion system protein E
1515	 59.37	-1	1567809..1568795	+	328	87199541	-	Saro_1523	-	type II secretion system protein
1516	 58.93	-1	1568798..1569766	+	322	87199542	-	Saro_1524	-	type II secretion system protein
1517	 59.70	-1	1569771..1570430	+	219	87199543	-	Saro_1525	-	TPR repeat-containing protein
1518	 58.23	-2	1570451..1570924	+	157	87199544	-	Saro_1526	-	peptidase A24A, prepilin type IV
1519	 47.80	-2	1570927..1571700	-	257	87199545	-	Saro_1527	-	regulatory proteins, IclR
1520	 62.31	0	1571775..1572164	-	129	87199546	-	Saro_1528	-	IS4 family transposase
1521	 62.93	0	1572185..1572532	-	115	87199547	-	Saro_1529	-	IS5 family transposase
1522	 58.16	-2	1573114..1574736	-	540	87199548	-	Saro_1530	-	flavin-containing monooxygenase FMO
1523	 63.66	0	1574831..1576426	-	531	87199549	-	Saro_1531	-	acyl-CoA synthetase
1524	 59.35	-1	1576437..1577201	-	254	87199550	-	Saro_1532	-	enoyl-CoA hydratase
1525	 58.90	-1	1577488..1579650	+	720	87199551	-	Saro_1533	-	TonB-dependent receptor
1526	 61.47	-1	1579840..1580724	-	294	87199552	-	Saro_1534	-	alpha/beta hydrolase
1527	 61.11	-1	1580914..1582263	+	449	87199553	-	Saro_1535	-	major facilitator transporter
1528	 66.67	0	1582448..1583209	+	253	87199554	-	Saro_1536	-	hypothetical protein
1529	 64.76	0	1583247..1584665	+	472	87199555	-	Saro_1537	-	hypothetical protein
1530	 63.45	0	1584662..1587898	+	1078	87199556	-	Saro_1538	-	DNA polymerase III, alpha subunit
1531	 64.86	0	1587982..1589310	-	442	87199557	-	Saro_1539	-	FAD dependent oxidoreductase
1532	 63.94	0	1589321..1590565	-	414	87199558	-	Saro_1540	-	major facilitator transporter
1533	 62.33	0	1590650..1591225	+	191	87199559	-	Saro_1541	-	TetR family transcriptional regulator
1534	 62.86	0	1591258..1593597	-	779	87199560	-	Saro_1542	-	TonB-dependent receptor
1535	 64.03	0	1593855..1595447	+	530	87199561	-	Saro_1543	-	glucose-methanol-choline oxidoreductase
1536	 66.30	0	1598538..1599911	+	457	87199562	-	Saro_1545	-	major facilitator transporter
1537	 62.78	0	1599944..1600894	+	316	87199563	-	Saro_1546	-	taurine dioxygenase
1538	 61.84	-1	1601033..1601923	-	296	87199564	-	Saro_1547	-	RpiR family transcriptional regulator
1539	 60.98	-1	1602156..1604336	+	726	87199565	-	Saro_1548	-	TonB-dependent receptor
1540	 63.62	0	1604434..1605384	+	316	87199566	-	Saro_1549	-	phosphonate-binding periplasmic protein
1541	 65.15	0	1605381..1606103	+	240	87199567	-	Saro_1550	-	ABC transporter related
1542	 65.62	0	1606100..1607053	+	317	87199568	-	Saro_1551	-	phosphonate ABC transporter permease
1543	 64.15	0	1607077..1609185	+	702	87199569	-	Saro_1552	-	twin-arginine translocation pathway signal
1544	 62.95	0	1609227..1610573	-	448	87199570	-	Saro_1553	-	putative GAF sensor protein
1545	 64.83	0	1610570..1611058	-	162	87199571	-	Saro_1554	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1546	 61.90	-1	1611187..1612068	+	293	87199572	-	Saro_1555	-	N-acetyltransferase
1547	 64.02	0	1612093..1612620	+	175	87199573	-	Saro_1556	-	hypothetical protein
1548	 60.50	-1	1612743..1613537	+	264	87199574	-	Saro_1557	-	transcriptional regulator, putative
1549	 63.26	0	1613598..1615301	-	567	87199575	-	Saro_1558	-	flavin-containing monooxygenase FMO
1550	 63.11	0	1615327..1617519	-	730	87199576	-	Saro_1559	-	TonB-dependent receptor
1551	 65.25	0	1617712..1618485	-	257	87199577	-	Saro_1560	-	short-chain dehydrogenase/reductase SDR
1552	 67.05	0	1618665..1620215	+	516	87199578	-	Saro_1561	-	short chain dehydrogenase
1553	 63.66	0	1620330..1621094	+	254	87199579	-	Saro_1562	-	enoyl-CoA hydratase
1554	 65.85	0	1621111..1622706	+	531	87199580	-	Saro_1563	-	acyl-CoA synthetase
1555	 70.03	+1	1622710..1623423	+	237	87199581	-	Saro_1564	-	short-chain dehydrogenase/reductase SDR
1556	 69.75	+1	1623417..1623935	+	172	87199582	-	Saro_1565	-	short chain dehydrogenase/reductase family oxidoreductase
1557	 62.11	0	1623987..1624754	+	255	87199583	-	Saro_1566	-	IclR family transcriptional regulator
1558	 64.07	0	1624862..1625746	+	294	87199584	-	Saro_1567	-	senescence marker protein-30 (SMP-30)
1559	 64.81	0	1625751..1626938	+	395	87199585	-	Saro_1568	-	acyl-CoA dehydrogenase-like
1560	 65.77	0	1626947..1628056	+	369	87199586	-	Saro_1569	-	acyl-CoA dehydrogenase-like
1561	 65.90	0	1628053..1628577	+	174	87199587	-	Saro_1570	-	hypothetical protein
1562	 66.15	0	1628596..1629372	+	258	87199588	-	Saro_1571	-	hypothetical protein
1563	 67.86	0	1629369..1630460	-	363	87199589	-	Saro_1572	-	NADH:flavin oxidoreductase/NADH oxidase
1564	 64.29	0	1630555..1630848	-	97	87199590	-	Saro_1573	-	tellurite resistance-like domain-containing protein
1565	 60.94	-1	1630845..1631228	-	127	87199591	-	Saro_1574	-	SEC-independent protein translocase protein TatC
1566	 64.08	0	1631230..1631577	-	115	87199592	-	Saro_1575	-	hypothetical protein
1567	 63.62	0	1631614..1632303	-	229	87199593	-	Saro_1576	-	alternative oxidase
1568	 66.41	0	1632386..1633933	+	515	87199594	-	Saro_1577	-	multi-sensor signal transduction histidine kinase
1569	 65.22	0	1633923..1634546	+	207	87199595	-	Saro_1578	-	two component LuxR family transcriptional regulator
1570	 65.98	0	1634560..1635861	-	433	87199596	-	Saro_1579	-	acetyl-CoA hydrolase/transferase
1571	 65.64	0	1636020..1637672	+	550	87199597	-	Saro_1580	-	fumarate reductase/succinate dehydrogenase flavoprotein-like
1572	 62.45	0	1638057..1638317	-	86	87199598	-	Saro_1581	-	hypothetical protein
1573	 63.84	0	1638340..1639614	-	424	87199599	-	Saro_1582	-	GTP cyclohydrolase II / 3,4-dihydroxy-2-butanone 4-phosphate synthase
1574	 65.36	0	1640051..1641124	-	357	87199600	-	Saro_1583	-	hypothetical protein
1575	 67.94	0	1641127..1642695	-	522	87199601	-	Saro_1584	-	carboxylesterase, type B
1576	 67.49	0	1642692..1643663	-	323	87199602	-	Saro_1585	-	dienelactone hydrolase
1577	 65.92	0	1643707..1645572	-	621	87199603	-	Saro_1586	-	4-hydroxyphenylpyruvate dioxygenase
1578	 64.45	0	1645775..1646542	+	255	87199604	-	Saro_1587	-	TetR family transcriptional regulator
1579	 68.37	0	1646637..1647869	+	410	87199605	-	Saro_1588	-	major facilitator transporter
1580	 64.43	0	1647915..1650911	+	998	87199606	-	Saro_1589	-	TonB-dependent receptor
1581	 66.79	0	1650970..1651800	+	276	87199607	-	Saro_1590	-	shikimate 5-dehydrogenase
1582	 67.97	0	1651802..1652491	-	229	87199608	-	Saro_1591	-	putative transmembrane transcriptional regulator (anti-sigma factor)
1583	 66.14	0	1652488..1653054	-	188	87199609	-	Saro_1592	-	sigma-24 (FecI-like)
1584	 68.51	+1	1653118..1654308	+	396	87199610	-	Saro_1593	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
1585	 70.25	+1	1654437..1655300	+	287	87199611	-	Saro_1594	-	hypothetical protein
1586	 67.51	0	1655345..1658650	-	1101	87199612	-	Saro_1595	-	polysaccharide deacetylase
1587	 68.16	0	1658647..1659384	-	245	87199613	-	Saro_1596	-	Type IV secretory pathway VirJ component-like
1588	 66.78	0	1659381..1662014	-	877	87199614	-	Saro_1597	-	hypothetical protein
1589	 64.37	0	1662011..1662445	-	144	87199615	-	Saro_1598	-	hypothetical protein
1590	 65.07	0	1662598..1663284	+	228	87199616	-	Saro_1599	-	two component transcriptional regulator
1591	 68.73	+1	1663284..1664690	+	468	87199617	-	Saro_1600	-	periplasmic sensor signal transduction histidine kinase
65.30	MEAN

3.21	STD DEV
