IslandPath Analysis: Neisseria meningitidis Z2491

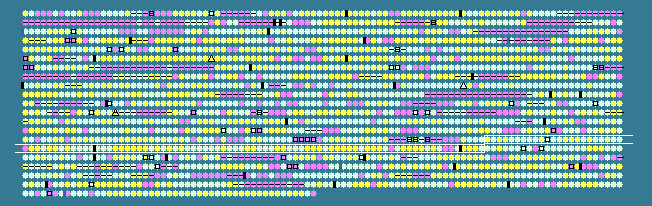

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1478	 59.40	+1	1537921..1538457	-	178	161353791	ruvC	NMA1631	-	Holliday junction resolvase
1479	 48.75	0	1538460..1538699	-	79	15794526	fis	NMA1632	-	factor-for-inversion-stimulation protein
1480	 57.37	0	1538729..1539739	-	336	15794527	-	NMA1633	-	hypothetical protein
1481	 58.88	+1	1540105..1541478	+	457	15794528	-	NMA1634	-	ATP-dependent RNA helicase
1482	 50.71	0	1542053..1543180	+	375	15794529	-	NMA1635	-	hypothetical protein
1483	 52.90	0	1543210..1544088	+	292	15794530	-	NMA1636	-	hypothetical protein
1484	 53.25	0	1544092..1544322	+	76	15794531	-	NMA1637	-	hypothetical protein
1485	 54.83	0	1544506..1546017	-	503	15794532	lysS	NMA1638	-	lysyl-tRNA synthetase
1486	 53.27	0	1546172..1547425	-	417	15794533	-	NMA1639	-	integral membrane protein
1487	 60.00	+1	1547699..1549678	+	659	15794534	-	NMA1640	-	aminopeptidase
1488	 51.09	0	1550999..1551820	-	273	15794535	-	NMA1641	-	insertion element IS1106 transposase
1489	 52.27	0	1552433..1553620	-	395	15794536	porA	NMA1642	-	porin, class I outer membrane protein
1490	 53.04	0	1556634..1557110	-	158	15794537	greA	NMA1643	-	transcription elongation factor
1491	 57.91	0	1557502..1558803	+	433	15794538	aroA	NMA1644	-	3-phosphoshikimate 1-carboxyvinyltransferase
1492	 58.05	0	1558846..1559379	-	177	15794539	-	NMA1645	-	lipoprotein
1493	 57.03	0	1559588..1561165	-	525	15794540	-	NMA1646	-	phopholipase D-family protein
1494	 53.05	0	1561226..1562767	-	513	15794541	-	NMA1647	-	integral membrane protein
1495	 55.38	0	1562916..1563695	+	259	15794542	-	NMA1648	-	hypothetical protein
1496	 53.56	0	1563692..1564393	+	233	15794543	-	NMA1649	-	hypothetical protein
1497	 53.95	0	1564390..1565844	+	484	15794544	-	NMA1650	-	iron-sulphur protein
1498	 57.41	0	1566027..1566512	-	161	15794545	purE	NMA1651	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
1499	 55.23	0	1566560..1567276	-	238	15794546	-	NMA1652	-	periplasmic protein
1500	 55.01	0	1567276..1567944	-	222	15794547	-	NMA1653	-	methyltransferase
1501	 45.16	0	1567955..1568140	-	61	15794548	-	NMA1654	-	hypothetical protein
1502	 58.47	0	1568283..1570259	+	658	15794549	mutL	NMA1655	-	DNA mismatch repair protein
1503	 58.26	0	1570354..1572483	+	709	15794550	dnaZX	NMA1656	-	DNA polymerase III subunits gamma and tau
1504	 52.98	0	1572563..1572898	+	111	15794551	-	NMA1657	-	hypothetical protein
1505	 56.26	0	1574167..1575213	-	348	15794552	recA	NMA1658	-	recombinase A
1506	 57.89	0	1575434..1576231	+	265	15794553	aroD	NMA1659	-	3-dehydroquinate dehydratase
1507	 53.32	0	1576251..1578266	+	671	15794554	rep	NMA1660	-	ATP-dependent DNA helicase
1508	 57.03	0	1578334..1579392	-	352	15794555	-	NMA1661	-	impB/mucB/samB family protein
1509	 51.68	0	1579640..1580833	-	397	15794556	-	NMA1662	-	hypothetical protein
1510	 50.52	0	1580869..1582776	-	635	15794557	-	NMA1663	-	hypothetical protein
1511	 52.69	0	1583002..1583781	+	259	15794558	-	NMA1664	-	ferredoxin NADP+ reductase
1512	 48.48	0	1583992..1585404	-	470	15794559	-	NMA1665	-	DNA polymerase III subunit
1513	 51.96	0	1586222..1587397	+	391	15794560	-	NMA1666	-	hypothetical protein
1514	 54.10	0	1587457..1588005	-	182	15794561	-	NMA1667	-	inner membrane protein
1515	 53.77	0	1588008..1589504	-	498	15794562	-	NMA1668	-	ferredoxin
1516	 55.45	0	1590031..1592010	+	659	15794563	tkt	NMA1669	-	transketolase
1517	 57.52	0	1592151..1593539	+	462	15794564	fumC	NMA1670	-	fumarate hydratase
1518	 55.74	0	1593604..1594527	-	307	15794565	-	NMA1671	-	hypothetical protein
1519	 58.67	0	1594899..1595423	-	174	15794566	ssb	NMA1672	-	single-stranded binding protein
1520	 57.43	0	1595427..1596812	-	461	15794567	-	NMA1673	-	integral membrane transporter
1521	 59.29	+1	1596920..1597543	-	207	15794568	-	NMA1674	-	transglycosylase
1522	 48.92	0	1598453..1598869	-	138	15794569	-	NMA1675	-	hypothetical protein
1523	 61.29	+1	1600962..1601054	+	30	15794570	-	NMA1677a	-	hypothetical protein
1524	 54.39	0	1601254..1601709	+	151	15794571	-	NMA1678	-	hypothetical protein
1525	 55.67	0	1601826..1603334	+	502	15794572	ppx/gppA	NMA1679	-	exopolyphosphatase
1526	 51.79	0	1603495..1603857	+	120	15794573	-	NMA1680	-	membrane protein
1527	 58.19	0	1604187..1604528	-	113	15794574	-	NMA1681	-	hypothetical protein
1528	 54.20	0	1604534..1605544	-	336	15794575	trpS	NMA1682	-	tryptophanyl-tRNA synthetase
1529	 52.95	0	1605805..1608384	+	859	15794576	clpB	NMA1683	-	ClpB protein
1530	 53.17	0	1608471..1609685	-	404	15794577	-	NMA1684	-	aminotransferase AlaT
1531	 53.81	0	1609774..1609983	-	69	15794578	-	NMA1685	-	tautomerase
1532	 54.28	0	1610328..1611134	+	268	15794579	-	NMA1686	-	hypothetical protein
1533	 52.76	0	1611192..1612457	-	421	15794580	-	NMA1687	-	glutamate dehydrogenase
1534	 56.50	0	1612864..1613571	+	235	15794581	-	NMA1688	-	phosphoglycolate phosphatase
1535	 53.90	0	1613639..1614100	+	153	15794582	recX	NMA1689	-	recombination regulator RecX
1536	 50.93	0	1614120..1614335	+	71	15794583	-	NMA1690	-	hypothetical protein
1537	 55.07	0	1614488..1614970	+	160	15794584	-	NMA1691	-	acyl-CoA hydrolase
1538	 57.85	0	1615331..1616578	-	415	15794585	-	NMA1692	-	membrane peptidase
1539	 56.89	0	1616681..1617427	-	248	15794586	surE	NMA1693	-	SurE protein
1540	 54.46	0	1617444..1619000	-	518	15794587	-	NMA1694	-	hypothetical protein
1541	 53.23	0	1619368..1620156	-	262	15794588	-	NMA1695	-	fimbrial assembly protein
1542	 54.88	0	1620265..1621698	-	477	15794589	gabD	NMA1696	-	succinate semialdehyde dehydrogenase
1543	 59.84	+1	1622362..1622742	-	126	15794590	-	NMA1697	-	lipoprotein
1544	 55.72	0	1623218..1625299	+	693	15794591	-	NMA1698	-	integral membrane protein (CstA-like)
1545	 54.87	0	1625289..1625483	+	64	15794592	-	NMA1699	-	hypothetical protein
1546	 49.87	0	1627036..1629804	+	922	15794593	-	NMA1700	-	outer membrane substrate binding protein
1547	 54.68	0	1630967..1632184	-	405	15794594	lysC	NMA1701	-	aspartate kinase
1548	 55.83	0	1632386..1633114	-	242	15794595	rph	NMA1702	-	ribonuclease PH
1549	 55.91	0	1633196..1633660	-	154	15794596	-	NMA1703	-	hypothetical protein
1550	 56.37	0	1633877..1634653	+	258	15794597	-	NMA1704	-	hypothetical protein
1551	 54.39	0	1634898..1635752	+	284	15794598	-	NMA1705	-	hypothetical protein
1552	 55.63	0	1635742..1637001	+	419	15794599	pncB	NMA1706	-	nicotinate phosphoribosyltransferase
1553	 56.95	0	1637093..1638811	+	572	15794600	argS	NMA1707	-	arginyl-tRNA synthetase
1554	 56.03	0	1639365..1640783	+	472	15794601	-	NMA1708	-	hypothetical protein
1555	 55.29	0	1641720..1642466	-	248	15794602	-	NMA1709	-	binding-protein-dependent transport systems inner membrane protein
1556	 59.12	+1	1642645..1643346	-	233	15794603	-	NMA1710	-	nuclease
1557	 51.64	0	1643385..1644056	-	223	15794604	rpiA	NMA1711	-	ribose-5-phosphate isomerase A
1558	 56.31	0	1644133..1644615	-	160	15794605	ispF	NMA1712	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1559	 57.83	0	1644647..1645336	-	229	15794606	-	NMA1713	-	hypothetical protein
1560	 58.64	0	1645333..1646067	-	244	15794607	dnaQ	NMA1714	-	DNA polymerase III, epsilon chain
1561	 52.71	0	1646223..1647533	-	436	15794608	-	NMA1715	-	integral membrane protein
1562	 46.56	0	1647523..1647711	-	62	15794609	-	NMA1716	-	inner membrane protein
1563	 49.67	0	1647708..1648007	-	99	15794610	-	NMA1717	-	hypothetical protein
1564	 57.70	0	1648328..1649554	+	408	15794611	ackA1	NMA1718	-	acetate kinase
1565	 55.27	0	1650068..1651909	-	613	15794612	dipZ	NMA1719	-	thiol:disulfide interchange protein precursor
1566	 57.11	0	1652000..1652470	+	156	15794613	-	NMA1720	-	hypothetical protein
1567	 55.35	0	1652541..1653371	-	276	15794614	-	NMA1721	-	transferase
1568	 54.24	0	1653440..1653922	-	160	15794615	-	NMA1722	-	peptidyl-prolyl isomerase
1569	 59.46	+1	1654411..1654743	+	110	15794616	-	NMA1723	-	hypothetical protein
1570	 52.05	0	1654801..1656168	+	455	15794617	-	NMA1724	-	hypothetical protein
1571	 40.75	-1	1656349..1658277	-	642	15794618	-	NMA1725	-	virulence associated protein
1572	 46.80	0	1658738..1659190	-	150	15794619	smpB	NMA1726	-	SsrA-binding protein
1573	 54.01	0	1659239..1660249	-	336	15794620	rfaF	NMA1727	-	ADP-heptose:LPS heptosyltransferase II
1574	 55.40	0	1660646..1661515	-	289	15794621	-	NMA1728	-	methylated-DNA-protein-cysteine methyltransferase
1575	 59.36	+1	1661673..1662233	+	186	15794622	-	NMA1729	-	hypothetical protein
1576	 55.58	0	1663067..1664212	-	381	15794623	dapE	NMA1730	-	succinyl-diaminopimelate desuccinylase
1577	 51.21	0	1664326..1664946	-	206	15794624	-	NMA1731	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
