IslandPath Analysis: Neisseria gonorrhoeae FA 1090

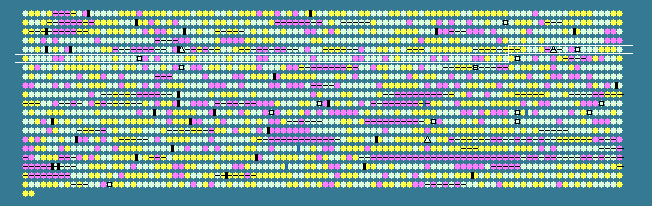

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
482	 64.14	+1	491179..491415	-	78	59800955	-	NGO0517	-	putative pemI-like protein (PemI), putative phage associated protein
483	 56.85	0	491622..492161	+	179	59800956	-	NGO0518	-	putative phage associated protein
484	 57.68	0	492162..492506	+	114	59800957	-	NGO0519	-	putative phage associated protein
485	 53.85	0	492680..492991	+	103	59800958	-	NGO0520	-	putative phage associated protein
486	 52.00	0	493004..493153	+	49	59800959	-	NGO0521	-	phage associated protein
487	 56.20	0	493183..496230	+	1015	59800960	-	NGO0522	-	putative tail length tape measure protein, putative phage associated protein
488	 48.33	0	496290..496769	-	159	59800961	-	NGO0523	-	putative phage associated protein
489	 53.64	0	497111..498100	-	329	59800962	-	NGO0524	-	putative integrase
490	 49.21	0	498360..498548	-	62	59800963	-	NGO0525	-	hypothetical protein
491	 51.98	0	498789..499823	+	344	59800964	-	NGO0526	-	phosphoribosylaminoimidazole synthetase
492	 33.91	-2	500439..500957	+	172	59800965	-	NGO0527	-	hypothetical protein
493	 55.05	0	500821..501474	+	217	59800966	-	NGO0528	-	IS1016 transposase
494	 52.19	0	501653..503635	+	660	59800967	-	NGO0529	-	putative high-affinity choline transport protein
495	 54.95	0	503725..505278	-	517	59800968	-	NGO0530	-	acyl-CoA synthetase
496	 55.13	0	505291..505446	+	51	59800969	-	NGO0531	-	hypothetical protein
497	 62.06	+1	505529..506722	-	397	59800970	-	NGO0532	-	hypothetical protein
498	 56.30	0	506719..507702	-	327	59800971	-	NGO0533	-	hypothetical protein
499	 56.16	0	507713..509149	-	478	59800972	-	NGO0534	-	putative alginate O-acetylation - like protein
500	 53.60	0	510723..511097	+	124	59800973	-	NGO0537	-	hypothetical protein
501	 57.01	0	512905..514002	+	365	59800974	-	NGO0539	-	hypothetical protein
502	 51.54	0	515356..515811	+	151	59800975	-	NGO0541	-	putative low-molecular weight phosphotyrosine protein phosphatase
503	 52.62	0	515888..516364	+	158	59800976	-	NGO0542	-	hypothetical protein
504	 53.18	0	516352..517278	+	308	59800977	-	NGO0543	-	hypothetical protein
505	 54.48	0	517343..517900	+	185	59800978	-	NGO0544	-	putative peptidyl-prolyl cis-trans isomerase A
506	 47.00	0	518016..520079	+	687	59800979	-	NGO0545	-	putative type III restriction-modification system methyltransferase
507	 48.06	0	520169..523108	+	979	59800980	-	NGO0546	-	putative type III restriction-modification system endonuclease protein
508	 53.75	0	523202..524161	-	319	59800981	-	NGO0547	-	hypothetical protein
509	 55.94	0	524253..525119	-	288	59800982	-	NGO0548	-	hypothetical protein
510	 61.71	+1	525151..525513	-	120	59800983	-	NGO0549	-	hypothetical protein
511	 50.00	0	525588..526067	+	159	59800984	-	NGO0550	-	hypothetical protein
512	 55.70	0	526089..526781	+	230	59800985	-	NGO0551	-	putative dnaJ-family protein
513	 51.60	0	526785..527660	+	291	59800986	-	NGO0552	-	hypothetical protein
514	 54.85	0	527868..531488	+	1206	59800987	-	NGO0553	-	putative TonB-dependent receptor
515	 52.68	0	531770..532720	+	316	59800988	-	NGO0554	-	hypothetical protein
516	 57.23	0	532940..534433	+	497	59800989	-	NGO0555	-	hypothetical protein
517	 53.15	0	534501..535898	-	465	59800990	aspA	NGO0556	-	aspartate ammonia-lyase
518	 51.32	0	535924..536112	-	62	59800991	-	NGO0557	-	hypothetical protein
519	 54.55	0	536176..536736	-	186	59800992	-	NGO0558	-	hypothetical protein
520	 55.35	0	536937..537590	+	217	59800993	-	NGO0559	-	IS1016 transposase
521	 46.62	0	540134..541684	+	516	59800994	-	NGO0561	-	hypothetical protein
522	 55.91	0	542108..543892	-	594	59800995	-	NGO0562	-	putative dihydrolipoamide dehydrogenase
523	 34.36	-2	543910..544200	-	96	59800996	-	NGO0563	-	hypothetical protein
524	 55.79	0	544445..546034	-	529	59800997	-	NGO0564	-	dihydrolipoamide acetyltransferase
525	 54.95	0	546184..548847	-	887	59800998	aceE	NGO0565	-	pyruvate dehydrogenase subunit E1
526	 55.69	0	549544..551256	+	570	59800999	-	NGO0566	-	prolyl-tRNA synthetase
527	 52.51	0	551319..551975	+	218	59801000	-	NGO0567	-	putative hydrolase
528	 58.55	0	551985..552440	-	151	59801001	-	NGO0568	-	Holliday junction resolvase-like protein
529	 56.83	0	552433..552981	-	182	59801002	-	NGO0569	-	hypothetical protein
530	 52.41	0	552983..553543	-	186	59801003	-	NGO0570	-	hypothetical protein
531	 52.25	0	553869..555665	+	598	59801004	-	NGO0571	-	hypothetical protein
532	 53.32	0	555792..557267	+	491	59801005	-	NGO0572	-	putative carboxy-terminal processing protease
533	 55.33	0	557597..559624	+	675	59801006	-	NGO0573	-	excinuclease ABC subunit B
534	 53.75	0	559802..560560	-	252	59801007	-	NGO0574	-	Cah
535	 56.62	0	561640..562356	-	238	59801008	trmB	NGO0575	-	tRNA (guanine-N(7))-methyltransferase
536	 54.00	0	564000..565886	-	628	59801009	uvrC	NGO0578	-	excinuclease ABC subunit C
537	 55.60	0	565941..568118	-	725	59801010	-	NGO0579	-	putative transport ATPase
538	 54.68	0	568257..569207	+	316	59801011	-	NGO0580	-	putative thioredoxin reductase
539	 49.59	0	569363..569731	+	122	59801012	rpsF	NGO0581	-	30S ribosomal protein S6
540	 45.87	-1	569732..570034	+	100	59801013	-	NGO0582	-	PriB
541	 44.16	-1	570041..570271	+	76	59801014	rpsR	NGO0583	-	30S ribosomal protein S18
542	 51.66	0	570288..570740	+	150	59801015	rplI	NGO0584	-	50S ribosomal protein L9
543	 55.14	0	571363..572169	-	268	59801016	-	NGO0585	-	hypothetical protein
544	 55.56	0	572170..572916	-	248	59801017	-	NGO0586	-	putative phosphatidylserine synthase
545	 50.92	0	572971..573243	-	90	59801018	-	NGO0587	-	hypothetical protein
546	 52.38	0	573500..573982	+	160	59801019	-	NGO0588	-	hypothetical protein
547	 55.94	0	574029..575240	-	403	59801020	-	NGO0589	-	putative ABC transporter, permease protein
548	 55.06	0	575669..577900	+	743	59801021	-	NGO0590	-	putative ftsK-like cell division/stress response protein
549	 48.63	0	578772..580085	+	437	59801022	tig	NGO0592	-	trigger factor
550	 50.24	0	580181..580795	+	204	59801023	-	NGO0593	-	putative endopeptidase
551	 51.11	0	580849..582114	-	421	59801024	ispG	NGO0594	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
552	 51.44	0	582130..582891	-	253	59801025	-	NGO0595	-	hypothetical protein
553	 50.32	0	582894..583988	-	364	59801026	-	NGO0596	-	hypothetical protein
554	 51.60	0	584132..584443	-	103	59801027	-	NGO0597	-	putative nucleoside diphosphate kinase
555	 52.17	0	584616..585767	-	383	59801028	-	NGO0598	-	hypothetical protein
556	 46.59	0	586297..587043	-	248	59801029	-	NGO0600	-	putative esterase D
557	 39.46	-2	588393..588800	+	135	59801030	-	NGO0602	-	MerR family transcriptional regulator
558	 51.18	0	588996..589292	-	98	59801031	-	NGO0603	-	IhfB
559	 50.89	0	589321..591006	-	561	59801032	rpsA	NGO0604	-	30S ribosomal protein S1
560	 54.79	0	591159..591815	-	218	59801033	-	NGO0605	-	putative cytidylate kinase
561	 49.09	0	592048..593418	-	456	59801034	-	NGO0606	-	putative sodium-dependent transport protein
562	 51.23	0	593892..594584	-	230	59801035	-	NGO0607	-	hypothetical protein
563	 57.06	0	594652..596628	-	658	59801036	-	NGO0608	-	putative murein transglycosylase / nitrite reductase transcriptional regulator
564	 55.11	0	596807..597472	+	221	59801037	-	NGO0609	-	hypothetical protein
565	 55.43	0	597525..598352	+	275	59801038	-	NGO0610	-	formamidopyrimidine-DNA glycosylase
566	 55.47	0	598440..599207	+	255	59801039	-	NGO0611	-	1-acyl-SN-glycerol-3-phosphate acyltransferase
567	 54.17	0	599470..599781	-	103	59801040	-	NGO0613	-	hypothetical protein
568	 52.59	0	600312..602591	+	759	59801041	-	NGO0614	-	ribonucleotide-diphosphate reductase subunit alpha
569	 47.71	0	602904..604037	+	377	161572976	nrdB	NGO0615	-	ribonucleotide-diphosphate reductase subunit beta
570	 55.33	0	604158..604448	+	96	59801043	-	NGO6151	-	hypothetical protein
571	 48.75	0	604489..604767	-	92	59801044	-	NGO0616	-	hypothetical protein
572	 53.85	0	604935..606221	-	428	59801045	eno	NGO0617	-	phosphopyruvate hydratase
573	 54.20	0	606268..606708	-	146	59801046	-	NGO0618	-	hypothetical protein
574	 51.60	0	606723..607565	-	280	59801047	-	NGO0619	-	2-dehydro-3-deoxyphosphooctonate aldolase
575	 51.82	0	607587..607970	-	127	59801048	-	NGO0620	-	aspartate alpha-decarboxylase
576	 47.85	0	608132..608434	-	100	59801049	-	NGO0621	-	hypothetical protein
577	 47.50	0	608468..608587	-	39	59801050	-	NGO0622	-	hypothetical protein
578	 57.60	0	608660..612364	-	1234	59801051	-	NGO0623	-	putative transcription-repair coupling factor
579	 55.60	0	612423..613976	+	517	59801052	-	NGO0624	-	putative oxidoreductase
580	 56.63	0	613967..614215	+	82	59801053	-	NGO0625	-	hypothetical protein
581	 54.58	0	614124..615215	+	363	59801054	-	NGO0626	-	putative murein hydrolase
52.66	MEAN

6.57	STD DEV
