IslandPath Analysis: Neisseria gonorrhoeae FA 1090

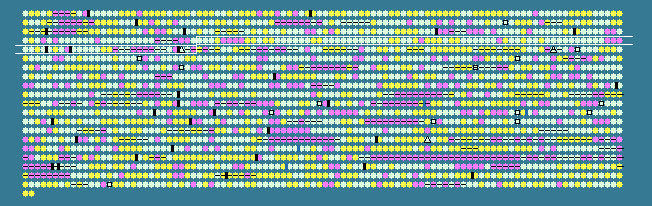

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.66 STD DEV: 6.57
Neisseria gonorrhoeae FA 1090, complete genome - 1..2153922
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
330	 56.08	0	349869..350633	+	254	59800803	hemD	NGO0359	-	uroporphyrinogen-III synthase
331	 55.92	0	350705..351979	+	424	59800804	-	NGO0360	-	hypothetical protein
332	 55.34	0	351976..353193	+	405	59800805	-	NGO0361	-	hypothetical protein
333	 57.75	0	353268..354332	+	354	59800806	-	NGO0362	-	putative uroporphyrinogen decarboxylase
334	 37.67	-2	354395..356284	-	629	59800807	-	NGO0363	-	putative stress-sensitive restriction system protein
335	 36.22	-2	356285..357322	-	345	59800808	-	NGO0364	-	restriction endonuclease R.NgoVII
336	 40.09	-1	357319..358443	-	374	59800809	-	NGO0365	-	site-specific DNA-methyltransferase M.NgoVII
337	 44.57	-1	358468..358725	+	85	59800810	-	NGO0366	-	hypothetical protein
338	 58.12	0	358830..360209	+	459	59800811	-	NGO0367	-	DNA repair protein RadA
339	 56.43	0	360484..360864	-	126	59800812	-	NGO0368	-	hypothetical protein
340	 53.83	0	361088..361531	-	147	59800813	-	NGO0369	-	hypothetical protein
341	 58.98	0	361486..365088	-	1200	59800814	-	NGO0370	-	putative exodeoxyribonuclease
342	 59.19	0	365165..366073	-	302	59800815	-	NGO0371	-	hypothetical protein
343	 53.62	0	366358..367185	+	275	59800816	-	NGO0372	-	putative ABC transporter, periplasmic binding protein, amino acid
344	 50.63	0	367175..367891	+	238	59800817	-	NGO0373	-	putative ABC transporter, permease protein, amino acid
345	 53.31	0	367901..368656	+	251	59800818	-	NGO0374	-	putative ABC transporter, ATP-binding protein, amino acid
346	 55.17	0	368712..370094	-	460	59800819	-	NGO0375	-	Pgm
347	 50.98	0	370262..370771	-	169	59800820	-	NGO0376	-	putative peptidyl-prolyl cis-trans isomerase B
348	 55.86	0	370891..372306	-	471	59800821	-	NGO0377	-	putative transport protein
349	 59.50	+1	372535..372897	-	120	59800822	-	NGO0378	-	hypothetical protein
350	 56.82	0	373161..373739	-	192	59800823	-	NGO0379	-	peptidyl-tRNA hydrolase
351	 54.12	0	373792..374070	-	92	59800824	-	NGO0380	-	hypothetical protein
352	 51.14	0	374063..374500	-	145	59800825	-	NGO0381	-	hypothetical protein
353	 55.84	0	374716..376683	-	655	59800826	-	NGO0382	-	hypothetical protein
354	 54.11	0	376747..377367	-	206	59800827	-	NGO0383	-	hypothetical protein
355	 52.63	0	377477..377761	+	94	59800828	-	NGO0384	-	hypothetical protein
356	 55.46	0	377930..378946	+	338	59800829	-	NGO0385	-	delta-aminolevulinic acid dehydratase
357	 52.94	0	379010..380167	-	385	59800830	-	NGO0386	-	putative lyase
358	 51.94	0	380370..381143	+	257	59800831	-	NGO0387	-	putative GTP cyclohydrolase
359	 52.10	0	381340..382005	+	221	59800832	-	NGO0388	-	putative oxidoreductase, NAD(P)H-flavin
360	 54.02	0	382060..382818	-	252	59800833	-	NGO0389	-	hypothetical protein
361	 55.56	0	382843..383733	-	296	59800834	ppnK	NGO0390	-	inorganic polyphosphate/ATP-NAD kinase
362	 60.14	+1	383753..384319	-	188	59800835	-	NGO0391	-	hypothetical protein
363	 59.59	+1	384369..385145	-	258	59800836	-	NGO0392	-	hypothetical protein
364	 53.30	0	385200..385850	-	216	59800837	-	NGO0393	-	TetR family transcriptional regulator
365	 55.72	0	385862..386902	-	346	59800838	-	NGO0394	-	putative UDP-N-acetylenolpyruvoylglucosamine reductase
366	 57.03	0	386946..388325	-	459	59800839	-	NGO0395	-	multidrug efflux protein
367	 42.33	-1	388382..388570	+	62	59800840	-	NGO0396	-	hypothetical protein
368	 59.55	+1	388662..389813	+	383	59800841	hisZ	NGO0397	-	ATP phosphoribosyltransferase regulatory subunit
369	 57.93	0	389912..391216	+	434	59800842	-	NGO0398	-	adenylosuccinate synthetase
370	 56.31	0	391452..392291	-	279	59800843	-	NGO0399	-	heat shock protein HtpX
371	 53.86	0	392506..393153	+	215	59800844	adk	NGO0400	-	adenylate kinase
372	 56.68	0	393677..394417	+	246	59800845	-	NGO0401	-	orotidine 5'-phosphate decarboxylase
373	 57.84	0	394473..395435	+	320	59800846	-	NGO0402	-	putative sugar kinase / ADP-heptose synthase
374	 52.04	0	395499..396503	+	334	59800847	-	NGO0403	-	ADP-L-glycero-D-mannoheptose epimerase
375	 53.33	0	396578..398122	+	514	59800848	-	NGO0404	-	putative type I restriction-modification system methyltransferase protein
376	 51.53	0	398238..399089	+	283	59800849	dinD	NGO0405	-	DNA-damage-inducible protein D
377	 51.44	0	400709..403807	+	1032	59800850	-	NGO0407	-	putative type I site-specific deoxyribonuclease
378	 55.54	0	403847..406138	-	763	59800851	-	NGO0408	-	hypothetical protein
379	 51.82	0	406140..406442	-	100	59800852	-	NGO0409	-	hypothetical protein
380	 48.53	0	406687..406890	+	67	59800853	-	NGO0410	-	CspA
381	 61.11	+1	407189..408520	-	443	59800854	-	NGO0411	-	hypothetical protein
382	 53.06	0	408674..409180	+	168	59800855	-	NGO0412	-	hypothetical protein
383	 52.66	0	409227..409940	+	237	59800856	-	NGO0413	-	putative thiosulphate sulphur transferase
384	 57.97	0	410009..411709	+	566	59800857	-	NGO0414	-	hypothetical protein
385	 55.33	0	412067..413425	+	452	59800858	-	NGO0415	-	hypothetical protein
386	 50.93	0	413598..413921	+	107	59800859	-	NGO0416	-	hypothetical protein
387	 56.29	0	414026..414979	-	317	59800860	-	NGO0417	-	hypothetical protein
388	 55.97	0	415005..415490	-	161	59800861	-	NGO0418	-	putative glycosyl transferase
389	 53.23	0	415590..416177	-	195	59800862	-	NGO0419	-	hypothetical protein
390	 51.29	0	416315..417049	+	244	59800863	-	NGO0420	-	hypothetical protein
391	 53.44	0	417115..417681	-	188	59800864	dcd	NGO0421	-	deoxycytidine triphosphate deaminase
392	 54.87	0	417777..418166	-	129	59800865	-	NGO0422	-	hypothetical protein
393	 52.22	0	418218..419117	-	299	59800866	rdgC	NGO0423	-	recombination associated protein
394	 54.12	0	419148..420605	-	485	59800867	engA	NGO0424	-	GTP-binding protein EngA
395	 51.27	0	420755..421384	-	209	59800868	-	NGO0425	-	hypothetical protein
396	 52.70	0	421385..422680	-	431	59800869	hisS	NGO0426	-	histidyl-tRNA synthetase
397	 51.75	0	422808..423464	-	218	59800870	-	NGO0427	-	hypothetical protein
398	 36.89	-2	423520..423744	-	74	59800871	-	NGO0428	-	hypothetical protein
399	 31.16	-2	423973..424110	-	45	59800872	-	NGO0429	-	hypothetical protein
400	 34.02	-2	425228..425518	-	96	59800873	-	NGO0430	-	hypothetical protein
401	 49.91	0	426078..426620	-	180	59800874	-	NGO0432	-	hypothetical protein
402	 51.84	0	426786..427709	+	307	59800875	-	NGO0433	-	hypothetical protein
403	 57.48	0	427788..428429	-	213	59800876	-	NGO0434	-	hypothetical protein
404	 54.42	0	428484..429275	-	263	59800877	-	NGO0435	-	spermidine synthase
405	 55.93	0	429658..430449	+	263	59800878	panB	NGO0436	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
406	 56.15	0	430572..431408	+	278	59800879	panC	NGO0437	-	pantoate--beta-alanine ligase
407	 53.61	0	433712..434293	+	193	59800880	lolB	NGO0439	-	outer membrane lipoprotein LolB
408	 47.87	0	434303..435148	+	281	59800881	-	NGO0440	-	putative isopentenyl monophosphate kinase
409	 52.54	0	435487..436470	+	327	59800882	-	NGO0441	-	ribose-phosphate pyrophosphokinase
410	 49.21	0	436537..437109	+	190	59800883	-	NGO0442	-	50S ribosomal protein L25/general stress protein Ctc
411	 50.09	0	437235..438404	-	389	59800884	-	NGO0443	-	putative D-alanyl-D-alanine carboxypeptidase / penicillin binding protein
412	 54.03	0	438553..440079	+	508	59800885	-	NGO0444	-	threonine dehydratase
413	 53.48	0	440135..441211	-	358	59800886	-	NGO0445	-	putative ABC transporter, ATP-binding protein
414	 56.57	0	441352..442173	-	273	59800887	-	NGO0446	-	putative ABC transporter
415	 57.06	0	443377..443709	+	110	59800888	-	NGO0448	-	hypothetical protein
416	 37.45	-2	444039..444548	+	169	59800889	-	NGO0449	-	hypothetical protein
417	 55.15	0	445524..446930	+	468	59800890	-	NGO0451	-	replicative DNA helicase
418	 49.40	0	447238..447903	+	221	59800891	-	NGO0452	-	hypothetical protein
419	 46.90	0	447935..448546	+	203	59800892	-	NGO0453	-	hypothetical protein
420	 42.30	-1	448543..449523	+	326	59800893	-	NGO0454	-	hypothetical protein
421	 47.55	0	449502..450113	+	203	59800894	-	NGO0455	-	hypothetical protein
422	 42.94	-1	450100..450588	+	162	59800895	-	NGO0456	-	putative type IV pilin-like protein
423	 52.75	0	450658..450966	-	102	59800896	-	NGO0457	-	hypothetical protein
424	 52.54	0	451840..452292	+	150	59800897	dut	NGO0459	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
425	 51.43	0	452364..453551	+	395	59800898	-	NGO0460	-	hypothetical protein
426	 46.92	0	453863..454642	+	259	59800899	-	NGO0461	-	hypothetical protein
427	 55.56	0	455173..456369	+	398	59800900	-	NGO0462	-	putative phage integrase, putative phage associated protein
428	 49.26	0	456725..456994	-	89	59800901	-	NGO0463	-	putative phage associated protein
429	 45.61	-1	457189..457872	-	227	59800902	-	NGO0464	-	putative phage associated protein
52.66	MEAN

6.57	STD DEV
