IslandPath Analysis: Methanospirillum hungatei JF-1

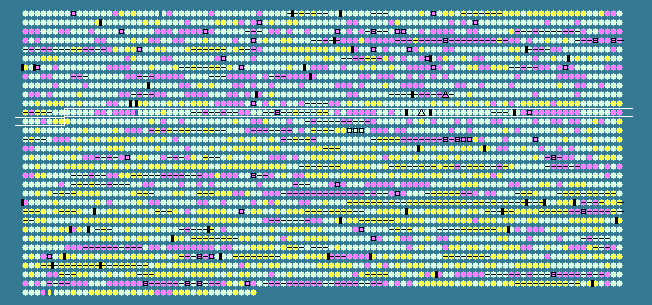

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.77 STD DEV: 5.02
Methanospirillum hungatei JF-1, complete genome - 1..3544738
3139 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1108	 45.48	0	1281555..1282328	+	257	88602430	-	Mhun_1140	-	phosphomethylpyrimidine kinase
1109	 46.49	0	1282586..1285336	+	916	88602431	-	Mhun_1141	-	pyruvate phosphate dikinase
1110	 44.44	0	1285353..1285802	-	149	88602432	-	Mhun_1142	-	hypothetical protein
1111	 43.33	0	1287932..1288501	-	189	88602433	-	Mhun_1144	-	flavin reductase-like, FMN-binding
1112	 44.76	0	1288599..1290077	+	492	88602434	-	Mhun_1145	-	ribonuclease II
1113	 39.75	-1	1290102..1290506	-	134	88602435	-	Mhun_1146	-	anti-sigma-factor antagonist domain-containing protein
1114	 37.73	-1	1290639..1291661	+	340	88602436	-	Mhun_1147	-	putative PAS/PAC sensor protein
1115	 42.82	0	1291671..1293230	-	519	88602437	-	Mhun_1148	-	GHMP kinase group 1
1116	 41.17	0	1293690..1294901	+	403	88602438	-	Mhun_1149	-	thiamine biosynthesis protein ThiC
1117	 39.95	-1	1295017..1295877	-	286	88602439	-	Mhun_1150	-	nucleoside 2-deoxyribosyltransferase
1118	 38.66	-1	1296037..1296693	-	218	88602440	-	Mhun_1151	-	CheC, inhibitor of MCP methylation
1119	 31.97	-2	1296765..1297205	-	146	88602441	-	Mhun_1152	-	hypothetical protein
1120	 47.77	0	1303164..1303925	-	253	88602442	-	Mhun_1153	-	dihydroorotate dehydrogenase electron transfer subunit
1121	 48.87	0	1303918..1304805	-	295	88602443	-	Mhun_1154	-	dihydroorotate dehydrogenase 1B
1122	 44.22	0	1304862..1305734	+	290	88602444	-	Mhun_1155	-	lactate/malate dehydrogenase
1123	 44.81	0	1305745..1308201	+	818	88602445	-	Mhun_1156	-	DNA polymerase B region
1124	 49.52	0	1308209..1309561	+	450	88602446	-	Mhun_1157	-	cobyrinic acid a,c-diamide synthase
1125	 46.19	0	1309565..1311190	-	541	88602447	-	Mhun_1158	-	putative manganese-dependent inorganic pyrophosphatase
1126	 42.74	0	1311283..1311909	+	208	88602448	-	Mhun_1159	-	hypothetical protein
1127	 48.04	0	1312122..1314983	+	953	88602449	-	Mhun_1160	-	excinuclease ABC, A subunit
1128	 44.27	0	1314985..1316547	+	520	88602450	uvrC	Mhun_1161	-	excinuclease ABC subunit C
1129	 44.53	0	1316544..1318472	+	642	88602451	-	Mhun_1162	-	excinuclease ABC subunit B
1130	 44.31	0	1318487..1322056	-	1189	88602452	-	Mhun_1163	-	PKD
1131	 38.34	-1	1322319..1325354	-	1011	88602453	-	Mhun_1164	-	PKD
1132	 43.95	0	1325601..1326071	+	156	88602454	-	Mhun_1165	-	peptidylprolyl isomerase
1133	 44.30	0	1326075..1326758	-	227	88602455	-	Mhun_1166	-	peptidylprolyl isomerase, FKBP-type
1134	 40.91	0	1326809..1327336	+	175	88602456	-	Mhun_1167	-	adenylyl cyclase CyaB, putative
1135	 47.98	0	1327326..1327967	-	213	88602457	-	Mhun_1168	-	metallophosphoesterase
1136	 47.81	0	1327974..1329092	-	372	88602458	-	Mhun_1169	-	radical SAM family protein
1137	 40.76	0	1329095..1329808	-	237	88602459	-	Mhun_1170	-	putative circadian clock protein, KaiC
1138	 40.95	0	1329805..1330671	-	288	88602460	-	Mhun_1171	-	HTR-like protein
1139	 42.54	0	1330877..1332799	+	640	88602461	-	Mhun_1172	-	type II secretion system protein E
1140	 43.30	0	1332796..1334721	+	641	88602462	-	Mhun_1173	-	type II secretion system protein
1141	 42.85	0	1334741..1336789	-	682	88602463	-	Mhun_1174	-	hypothetical protein
1142	 45.60	0	1336951..1338531	-	526	88602464	-	Mhun_1175	-	methyl-accepting chemotaxis sensory transducer
1143	 37.42	-1	1338705..1340342	+	545	88602465	-	Mhun_1176	-	transposase
1144	 45.76	0	1340477..1340806	+	109	88602466	-	Mhun_1177	-	V-type H+-transporting ATPase subunit E
1145	 45.88	0	1340793..1342817	+	674	88602467	-	Mhun_1178	-	V-type ATP synthase subunit I
1146	 53.49	+1	1342843..1343100	+	85	88602468	-	Mhun_1179	-	H+-transporting two-sector ATPase, C subunit
1147	 48.26	0	1343115..1343690	+	191	88602469	-	Mhun_1180	-	H+-transporting two-sector ATPase, E subunit
1148	 47.92	0	1343709..1344764	+	351	88602470	-	Mhun_1181	-	V-type ATP synthase subunit C
1149	 46.53	0	1344766..1345068	+	100	88602471	-	Mhun_1182	-	V-type ATP synthase subunit F
1150	 50.89	+1	1345059..1346807	+	582	88602472	-	Mhun_1183	-	V-type ATP synthase subunit A
1151	 50.47	0	1346808..1348190	+	460	88602473	-	Mhun_1184	-	V-type ATP synthase subunit B
1152	 46.35	0	1348197..1348826	+	209	88602474	-	Mhun_1185	-	V-type ATP synthase subunit D
1153	 41.89	0	1349007..1349228	+	73	88602475	-	Mhun_1186	-	AbrB family transcriptional regulator
1154	 44.32	0	1350442..1351524	+	360	88602476	-	Mhun_1187	-	hypothetical protein
1155	 39.44	-1	1351448..1353067	-	539	88602477	-	Mhun_1188	-	hypothetical protein
1156	 35.63	-2	1353555..1353815	+	86	88602478	-	Mhun_1189	-	hypothetical protein
1157	 39.24	-1	1353875..1354297	+	140	88602479	-	Mhun_1190	-	hypothetical protein
1158	 40.00	-1	1354547..1356151	+	534	88602480	-	Mhun_1191	-	hypothetical protein
1159	 42.07	0	1358193..1359761	-	522	88602481	-	Mhun_1193	-	hypothetical protein
1160	 46.45	0	1359932..1361158	+	408	88602482	-	Mhun_1194	-	phosphoglycerate kinase
1161	 46.19	0	1361223..1362140	+	305	88602483	-	Mhun_1195	-	glyoxalase/bleomycin resistance protein/dioxygenase
1162	 41.01	0	1362194..1363105	+	303	88602484	-	Mhun_1196	-	CRISPR-associated Cas1 family protein
1163	 46.92	0	1363300..1364661	-	453	88602485	-	Mhun_1197	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
1164	 45.48	0	1364648..1365256	-	202	88602486	-	Mhun_1198	-	hypothetical protein
1165	 43.45	0	1365445..1368351	-	968	88602487	-	Mhun_1199	-	multi-sensor signal transduction histidine kinase
1166	 44.71	0	1368406..1369152	-	248	88602488	-	Mhun_1200	-	response regulator receiver domain-containing protein
1167	 48.01	0	1369370..1370275	+	301	88602489	-	Mhun_1201	-	phage integrase
1168	 44.64	0	1370272..1370616	+	114	88602490	-	Mhun_1202	-	hypothetical protein
1169	 46.03	0	1370887..1373076	+	729	88602491	-	Mhun_1203	-	Alpha-glucan phosphorylase
1170	 45.53	0	1373081..1373449	-	122	88602492	-	Mhun_1204	-	hypothetical protein
1171	 42.50	0	1373458..1373697	-	79	88602493	-	Mhun_1205	-	like-Sm ribonucleoprotein, core
1172	 44.87	0	1373758..1374693	-	311	88602494	-	Mhun_1206	-	inositol phosphatase/fructose-1,6-bisphosphatase
1173	 43.04	0	1375335..1376807	+	490	88602495	-	Mhun_1207	-	RNA-directed DNA polymerase
1174	 44.89	0	1376910..1378769	+	619	88602496	-	Mhun_1208	-	multi-sensor signal transduction histidine kinase
1175	 48.37	0	1378794..1378946	+	50	88602497	-	Mhun_1209	-	rubredoxin-type Fe(Cys)4 protein
1176	 46.03	0	1378948..1380570	-	540	88602498	-	Mhun_1210	-	putative PAS/PAC sensor protein
1177	 48.66	0	1380699..1380959	+	86	88602499	-	Mhun_1211	-	acylphosphatase
1178	 46.84	0	1380993..1381466	+	157	88602500	-	Mhun_1212	-	hypothetical protein
1179	 44.07	0	1381548..1382078	+	176	88602501	-	Mhun_1213	-	RDD
1180	 45.76	0	1382083..1382589	-	168	88602502	-	Mhun_1214	-	hypothetical protein
1181	 47.49	0	1382672..1383964	-	430	88602503	-	Mhun_1215	-	peptidase M50
1182	 46.95	0	1384014..1384652	-	212	88602504	-	Mhun_1216	-	ribonuclease HII
1183	 44.19	0	1388659..1389045	+	128	88602505	-	Mhun_1218	-	hypothetical protein
1184	 41.86	0	1389215..1389601	+	128	88602506	-	Mhun_1219	-	hypothetical protein
1185	 40.71	-1	1389957..1390892	-	311	88602507	-	Mhun_1220	-	transposase IS66
1186	 41.55	0	1392129..1393163	-	344	88602508	-	Mhun_1221	-	hypothetical protein
1187	 41.67	0	1393278..1394261	-	327	88602509	-	Mhun_1222	-	hypothetical protein
1188	 42.16	0	1394376..1395395	-	339	88602510	-	Mhun_1223	-	hypothetical protein
1189	 41.57	0	1395510..1396517	-	335	88602511	-	Mhun_1224	-	hypothetical protein
1190	 41.96	0	1396617..1397636	-	339	88602512	-	Mhun_1225	-	hypothetical protein
1191	 41.57	0	1397756..1398775	-	339	88602513	-	Mhun_1226	-	hypothetical protein
1192	 40.77	0	1398891..1399979	-	362	88602514	-	Mhun_1227	-	hypothetical protein
1193	 38.42	-1	1400062..1400670	-	202	88602515	-	Mhun_1228	-	hypothetical protein
1194	 42.85	0	1400783..1403356	-	857	88602516	-	Mhun_1229	-	hypothetical protein
1195	 45.51	0	1403464..1404309	-	281	88602517	-	Mhun_1230	-	hypothetical protein
1196	 43.31	0	1404446..1405918	+	490	88602518	-	Mhun_1231	-	phospholipase D/transphosphatidylase
1197	 44.63	0	1405904..1406824	-	306	88602519	-	Mhun_1232	-	PHP-like
1198	 42.74	0	1406885..1407490	-	201	88602520	-	Mhun_1233	-	hypothetical protein
1199	 40.51	-1	1407560..1409218	+	552	88602521	-	Mhun_1234	-	multi-sensor signal transduction histidine kinase
1200	 42.12	0	1409215..1410102	+	295	88602522	-	Mhun_1235	-	beta-lactamase-like
1201	 42.64	0	1410108..1410698	-	196	88602523	-	Mhun_1236	-	TetR family transcriptional regulator
1202	 43.70	0	1410721..1411926	-	401	88602524	-	Mhun_1237	-	aldo/keto reductase
1203	 46.01	0	1412066..1412341	+	91	88602525	-	Mhun_1238	-	flagellin (flaB1-1)
1204	 40.65	-1	1413026..1413736	-	236	88602526	-	Mhun_1240	-	hypothetical protein
1205	 47.02	0	1414021..1414524	-	167	88602527	-	Mhun_1241	-	acetolactate synthase 3 regulatory subunit
1206	 50.59	0	1414526..1416217	-	563	88602528	-	Mhun_1242	-	acetolactate synthase, large subunit, biosynthetic type
1207	 51.22	+1	1416189..1417703	-	504	88602529	-	Mhun_1243	-	isopropylmalate/citramalate/homocitrate synthase
45.77	MEAN

5.02	STD DEV
