IslandPathversion 1.0

IslandPath Analysis: Methanococcoides burtonii DSM 6242

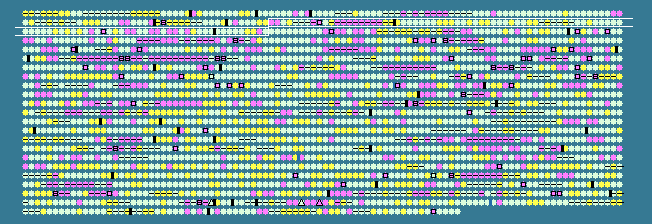

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.89 STD DEV: 4.51
Methanococcoides burtonii DSM 6242, complete genome - 1..2575032
2273 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
142	 33.33	-1	129478..130065	+	195	91772224	-	Mbur_0149	-	hypothetical protein
143	 35.61	-1	134240..135031	-	263	91772225	-	Mbur_0155	-	hypothetical protein
144	 39.96	0	135080..135532	-	150	91772226	-	Mbur_0156	-	hypothetical protein
145	 49.00	+1	135938..137086	-	382	91772227	-	Mbur_0157	-	AAA ATPase
146	 40.91	0	137348..137941	-	197	91772228	-	Mbur_0158	-	phosphoesterase, PA-phosphatase related
147	 40.65	0	138540..138785	-	81	91772229	-	Mbur_0159	-	hypothetical protein
148	 39.94	0	138861..139223	-	120	91772230	-	Mbur_0160	-	hypothetical protein
149	 32.73	-2	139878..140873	+	331	91772231	-	Mbur_0161	-	hypothetical protein
150	 36.59	-1	141168..142334	-	388	91772232	-	Mbur_0162	-	transposase
151	 40.64	0	143381..143722	+	113	91772233	-	Mbur_0164	-	hypothetical protein
152	 47.30	+1	143844..144695	+	283	91772234	-	Mbur_0165	-	UbiE/COQ5 methyltransferase
153	 28.83	-2	145426..145980	+	184	91772235	-	Mbur_0166	-	ArsR family transcriptional regulator
154	 34.31	-1	145977..146894	-	305	91772236	-	Mbur_0167	-	hypothetical protein
155	 31.76	-2	146910..147608	-	232	91772237	-	Mbur_0168	-	hypothetical protein
156	 36.60	-1	147931..148665	+	244	91772238	-	Mbur_0169	-	hypothetical protein
157	 37.27	-1	148695..149963	+	422	91772239	-	Mbur_0170	-	radical SAM family Fe-S protein
158	 29.59	-2	149941..150714	+	257	91772240	-	Mbur_0171	-	alpha/beta hydrolase
159	 31.76	-2	151491..153074	+	527	91772241	-	Mbur_0172	-	hypothetical protein
160	 32.54	-2	153079..153963	+	294	91772242	-	Mbur_0173	-	hypothetical protein
161	 49.36	+1	154400..156034	-	544	91772243	-	Mbur_0174	-	acetolactate synthase, large subunit
162	 49.49	+1	156036..157403	-	455	91772244	-	Mbur_0175	-	succinate-semialdehyde dehydrogenase (NAD(P)+)
163	 46.44	+1	157947..158297	-	116	91772245	-	Mbur_0176	-	hypothetical protein
164	 42.93	0	158321..158518	-	65	91772246	-	Mbur_0177	-	small ribonucleoprotein
165	 44.09	0	158685..159056	-	123	91772247	-	Mbur_0178	-	hypothetical protein
166	 44.55	0	159147..161624	-	825	91772248	-	Mbur_0179	-	DEAD/DEAH box helicase-like protein
167	 38.98	0	161797..162699	+	300	91772249	-	Mbur_0180	-	hypothetical protein
168	 42.22	0	163649..164413	-	254	91772250	-	Mbur_0182	-	methylthioadenosine phosphorylase
169	 40.81	0	164432..165568	-	378	91772251	-	Mbur_0183	-	hypothetical protein
170	 48.24	+1	165839..166462	-	207	91772252	-	Mbur_0184	-	hypothetical protein
171	 47.34	+1	166478..169654	-	1058	91772253	ileS	Mbur_0185	-	isoleucyl-tRNA synthetase
172	 46.00	0	169809..171134	-	441	91772254	-	Mbur_0186	-	L-lysine 2,3-aminomutase
173	 41.53	0	171407..171955	+	182	91772255	-	Mbur_0187	-	RNA-binding protein
174	 41.21	0	172131..172511	+	126	91772256	-	Mbur_0188	-	hypothetical protein
175	 45.65	0	172508..173173	+	221	91772257	-	Mbur_0189	-	ZPR1-like zinc finger protein
176	 45.09	0	173231..174667	+	478	91772258	-	Mbur_0190	-	prolyl-tRNA synthetase
177	 45.50	0	174690..175733	+	347	91772259	-	Mbur_0191	-	hypothetical protein
178	 47.81	+1	176578..177171	+	197	91772260	-	Mbur_0192	-	50S ribosomal protein L15e
179	 45.18	0	177168..177623	+	151	91772261	-	Mbur_0193	-	hypothetical protein
180	 44.49	0	177616..178341	+	241	91772262	-	Mbur_0194	-	ribonuclease P protein component 3
181	 44.44	0	178338..178706	+	122	91772263	-	Mbur_0195	-	ribonuclease P-related protein
182	 46.72	+1	178818..179609	+	263	91772264	-	Mbur_0196	-	proteasome subunit alpha
183	 44.30	0	179653..180345	+	230	91772265	-	Mbur_0197	-	putative RNA-associated protein
184	 42.17	0	180357..181148	+	263	91772266	-	Mbur_0198	-	exosome complex RNA-binding protein Rrp4
185	 46.51	+1	181199..182230	+	343	91772267	-	Mbur_0199	-	exosome complex exonuclease Rrp41
186	 45.38	0	182223..183002	+	259	91772268	-	Mbur_0200	-	exosome complex RNA-binding protein Rrp42
187	 43.40	0	183096..183383	+	95	91772269	rpl37ae	Mbur_0201	-	50S ribosomal protein L37Ae
188	 47.52	+1	183389..183529	+	46	91772270	-	Mbur_0202	-	DNA-directed RNA polymerase subunit P
189	 39.53	0	183536..184003	+	155	91772271	-	Mbur_0203	-	Imp4 family protein
190	 43.14	0	184000..184254	+	84	91772272	-	Mbur_0204	-	hypothetical protein
191	 47.18	+1	184339..184692	+	117	91772273	-	Mbur_0205	-	prefoldin, beta subunit
192	 44.51	0	184754..185719	+	321	91772274	-	Mbur_0206	-	phosphoesterase, RecJ-like protein
193	 44.60	0	185770..187074	+	434	91772275	-	Mbur_0207	-	phenylacetate-CoA ligase
194	 43.84	0	187118..187555	+	145	91772276	-	Mbur_0208	-	amino acid-binding (ACT) protein
195	 46.15	0	187655..188005	+	116	91772277	-	Mbur_0209	-	hypothetical protein
196	 44.07	0	188022..188999	+	325	91772278	-	Mbur_0210	-	hypothetical protein
197	 39.36	0	189047..189859	-	270	91772279	-	Mbur_0211	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
198	 42.17	0	189863..191152	+	429	91772280	-	Mbur_0212	-	hypothetical protein
199	 43.78	0	191160..192107	+	315	91772281	-	Mbur_0213	-	triphosphoribosyl-dephospho-CoA protein
200	 41.21	0	192107..192703	+	198	91772282	-	Mbur_0214	-	hypothetical protein
201	 42.92	0	192707..193186	+	159	91772283	-	Mbur_0215	-	CMP/dCMP deaminase, zinc-binding
202	 40.29	0	193202..194092	-	296	91772284	-	Mbur_0216	-	TPR repeat-containing protein
203	 42.16	0	194363..196921	+	852	91772285	-	Mbur_0217	-	multi-sensor protein
204	 43.50	0	197068..197913	+	281	91772286	-	Mbur_0218	-	hypothetical protein
205	 43.79	0	198129..198482	+	117	91772287	rpl7ae	Mbur_0219	-	50S ribosomal protein L7Ae
206	 46.76	+1	198505..198720	+	71	91772288	rps28e	Mbur_0220	-	30S ribosomal protein S28e
207	 43.39	0	198726..198914	+	62	91772289	-	Mbur_0221	-	50S ribosomal protein L24e
208	 47.78	+1	198929..199378	+	149	91772290	-	Mbur_0222	-	nucleoside diphosphate kinase
209	 44.37	0	199534..201309	+	591	91772291	-	Mbur_0223	-	translation initiation factor IF-2
210	 45.83	0	201400..201807	+	135	91772292	-	Mbur_0224	-	30S ribosomal protein S6e
211	 41.77	0	202102..203346	+	414	91772293	-	Mbur_0225	-	TPR repeat-containing protein
212	 31.37	-2	203379..203735	+	118	91772294	-	Mbur_0226	-	hypothetical protein
213	 39.95	0	203797..204189	+	130	91772295	-	Mbur_0227	-	thioredoxin-related
214	 34.33	-1	204212..205420	-	402	91772296	-	Mbur_0228	-	transposase, IS204/IS1001/IS1096/IS1165
215	 40.89	0	205728..206336	-	202	91772297	-	Mbur_0229	-	hypothetical protein
216	 47.86	+1	206429..206779	-	116	91772298	-	Mbur_0230	-	hypothetical protein
217	 41.73	0	206805..207638	-	277	91772299	-	Mbur_0231	-	ArsR family transcriptional regulator
218	 35.95	-1	207722..207874	-	50	91772300	-	Mbur_0232	-	hypothetical protein
219	 37.33	-1	208509..208808	-	99	91772301	-	Mbur_0233	-	hypothetical protein
220	 42.70	0	209263..210009	-	248	91772302	-	Mbur_0234	-	ArsR family transcriptional regulator
221	 44.14	0	210212..211294	+	360	91772303	-	Mbur_0235	-	hypothetical protein
222	 36.40	-1	211391..211651	+	86	91772304	-	Mbur_0236	-	hypothetical protein
223	 38.01	0	211740..212423	+	227	91772305	-	Mbur_0237	-	hypothetical protein
224	 39.39	0	213078..213539	+	153	91772306	-	Mbur_0239	-	cell surface protein
225	 37.32	-1	213548..214576	+	342	91772307	-	Mbur_0240	-	hypothetical protein
226	 38.23	0	214677..215003	+	108	91772308	-	Mbur_0241	-	hypothetical protein
227	 44.44	0	217249..217545	+	98	91772309	-	Mbur_0243	-	hypothetical protein
228	 34.59	-1	217893..218210	-	105	91772310	-	Mbur_0244	-	hypothetical protein
229	 46.70	+1	218268..219659	+	463	91772311	-	Mbur_0245	-	DEAD/DEAH box helicase-like protein
230	 42.89	0	219967..220740	-	257	91772312	-	Mbur_0246	-	hypothetical protein
231	 43.65	0	222529..224283	-	584	91772313	-	Mbur_0248	-	peptidase M50
232	 43.05	0	224408..224860	-	150	91772314	-	Mbur_0249	-	hypothetical protein
233	 45.25	0	225226..226056	+	276	91772315	-	Mbur_0250	-	fumarate hydratase
234	 43.11	0	226056..226628	+	190	91772316	-	Mbur_0251	-	fumarate hydratase
235	 42.25	0	226742..227728	-	328	91772317	-	Mbur_0252	-	type II secretion system protein
236	 40.39	0	227731..228651	-	306	91772318	-	Mbur_0253	-	type II secretion system protein
237	 39.85	0	228644..230608	-	654	91772319	-	Mbur_0254	-	type II secretion system protein E
238	 46.42	+1	230876..232396	+	506	91772320	-	Mbur_0255	-	thymidine phosphorylase
239	 47.49	+1	232402..232938	+	178	91772321	-	Mbur_0256	-	tRNA 2'-O-methylase
240	 32.32	-2	233028..234116	+	362	91772322	-	Mbur_0257	-	hypothetical protein
241	 43.86	0	234341..235081	-	246	91772323	-	Mbur_0258	-	hypothetical protein
41.89	MEAN

4.51	STD DEV
