IslandPath Analysis: Geobacter sulfurreducens PCA

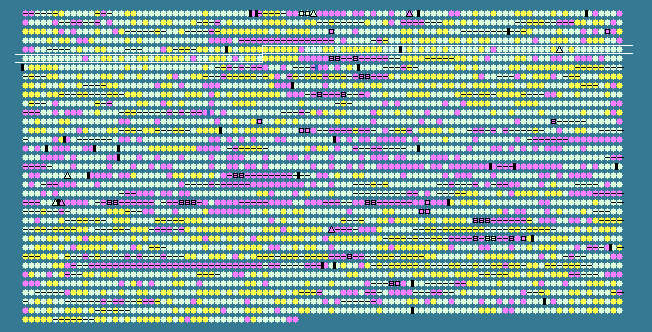

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
441	 65.71	0	475021..476166	+	381	39995551	-	GSU0443	-	ribonuclease D, putative
442	 65.01	0	476304..477026	-	240	39995552	-	GSU0444	-	hypothetical protein
443	 66.02	0	476386..477006	+	206	39995553	-	GSU0445	-	hypothetical protein
444	 65.39	0	477066..477848	-	260	39995554	-	GSU0446	-	hypothetical protein
445	 67.00	+1	477851..478750	-	299	39995555	prmA	GSU0447	-	ribosomal protein L11 methyltransferase
446	 64.43	0	478895..480058	+	387	39995556	-	GSU0448	-	hydrolase, putative
447	 44.76	-2	480111..480215	-	34	39995557	-	GSU0449	-	hypothetical protein
448	 61.60	0	480195..481004	+	269	39995558	-	GSU0450	-	hypothetical protein
449	 58.37	0	481052..481726	+	224	39995559	-	GSU0451	-	DNA-binding response regulator
450	 61.70	0	481730..483139	+	469	39995560	-	GSU0452	-	sensor histidine kinase
451	 64.89	0	483145..483876	+	243	39995561	pfs	GSU0453	-	MTA/SAH nucleosidase
452	 64.64	0	483876..484712	+	278	39995562	-	GSU0454	-	hypothetical protein
453	 58.28	0	484815..485267	+	150	39995563	-	GSU0455	-	lipoprotein A domain-containing protein
454	 64.55	0	485319..487868	-	849	39995564	-	GSU0456	-	hypothetical protein
455	 66.81	+1	487869..488558	-	229	39995565	-	GSU0457	-	putative lipoprotein
456	 66.67	+1	489195..489584	-	129	39995566	-	GSU0458	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase, putative
457	 67.45	+1	489577..490602	-	341	39995567	-	GSU0459	-	beta-ketoacyl synthase domain-containing protein
458	 67.33	+1	490614..491819	-	401	39995568	fabF-1	GSU0460	-	3-oxoacyl-(acyl-carrier-protein) synthase II
459	 67.07	+1	491954..492694	-	246	39995569	fabG-1	GSU0461	-	3-oxoacyl-(acyl carrier protein) reductase
460	 65.46	0	492743..493816	-	357	39995570	-	GSU0462	-	M48 family peptidase
461	 63.84	0	493813..494943	-	376	39995571	-	GSU0463	-	hypothetical protein
462	 62.50	0	495068..495283	-	71	39995572	-	GSU0464	-	S4 domain-containing protein
463	 62.59	0	495363..495926	+	187	39995573	efp-1	GSU0465	-	translation elongation factor P
464	 62.63	0	496167..497207	-	346	39995574	ccpA-1	GSU0466	-	cytochrome c551 peroxidase
465	 64.74	0	497302..498183	-	293	39995575	-	GSU0467	-	hypothetical protein
466	 62.38	0	498210..498722	-	170	39995576	-	GSU0468	-	hypothetical protein
467	 71.47	+2	498751..499104	-	117	39995577	-	GSU0469	-	hypothetical protein
468	 63.58	0	499286..500647	-	453	39995578	-	GSU0470	-	sigma-54 dependent response regulator
469	 64.29	0	500664..501923	-	419	39995579	-	GSU0471	-	sensor histidine kinase
470	 60.22	0	502068..502532	+	154	39995580	-	GSU0472	-	hypothetical protein
471	 64.38	0	502666..503670	+	334	39995581	-	GSU0473	-	transcriptional regulator, putative
472	 60.61	0	503803..506181	+	792	39995582	-	GSU0474	-	sensory box/GGDEF family protein
473	 60.03	0	506171..508039	-	622	39995583	-	GSU0475	-	sensory box histidine kinase
474	 63.48	0	508371..509531	+	386	39995584	-	GSU0476	-	hypothetical protein
475	 63.54	0	509602..510240	+	212	39995585	-	GSU0477	-	HAD superfamily hydrolase
476	 59.69	0	510237..510695	+	152	39995586	-	GSU0478	-	hypothetical protein
477	 66.59	+1	510727..512118	+	463	39995587	aspA	GSU0479	-	aspartate ammonia-lyase
478	 60.89	0	512162..512386	+	74	39995588	-	GSU0480	-	NifU-like domain-containing protein
479	 57.21	0	512423..512623	+	66	39995589	-	GSU0481	-	hypothetical protein
480	 62.47	0	512758..513948	+	396	39995590	-	GSU0482	-	cardiolipin synthetase, putative
481	 62.32	0	514039..514752	+	237	39995591	-	GSU0483	-	exsB protein
482	 58.43	0	514818..515594	+	258	39995592	-	GSU0484	-	putative GTP cyclohydrolase
483	 62.74	0	515708..516445	+	245	39995593	-	GSU0485	-	hypothetical protein
484	 62.20	0	516396..517604	-	402	39995594	ilvA	GSU0486	-	threonine dehydratase
485	 61.75	0	517626..518621	-	331	39995595	-	GSU0487	-	cation efflux family protein
486	 62.78	0	518779..519729	+	316	39995596	trxB	GSU0488	-	thioredoxin reductase
487	 62.35	0	519735..521264	+	509	39995597	-	GSU0489	-	Mg chelatase-related protein
488	 60.09	0	521516..523111	+	531	39995598	-	GSU0490	-	acetyl-CoA hydrolase/transferase family protein
489	 64.45	0	523215..524567	-	450	39995599	rhlE-1	GSU0491	-	ATP-dependent RNA helicase RhlE
490	 63.50	0	524995..525879	-	294	39995600	-	GSU0492	-	phage integrase family site specific recombinase
491	 62.62	0	526070..527329	+	419	39995601	-	GSU0493	-	pyridine nucleotide-disulphide oxidoreductase family protein
492	 65.69	0	527317..528447	+	376	39995602	-	GSU0494	-	iron-sulfur cluster-binding protein
493	 61.01	0	528549..528707	+	52	39995603	-	GSU0495	-	hypothetical protein
494	 62.45	0	528747..529955	+	402	39995604	-	GSU0496	-	RND family efflux transporter MFP subunit
495	 59.65	0	531917..532087	+	56	39995605	-	GSU0498	-	hypothetical protein
496	 62.17	0	532095..532850	-	251	39995606	-	GSU0499	-	M23/M37 peptidase domain-containing protein
497	 60.82	0	533056..534852	+	598	39995607	typA	GSU0500	-	GTP-binding protein TypA
498	 57.52	0	534968..535732	+	254	39995608	-	GSU0501	-	putative lipoprotein
499	 63.98	0	535734..536105	+	123	39995609	-	GSU0502	-	putative lipoprotein
500	 61.23	0	536089..536511	+	140	39995610	-	GSU0503	-	crcB protein
501	 60.28	0	536521..536880	+	119	39995611	-	GSU0504	-	hypothetical protein
502	 61.18	0	536877..537386	+	169	39995612	-	GSU0505	-	rhodanese-like domain-containing protein
503	 57.31	0	537386..537802	+	138	39995613	-	GSU0506	-	methylamine utilization protein MauE, putative
504	 61.71	0	537876..538460	+	194	39995614	-	GSU0507	-	hypothetical protein
505	 59.24	0	538457..539479	+	340	39995615	-	GSU0508	-	hypothetical protein
506	 59.45	0	539537..542071	-	844	39995616	sfrA	GSU0509	-	Fe(III) reductase, alpha subunit
507	 60.62	0	542195..544213	-	672	39995617	sfrB	GSU0510	-	Fe(III) reductase, beta subunit
508	 58.42	0	544177..545607	+	476	39995618	-	GSU0511	-	hypothetical protein
509	 60.94	0	545697..547337	+	546	39995619	-	GSU0512	-	hypothetical protein
510	 63.97	0	547440..548033	+	197	39995620	-	GSU0513	-	dephospho-CoA kinase
511	 56.70	0	548065..548847	-	260	39995621	-	GSU0514	-	IclR family transcriptional regulator
512	 57.89	0	549161..549616	+	151	39995622	-	GSU0515	-	universal stress protein
513	 59.09	0	549749..550540	-	263	39995623	-	GSU0516	-	hypothetical protein
514	 64.61	0	550546..551760	-	404	39995624	-	GSU0517	-	hypothetical protein
515	 65.35	0	551782..553305	-	507	39995625	-	GSU0518	-	sodium/solute symporter family protein
516	 58.72	0	553298..553624	-	108	39995626	-	GSU0519	-	hypothetical protein
517	 68.87	+1	553701..554927	-	408	39995627	-	GSU0520	-	hypothetical protein
518	 59.84	0	554931..555560	-	209	39995628	-	GSU0521	-	methyltransferase, putative
519	 63.89	0	555700..557031	+	443	39995629	rhlB	GSU0522	-	ATP-dependent RNA helicase RhlB
520	 67.67	+1	557100..558890	-	596	39995630	pabB	GSU0523	-	para-aminobenzoate synthase, component I
521	 65.82	0	558887..559594	-	235	39995631	-	GSU0524	-	hypothetical protein
522	 62.31	0	559887..560345	-	152	39995632	dtd	GSU0525	-	D-tyrosyl-tRNA deacylase
523	 69.35	+1	560342..560863	-	173	39995633	-	GSU0526	-	hypothetical protein
524	 64.42	0	561008..562702	-	564	39995634	-	GSU0527	-	TrkA domain-containing protein
525	 69.21	+1	562724..563548	-	274	39995635	-	GSU0528	-	nitroreductase family protein
526	 64.42	0	563536..564426	-	296	39995636	nfo	GSU0529	-	endonuclease IV
527	 65.48	0	564430..564849	-	139	39995637	-	GSU0530	-	HIT family protein
528	 62.43	0	564955..565803	-	282	39995638	dapF	GSU0531	-	diaminopimelate epimerase
529	 51.25	-1	565957..566235	-	92	39995639	-	GSU0532	-	hypothetical protein
530	 60.74	0	566260..566664	+	134	39995640	-	GSU0533	-	cytochrome c family protein, putative
531	 58.28	0	566814..567278	+	154	39995641	-	GSU0534	-	Rrf2 family protein
532	 65.04	0	567299..568222	+	307	39995642	cysK	GSU0535	-	cysteine synthase A
533	 64.69	0	568286..569095	+	269	39995643	-	GSU0536	-	hypothetical protein
534	 64.76	0	569343..571391	+	682	39995644	-	GSU0537	-	sensory box/GGDEF family protein
535	 60.14	0	571372..571815	-	147	39995645	-	GSU0538	-	HSP20 family protein
536	 51.41	-1	571962..572138	-	58	39995646	-	GSU0539	-	hypothetical protein
537	 60.48	0	572364..572573	+	69	39995647	-	GSU0540	-	hypothetical protein
538	 66.52	+1	572574..575249	+	891	39995648	polA	GSU0541	-	DNA polymerase I
539	 64.42	0	575439..576464	+	341	39995649	-	GSU0542	-	GGDEF domain-containing protein
540	 63.45	0	576489..576986	-	165	39995650	-	GSU0543	-	Slp family outer membrane lipoprotein
60.71	MEAN

5.38	STD DEV
