IslandPath Analysis: Geobacter sulfurreducens PCA

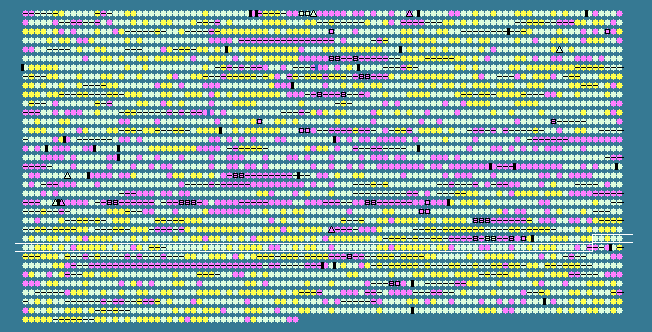

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2596	 63.31	0	2882323..2882829	-	168	39997706	-	GSU2612	-	rubrerythrin/rubredoxin protein, putative
2597	 61.62	0	2882887..2883777	-	296	39997707	-	GSU2613	-	cation efflux family protein
2598	 67.99	+1	2883767..2885503	-	578	39997708	recJ	GSU2614	-	single-stranded-DNA-specific exonuclease RecJ
2599	 60.58	0	2885565..2886155	-	196	39997709	-	GSU2615	-	TPR domain-containing protein
2600	 58.53	0	2886169..2887077	-	302	39997710	secF	GSU2616	-	preprotein translocase subunit SecF
2601	 62.23	0	2887086..2888687	-	533	39997711	secD	GSU2617	-	preprotein translocase subunit SecD
2602	 62.31	0	2888713..2889033	-	106	39997712	-	GSU2618	-	preprotein translocase, YajC subunit
2603	 64.71	0	2889104..2890225	-	373	39997713	tgt-2	GSU2619	-	queuine tRNA-ribosyltransferase
2604	 67.93	+1	2890299..2891330	-	343	39997714	queA	GSU2620	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2605	 64.29	0	2891317..2892282	-	321	39997715	-	GSU2621	-	stage II sporulation-related protein
2606	 59.79	0	2892888..2895026	+	712	39997716	-	GSU2622	-	HAMP domain/GAF domain/HD domain-containing protein
2607	 66.46	+1	2895130..2896092	+	320	39997717	-	GSU2623	-	peptide ABC transporter, ATP-binding protein
2608	 62.25	0	2896089..2897084	+	331	39997718	-	GSU2624	-	peptide ABC transporter, ATP-binding protein
2609	 55.56	0	2897198..2897476	+	92	39997719	-	GSU2625	-	ArsR family transcriptional regulator
2610	 64.32	0	2897545..2898735	+	396	39997720	-	GSU2626	-	hypothetical protein
2611	 67.79	+1	2898797..2899600	-	267	39997721	-	GSU2627	-	biotin synthesis protein, putative
2612	 66.06	0	2899593..2900414	-	273	39997722	-	GSU2628	-	non-heme peroxidase, putative
2613	 68.54	+1	2900426..2901601	-	391	39997723	bioF	GSU2629	-	8-amino-7-oxononanoate synthase
2614	 65.64	0	2901768..2902451	+	227	39997724	-	GSU2630	-	serine/threonine protein phosphatase, putative
2615	 59.47	0	2902448..2902864	+	138	39997725	-	GSU2631	-	hypothetical protein
2616	 65.37	0	2902943..2904178	+	411	39997726	-	GSU2632	-	GGDEF domain-containing protein
2617	 62.46	0	2904304..2904921	+	205	39997727	-	GSU2633	-	putative lipoprotein
2618	 58.63	0	2905012..2905347	-	111	39997728	-	GSU2634	-	hypothetical protein
2619	 56.19	0	2905385..2905804	-	139	39997729	-	GSU2635	-	hypothetical protein
2620	 64.67	0	2905877..2907730	-	617	39997730	-	GSU2636	-	alpha-amylase family protein
2621	 61.70	0	2907815..2908801	-	328	39997731	-	GSU2637	-	alcohol dehydrogenase, zinc-containing
2622	 67.50	+1	2908915..2909394	-	159	39997732	-	GSU2638	-	hypothetical protein
2623	 67.57	+1	2909401..2911500	-	699	39997733	-	GSU2639	-	hypothetical protein
2624	 61.52	0	2911658..2912356	-	232	39997734	-	GSU2640	-	hypothetical protein
2625	 59.18	0	2912401..2913135	-	244	39997735	-	GSU2641	-	hypothetical protein
2626	 62.46	0	2913384..2914073	-	229	39997736	-	GSU2642	-	cytochrome c family protein
2627	 60.42	0	2914105..2914536	-	143	39997737	-	GSU2643	-	cytochrome c family protein
2628	 61.69	0	2914617..2915861	-	414	39997738	-	GSU2644	-	hypothetical protein
2629	 62.44	0	2915960..2916835	-	291	39997739	-	GSU2645	-	cytochrome c family protein
2630	 57.96	0	2917145..2917477	+	110	39997740	-	GSU2646	-	hypothetical protein
2631	 65.86	0	2917553..2918422	-	289	39997741	-	GSU2647	-	hypothetical protein
2632	 57.28	0	2918536..2919057	-	173	39997742	-	GSU2648	-	hypothetical protein
2633	 60.86	0	2919433..2920242	+	269	39997743	-	GSU2649	-	amino acid ABC transporter, amino acid-binding protein
2634	 63.88	0	2920249..2921037	+	262	39997744	-	GSU2650	-	amino acid ABC transporter, permease protein, putative
2635	 66.53	+1	2921027..2921758	+	243	39997745	-	GSU2651	-	amino acid ABC transporter, ATP-binding protein
2636	 60.90	0	2921970..2923148	+	392	39997746	-	GSU2652	-	methyl-accepting chemotaxis protein
2637	 67.29	+1	2923302..2924756	+	484	39997747	-	GSU2653	-	MATE efflux family protein
2638	 68.46	+1	2924871..2925929	+	352	39997748	pdhA	GSU2654	-	pyruvate dehydrogenase complex E1 component, alpha subunit
2639	 69.57	+1	2925945..2926907	+	320	39997749	pdhB	GSU2655	-	pyruvate dehydrogenase complex E1 component, beta subunit
2640	 66.16	+1	2927243..2928421	+	392	39997750	aceF	GSU2656	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2641	 61.51	0	2928502..2931024	-	840	39997751	-	GSU2657	-	spore coat protein A
2642	 52.81	-1	2931002..2931232	+	76	39997752	-	GSU2658	-	putative lipoprotein
2643	 53.15	-1	2931410..2931631	+	73	39997753	-	GSU2659	-	hypothetical protein
2644	 62.28	0	2931669..2932124	+	151	39997754	-	GSU2660	-	hypothetical protein
2645	 63.49	0	2932127..2932693	+	188	39997755	-	GSU2661	-	hypothetical protein
2646	 64.83	0	2932790..2934262	-	490	39997756	-	GSU2662	-	hypothetical protein
2647	 58.79	0	2934433..2934597	-	54	39997757	-	GSU2663	-	putative lipoprotein
2648	 64.33	0	2934692..2939182	-	1496	39997758	-	GSU2664	-	outer membrane efflux protein
2649	 65.37	0	2939179..2940339	-	386	39997759	-	GSU2665	-	RND family efflux transporter MFP subunit
2650	 61.84	0	2940336..2940977	-	213	39997760	-	GSU2666	-	TetR family transcriptional regulator
2651	 62.32	0	2941214..2942710	+	498	39997761	-	GSU2667	-	sensory box histidine kinase
2652	 56.38	0	2942694..2942975	+	93	39997762	-	GSU2668	-	hypothetical protein
2653	 58.33	0	2942972..2944003	+	343	39997763	-	GSU2669	-	sensor histidine kinase
2654	 61.64	0	2944089..2945381	-	430	39997764	-	GSU2670	-	LuxR family transcriptional regulator
2655	 62.50	0	2945693..2947300	+	535	39997765	-	GSU2671	-	hypothetical protein
2656	 62.68	0	2947371..2947847	+	158	39997766	-	GSU2672	-	hypothetical protein
2657	 59.81	0	2947883..2949223	+	446	39997767	-	GSU2673	-	hypothetical protein
2658	 62.99	0	2949285..2953013	+	1242	39997768	-	GSU2674	-	hypothetical protein
2659	 64.15	0	2953225..2955291	-	688	39997769	-	GSU2675	-	hypothetical protein
2660	 69.78	+1	2955391..2956290	-	299	39997770	-	GSU2676	-	hypothetical protein
2661	 68.98	+1	2956339..2957247	-	302	39997771	-	GSU2677	-	hypothetical protein
2662	 57.02	0	2957582..2958037	+	151	39997772	-	GSU2678	-	HSP20 family protein
2663	 68.26	+1	2958166..2958603	+	145	39997773	-	GSU2679	-	hypothetical protein
2664	 65.80	0	2958626..2959087	+	153	39997774	-	GSU2680	-	hypothetical protein
2665	 66.35	+1	2959099..2960655	-	518	39997775	-	GSU2681	-	iron-sulfur cluster-binding protein
2666	 65.76	0	2960670..2961551	-	293	39997776	-	GSU2682	-	hypothetical protein
2667	 64.69	0	2961626..2962534	-	302	39997777	panE	GSU2683	-	2-dehydropantoate 2-reductase
2668	 67.38	+1	2962534..2962815	-	93	39997778	-	GSU2684	-	hypothetical protein
2669	 62.39	0	2962866..2963987	-	373	39997779	-	GSU2685	-	hypothetical protein
2670	 66.02	0	2963990..2966782	-	930	39997780	-	GSU2686	-	ABC transporter, ATP-binding protein
2671	 65.74	0	2966779..2967852	-	357	39997781	-	GSU2687	-	HlyD family secretion protein
2672	 56.06	0	2967889..2968020	-	43	39997782	-	GSU2688	-	hypothetical protein
2673	 61.62	0	2968017..2968115	-	32	39997783	-	GSU2689	-	hypothetical protein
2674	 62.88	0	2968161..2968925	-	254	39997784	-	GSU2690	-	hypothetical protein
2675	 60.06	0	2968929..2970215	-	428	39997785	-	GSU2691	-	hypothetical protein
2676	 63.03	0	2970258..2971247	-	329	39997786	-	GSU2692	-	immunogenic protein family protein
2677	 51.42	-1	2971392..2971778	-	128	39997787	-	GSU2693	-	response regulator
2678	 54.76	-1	2972203..2972328	+	41	39997788	-	GSU2694	-	hypothetical protein
2679	 63.09	0	2972298..2973836	-	512	39997789	-	GSU2695	-	outer membrane efflux protein
2680	 60.30	0	2973838..2976996	-	1052	39997790	-	GSU2696	-	AcrB/AcrD/AcrF family protein
2681	 63.34	0	2977070..2978272	-	400	39997791	-	GSU2697	-	multidrug resistance protein
2682	 56.37	0	2978501..2979112	-	203	39997792	-	GSU2698	-	TetR family transcriptional regulator
2683	 58.85	0	2979466..2979849	+	127	39997793	-	GSU2699	-	molybdopterin converting factor, subunit 2
2684	 57.90	0	2979878..2980687	+	269	39997794	-	GSU2700	-	tungstate ABC transporter, periplasmic tungstate-binding protein, putative
2685	 65.65	0	2980760..2981446	+	228	39997795	-	GSU2701	-	ABC transporter, permease protein
2686	 63.16	0	2981454..2982194	+	246	39997796	-	GSU2702	-	ABC transporter, ATP-binding protein
2687	 65.44	0	2982149..2983366	+	405	39997797	moeA	GSU2703	-	molybdopterin biosynthesis protein MoeA
2688	 64.80	0	2983379..2983861	+	160	39997798	moaC	GSU2704	-	molybdenum cofactor biosynthesis protein MoaC
2689	 66.87	+1	2983858..2984349	+	163	39997799	moaB	GSU2705	-	molybdenum cofactor biosynthesis protein B
2690	 61.98	0	2984470..2985471	+	333	39997800	-	GSU2706	-	phosphate acetyltransferase
2691	 57.35	0	2985616..2986881	-	421	39997801	ackA-1	GSU2707	-	acetate kinase
2692	 59.06	0	2987136..2987306	+	56	39997802	-	GSU2708	-	ferredoxin family protein
2693	 52.03	-1	2987293..2987415	-	40	39997803	-	GSU2709	-	hypothetical protein
2694	 61.18	0	2987509..2988765	-	418	39997804	-	GSU2710	-	hypothetical protein
2695	 54.42	-1	2988923..2989069	-	48	39997805	-	GSU2711	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
