IslandPath Analysis: Geobacter sulfurreducens PCA

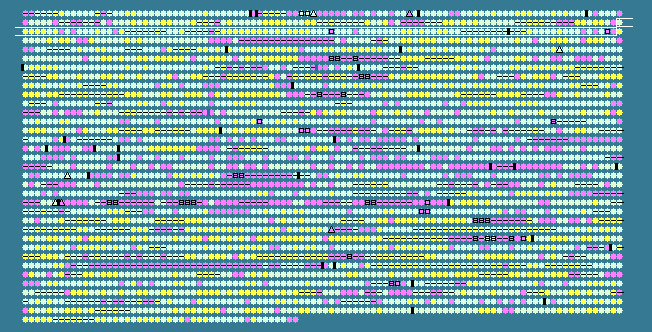

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
200	 64.12	0	210179..210649	+	156	39995310	iorA	GSU0200	-	isoquinoline 1-oxidoreductase, alpha subunit
201	 66.99	+1	210646..212817	+	723	39995311	iorB	GSU0201	-	isoquinoline 1-oxidoreductase, beta subunit
202	 68.56	+1	212880..213620	+	246	39995312	-	GSU0202	-	hypothetical protein
203	 69.44	+1	213617..214228	+	203	39995313	-	GSU0203	-	hypothetical protein
204	 64.39	0	214293..215651	+	452	39995314	-	GSU0204	-	radical SAM domain-containing protein
205	 60.93	0	215676..216302	+	208	39995315	-	GSU0205	-	TetR family transcriptional regulator
206	 64.89	0	216299..217201	+	300	39995316	-	GSU0206	-	zinc transporter ZupT
207	 53.23	-1	217397..217597	+	66	39995317	-	GSU0207	-	cold-shock domain-contain protein
208	 63.42	0	217769..218569	+	266	39995318	-	GSU0208	-	hypothetical protein
209	 52.82	-1	218729..218923	+	64	39995319	-	GSU0209	-	hypothetical protein
210	 61.16	0	219077..220039	+	320	39995320	-	GSU0210	-	hypothetical protein
211	 58.88	0	220056..220967	+	303	39995321	-	GSU0211	-	ABC transporter, permease protein, putative
212	 57.89	0	220960..221757	+	265	39995322	-	GSU0212	-	ABC transporter, ATP-binding protein
213	 68.37	+1	222018..223307	+	429	39995323	-	GSU0213	-	radical SAM domain-containing protein
214	 60.81	0	223673..224560	+	295	39995324	-	GSU0214	-	hypothetical protein
215	 58.65	0	224725..225597	+	290	39995325	folD-1	GSU0215	-	folD bifunctional protein
216	 56.48	0	225681..225896	-	71	39995326	-	GSU0216	-	hypothetical protein
217	 64.90	0	226424..226990	+	188	39995327	-	GSU0217	-	nitroreductase family protein
218	 63.44	0	227086..227922	+	278	39995328	-	GSU0218	-	hypothetical protein
219	 62.79	0	227919..229544	+	541	39995329	-	GSU0219	-	cytochrome c oxidase, subunit I
220	 63.52	0	229541..230143	+	200	39995330	-	GSU0220	-	cytochrome c oxidase, subunit III
221	 62.89	0	230160..230450	+	96	39995331	-	GSU0221	-	cytochrome c oxidase, subunit IV
222	 62.63	0	230508..231374	+	288	39995332	-	GSU0222	-	cytochrome c oxidase, subunit II
223	 70.60	+1	231371..232183	+	270	39995333	-	GSU0223	-	protoheme IX farnesyl transferase, putative
224	 63.36	0	232204..232536	-	110	39995334	-	GSU0224	-	hypothetical protein
225	 62.50	0	232553..232768	+	71	39995335	-	GSU0225	-	hypothetical protein
226	 63.78	0	232930..234558	+	542	39995336	-	GSU0226	-	L-lactate permease, putative
227	 69.50	+1	234575..235492	+	305	39995337	-	GSU0227	-	type II DNA modification methyltransferase, putative
228	 61.11	0	235556..236059	-	167	39995338	-	GSU0228	-	peptidyl-prolyl cis-trans isomerase, FKBP-type, putative
229	 63.64	0	236228..237880	+	550	39995339	alkK	GSU0229	-	acyl-CoA synthetase
230	 62.37	0	237886..238956	-	356	39995340	pilT-2	GSU0230	-	twitching motility protein PilT
231	 63.57	0	239002..240777	-	591	39995341	-	GSU0231	-	hypothetical protein
232	 48.15	-2	240866..240973	-	35	39995342	-	GSU0232	-	hypothetical protein
233	 66.82	+1	241033..241692	+	219	39995343	-	GSU0233	-	hypothetical protein
234	 65.31	0	241707..242519	+	270	39995344	-	GSU0234	-	FNT family protein
235	 68.59	+1	242523..244808	-	761	39995345	-	GSU0235	-	S1 RNA-binding domain-containing protein
236	 68.59	+1	244889..245305	-	138	39995346	-	GSU0236	-	hypothetical protein
237	 68.13	+1	245317..245793	-	158	39995347	-	GSU0237	-	MaoC-like domain-containing protein
238	 69.05	+1	245855..247240	-	461	39995348	-	GSU0238	-	radical SAM domain-containing protein
239	 68.56	+1	247237..247659	-	140	39995349	-	GSU0239	-	hypothetical protein
240	 69.16	+1	247661..248503	-	280	39995350	-	GSU0240	-	malonyl CoA-acyl carrier protein transacylase, putative
241	 67.05	+1	248506..249798	-	430	39995351	-	GSU0241	-	BchE/P-methylase family protein
242	 62.40	0	249795..250052	-	85	39995352	acpP-1	GSU0242	-	acyl carrier protein
243	 67.22	+1	250057..250956	-	299	39995353	-	GSU0243	-	hypothetical protein
244	 62.96	0	251048..252424	-	458	39995354	-	GSU0244	-	radical SAM domain-containing protein
245	 68.02	+1	252474..253136	-	220	39995355	-	GSU0245	-	glycosyl transferase, group 2 family protein
246	 69.43	+1	253121..253951	-	276	39995356	-	GSU0246	-	polysaccharide deacetylase domain-containing protein
247	 68.44	+1	254133..255596	+	487	39995357	-	GSU0247	-	radical SAM domain-containing protein
248	 67.91	+1	255596..256882	+	428	39995358	-	GSU0248	-	BchE/P-methylase family protein
249	 62.88	0	256943..257920	+	325	39995359	-	GSU0249	-	hypothetical protein
250	 61.00	0	257966..258406	+	146	39995360	-	GSU0250	-	hypothetical protein
251	 62.75	0	258486..258791	-	101	39995361	-	GSU0251	-	hypothetical protein
252	 51.03	-1	259068..260186	+	372	39995362	-	GSU0252	-	ISGsu1, transposase
253	 62.33	0	260497..262989	+	830	39995363	-	GSU0253	-	sensory box histidine kinase
254	 59.10	0	262990..263637	+	215	39995364	-	GSU0254	-	LuxR family DNA-binding response regulator
255	 59.86	0	263840..265690	+	616	39995365	-	GSU0255	-	sensory box histidine kinase
256	 53.65	-1	265796..266233	+	145	39995366	-	GSU0256	-	hypothetical protein
257	 62.54	0	266321..266611	-	96	39995367	-	GSU0257	-	hypothetical protein
258	 58.45	0	266599..266805	-	68	39995368	-	GSU0258	-	hypothetical protein
259	 61.23	0	266802..267371	-	189	39995369	-	GSU0259	-	flavoredoxin
260	 63.68	0	267578..268045	-	155	39995370	-	GSU0260	-	universal stress protein
261	 64.18	0	268106..269872	-	588	39995371	-	GSU0261	-	sodium/hydrogen exchanger family protein
262	 57.58	0	270284..270679	-	131	39995372	-	GSU0263	-	hypothetical protein
263	 58.56	0	270365..270475	+	36	39995373	-	GSU0262	-	hypothetical protein
264	 67.56	+1	270803..272038	-	411	39995374	-	GSU0264	-	Bcr/CflA subfamily drug resistance transporter
265	 64.34	0	272096..272998	-	300	39995375	-	GSU0265	-	hypothetical protein
266	 58.66	0	273393..274316	+	307	39995376	-	GSU0266	-	LysR family transcriptional regulator
267	 64.66	0	274646..275392	+	248	39995377	-	GSU0267	-	GntR family transcriptional regulator
268	 62.83	0	275389..276222	+	277	39995378	-	GSU0268	-	hypothetical protein
269	 63.81	0	276219..276533	+	104	39995379	-	GSU0269	-	hypothetical protein
270	 64.81	0	276632..278461	-	609	39995380	glmS	GSU0270	-	glucosamine--fructose-6-phosphate aminotransferase (isomerizing)
271	 65.27	0	278527..279957	-	476	39995381	glmU	GSU0271	-	UDP-N-acetylglucosamine pyrophosphorylase
272	 59.34	0	280118..280663	+	181	39995382	-	GSU0272	-	hypothetical protein
273	 63.22	0	280807..282576	+	589	39995383	-	GSU0273	-	radical SAM domain-containing protein
274	 59.25	0	282877..284736	+	619	39995384	-	GSU0274	-	cytochrome c family protein
275	 57.29	0	285027..285218	-	63	39995385	-	GSU0275	-	hypothetical protein
276	 60.27	0	285252..286424	-	390	39995386	-	GSU0276	-	HlyD family secretion protein
277	 62.93	0	286417..288585	-	722	39995387	-	GSU0277	-	ABC transporter, ATP-binding/permease protein
278	 61.53	0	288582..289847	-	421	39995388	-	GSU0278	-	outer membrane efflux protein
279	 62.89	0	289984..307683	-	5899	39995389	-	GSU0279	-	cadherin domain/calx-beta domain-containing protein
280	 58.31	0	307916..309268	-	450	39995390	-	GSU0280	-	Fis family transcriptional regulator
281	 59.00	0	311187..311447	+	86	39995391	-	GSU0282	-	hypothetical protein
282	 61.18	0	311626..313428	-	600	39995392	-	GSU0283	-	sensor histidine kinase
283	 57.98	0	313467..313823	-	118	39995393	dksA	GSU0284	-	dnaK suppressor protein
284	 64.52	0	313908..315260	-	450	39995394	radA	GSU0285	-	DNA repair protein RadA
285	 64.41	0	315412..317049	+	545	39995395	-	GSU0286	-	HEAT repeat-containing PBS lyase
286	 61.75	0	317042..318403	+	453	39995396	-	GSU0287	-	HD domain-containing protein
287	 63.77	0	318413..319033	-	206	39995397	-	GSU0288	-	HEAT repeat-containing PBS lyase
288	 60.66	0	319102..319434	+	110	39995398	-	GSU0289	-	hypothetical protein
289	 60.86	0	319532..320512	+	326	39995399	fabH-1	GSU0290	-	3-oxoacyl-(acyl-carrier-protein) synthase III
290	 66.01	0	320502..321560	-	352	39995400	-	GSU0291	-	CheR methyltransferase SAM binding domain-containing protein
291	 63.74	0	321610..321951	+	113	39995401	-	GSU0292	-	hypothetical protein
292	 63.45	0	321952..323040	-	362	39995402	cheB-1	GSU0293	-	protein-glutamate methylesterase
293	 59.32	0	323047..323958	-	303	39995403	-	GSU0294	-	HD domain-containing protein
294	 50.96	-1	323955..324788	-	277	39995404	cheR-1	GSU0295	-	chemotaxis protein methyltransferase CheR
295	 61.92	0	324839..326671	-	610	39995405	-	GSU0296	-	chemotaxis protein CheA, putative
296	 56.57	0	326720..327214	-	164	39995406	cheW-1	GSU0297	-	purine-binding chemotaxis protein CheW
297	 58.16	0	327608..328606	+	332	39995407	-	GSU0298	-	sigma-54 dependent DNA-binding response regulator, interruption-C
298	 51.03	-1	328610..329728	-	372	39995408	-	GSU0299	-	ISGsu1, transposase
299	 54.25	-1	329817..330251	+	144	39995409	-	GSU0300	-	sigma-54 dependent DNA-binding response regulator, interruption-N
60.71	MEAN

5.38	STD DEV
