IslandPath Analysis: Geobacter sulfurreducens PCA

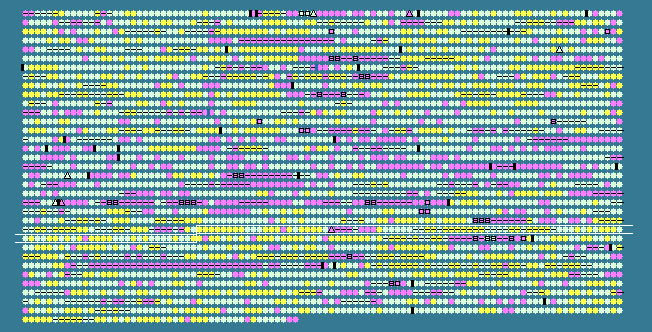

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2430	 66.46	+1	2680532..2682469	-	645	39997540	-	GSU2445	-	aconitate hydratase
2431	 68.71	+1	2682484..2683902	-	472	39997541	lpdA-1	GSU2446	-	2-oxoglutarate dehydrogenase complex, E3 component, lipoamide dehydrogenase
2432	 70.56	+1	2684162..2684905	-	247	39997542	-	GSU2447	-	hypothetical protein
2433	 66.99	+1	2684931..2686160	-	409	39997543	sucB	GSU2448	-	2-oxoglutarate dehydrogenase, E2 component, dihydrolipoamide succinyltransferase
2434	 68.01	+1	2686238..2688922	-	894	39997544	kgd	GSU2449	-	alpha-ketoglutarate decarboxylase
2435	 70.79	+1	2689027..2689803	-	258	39997545	-	GSU2450	-	hypothetical protein
2436	 67.87	+1	2689800..2690213	-	137	39997546	-	GSU2451	-	PilB-related protein
2437	 70.13	+1	2690239..2692632	-	797	39997547	-	GSU2452	-	copper-translocating P-type ATPase
2438	 62.96	0	2692625..2693677	-	350	39997548	-	GSU2453	-	hypothetical protein
2439	 64.17	0	2693681..2694721	-	346	39997549	-	GSU2454	-	hypothetical protein
2440	 58.05	0	2694757..2695197	-	146	39997550	-	GSU2455	-	hypothetical protein
2441	 66.80	+1	2695266..2695988	+	240	39997551	-	GSU2456	-	UDP-2,3-diacylglucosamine hydrolase, putative
2442	 68.86	+1	2695997..2696224	-	75	39997552	-	GSU2457	-	hypothetical protein
2443	 66.57	+1	2696275..2697288	-	337	39997553	-	GSU2458	-	penicillin-binding protein, putative
2444	 55.25	-1	2697470..2697688	+	72	39997554	-	GSU2459	-	hypothetical protein
2445	 64.91	0	2697767..2698960	-	397	39997555	-	GSU2460	-	ribonuclease BN, putative
2446	 60.58	0	2699159..2700013	-	284	39997556	-	GSU2461	-	hypothetical protein
2447	 65.76	0	2700316..2701422	+	368	39997557	-	GSU2462	-	homoserine O-acetyltransferase
2448	 68.53	+1	2701468..2702217	-	249	39997558	-	GSU2463	-	glycosyl transferase, group 1 family protein
2449	 70.20	+1	2702238..2702492	-	84	39997559	-	GSU2464	-	hypothetical protein
2450	 65.61	0	2702621..2703376	+	251	39997560	-	GSU2465	-	metallo-beta-lactamase family protein
2451	 61.63	0	2703480..2705324	+	614	39997561	-	GSU2466	-	hypothetical protein
2452	 55.90	0	2705340..2706713	-	457	39997562	-	GSU2467	-	bifunctional hypothetical protein/integrase
2453	 51.00	-1	2706794..2707144	+	116	39997563	-	GSU2468	-	hypothetical protein
2454	 38.23	-2	2707848..2708603	+	251	39997564	-	GSU2469	-	hypothetical protein
2455	 46.67	-2	2708641..2709030	+	129	39997565	-	GSU2470	-	hypothetical protein
2456	 60.84	0	2709108..2710412	-	434	39997566	-	GSU2471	-	group II intron, maturase
2457	 46.27	-2	2710996..2711397	-	133	39997567	vapC	GSU2472	-	virulence associated protein C
2458	 46.93	-2	2711397..2711624	-	75	39997568	vapB	GSU2473	-	virulence associated protein B
2459	 31.31	-2	2711639..2711737	-	32	39997569	-	GSU2474	-	hypothetical protein
2460	 64.60	0	2712307..2715018	+	903	39997570	-	GSU2475	-	sigma-54 dependent transcriptional regulator
2461	 60.67	0	2715279..2716979	+	566	39997571	-	GSU2476	-	TPR domain-containing protein
2462	 61.54	0	2717042..2719636	+	864	39997572	-	GSU2477	-	TPR domain/radical SAM/B12 binding domain-containing protein
2463	 58.57	0	2719839..2720048	+	69	39997573	-	GSU2478	-	hypothetical protein
2464	 61.90	0	2720098..2720223	+	41	39997574	-	GSU2479	-	hypothetical protein
2465	 63.01	0	2720267..2722045	+	592	39997575	kdpA	GSU2480	-	potassium-transporting ATPase subunit A
2466	 62.75	0	2722110..2724179	+	689	39997576	kdpB	GSU2481	-	potassium-transporting ATPase, B subunit
2467	 63.16	0	2724225..2724794	+	189	39997577	kdpC	GSU2482	-	potassium-transporting ATPase, C subunit
2468	 68.21	+1	2724833..2727490	+	885	39997578	kdpD	GSU2483	-	sensor histidine kinase KdpD
2469	 68.23	+1	2727480..2728184	+	234	39997579	kdpE	GSU2484	-	DNA-binding response regulator KdpE
2470	 62.54	0	2728476..2730293	+	605	39997580	-	GSU2485	-	potassium transporter family protein
2471	 69.77	+1	2730317..2731636	-	439	39997581	-	GSU2486	-	hypothetical protein
2472	 70.69	+1	2731633..2732577	-	314	39997582	arcC	GSU2487	-	carbamate kinase
2473	 69.41	+1	2732754..2733845	+	363	39997583	-	GSU2488	-	hypothetical protein
2474	 67.24	+1	2733951..2735339	+	462	39997584	-	GSU2489	-	TatD family deoxyribonuclease
2475	 66.23	+1	2735710..2737077	+	455	39997585	-	GSU2490	-	oxalate/formate antiporter, putative
2476	 67.06	+1	2737208..2738470	+	420	39997586	-	GSU2491	-	major facilitator family transporter
2477	 67.55	+1	2738467..2740959	+	830	39997587	-	GSU2492	-	sensory box histidine kinase
2478	 63.98	0	2741307..2742089	-	260	39997588	-	GSU2493	-	NHL repeat-containing protein
2479	 62.38	0	2742194..2743498	-	434	39997589	-	GSU2494	-	cytochrome c family protein
2480	 63.88	0	2743510..2745450	-	646	39997590	-	GSU2495	-	cytochrome c family protein
2481	 59.38	0	2745508..2747223	-	571	39997591	-	GSU2496	-	hypothetical protein
2482	 65.48	0	2747313..2748491	-	392	39997592	-	GSU2497	-	putative lipoprotein
2483	 64.83	0	2748463..2749062	-	199	39997593	-	GSU2498	-	putative lipoprotein
2484	 63.04	0	2749085..2751262	-	725	39997594	-	GSU2499	-	hypothetical protein
2485	 67.30	+1	2751407..2752828	+	473	39997595	-	GSU2500	-	hypothetical protein
2486	 68.95	+1	2752753..2754066	-	437	39997596	-	GSU2501	-	cytochrome c family protein
2487	 66.99	+1	2754063..2757116	-	1017	39997597	-	GSU2502	-	spermine/spermidine synthase family protein
2488	 65.66	0	2757253..2758545	-	430	39997598	-	GSU2503	-	cytochrome c family protein
2489	 62.82	0	2758656..2759954	-	432	39997599	-	GSU2504	-	cytochrome c family protein
2490	 60.97	0	2760200..2761147	-	315	39997600	-	GSU2505	-	NHL repeat-containing protein
2491	 62.54	0	2762042..2763736	-	564	39997601	-	GSU2506	-	sensory box protein/sigma-54 dependent DNA-binding response regulator
2492	 62.11	0	2763705..2765612	-	635	39997602	-	GSU2507	-	sensor histidine kinase
2493	 68.57	+1	2765786..2767465	+	559	39997603	-	GSU2508	-	TPR domain-containing protein
2494	 64.18	0	2767575..2768339	+	254	39997604	-	GSU2509	-	glycosyl transferase, group 2 family protein
2495	 72.49	+2	2768336..2769262	+	308	39997605	-	GSU2510	-	hypothetical protein
2496	 63.81	0	2769311..2771932	-	873	39997606	-	GSU2511	-	sensory box/GGDEF family protein
2497	 66.67	+1	2772045..2772383	-	112	39997607	-	GSU2512	-	hypothetical protein
2498	 65.99	0	2772615..2773055	+	146	39997608	-	GSU2513	-	cytochrome c family protein
2499	 65.66	0	2773469..2773567	-	32	39997609	-	GSU2514	-	hypothetical protein
2500	 61.97	0	2773615..2774040	+	141	39997610	-	GSU2515	-	cytochrome c family protein, putative
2501	 61.56	0	2774345..2775088	-	247	39997611	-	GSU2516	-	rhodanese-like domain-containing protein
2502	 68.92	+1	2775205..2777202	-	665	39997612	-	GSU2517	-	rhodanese-like domain/cysteine-rich domain-containing protein
2503	 58.87	0	2777199..2777621	-	140	39997613	-	GSU2518	-	hypothetical protein
2504	 62.89	0	2777649..2778812	-	387	39997614	-	GSU2519	-	(R)-2-hydroxyglutaryl-CoA dehydratase beta-subunit, putative
2505	 67.98	+1	2778846..2779607	-	253	39997615	-	GSU2520	-	(R)-2-hydroxyglutaryl-CoA dehydratase activator
2506	 65.99	0	2779657..2780244	-	195	39997616	-	GSU2521	-	hypothetical protein
2507	 60.61	0	2780416..2780778	-	120	39997617	-	GSU2522	-	hypothetical protein
2508	 68.67	+1	2780905..2781801	+	298	39997618	-	GSU2523	-	LysR family transcriptional regulator
2509	 63.73	0	2781835..2783229	+	464	39997619	-	GSU2524	-	sigma-54 dependent DNA-binding response regulator
2510	 67.26	+1	2783251..2783754	-	167	39997620	-	GSU2525	-	nitroreductase family protein
2511	 57.14	0	2783754..2784488	-	244	39997621	-	GSU2526	-	hypothetical protein
2512	 68.20	+1	2784677..2785978	-	433	39997622	-	GSU2527	-	nitrite/sulfite reductase domain-containing protein
2513	 68.27	+1	2786069..2788183	-	704	39997623	-	GSU2528	-	hypothetical protein
2514	 67.83	+1	2788182..2790251	+	689	39997624	fusA-2	GSU2529	-	elongation factor G
2515	 70.29	+1	2790261..2791337	-	358	39997625	-	GSU2530	-	GTPase YjeQ
2516	 63.28	0	2791476..2794637	-	1053	39997626	-	GSU2531	-	sensory box histidine kinase
2517	 61.11	0	2794634..2795065	-	143	39997627	-	GSU2532	-	hypothetical protein
2518	 63.70	0	2795087..2796298	-	403	39997628	-	GSU2533	-	hypothetical protein
2519	 64.83	0	2796313..2797671	-	452	39997629	-	GSU2534	-	sensory box/response regulator
2520	 61.26	0	2797751..2798194	-	147	39997630	-	GSU2535	-	response regulator
2521	 65.31	0	2798512..2799324	-	270	39997631	-	GSU2536	-	dienelactone hydrolase family protein
2522	 59.38	0	2799433..2801340	-	635	39997632	speA	GSU2537	-	arginine decarboxylase
2523	 62.84	0	2801539..2802741	-	400	39997633	nspC	GSU2538	-	carboxynorspermidine decarboxylase
2524	 62.74	0	2802886..2804082	-	398	39997634	LYS1	GSU2539	-	saccharopine dehydrogenase
2525	 60.62	0	2804108..2804653	-	181	39997635	-	GSU2540	-	Cro/CI family transcriptional regulator
2526	 68.51	+1	2804942..2805754	+	270	39997636	proC	GSU2541	-	pyrroline-5-carboxylate reductase
2527	 59.26	0	2805847..2806035	-	62	39997637	-	GSU2542	-	hypothetical protein
2528	 61.52	0	2806022..2806798	-	258	39997638	-	GSU2543	-	polysaccharide deacetylase domain-containing protein
2529	 65.37	0	2806908..2807603	-	231	39997639	-	GSU2544	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
