IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

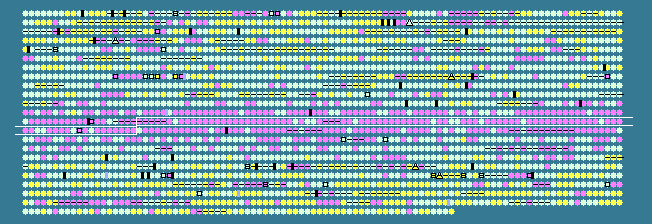

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1220	 46.21	-1	1284919..1285353	-	144	38233862	-	DIP1277	-	hypothetical protein
1221	 46.86	-1	1285420..1286262	-	280	38233863	-	DIP1278	-	hypothetical protein
1222	 49.24	0	1286298..1287083	+	261	38233864	-	DIP1279	-	hypothetical protein
1223	 44.32	-2	1287056..1288165	-	369	38233865	hemH	DIP1280	-	ferrochelatase
1224	 48.57	-1	1288281..1289999	-	572	38233866	-	DIP1281	-	putative invasion protein
1225	 47.55	-1	1290514..1290717	+	67	38233867	-	DIP1282	-	hypothetical protein
1226	 50.34	0	1290749..1293565	+	938	161598674	acnA	DIP1283	-	aconitate hydratase
1227	 49.91	0	1293673..1294245	+	190	38233869	-	DIP1284	-	putative TetR-famlily transcriptional regulator
1228	 45.13	-1	1294271..1294999	+	242	38233870	-	DIP1285	-	glutamine amidotransferase
1229	 43.33	-2	1295088..1295357	+	89	38233871	-	DIP1286	-	hypothetical protein
1230	 50.26	0	1295374..1296738	+	454	38233872	-	DIP1287	-	hypothetical protein
1231	 42.97	-2	1296797..1297045	-	82	38233873	-	DIP1288	-	hypothetical protein
1232	 49.63	0	1297069..1298700	-	543	38233874	-	DIP1289	-	ABC transporter ATP-binding protein
1233	 45.69	-1	1298797..1299225	-	142	38233875	-	DIP1290	-	hypothetical protein
1234	 43.33	-2	1299222..1299671	-	149	38233876	-	DIP1291	-	putative nitrogen fixation protein NifU-related protein
1235	 48.71	-1	1299675..1300955	-	426	38233877	csd	DIP1292	-	cysteine desulfurase
1236	 47.30	-1	1300955..1301713	-	252	38233878	-	DIP1293	-	ABC transporter ATP-binding protein
1237	 48.81	-1	1301742..1302917	-	391	38233879	-	DIP1294	-	hypothetical protein
1238	 48.55	-1	1302920..1304299	-	459	38233880	-	DIP1295	-	hypothetical protein
1239	 48.95	-1	1304371..1305087	-	238	38233881	-	DIP1296	-	putative DNA-binding protein
1240	 42.70	-2	1305304..1305666	-	120	38233882	-	DIP1296A	-	hypothetical protein
1241	 48.82	-1	1305862..1307424	+	520	38233883	-	DIP1297	-	hypothetical protein
1242	 45.72	-1	1307491..1308402	+	303	38233884	-	DIP1298	-	ABC transporter ATP-binding protein
1243	 46.74	-1	1308405..1309202	+	265	38233885	-	DIP1299	-	hypothetical protein
1244	 49.73	0	1309283..1310221	+	312	38233886	-	DIP1300	-	hypothetical protein
1245	 47.48	-1	1310339..1311271	-	310	38233887	-	DIP1301	-	protoheme IX farnesyltransferase
1246	 52.31	0	1311649..1313751	+	700	38233888	tkt	DIP1302	-	transketolase
1247	 47.92	-1	1313875..1314957	+	360	38233889	tal	DIP1303	-	transaldolase
1248	 50.55	0	1315019..1316668	+	549	38233890	zwf	DIP1304	-	glucose-6-phosphate 1-dehydrogenase
1249	 51.25	0	1316693..1317652	+	319	38233891	-	DIP1305	-	hypothetical protein
1250	 48.81	-1	1317678..1318394	+	238	38233892	-	DIP1306	-	6-phosphogluconolactonase
1251	 46.15	-1	1318462..1318695	-	77	38233893	secG	DIP1307	-	preprotein translocase subunit SecG
1252	 48.66	-1	1318869..1319651	-	260	38233894	tpiA	DIP1308	-	triosephosphate isomerase
1253	 49.75	0	1319763..1320980	-	405	38233895	pgk	DIP1309	-	phosphoglycerate kinase
1254	 50.25	0	1321111..1322115	-	334	38233896	gap	DIP1310	-	glyceraldehyde-3-phosphate dehydrogenase
1255	 49.24	0	1322488..1323474	-	328	38233897	-	DIP1311	-	hypothetical protein
1256	 50.93	0	1323568..1324539	-	323	38233898	-	DIP1312	-	hypothetical protein
1257	 46.67	-1	1324558..1325457	-	299	38233899	-	DIP1313	-	hypothetical protein
1258	 46.66	-1	1325463..1327526	-	687	38233900	uvrC	DIP1314	-	excinuclease ABC subunit C
1259	 45.10	-1	1327536..1328096	-	186	38233901	-	DIP1315	-	hypothetical protein
1260	 49.15	0	1328235..1328702	-	155	38233902	ribH	DIP1316	-	riboflavin synthase subunit beta
1261	 49.72	0	1328703..1329941	-	412	38233903	ribA	DIP1317	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1262	 46.14	-1	1330056..1330664	-	202	38233904	ribE	DIP1318	-	riboflavin synthase subunit alpha
1263	 47.86	-1	1330722..1331726	-	334	38233905	ribD	DIP1319	-	putative riboflavin biosynthesis protein
1264	 45.48	-1	1331821..1332495	-	224	38233906	rpe	DIP1320	-	ribulose-phosphate 3-epimerase
1265	 49.31	0	1332549..1334006	-	485	38233907	-	DIP1321	-	hypothetical protein
1266	 49.79	0	1334003..1334938	-	311	38233908	fmt	DIP1322	-	methionyl-tRNA formyltransferase
1267	 46.47	-1	1334975..1335484	-	169	38233909	def	DIP1323	-	peptide deformylase
1268	 48.57	-1	1335564..1337591	-	675	38233910	-	DIP1324	-	primosome assembly protein PriA
1269	 50.45	0	1337610..1338842	-	410	38233911	metK	DIP1325	-	S-adenosylmethionine synthetase
1270	 48.67	-1	1338983..1340227	-	414	38233912	dfp	DIP1326	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1271	 50.18	0	1340329..1340607	-	92	38233913	rpoZ	DIP1327	-	DNA-directed RNA polymerase subunit omega
1272	 51.91	0	1340681..1341256	-	191	38233914	gmk	DIP1328	-	guanylate kinase
1273	 54.32	0	1341260..1341583	-	107	38233915	mihF	DIP1329	-	integration host factor
1274	 50.06	0	1341932..1342780	-	282	38233916	pyrF	DIP1330	-	orotidine 5'-phosphate decarboxylase
1275	 49.48	0	1342777..1346133	-	1118	38233917	carB	DIP1331	-	carbamoyl phosphate synthase large subunit
1276	 47.98	-1	1346154..1347293	-	379	38233918	carA	DIP1332	-	carbamoyl phosphate synthase small subunit
1277	 50.71	0	1347449..1348795	-	448	38233919	pyrC	DIP1333	-	dihydroorotase
1278	 49.04	-1	1348820..1349761	-	313	38233920	pyrB	DIP1334	-	aspartate carbamoyltransferase catalytic subunit
1279	 46.77	-1	1349761..1350333	-	190	38233921	pyrR	DIP1335	-	pyrimidine regulatory protein PyrR
1280	 49.78	0	1350598..1351959	+	453	38233922	-	DIP1336	-	hypothetical protein
1281	 42.01	-2	1351965..1352402	+	145	38233923	-	DIP1337	-	hypothetical protein
1282	 43.31	-2	1352402..1352812	+	136	38233924	-	DIP1338	-	hypothetical protein
1283	 49.18	0	1352866..1353414	-	182	38233925	nusB	DIP1339	-	transcription antitermination protein NusB
1284	 50.35	0	1353483..1354046	-	187	38233926	efp	DIP1340	-	elongation factor P
1285	 46.99	-1	1354148..1355245	-	365	38233927	-	DIP1341	-	putative metallopeptidase
1286	 45.35	-1	1355271..1355711	-	146	38233928	aroQ	DIP1342	-	3-dehydroquinate dehydratase
1287	 45.65	-1	1355712..1356791	-	359	38233929	aroB	DIP1343	-	3-dehydroquinate synthase
1288	 48.66	-1	1356838..1357359	-	173	38233930	aroK	DIP1344	-	shikimate kinase
1289	 49.34	0	1357394..1358605	-	403	38233931	aroC	DIP1345	-	chorismate synthase
1290	 46.15	-1	1358683..1359189	-	168	38233932	-	DIP1346	-	hypothetical protein
1291	 46.44	-1	1359196..1360065	-	289	38233933	aroE	DIP1347	-	shikimate 5-dehydrogenase
1292	 48.74	-1	1360160..1361308	-	382	38233934	-	DIP1348	-	hypothetical protein
1293	 46.20	-1	1361421..1361972	-	183	38233935	-	DIP1349	-	Holliday junction resolvase-like protein
1294	 49.16	0	1362202..1364868	-	888	38233936	alaS	DIP1350	-	alanyl-tRNA synthetase
1295	 47.48	-1	1365030..1366400	-	456	38233937	-	DIP1351	-	recombination factor protein RarA
1296	 46.56	-1	1366425..1367687	-	420	38233938	-	DIP1352	-	hypothetical protein
1297	 50.78	0	1367810..1369615	-	601	38233939	aspS	DIP1353	-	aspartyl-tRNA synthetase
1298	 48.70	-1	1369837..1370721	+	294	38233940	-	DIP1354	-	hypothetical protein
1299	 46.03	-1	1370802..1373456	-	884	38233941	-	DIP1355	-	hypothetical protein
1300	 50.25	0	1373535..1375556	-	673	38233942	-	DIP1356	-	hypothetical protein
1301	 49.39	0	1375574..1376308	-	244	38233943	-	DIP1357	-	hypothetical protein
1302	 48.73	-1	1376471..1377061	+	196	38233944	-	DIP1358	-	TetR family transcriptional regulator
1303	 50.83	0	1377106..1378494	+	462	38233945	sdaB	DIP1359	-	L-serine dehydratase
1304	 51.97	0	1378566..1379837	-	423	38233946	hisS	DIP1360	-	histidyl-tRNA synthetase
1305	 48.10	-1	1379878..1380534	-	218	38233947	-	DIP1361	-	hypothetical protein
1306	 46.39	-1	1380544..1381041	-	165	38233948	tpx	DIP1362	-	thiol peroxidase
1307	 49.70	0	1381185..1382027	+	280	38233949	-	DIP1363	-	putative isomerase
1308	 45.74	-1	1382185..1382466	+	93	38233950	-	DIP1364	-	hypothetical protein
1309	 51.77	0	1382517..1382657	+	46	38233951	-	DIP1365	-	hypothetical protein
1310	 48.99	-1	1382700..1384079	+	459	38233952	-	DIP1366	-	putative transposase
1311	 48.64	-1	1384750..1387029	-	759	38233953	relA	DIP1368	-	GTP pyrophosphokinase
1312	 50.45	0	1387088..1387642	-	184	38233954	apt	DIP1369	-	adenine phosphoribosyltransferase
1313	 47.49	-1	1387698..1389449	-	583	38233955	-	DIP1370	-	hypothetical protein
1314	 47.35	-1	1389519..1390631	-	370	38233956	secF	DIP1371	-	preprotein translocase subunit SecF
1315	 49.07	-1	1390632..1392410	-	592	38233957	secD	DIP1372	-	preprotein translocase subunit SecD
1316	 44.62	-1	1392415..1392600	-	61	38233958	-	DIP1373	-	hypothetical protein
1317	 42.86	-2	1392641..1392934	-	97	38233959	-	DIP1374	-	hypothetical protein
1318	 50.05	0	1392938..1394026	-	362	38233960	ruvB	DIP1375	-	Holliday junction DNA helicase B
1319	 49.18	0	1394044..1394655	-	203	38233961	ruvA	DIP1376	-	Holliday junction DNA helicase motor protein
53.75	MEAN

4.64	STD DEV
