IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

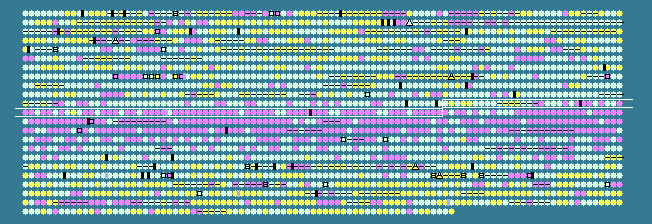

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1071	 53.85	0	1109099..1109488	-	129	38233713	-	DIP1123	-	hypothetical protein
1072	 57.40	0	1109532..1110524	-	330	38233714	-	DIP1124	-	biotin synthase family transferase
1073	 53.58	0	1110605..1111162	+	185	38233715	-	DIP1125	-	hypothetical protein
1074	 57.85	0	1111173..1111898	-	241	38233716	-	DIP1126	-	IclR family transcriptional regulator
1075	 57.38	0	1111988..1113430	+	480	38233717	leuC	DIP1127	-	isopropylmalate isomerase large subunit
1076	 56.35	0	1113442..1114032	+	196	38233718	leuD	DIP1128	-	isopropylmalate isomerase small subunit
1077	 53.91	0	1114111..1115121	-	336	38233719	-	DIP1129	-	hypothetical protein
1078	 53.31	0	1115316..1116311	+	331	38233720	gpsA	DIP1130	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1079	 52.28	0	1116334..1117431	+	365	38233721	ddl	DIP1131	-	D-alanyl-alanine synthetase A
1080	 54.74	0	1117438..1118376	-	312	38233722	-	DIP1132	-	hypothetical protein
1081	 58.38	0	1118468..1119457	+	329	38233723	thiL	DIP1133	-	thiamine monophosphate kinase
1082	 57.25	0	1119460..1120128	+	222	38233724	ung	DIP1134	-	uracil-DNA glycosylase
1083	 57.24	0	1120294..1121799	+	501	38233725	-	DIP1135	-	putative kinase
1084	 57.02	0	1121804..1123918	+	704	38233726	recG	DIP1136	-	ATP-dependent DNA helicase
1085	 53.60	0	1123946..1124167	+	73	38233727	-	DIP1137	-	putative biotin carboxyl carrier protein
1086	 50.09	0	1124164..1124742	+	192	38233728	-	DIP1138	-	putative DNA methylase
1087	 48.12	-1	1124750..1125229	+	159	38233729	coaD	DIP1139	-	phosphopantetheine adenylyltransferase
1088	 53.46	0	1125316..1125474	+	52	38233730	-	DIP1140	-	hypothetical protein
1089	 56.32	0	1125604..1125777	+	57	38233731	-	DIP1141	-	hypothetical protein
1090	 51.82	0	1125798..1126565	-	255	38233732	atrC	DIP1142	-	ABC transporter ATP-binding protein
1091	 49.74	0	1126569..1127513	-	314	38233733	-	DIP1143	-	ABC transporter
1092	 50.45	0	1127571..1128464	-	297	38233734	-	DIP1144	-	hypothetical protein
1093	 48.98	-1	1128534..1129466	-	310	38233735	-	DIP1145	-	hypothetical protein
1094	 49.15	0	1129828..1132527	+	899	38233736	polA	DIP1146	-	DNA polymerase I
1095	 45.57	-1	1132577..1133344	-	255	38233737	-	DIP1147	-	hypothetical protein
1096	 57.22	0	1133555..1135015	+	486	38233738	rpsA	DIP1148	-	30S ribosomal protein S1
1097	 49.26	0	1135099..1136511	-	470	38233739	-	DIP1149	-	putative transport protein
1098	 51.81	0	1136731..1137558	-	275	38233740	-	DIP1150	-	putative transcription antiterminator
1099	 54.31	0	1137670..1139700	-	676	38233741	ptsG	DIP1151	-	PTS system, glucose-specific IIABC component
1100	 50.08	0	1140082..1140684	+	200	38233742	coaE	DIP1152	-	dephospho-CoA kinase
1101	 48.58	-1	1140904..1142103	+	399	38233743	-	DIP1153	-	putative coenzyme PQQ synthesis related protein
1102	 47.70	-1	1142204..1144249	+	681	38233744	uvrB	DIP1154	-	excinuclease ABC subunit B
1103	 50.34	0	1144478..1144918	+	146	38233745	-	DIP1155	-	putative stress related protein
1104	 49.89	0	1144967..1147279	-	770	38233746	-	DIP1156	-	putative helicase
1105	 48.46	-1	1147403..1148248	-	281	38233747	-	DIP1157	-	hypothetical protein
1106	 51.08	0	1148433..1149080	-	215	38233748	-	DIP1158	-	putative hydrolase
1107	 48.01	-1	1149234..1152095	+	953	38233749	uvrA	DIP1159	-	excinuclease ABC subunit A
1108	 53.17	0	1152383..1152886	+	167	38233750	infC	DIP1160	-	translation initiation factor IF-3
1109	 58.46	+1	1152916..1153110	+	64	38233751	rpmI	DIP1161	-	50S ribosomal protein L35
1110	 54.69	0	1153172..1153555	+	127	38233752	rplT	DIP1162	-	50S ribosomal protein L20
1111	 47.25	-1	1153805..1154350	-	181	38233753	-	DIP1163	-	hypothetical protein
1112	 48.84	-1	1154597..1155415	+	272	38233754	tsnR	DIP1164	-	putative rRNA methyltransferase
1113	 50.47	0	1155546..1156601	+	351	38233755	pheS	DIP1165	-	phenylalanyl-tRNA synthetase subunit alpha
1114	 49.66	0	1156643..1159153	+	836	38233756	pheT	DIP1166	-	phenylalanyl-tRNA synthetase subunit beta
1115	 47.70	-1	1159280..1160323	+	347	38233757	argC	DIP1167	-	N-acetyl-gamma-glutamyl-phosphate reductase
1116	 48.84	-1	1160398..1161558	+	386	38233758	argJ	DIP1168	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1117	 50.48	0	1161595..1162527	+	310	38233759	argB	DIP1169	-	acetylglutamate kinase
1118	 47.50	-1	1162520..1163761	+	413	38233760	argD	DIP1170	-	acetylornithine aminotransferase
1119	 46.98	-1	1163790..1164749	+	319	38233761	argF	DIP1171	-	ornithine carbamoyltransferase
1120	 50.41	0	1164856..1165347	+	163	38233762	argR	DIP1172	-	arginine repressor
1121	 49.58	0	1165505..1166704	+	399	38233763	argG	DIP1173	-	argininosuccinate synthase
1122	 50.21	0	1166704..1168137	+	477	38233764	argH	DIP1174	-	argininosuccinate lyase
1123	 46.95	-1	1168201..1168413	+	70	38233765	-	DIP1175	-	hypothetical protein
1124	 46.95	-1	1168427..1169689	+	420	38233766	tyrS	DIP1176	-	tyrosyl-tRNA synthetase
1125	 50.70	0	1175639..1176715	+	358	38233767	-	DIP1177	-	hypothetical protein
1126	 48.59	-1	1176792..1177748	+	318	38233768	-	DIP1178	-	hypothetical protein
1127	 41.36	-2	1177766..1177927	+	53	38233769	-	DIP1179	-	hypothetical protein
1128	 48.54	-1	1177969..1178790	+	273	38233770	-	DIP1180	-	putative cytotoxin/hemolysin
1129	 48.74	-1	1178790..1179743	+	317	38233771	ppnK	DIP1181	-	inorganic polyphosphate/ATP-NAD kinase
1130	 49.66	0	1179859..1181598	+	579	38233772	recN	DIP1182	-	DNA repair protein
1131	 47.24	-1	1181709..1182902	+	397	38233773	-	DIP1183	-	hypothetical protein
1132	 46.06	-1	1182927..1183877	+	316	38233774	-	DIP1184	-	hypothetical protein
1133	 46.64	-1	1183899..1184537	+	212	38233775	-	DIP1185	-	hypothetical protein
1134	 45.41	-1	1184540..1185475	+	311	38233776	xerD	DIP1186	-	site-specific tyrosine recombinase XerD
1135	 48.05	-1	1185667..1186536	+	289	38233777	-	DIP1187	-	putative regulatory protein
1136	 47.37	-1	1186579..1187397	+	272	38233778	-	DIP1188	-	hypothetical protein
1137	 50.99	0	1187512..1188117	+	201	38233779	bioD1	DIP1189	-	dethiobiotin synthetase
1138	 48.50	-1	1188118..1189614	-	498	38233780	-	DIP1190	-	putative peptide transport protein
1139	 48.38	-1	1189692..1190987	+	431	38233781	bioA	DIP1191	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1140	 48.13	-1	1191000..1191668	+	222	38233782	bioD	DIP1192	-	dithiobiotin synthetase
1141	 48.44	-1	1191785..1193359	+	524	38233783	-	DIP1193	-	putative Na+/H+ antiporter
1142	 49.73	0	1193378..1193932	+	184	38233784	-	DIP1194	-	hypothetical protein
1143	 51.24	0	1194036..1195001	+	321	38233785	-	DIP1195	-	putative pseudouridine synthase B
1144	 52.07	0	1195003..1195728	+	241	38233786	cmk	DIP1196	-	cytidylate kinase
1145	 49.15	0	1195725..1197368	+	547	38233787	engA	DIP1197	-	GTP-binding protein EngA
1146	 45.82	-1	1197600..1198985	+	461	38233788	dcuB	DIP1198	-	anaerobic C4-dicarboxylate transporter
1147	 46.57	-1	1199016..1200020	-	334	38233789	-	DIP1199	-	putative methyltransferase
1148	 45.56	-1	1200019..1201269	+	416	38233790	-	DIP1200	-	hypothetical protein
1149	 48.68	-1	1201642..1202019	-	125	38233791	-	DIP1201	-	hypothetical protein
1150	 49.33	0	1202026..1203213	-	395	38233792	-	DIP1202	-	hypothetical protein
1151	 49.06	-1	1203482..1205776	+	764	38233793	secA2	DIP1203	-	preprotein translocase subunit SecA
1152	 54.40	0	1205943..1206374	+	143	38233794	-	DIP1204	-	putative signal transduction protein
1153	 50.44	0	1206545..1207222	+	225	38233795	-	DIP1205	-	merR family regulatory protein
1154	 43.71	-2	1207245..1207832	+	195	38233796	-	DIP1206	-	hypothetical protein
1155	 47.06	-1	1207984..1208544	+	186	38233797	-	DIP1207	-	putative transcriptional regulator
1156	 47.77	-1	1208620..1210032	-	470	38233798	-	DIP1208	-	hypothetical protein
1157	 49.15	0	1210064..1210942	-	292	38233799	-	DIP1209	-	hypothetical protein
1158	 47.58	-1	1210939..1211991	-	350	38233800	-	DIP1210	-	hypothetical protein
1159	 47.81	-1	1211988..1213382	-	464	38233801	-	DIP1211	-	hypothetical protein
1160	 50.92	0	1213407..1214765	-	452	38233802	-	DIP1212	-	putative RNA helicase
1161	 52.30	0	1214868..1216322	-	484	38233803	gnd	DIP1213	-	6-phosphogluconate dehydrogenase
1162	 49.02	-1	1216431..1216889	+	152	38233804	-	DIP1214	-	hypothetical protein
1163	 46.50	-1	1216886..1217986	-	366	38233805	-	DIP1215	-	magnesium/cobalt transporter CorA
1164	 45.24	-1	1217993..1218622	+	209	38233806	-	DIP1216	-	hypothetical protein
1165	 51.94	0	1218699..1220063	-	454	38233807	ndh	DIP1217	-	NADH dehydrogenase
1166	 48.84	-1	1220241..1221536	+	431	38233808	-	DIP1218	-	hypothetical protein
1167	 47.68	-1	1222345..1223313	+	322	38233809	-	DIP1221	-	putative sodium-dependent transport membrane protein
1168	 44.26	-2	1223713..1223895	-	60	38233810	-	DIP1222	-	hypothetical protein
1169	 46.35	-1	1223913..1224611	-	232	38233811	-	DIP1223	-	hypothetical protein
1170	 50.00	0	1224625..1224966	-	113	38233812	-	DIP1224	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
