IslandPath Analysis: Clostridium perfringens str. 13

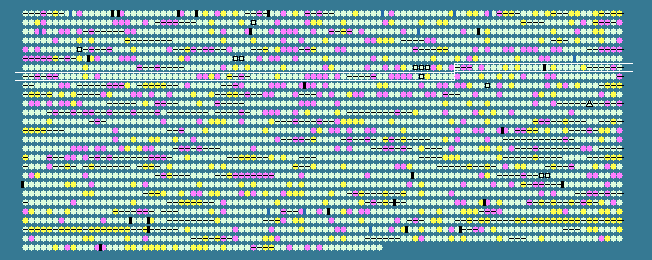

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
673	 30.80	0	838662..839648	+	328	18309655	birA	CPE0673	-	bifunctional biotin operon repressor/biotin--[acetyl-CoA-carboxylase] synthetase
674	 24.40	-1	839807..840892	+	361	18309656	-	CPE0674	-	HRDC domain protein
675	 16.67	-2	840894..841061	+	55	18309657	-	CPE0675	-	hypothetical protein
676	 26.94	0	841162..841896	+	244	18309658	-	CPE0676	-	hypothetical protein
677	 23.86	-1	842086..842391	+	101	18309659	-	CPE0677	-	hypothetical protein
678	 29.34	0	842638..843288	+	216	18309660	dut	CPE0678	-	deoxyuridine 5`-triphosphate nucleotidohydrolase
679	 31.58	0	843791..845101	+	436	18309661	thiC	CPE0679	-	thiamine biosynthesis protein ThiC
680	 31.86	0	845339..849139	+	1266	18309662	purL	CPE0680	-	phosphoribosylformylglycinamidine synthase
681	 33.54	+1	849450..849929	+	159	18309663	purE	CPE0681	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
682	 28.95	0	849929..850636	+	235	18309664	purC	CPE0682	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
683	 34.23	+1	850658..852103	+	481	18309665	purF	CPE0683	-	amidophosphoribosyltransferase
684	 31.64	0	852104..853105	+	333	18309666	purM	CPE0684	-	phosphoribosylaminoimidazole synthetase
685	 30.08	0	853093..853707	+	204	18309667	purN	CPE0685	-	phosphoribosylglycinamide formyltransferase
686	 30.94	0	853720..855225	+	501	18309668	purH	CPE0686	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
687	 30.63	0	855632..856591	+	319	18309669	purD	CPE0687	-	phosphoribosylamine-glycine ligase
688	 31.68	0	857504..857866	+	120	18309670	-	CPE0688	-	hypothetical protein
689	 34.62	+1	858399..858941	+	180	18309671	-	CPE0689	-	hypothetical protein
690	 28.34	0	859074..860474	-	466	18309672	argH	CPE0690	-	argininosuccinate lyase
691	 29.80	0	860568..861785	-	405	18309673	argG	CPE0691	-	argininosuccinate synthase
692	 31.79	0	862390..863037	+	215	18309674	-	CPE0692	-	putative translaldolase
693	 32.23	0	863437..868497	+	1686	18309675	-	CPE0693	-	hypothetical protein
694	 34.71	+1	868969..869982	+	337	18309676	-	CPE0694	-	3-deoxy-7-phosphoheptulonate synthase
695	 28.58	0	870079..871131	+	350	18309677	aroB	CPE0695	-	3-dehydroquinate synthase
696	 28.63	0	871378..872652	+	424	18309678	aroA	CPE0696	-	3-phosphoshikimate 1-carboxyvinyltransferase
697	 32.31	0	872716..873789	+	357	161485643	aroC	CPE0697	-	chorismate synthase
698	 27.21	0	873958..874251	+	97	18309680	-	CPE0698	-	chorismate mutase
699	 18.95	-2	874579..874731	+	50	18309681	-	CPE0699	-	hypothetical protein
700	 28.80	0	875075..875890	+	271	18309682	aroE	CPE0700	-	shikimate 5-dehydrogenase
701	 30.43	0	876144..876659	+	171	18309683	aroK	CPE0701	-	shikimate kinase
702	 29.48	0	876855..877295	+	146	18309684	aroQ	CPE0702	-	3-dehydroquinate dehydratase
703	 23.64	-1	877378..877893	+	171	18309685	-	CPE0703	-	hypothetical protein
704	 27.93	0	878020..878352	+	110	18309686	-	CPE0704	-	30S ribosomal protein
705	 23.89	-1	878354..879211	+	285	18309687	-	CPE0705	-	hypothetical protein
706	 22.54	-1	879423..880265	+	280	18309688	-	CPE0706	-	hypothetical protein
707	 29.74	0	880391..881281	+	296	18309689	-	CPE0707	-	ABC transporter
708	 28.22	0	881283..882494	+	403	18309690	-	CPE0708	-	hypothetical protein
709	 27.47	0	882605..883594	+	329	18309691	cbh	CPE0709	-	choloylglycine hydrolase
710	 32.51	0	884390..884872	+	160	18309692	-	CPE0710	-	AsnC family transcriptional regulator
711	 33.59	+1	884869..886047	+	392	18309693	aspC	CPE0711	-	aspartate aminotransferase
712	 27.00	0	886162..887187	+	341	18309694	-	CPE0712	-	hypothetical protein
713	 20.43	-2	887244..887708	-	154	18309695	-	CPE0713	-	hypothetical protein
714	 27.30	0	887767..888909	-	380	18309696	-	CPE0714	-	hypothetical protein
715	 26.36	0	889388..889903	+	171	18309697	-	CPE0715	-	GNAT family acetyltransferase
716	 27.94	0	890124..890642	+	172	18309698	sigW	CPE0716	-	RNA polymerase ECF-type sigma factor
717	 26.11	0	890718..892130	+	470	18309699	-	CPE0717	-	hypothetical protein
718	 28.43	0	892351..893553	+	400	18309700	-	CPE0718	-	DHHA1 domain protein
719	 25.67	0	893608..894612	+	334	18309701	-	CPE0719	-	capsular polysaccharide biosynthesis protein
720	 29.34	0	894764..895939	+	391	18309702	-	CPE0720	-	hypothetical protein
721	 31.59	0	896376..897233	+	285	18309703	-	CPE0721	-	zinc transporter ZupT
722	 27.45	0	897523..898185	+	220	18309704	-	CPE0722	-	DeoR family transcriptional regulator
723	 28.64	0	898316..899104	+	262	18309705	-	CPE0723	-	HAD hydrolase, IIB family
724	 27.02	0	899303..900331	+	342	18309706	splB	CPE0724	-	spore photoproduct lyase
725	 28.63	0	900997..903081	+	694	18309707	nanI	CPE0725	-	exo-alpha-sialidase
726	 30.65	0	903129..904283	+	384	18309708	-	CPE0726	-	hypothetical protein
727	 29.00	0	904693..905499	+	268	18309709	-	CPE0727	-	hypothetical protein
728	 31.18	0	905664..905942	+	92	18309710	-	CPE0728	-	hypothetical protein
729	 29.94	0	905890..906390	+	166	18309711	-	CPE0729	-	hypothetical protein
730	 25.16	-1	906584..907048	+	154	18309712	-	CPE0730	-	hypothetical protein
731	 25.42	-1	907404..907580	+	58	18309713	-	CPE0731	-	hypothetical protein
732	 33.16	+1	907833..908408	+	191	18309714	-	CPE0732	-	hypothetical protein
733	 24.97	-1	908623..909519	-	298	18309715	-	CPE0733	-	LysR family transcriptional regulator
734	 31.98	0	909869..911569	+	566	18309716	naoX	CPE0734	-	pyridine nucleotide-disulphide oxidoreductase family protein
735	 32.79	+1	911675..912961	+	428	18309717	-	CPE0735	-	YeeE/YedE family protein
736	 27.63	0	913050..914381	+	443	18309718	-	CPE0736	-	amino acid ABC transporter permease
737	 24.74	-1	914540..915202	-	220	18309719	-	CPE0737	-	putative fibronectin-binding protein
738	 27.96	0	915477..915755	-	92	18309720	-	CPE0738	-	hypothetical protein
739	 26.73	0	916103..916420	+	105	18309721	-	CPE0739	-	thioredoxin
740	 26.73	0	916727..917059	+	110	18309722	-	CPE0740	-	hypothetical protein
741	 26.73	0	917086..918297	+	403	18309723	-	CPE0741	-	cytochrome C-type biogenesis protein
742	 26.77	0	918827..920548	+	573	18309724	lipB	CPE0742	-	lipase
743	 32.78	+1	921005..922456	+	483	18309725	cstA	CPE0743	-	carbon starvation protein CstA
744	 31.35	0	922600..922902	+	100	18309726	-	CPE0744	-	hypothetical protein
745	 27.57	0	922990..923544	-	184	18309727	-	CPE0745	-	hypothetical protein
746	 31.62	0	923942..924643	+	233	18309728	-	CPE0746	-	ABC transporter ATP-binding protein
747	 29.10	0	924660..928058	+	1132	18309729	-	CPE0747	-	hypothetical protein
748	 24.04	-1	928284..928649	+	121	18309730	-	CPE0748	-	hypothetical protein
749	 22.98	-1	928856..929869	+	337	18309731	-	CPE0749	-	hypothetical protein
750	 22.87	-1	929956..930366	+	136	18309732	-	CPE0750	-	hypothetical protein
751	 20.47	-2	930503..930673	+	56	18309733	-	CPE0751	-	hypothetical protein
752	 26.84	0	930915..931253	+	112	18309734	-	CPE0752	-	hypothetical protein
753	 20.00	-2	931305..932249	+	314	18309735	-	CPE0753	-	hypothetical protein
754	 27.50	0	932386..933843	-	485	18309736	clsC	CPE0754	-	cardiolipin synthetase
755	 27.07	0	934078..934572	+	164	18309737	-	CPE0755	-	hypothetical protein
756	 30.01	0	934665..935927	-	420	18309738	-	CPE0756	-	cytosine deaminase
757	 32.54	0	936375..937130	+	251	18309739	-	CPE0757	-	creatinase
758	 28.80	0	937179..938105	+	308	18309740	-	CPE0758	-	hypothetical protein
759	 25.50	-1	938231..939430	-	399	18309741	-	CPE0759	-	hypothetical protein
760	 29.20	0	939619..940029	+	136	18309742	def	CPE0760	-	peptide deformylase
761	 31.91	0	940362..941627	-	421	18309743	gltT	CPE0761	-	proton/sodium- glutamate symport protein
762	 25.54	-1	942203..942895	-	230	18309744	-	CPE0762	-	HAD superfamily (subfamily IA) hydrolase
763	 25.26	-1	943121..944074	+	317	18309745	-	CPE0763	-	hypothetical protein
764	 25.56	-1	944309..944938	-	209	18309746	-	CPE0764	-	hypothetical protein
765	 22.64	-1	945090..945893	+	267	18309747	-	CPE0765	-	transcriptional regulator
766	 28.24	0	946053..947447	-	464	18309748	-	CPE0766	-	hypothetical protein
767	 25.92	0	947568..948767	-	399	18309749	-	CPE0767	-	IS1136 transposase
768	 33.33	+1	949320..949475	+	51	18309750	-	CPE0768	-	hypothetical protein
769	 29.01	0	949815..951179	+	454	18309751	gutA	CPE0769	-	sugar transport protein
770	 28.21	0	951402..952241	-	279	18309752	-	CPE0770	-	transcriptional regulator
771	 27.66	0	952605..955634	+	1009	18309753	bgaL	CPE0771	-	beta-galactosidase
772	 30.52	0	955777..957018	-	413	18309754	-	CPE0772	-	hypothetical protein
29.13	MEAN

3.46	STD DEV
