IslandPath Analysis: Chlorobium phaeobacteroides BS1

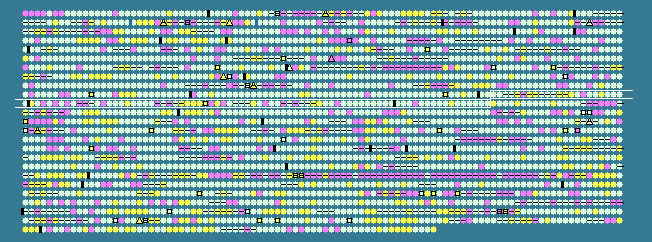

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
979	 50.22	0	1106534..1109689	-	1051	189499979	-	Cphamn1_1027	-	beta-phosphoglucomutase family hydrolase
980	 47.11	0	1109724..1110986	-	420	189499980	-	Cphamn1_1028	-	hypothetical protein
981	 50.00	0	1111103..1111756	-	217	189499981	-	Cphamn1_1029	-	dTMP kinase
982	 49.58	0	1111773..1112615	-	280	189499982	-	Cphamn1_1030	-	alpha/beta hydrolase fold
983	 56.13	+1	1113242..1113943	-	233	189499983	-	Cphamn1_1031	-	short-chain dehydrogenase/reductase SDR
984	 42.75	-1	1114081..1114218	+	45	189499984	-	Cphamn1_1032	-	hypothetical protein
985	 55.14	+1	1114265..1115965	+	566	189499985	-	Cphamn1_1033	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain protein
986	 56.10	+1	1115967..1116818	+	283	189499986	-	Cphamn1_1034	-	pyruvate ferredoxin/flavodoxin oxidoreductase, beta subunit
987	 47.85	0	1116954..1117628	-	224	189499987	-	Cphamn1_1035	-	hypothetical protein
988	 51.80	0	1117625..1118095	-	156	189499988	-	Cphamn1_1036	-	hypothetical protein
989	 46.86	0	1118537..1119061	+	174	189499989	-	Cphamn1_1037	-	hypothetical protein
990	 57.08	+1	1119270..1120343	-	357	189499990	-	Cphamn1_1038	-	hypothetical protein
991	 54.94	+1	1120425..1120910	-	161	189499991	-	Cphamn1_1039	-	nuclease (SNase domain protein)
992	 53.23	+1	1120996..1122885	+	629	189499992	-	Cphamn1_1040	-	ABC transporter-related protein
993	 50.21	0	1122888..1125002	-	704	189499993	-	Cphamn1_1041	-	Prolyl oligopeptidase
994	 45.10	0	1125212..1126078	-	288	189499994	-	Cphamn1_1042	-	hypothetical protein
995	 50.60	0	1126360..1126938	-	192	189499995	-	Cphamn1_1043	-	NADPH-dependent FMN reductase
996	 51.20	0	1127202..1128242	-	346	189499996	-	Cphamn1_1044	-	pseudouridine synthase, RluA family
997	 52.70	0	1128308..1129717	+	469	189499997	-	Cphamn1_1045	-	dihydrolipoamide dehydrogenase
998	 49.22	0	1130178..1131329	+	383	189499998	-	Cphamn1_1046	-	magnesium chelatase ATPase subunit I
999	 51.70	0	1131329..1133185	+	618	189499999	-	Cphamn1_1047	-	magnesium chelatase ATPase subunit D
1000	 51.28	0	1133351..1137172	+	1273	189500000	-	Cphamn1_1048	-	magnesium chelatase, H subunit
1001	 51.64	0	1137419..1138909	-	496	189500001	-	Cphamn1_1049	-	inosine-5'-monophosphate dehydrogenase
1002	 52.72	0	1140463..1141251	+	262	189500002	-	Cphamn1_1050	-	Beta-lactamase
1003	 48.25	0	1141731..1142045	-	104	189500003	-	Cphamn1_1051	-	hypothetical protein
1004	 42.99	-1	1142005..1142325	-	106	189500004	-	Cphamn1_1052	-	protein of unknown function DUF497
1005	 48.30	0	1142530..1143030	+	166	189500005	-	Cphamn1_1053	-	hypothetical protein
1006	 43.96	-1	1143027..1143299	-	90	189500006	-	Cphamn1_1054	-	hypothetical protein
1007	 48.41	0	1143296..1143547	-	83	189500007	-	Cphamn1_1055	-	putative transcriptional regulator, CopG family
1008	 41.84	-1	1143754..1143894	+	46	189500008	-	Cphamn1_1056	-	hypothetical protein
1009	 47.55	0	1143935..1144813	+	292	189500009	-	Cphamn1_1057	-	Methyltransferase type 11
1010	 37.72	-2	1145138..1145365	+	75	189500010	-	Cphamn1_1058	-	addiction module component, TIGR02574 family
1011	 41.84	-1	1145362..1145643	+	93	189500011	-	Cphamn1_1059	-	plasmid stabilization system
1012	 51.38	0	1145688..1146086	+	132	189500012	-	Cphamn1_1060	-	nitrogenase-associated protein
1013	 45.72	0	1146548..1147645	+	365	189500013	-	Cphamn1_1062	-	DNA binding domain protein, excisionase family
1014	 41.34	-1	1147626..1148399	-	257	189500014	-	Cphamn1_1063	-	Type II site-specific deoxyribonuclease
1015	 48.45	0	1148703..1149284	-	193	189500015	-	Cphamn1_1064	-	pentapeptide repeat protein
1016	 50.84	0	1151299..1154406	+	1035	189500016	-	Cphamn1_1066	-	acriflavin resistance protein
1017	 51.87	0	1154557..1155732	+	391	189500017	-	Cphamn1_1067	-	efflux transporter, RND family, MFP subunit
1018	 53.12	+1	1155756..1158914	+	1052	189500018	-	Cphamn1_1068	-	transporter, hydrophobe/amphiphile efflux-1 (HAE1) family
1019	 52.09	0	1158898..1160358	+	486	189500019	-	Cphamn1_1069	-	RND efflux system, outer membrane lipoprotein, NodT family
1020	 49.60	0	1160443..1160694	+	83	189500020	-	Cphamn1_1070	-	hypothetical protein
1021	 48.52	0	1160736..1161005	+	89	189500021	-	Cphamn1_1071	-	hypothetical protein
1022	 48.29	0	1161026..1163164	-	712	189500022	-	Cphamn1_1072	-	protein of unknown function DUF255
1023	 39.84	-2	1163294..1163416	+	40	189500023	-	Cphamn1_1073	-	hypothetical protein
1024	 46.51	0	1163466..1164338	+	290	189500024	-	Cphamn1_1074	-	peptide methionine sulfoxide reductase
1025	 44.58	-1	1164468..1164716	-	82	189500025	-	Cphamn1_1075	-	hypothetical protein
1026	 49.32	0	1164776..1165144	+	122	189500026	-	Cphamn1_1076	-	Dinitrogenase iron-molybdenum cofactor biosynthesis protein
1027	 59.41	+2	1165266..1165706	-	146	189500027	-	Cphamn1_1077	-	hypothetical protein
1028	 52.66	0	1168069..1168896	+	275	189500028	-	Cphamn1_1079	-	acid phosphatase (Class B)
1029	 56.84	+1	1168927..1169781	-	284	189500029	-	Cphamn1_1080	-	beta-lactamase domain protein
1030	 53.75	+1	1169862..1170434	-	190	189500030	-	Cphamn1_1081	-	surface antigen msp4 family protein
1031	 56.24	+1	1170690..1172060	+	456	189500031	-	Cphamn1_1082	-	transposase IS4 family protein
1032	 37.30	-2	1172355..1172606	+	83	189500032	-	Cphamn1_1083	-	protein of unknown function DUF86
1033	 54.32	+1	1172611..1173639	+	342	189500033	-	Cphamn1_1084	-	zinc-binding alcohol dehydrogenase family protein
1034	 45.40	0	1173659..1174006	-	115	189500034	-	Cphamn1_1085	-	hypothetical protein
1035	 51.40	0	1174097..1174633	-	178	189500035	-	Cphamn1_1086	-	hypothetical protein
1036	 50.32	0	1174842..1175471	-	209	189500036	-	Cphamn1_1087	-	glycosyl transferase family 2
1037	 49.05	0	1175489..1175908	-	139	189500037	-	Cphamn1_1088	-	protein of unknown function UPF0047
1038	 49.60	0	1175905..1176906	-	333	189500038	-	Cphamn1_1089	-	bacteriochlorophyll/chlorophyll synthetase
1039	 54.73	+1	1177120..1177362	+	80	189500039	-	Cphamn1_1090	-	hypothetical protein
1040	 47.31	0	1177448..1177633	-	61	189500040	-	Cphamn1_1091	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
1041	 44.97	0	1177801..1177989	-	62	189500041	-	Cphamn1_1092	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
1042	 48.29	0	1178136..1179098	-	320	189500042	-	Cphamn1_1093	-	PhoH family protein
1043	 46.46	0	1179119..1180108	-	329	189500043	-	Cphamn1_1094	-	ADP-L-glycero-D-manno-heptose-6-epimerase
1044	 42.79	-1	1180391..1180813	-	140	189500044	-	Cphamn1_1095	-	sigma-24 (FecI-like)
1045	 45.81	0	1181119..1182216	+	365	189500045	-	Cphamn1_1096	-	histidinol-phosphate aminotransferase
1046	 44.94	0	1182216..1182758	+	180	189500046	-	Cphamn1_1097	-	tRNA/rRNA methyltransferase (SpoU)
1047	 47.13	0	1182798..1183616	+	272	189500047	-	Cphamn1_1098	-	alpha/beta hydrolase fold
1048	 48.42	0	1183613..1184182	-	189	189500048	-	Cphamn1_1099	-	Aminoacyl-tRNA hydrolase
1049	 55.10	+1	1184342..1184851	-	169	189500049	-	Cphamn1_1100	-	hypothetical protein
1050	 52.57	0	1184964..1187042	-	692	189500050	-	Cphamn1_1101	-	V-type H(+)-translocating pyrophosphatase
1051	 47.56	0	1187275..1188300	-	341	189500051	-	Cphamn1_1102	-	Endonuclease/exonuclease/phosphatase
1052	 48.12	0	1188602..1189000	+	132	189500052	-	Cphamn1_1103	-	hypothetical protein
1053	 44.99	0	1189022..1189450	-	142	189500053	-	Cphamn1_1104	-	protein of unknown function DUF6 transmembrane
1054	 46.13	0	1189549..1190259	+	236	189500054	-	Cphamn1_1105	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1055	 47.89	0	1190286..1190924	+	212	189500055	-	Cphamn1_1106	-	SNARE associated Golgi protein
1056	 50.66	0	1191219..1192130	+	303	189500056	-	Cphamn1_1107	-	Transketolase domain protein
1057	 48.13	0	1192139..1192672	+	177	189500057	-	Cphamn1_1108	-	Protein of unknown function methylase putative
1058	 46.79	0	1192813..1193310	+	165	189500058	-	Cphamn1_1109	-	pantetheine-phosphate adenylyltransferase
1059	 49.71	0	1193333..1194541	+	402	189500059	-	Cphamn1_1110	-	aminotransferase class I and II
1060	 48.28	0	1194642..1195424	+	260	189500060	-	Cphamn1_1111	-	phospholipid/glycerol acyltransferase
1061	 46.79	0	1195518..1196483	+	321	189500061	-	Cphamn1_1112	-	PSP1 domain protein
1062	 48.20	0	1196514..1198625	+	703	189500062	-	Cphamn1_1113	-	methionyl-tRNA synthetase
1063	 49.03	0	1198888..1200129	+	413	189500063	-	Cphamn1_1114	-	hypothetical protein
1064	 48.35	0	1200428..1201546	-	372	189500064	-	Cphamn1_1115	-	Cyclopropane-fatty-acyl-phospholipid synthase
1065	 49.68	0	1201642..1202418	-	258	189500065	-	Cphamn1_1116	-	fatty acid hydroxylase
1066	 41.19	-1	1202611..1203183	-	190	189500066	-	Cphamn1_1117	-	anti-sigma-factor antagonist
1067	 49.02	0	1203295..1204263	-	322	189500067	-	Cphamn1_1118	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1068	 50.30	0	1204263..1204934	-	223	189500068	-	Cphamn1_1119	-	maf protein
1069	 52.15	0	1204916..1206679	-	587	189500069	-	Cphamn1_1120	-	Na+/solute symporter
1070	 47.81	0	1206706..1207617	-	303	189500070	-	Cphamn1_1121	-	PfkB domain protein
1071	 50.58	0	1207657..1209546	-	629	189500071	-	Cphamn1_1122	-	alpha-amylase family protein
1072	 53.13	+1	1209691..1210392	+	233	189500072	-	Cphamn1_1123	-	tRNA pseudouridine synthase A
1073	 49.36	0	1210571..1212361	+	596	189500073	-	Cphamn1_1124	-	Lytic transglycosylase catalytic
1074	 47.28	0	1212585..1213781	+	398	189500074	-	Cphamn1_1125	-	arsenite-activated ATPase ArsA
1075	 50.66	0	1213935..1215002	+	355	189500075	-	Cphamn1_1126	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1076	 45.59	0	1215061..1215264	+	67	189500076	-	Cphamn1_1127	-	hypothetical protein
1077	 47.18	0	1215287..1216420	+	377	189500077	-	Cphamn1_1128	-	hypothetical protein
1078	 48.54	0	1216460..1216630	+	56	189500078	-	Cphamn1_1129	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
