IslandPath Analysis: Brucella suis ATCC 23445

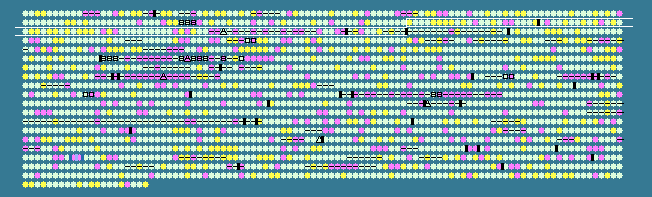

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 4.26
Brucella suis ATCC 23445 chromosome I, complete sequence - 1..1923763
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
165	 62.76	+1	182217..182933	+	238	163842442	rph	BSUIS_A0174	-	ribonuclease PH
166	 57.78	0	183107..183511	+	134	163842443	-	BSUIS_A0175	-	glyoxalase/bleomycin resistance protein/dioxygenase
167	 59.58	0	183514..184176	+	220	163842444	rdgB	BSUIS_A0176	-	putative deoxyribonucleotide triphosphate pyrophosphatase
168	 60.49	0	184173..185387	+	404	163842445	-	BSUIS_A0177	-	coproporphyrinogen III oxidase
169	 62.06	+1	185399..186310	+	303	163842446	-	BSUIS_A0178	-	hypothetical protein
170	 61.68	+1	186307..186687	+	126	163842447	-	BSUIS_A0179	-	hypothetical protein
171	 64.01	+1	186913..188340	+	475	163842448	cobA	BSUIS_A0180	-	uroporphyrin-III C-methyltransferase
172	 62.38	+1	188358..188660	+	100	163842449	-	BSUIS_A0181	-	hypothetical protein
173	 57.51	0	188681..190351	+	556	163842450	-	BSUIS_A0182	-	sulfite reductase (ferredoxin)
174	 63.37	+1	190341..191099	+	252	163842451	cysH	BSUIS_A0183	-	phosphoadenosine phosphosulfate reductase
175	 59.05	0	191152..191676	+	174	163842452	-	BSUIS_A0184	-	hypothetical protein
176	 53.40	0	191744..192037	+	97	163842453	-	BSUIS_A0185	-	stress responsive alpha-beta barrel domain-containing protein
177	 59.24	0	192038..192616	-	192	163842454	-	BSUIS_A0186	-	methylated-DNA-[protein]-cysteine S-methyltransferase
178	 56.91	0	192874..193119	+	81	163842455	-	BSUIS_A0187	-	hypothetical protein
179	 61.28	+1	193172..193561	-	129	163842456	-	BSUIS_A0188	-	BA14K family protein
180	 59.27	0	193875..197672	+	1265	163842457	metH	BSUIS_A0189	-	B12-dependent methionine synthase
181	 48.81	-1	197636..197803	-	55	163842458	-	BSUIS_A0190	-	hypothetical protein
182	 51.41	-1	197993..198700	+	235	163842459	solR	BSUIS_A0191	-	transcriptional activator protein solR
183	 59.52	0	198815..200185	+	456	163842460	-	BSUIS_A0192	-	aminotransferase
184	 55.70	0	200571..201473	+	300	163842461	cysD	BSUIS_A0193	-	sulfate adenylyltransferase subunit 2
185	 58.19	0	201473..203407	+	644	163842462	cysN	BSUIS_A0194	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
186	 61.58	+1	203410..204255	+	281	163842463	cysQ	BSUIS_A0195	-	3'(2'),5'-bisphosphate nucleotidase
187	 57.18	0	205520..206257	+	245	163842464	moaR	BSUIS_A0198	-	monoamine regulon transcriptional regulator
188	 34.09	-2	206232..206363	+	43	163842465	-	BSUIS_A0199	-	hypothetical protein
189	 58.21	0	206585..207376	+	263	163842466	-	BSUIS_A0200	-	DeoR family transcriptional regulator
190	 60.19	0	207458..208969	+	503	163842467	glpD	BSUIS_A0201	-	glycerol-3-phosphate dehydrogenase
191	 64.71	+1	209188..210156	+	322	163842468	-	BSUIS_A0202	-	Fis family transcriptional regulator
192	 58.10	0	210305..211822	+	505	163842469	thcA	BSUIS_A0203	-	EPTC-inducible aldehyde dehydrogenase
193	 59.03	0	212303..213337	+	344	163842470	adhT	BSUIS_A0204	-	alcohol dehydrogenase
194	 60.70	0	213359..213760	+	133	163842471	-	BSUIS_A0205	-	hypothetical protein
195	 59.82	0	213822..214844	+	340	163842472	-	BSUIS_A0206	-	alanine racemase
196	 61.64	+1	214936..216627	-	563	163842473	-	BSUIS_A0207	-	ABC transporter related
197	 41.82	-2	216878..217042	-	54	163842474	-	BSUIS_A0208	-	hypothetical protein
198	 59.07	0	217248..218681	+	477	163842475	aldHT	BSUIS_A0209	-	aldehyde dehydrogenase
199	 63.32	+1	218726..219502	-	258	163842476	-	BSUIS_A0210	-	binding-protein-dependent transport systems inner membrane component
200	 58.94	0	219499..220197	-	232	163842477	-	BSUIS_A0211	-	TenA family transcription regulator
201	 57.28	0	220194..221162	-	322	163842478	-	BSUIS_A0212	-	NMT1/THI5-like domain-containing protein
202	 61.11	0	221186..221797	-	203	163842479	thiE	BSUIS_A0213	-	thiamine-phosphate pyrophosphorylase
203	 62.78	+1	221794..222564	-	256	163842480	thiG	BSUIS_A0214	-	thiazole synthase
204	 59.09	0	222566..222763	-	65	163842481	thiS	BSUIS_A0215	-	thiamine biosynthesis protein ThiS
205	 63.28	+1	222760..223764	-	334	163842482	thiO	BSUIS_A0216	-	glycine oxidase ThiO
206	 62.79	+1	223764..224639	-	291	163842483	thiD	BSUIS_A0217	-	phosphomethylpyrimidine kinase
207	 57.91	0	225068..227179	+	703	163842484	-	BSUIS_A0219	-	diguanylate cyclase
208	 62.15	+1	227278..229758	+	826	163842485	-	BSUIS_A0220	-	heavy metal translocating P-type ATPase
209	 58.67	0	229738..230187	-	149	163842486	cueR	BSUIS_A0221	-	Cu(I)-responsive transcriptional regulator
210	 61.18	0	230293..231039	-	248	163842487	-	BSUIS_A0222	-	binding-protein-dependent transport systems inner membrane component
211	 63.58	+1	231036..231974	-	312	163842488	-	BSUIS_A0223	-	ABC transporter related
212	 62.36	+1	231971..233131	-	386	163842489	-	BSUIS_A0224	-	binding-protein-dependent transport systems inner membrane component
213	 55.90	0	233204..234271	-	355	163842490	-	BSUIS_A0225	-	substrate-binding region of ABC-type glycine betaine transport system
214	 45.80	-2	234304..234969	-	221	163842491	-	BSUIS_A0226	-	hypothetical protein
215	 60.51	0	235259..236524	-	421	163842492	gdhA	BSUIS_A0227	-	glutamate dehydrogenase
216	 51.79	-1	236715..236882	+	55	163842493	-	BSUIS_A0228	-	hypothetical protein
217	 59.89	0	236851..238104	+	417	163842494	-	BSUIS_A0229	-	sarcosine oxidase beta subunit family protein
218	 58.82	0	238123..238428	+	101	163842495	-	BSUIS_A0230	-	sarcosine oxidase delta subunit family protein
219	 57.66	0	241437..241991	+	184	163842496	-	BSUIS_A0232	-	sarcosine oxidase gamma subunit
220	 60.38	0	242949..243743	-	264	163842497	-	BSUIS_A0234	-	regulatory protein IclR
221	 57.73	0	243901..245220	+	439	163842498	-	BSUIS_A0235	-	extracellular solute-binding protein
222	 58.77	0	245281..246204	+	307	163842499	-	BSUIS_A0236	-	binding-protein-dependent transport systems inner membrane component
223	 59.59	0	246207..247082	+	291	163842500	-	BSUIS_A0237	-	binding-protein-dependent transport systems inner membrane component
224	 60.35	0	247090..248181	+	363	163842501	lacK	BSUIS_A0238	-	lactose transport ATP-binding protein lacK
225	 59.70	0	248184..249302	+	372	163842502	mdlA	BSUIS_A0239	-	mandelate racemase
226	 51.01	-1	249299..249643	+	114	163842503	-	BSUIS_A0240	-	hypothetical protein
227	 60.56	0	249636..250715	+	359	163842504	-	BSUIS_A0241	-	oxidoreductase domain-containing protein
228	 52.38	-1	250712..250816	+	34	163842505	-	BSUIS_A0242	-	hypothetical protein
229	 61.50	+1	250820..251554	+	244	163842506	polS	BSUIS_A0243	-	sorbitol dehydrogenase
230	 59.10	0	251595..252440	+	281	163842507	-	BSUIS_A0244	-	fumarylacetoacetate hydrolase domain-containing protein
231	 58.53	0	252454..253731	+	425	163842508	-	BSUIS_A0245	-	mandelate racemase/muconate lactonizing protein
232	 47.83	-2	254130..254681	-	183	163842509	-	BSUIS_A0246	-	hypothetical protein
233	 46.38	-2	255510..255647	-	45	163842510	-	BSUIS_A0247	-	hypothetical protein
234	 55.78	0	255884..256627	+	247	163842511	-	BSUIS_A0248	-	integrase DNA protein
235	 55.71	0	257589..257807	+	72	163842512	-	BSUIS_A0249	-	hypothetical protein
236	 52.70	-1	258014..258328	+	104	163842513	-	BSUIS_A0250	-	hypothetical protein
237	 59.75	0	258325..259206	+	293	163842514	-	BSUIS_A0251	-	virulence-associated protein E
238	 55.16	0	259203..260732	+	509	163842515	-	BSUIS_A0252	-	hypothetical protein
239	 50.16	-1	260702..261319	+	205	163842516	-	BSUIS_A0253	-	hypothetical protein
240	 53.69	0	261473..262489	+	338	163842517	-	BSUIS_A0254	-	hypothetical protein
241	 49.52	-1	262591..262800	+	69	163842518	-	BSUIS_A0255	-	hypothetical protein
242	 55.90	0	262791..264917	+	708	163842519	flgJ	BSUIS_A0256	-	peptidoglycan hydrolase flgJ
243	 56.89	0	264914..266959	+	681	163842520	-	BSUIS_A0257	-	elastin precursor
244	 52.61	-1	267160..267465	+	101	163842521	-	BSUIS_A0258	-	hypothetical protein
245	 55.56	0	268564..268770	+	68	163842522	-	BSUIS_A0259	-	hypothetical protein
246	 48.82	-1	270034..270582	+	182	163842523	-	BSUIS_A0260	-	hypothetical protein
247	 40.53	-2	270967..271452	-	161	163842524	-	BSUIS_A0261	-	hypothetical protein
248	 53.66	0	271990..272235	-	81	163842525	-	BSUIS_A0262	-	helix-turn-helix domain-containing protein
249	 54.07	0	272313..272558	+	81	163842526	-	BSUIS_A0263	-	hypothetical protein
250	 51.89	-1	272624..272914	+	96	163842527	-	BSUIS_A0264	-	hypothetical protein
251	 56.81	0	272911..273549	+	212	163842528	-	BSUIS_A0265	-	hypothetical protein
252	 56.32	0	273551..273724	+	57	163842529	-	BSUIS_A0266	-	hypothetical protein
253	 52.64	-1	273721..274725	+	334	163842530	-	BSUIS_A0267	-	hypothetical protein
254	 46.86	-2	275030..275857	-	275	163842531	-	BSUIS_A0268	-	hypothetical protein
255	 59.72	0	276836..277051	-	71	163842532	-	BSUIS_A0270	-	zinc-binding protein
256	 61.24	0	277061..277687	-	208	163842533	maf	BSUIS_A0271	-	Maf-like protein
257	 52.05	-1	277721..277939	-	72	163842534	infA	BSUIS_A0272	-	translation initiation factor IF-1
258	 58.65	0	278051..278524	-	157	163842535	-	BSUIS_A0273	-	protein tyrosine phosphatase
259	 58.80	0	278531..279013	-	160	163842536	-	BSUIS_A0274	-	hypothetical protein
260	 61.87	+1	279020..280312	-	430	163842537	hisD	BSUIS_A0275	-	histidinol dehydrogenase
261	 55.33	0	280387..280827	-	146	163842538	-	BSUIS_A0276	-	hypothetical protein
262	 61.01	0	281098..282387	-	429	163842539	murA	BSUIS_A0277	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
263	 53.56	0	282553..282903	+	116	163842540	-	BSUIS_A0278	-	hypothetical protein
264	 59.44	0	282610..282789	-	59	163842541	-	BSUIS_A0279	-	hypothetical protein
57.01	MEAN

4.26	STD DEV
