IslandPathversion 1.0

IslandPath Analysis: Brucella abortus S19

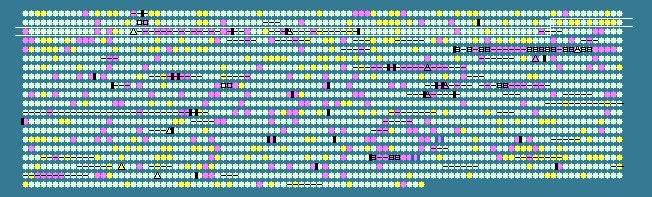

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.60 STD DEV: 3.62
Brucella abortus S19 chromosome 1, complete sequence - 1..2122487
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
189	 60.95	0	224348..224959	-	203	189023457	-	BAbS19_I02020	-	Thiamine monophosphate synthase
190	 62.65	+1	224956..225726	-	256	189023458	-	BAbS19_I02030	-	FMN/related compound-binding core
191	 59.09	0	225728..225925	-	65	189023459	-	BAbS19_I02040	-	thiamineS protein
192	 63.38	+1	225922..226926	-	334	189023460	-	BAbS19_I02050	-	D-amino acid oxidase family protein
193	 62.67	+1	226926..227801	-	291	189023461	-	BAbS19_I02060	-	Phosphomethylpyrimidine kinase
194	 57.72	0	228230..230341	+	703	189023462	-	BAbS19_I02070	-	PAS-associated C-terminal domain protein
195	 62.11	+1	230440..232719	+	759	189023463	-	BAbS19_I02080	-	copper-translocating P-type ATPase
196	 58.67	0	232699..233148	-	149	189023464	-	BAbS19_I02090	-	Bacterial regulatory protein, MerR family
197	 61.31	+1	233254..234000	-	248	189023465	-	BAbS19_I02100	-	ABC transporter, permease protein
198	 63.58	+1	233997..234935	-	312	189023466	-	BAbS19_I02110	-	ATP/GTP-binding site motif A (P-loop)
199	 62.29	+1	234932..236143	-	403	189023467	-	BAbS19_I02120	-	Binding-protein-dependent transport systems inner membrane component
200	 56.45	0	236165..237094	-	309	189023468	-	BAbS19_I02130	-	Substrate-binding region of ABC-type glycine betaine transport system
201	 45.62	-2	237265..237915	-	216	189023469	-	BAbS19_I02140	-	hypothetical protein
202	 60.82	0	238219..239484	-	421	189023470	-	BAbS19_I02150	-	glutamate dehydrogenase, hypothetical
203	 59.65	0	239811..241064	+	417	189023471	-	BAbS19_I02160	-	Pyridine nucleotide-disulphide oxidoreductase
204	 58.82	0	241083..241388	+	101	189023472	-	BAbS19_I02170	-	Sarcosine oxidase, delta subunit, heterotetrameric
205	 57.48	0	244396..244950	+	184	189023473	-	BAbS19_I02200	-	Sarcosine oxidase, gamma subunit
206	 59.72	0	245003..245851	-	282	189023474	-	BAbS19_I02210	-	Amidohydrolase 2
207	 60.90	0	245923..246702	-	259	189023475	-	BAbS19_I02220	-	Bacterial regulatory protein, MarR family
208	 57.73	0	246860..248179	+	439	189023476	-	BAbS19_I02230	-	Bacterial extracellular solute-binding protein, family 1
209	 58.95	0	248270..249163	+	297	189023477	-	BAbS19_I02240	-	Binding-protein-dependent transport systems inner membrane component
210	 59.82	0	249166..250041	+	291	189023478	-	BAbS19_I02250	-	Binding-protein-dependent transport systems inner membrane component
211	 60.26	0	250049..251140	+	363	189023479	-	BAbS19_I02260	-	ATP/GTP-binding site motif A (P-loop)
212	 59.79	0	251143..252261	+	372	189023480	-	BAbS19_I02270	-	Mandelate racemase/muconate lactonizing enzyme
213	 51.01	-1	252258..252602	+	114	189023481	-	BAbS19_I02280	-	hypothetical protein
214	 60.46	0	252595..253674	+	359	189023482	-	BAbS19_I02290	-	Oxidoreductase, N-terminal
215	 52.38	-1	253671..253775	+	34	189023483	-	BAbS19_I02300	-	hypothetical protein
216	 61.50	+1	253779..254513	+	244	189023484	-	BAbS19_I02310	-	Short-chain dehydrogenase/reductase SDR
217	 58.98	0	254554..255399	+	281	189023485	-	BAbS19_I02320	-	ATP/GTP-binding site motif A (P-loop)
218	 58.53	0	255413..256690	+	425	189023486	-	BAbS19_I02330	-	Mandelate racemase/muconate lactonizing enzyme
219	 55.47	0	258844..260040	+	398	189023487	-	BAbS19_I02340	-	Phage integrase
220	 55.71	0	260551..260769	+	72	189023488	-	BAbS19_I02350	-	hypothetical protein
221	 53.02	-1	260976..261290	+	104	189023489	-	BAbS19_I02360	-	hypothetical protein
222	 59.86	0	261287..262168	+	293	189023490	-	BAbS19_I02370	-	virulence-associated protein E
223	 53.88	-1	263842..264279	+	145	189023491	-	BAbS19_I02400	-	hypothetical protein
224	 53.79	-1	264433..265449	+	338	189023492	-	BAbS19_I02410	-	hypothetical protein
225	 51.41	-1	265584..265760	+	58	189023493	-	BAbS19_I02420	-	hypothetical protein
226	 55.96	0	265757..267877	+	706	189023494	-	BAbS19_I02430	-	Flagellar protein FlgJ
227	 52.94	-1	270109..270414	+	101	189023495	-	BAbS19_I02460	-	hypothetical protein
228	 55.56	0	271513..271719	+	68	189023496	-	BAbS19_I02470	-	hypothetical protein
229	 48.82	-2	272983..273531	+	182	189023497	-	BAbS19_I02480	-	zinc-dependent metallopeptidase
230	 53.66	-1	274938..275183	-	81	189023498	-	BAbS19_I02490	-	hypothetical protein
231	 54.39	0	275279..275506	+	75	189023499	-	BAbS19_I02500	-	hypothetical protein
232	 51.89	-1	275572..275862	+	96	189023500	-	BAbS19_I02510	-	hypothetical protein
233	 56.48	0	275859..276398	+	179	189023501	-	BAbS19_I02520	-	hypothetical protein
234	 52.55	-1	276669..277277	+	202	189023502	-	BAbS19_I02530	-	hypothetical protein
235	 46.98	-2	277977..278804	-	275	189023503	-	BAbS19_I02540	-	hypothetical protein
236	 60.19	0	279784..279999	-	71	189023504	-	BAbS19_I02550	-	zinc-binding protein
237	 60.98	0	280009..280641	-	210	189023505	-	BAbS19_I02560	-	Maf-like protein
238	 52.05	-1	280669..280887	-	72	189023506	-	BAbS19_I02570	-	Translation initiation factor, IF1 type
239	 58.65	0	280999..281472	-	157	189023507	-	BAbS19_I02580	-	Low molecular weight phosphotyrosine protein phosphatase
240	 58.80	0	281479..281961	-	160	189023508	-	BAbS19_I02590	-	hypothetical protein
241	 61.79	+1	281968..283260	-	430	189023509	-	BAbS19_I02600	-	Histidinol dehydrogenase
242	 55.10	0	283335..283775	-	146	189023510	-	BAbS19_I02610	-	hypothetical protein
243	 60.93	0	284046..285335	-	429	189023511	-	BAbS19_I02620	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
244	 52.42	-1	285438..285851	+	137	189023512	-	BAbS19_I02630	-	Bacterial inner-membrane translocator
245	 55.63	0	286040..287806	+	588	189023513	-	BAbS19_I02640	-	site-specific recombinase, phage integrase family
246	 55.56	0	288163..288324	+	53	189023514	-	BAbS19_I02650	-	BRO family protein
247	 58.25	0	289123..289740	+	205	189023515	-	BAbS19_I02660	-	Site-specific recombinase
248	 54.66	0	290406..291338	+	310	189023516	-	BAbS19_I02670	-	hypothetical protein
249	 52.56	-1	293384..293773	+	129	189023517	-	BAbS19_I02680	-	hypothetical protein
250	 61.68	+1	294366..295208	+	280	189023518	-	BAbS19_I02690	-	Urease accessory protein UreD
251	 60.40	0	295361..295663	+	100	189023519	-	BAbS19_I02700	-	Urease, gamma subunit
252	 57.84	0	295830..296135	+	101	189023520	-	BAbS19_I02710	-	Urease, beta subunit
253	 60.36	0	296154..297866	+	570	189023521	-	BAbS19_I02720	-	Urease:Amidohydrolase
254	 59.50	0	297882..298397	+	171	189023522	-	BAbS19_I02730	-	UreE urease accessory, N-terminal
255	 63.17	+1	298369..299055	+	228	189023523	-	BAbS19_I02740	-	urease accessory protein UreF
256	 57.26	0	299052..299678	+	208	189023524	-	BAbS19_I02750	-	Urease accessory protein UREG
257	 58.61	0	300034..301659	-	541	189023525	-	BAbS19_I02760	-	sensor histidine kinase
258	 60.68	0	301944..303095	+	383	189023526	-	BAbS19_I02770	-	transporter, putative
259	 60.28	0	303110..306241	+	1043	189023527	-	BAbS19_I02780	-	Acriflavin resistance protein
260	 59.78	0	307885..309132	-	415	189023528	-	BAbS19_I02810	-	Peptidase M20/M25/M40
261	 55.12	0	309351..310034	+	227	189023529	-	BAbS19_I02820	-	Bacterial regulatory protein TetR, HTH motif
262	 60.95	0	310464..311774	-	436	189023530	-	BAbS19_I02830	-	dihydropyrimidine dehydrogenase
263	 61.20	0	311793..313274	-	493	189023531	-	BAbS19_I02840	-	pyridine nucleotide-disulphide oxidoreductase family protein
264	 56.29	0	313462..313914	-	150	189023532	-	BAbS19_I02850	-	hypothetical protein
265	 60.55	0	314065..315714	+	549	189023533	-	BAbS19_I02860	-	Phosphoglucose isomerase (PGI)
266	 58.76	0	315848..316909	+	353	189023534	-	BAbS19_I02870	-	arginine/ornithine transport operon protein aot
267	 60.00	0	316906..317655	+	249	189023535	-	BAbS19_I02880	-	hydrolase, haloacid dehalogenase-like family
268	 58.88	0	317628..318500	-	290	189023536	-	BAbS19_I02890	-	Esterase/lipase/thioesterase
269	 59.34	0	318526..320271	-	581	189023537	-	BAbS19_I02900	-	acyl-CoA synthase
270	 56.19	0	320622..321251	-	209	189023538	-	BAbS19_I02910	-	Bacterial regulatory protein TetR, HTH motif
271	 59.88	0	321424..322617	+	397	189023539	-	BAbS19_I02920	-	Secretion protein HlyD
272	 60.20	0	322614..325769	+	1051	189023540	-	BAbS19_I02930	-	Acriflavin resistance protein
273	 52.98	-1	325880..326047	-	55	189023541	-	BAbS19_I02940	-	hypothetical protein
274	 58.24	0	326477..327319	-	280	189023542	-	BAbS19_I02950	-	Bacterial extracellular solute-binding protein, family 3
275	 58.21	0	327588..329480	+	630	189023543	-	BAbS19_I02960	-	Glycosyl transferase, family 2
276	 56.77	0	329408..330367	-	319	189023544	-	BAbS19_I02970	-	Domain of unknown function DUF344
277	 60.90	0	330500..331816	+	438	189023545	-	BAbS19_I02980	-	sensor histidine kinase, hypothetical
278	 61.33	+1	331946..332488	-	180	189023546	-	BAbS19_I02990	-	Pollen allergen Poa pIX/Phl pVI, C-terminal
279	 55.43	0	332660..332926	-	88	189023547	-	BAbS19_I03000	-	hypothetical protein
280	 59.74	0	333092..334303	+	403	189023548	-	BAbS19_I03010	-	Aminotransferase class-III
281	 57.61	0	334308..335246	+	312	189023549	-	BAbS19_I03020	-	ornithine carbamoyltransferase
282	 58.26	0	335248..336270	+	340	189023550	-	BAbS19_I03030	-	Hsp33 protein
283	 56.74	0	336311..336703	-	130	189023551	-	BAbS19_I03040	-	Protein of unknown function DUF525
284	 59.48	0	337072..338268	-	398	189023552	-	BAbS19_I03050	-	Cys/Met metabolism pyridoxal-phosphate-dependent enzyme
285	 61.08	0	338695..339786	+	363	189023553	-	BAbS19_I03060	-	dCTP deaminase
286	 59.88	0	339877..340893	+	338	189023554	-	BAbS19_I03070	-	Helix-turn-helix, AraC type
287	 53.18	-1	340980..341246	+	88	189023555	-	BAbS19_I03080	-	hypothetical protein
288	 59.83	0	341283..341765	+	160	189023556	-	BAbS19_I03090	-	Allergen V5/Tpx-1 related
57.60	MEAN

3.62	STD DEV
