IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

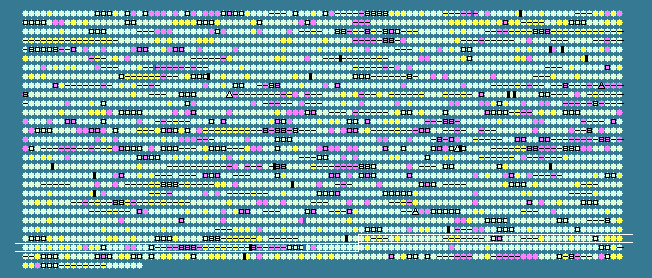

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2557	 40.62	0	3017678..3018541	+	287	209696191	psd	VSAL_I2785	-	phosphatidylserine decarboxylase proenzyme
2558	 45.07	+1	3018652..3019614	+	320	209696192	-	VSAL_I2786	-	integral membrane protein
2559	 42.25	0	3019655..3020641	-	328	209696193	-	VSAL_I2787	-	putative lysyl-tRNA synthetase
2560	 44.07	+1	3020995..3022848	+	617	209696194	-	VSAL_I2788	-	fumarate reductase complex, flavoprotein subunit
2561	 42.47	0	3022848..3023591	+	247	209696195	frdB	VSAL_I2789	-	fumarate reductase complex, iron-sulfur protein
2562	 41.67	0	3023594..3023977	+	127	209696196	frdC	VSAL_I2790	-	fumarate reductase complex, membrane anchor subunit C
2563	 43.25	+1	3023989..3024351	+	120	209696197	frdD	VSAL_I2791	-	fumarate reductase complex, membrane anchor subunit D
2564	 40.92	0	3024543..3025109	-	188	209696198	efp	VSAL_I2792	-	elongation factor P (EF-P)
2565	 40.18	0	3025142..3026164	+	340	209696199	-	VSAL_I2793	-	hypothetical protein
2566	 41.85	0	3026252..3027214	-	320	209696200	pfkA	VSAL_I2794	-	6-phosphofructokinase isozyme 1
2567	 41.94	0	3027433..3028338	-	301	209696201	fieF	VSAL_I2795	-	ferrous-iron efflux pump FieF
2568	 38.46	0	3028498..3029004	-	168	209696202	-	VSAL_I2796	-	putative periplasmic protein CpxP
2569	 39.47	0	3029199..3029882	+	227	209696203	cpxR	VSAL_I2797	-	transcriptional regulator, CpxR
2570	 41.68	0	3029888..3031276	+	462	209696204	cpxA	VSAL_I2798	-	sensor protein CpxA
2571	 42.29	0	3031372..3031851	+	159	209696205	yibK	VSAL_I2799	-	hypothetical tRNA/rRNA methyltransferase
2572	 45.99	+2	3031953..3032774	-	273	209696206	cysE	VSAL_I2800	-	serine acetyltransferase
2573	 43.51	+1	3032793..3033824	-	343	209696207	gpsA	VSAL_I2801	-	glycerol-3-phosphate dehydrogenase [NAD(P)+]
2574	 42.03	0	3033990..3034472	-	160	209696208	secB	VSAL_I2802	-	protein-export protein SecB
2575	 38.81	0	3034600..3035037	-	145	209696209	-	VSAL_I2803	-	hypothetical protein
2576	 40.05	0	3035259..3036404	+	381	209696210	-	VSAL_I2804	-	putative exported peptidase
2577	 42.06	0	3036485..3036988	-	167	209696211	fxsA	VSAL_I2805	-	protein FxsA
2578	 40.92	0	3037403..3038851	+	482	209696212	aspA	VSAL_I2806	-	aspartate ammonia-lyase(aspartase)
2579	 37.78	0	3039055..3039369	+	104	209696213	-	VSAL_I2807	-	transposase
2580	 35.92	-1	3039366..3039713	+	115	209696214	-	VSAL_I2808	-	transposase
2581	 41.81	0	3042841..3044715	+	624	209696215	dsbD	VSAL_I2811	-	thiol:disulfide interchange protein DsbD precursor
2582	 39.08	0	3044823..3045623	+	266	209696216	nagB	VSAL_I2812	-	glucosamine-6-phosphate deaminase
2583	 41.37	0	3046322..3048274	+	650	209696217	mtlA	VSAL_I2813	-	PTS system, mannitol-specific EIICBA component
2584	 39.77	0	3048353..3049501	+	382	209696218	mtlD	VSAL_I2814	-	mannitol-1-phosphate 5-dehydrogenase
2585	 36.91	0	3049551..3050081	+	176	209696219	mtlR	VSAL_I2815	-	mannitol operon repressor (mannitol repressor protein)
2586	 39.89	0	3050102..3051352	-	416	209696220	-	VSAL_I2816	-	MFS transporter
2587	 42.97	+1	3051377..3051874	-	165	209696221	-	VSAL_I2817	-	hypothetical protein
2588	 40.72	0	3051892..3052893	-	333	209696222	gap	VSAL_I2818	-	glyceraldehyde 3-phosphate dehydrogenase
2589	 37.88	0	3052910..3053239	-	109	209696223	arsR	VSAL_I2819	-	transcriptional regulator, ArsR family
2590	 37.34	0	3053485..3054483	+	332	209696224	-	VSAL_I2820	-	hypothetical protein
2591	 41.30	0	3054683..3055912	+	409	209696225	ndh	VSAL_I2821	-	NADH dehydrogenase
2592	 44.46	+1	3055981..3057813	-	610	209696226	glmS	VSAL_I2822	-	glucosamine--fructose-6-phosphate aminotransferase
2593	 39.48	0	3057933..3058697	-	254	209696227	-	VSAL_I2823	-	putative glucitol operon repressor
2594	 42.38	0	3058924..3059553	+	209	209696228	-	VSAL_I2824	-	transcriptional regulator, LuxR response regulator receiver
2595	 39.74	0	3059641..3060264	+	207	209696229	-	VSAL_I2825	-	integral membrane protein, MarC family
2596	 39.14	0	3060371..3061696	-	441	209696230	-	VSAL_I2826	-	transposase
2597	 39.47	0	3061810..3062151	+	113	209696231	-	VSAL_I2827	-	hypothetical protein
2598	 44.66	+1	3062162..3063865	+	567	209696232	-	VSAL_I2828	-	putative sodium/solute symporter
2599	 43.72	+1	3063960..3067406	-	1148	209696233	-	VSAL_I2829	-	membrane associated response regulator, histidine kinase
2600	 43.49	+1	3067539..3068720	-	393	209696234	-	VSAL_I2830	-	MFS transporter
2601	 38.46	0	3068890..3070722	+	610	209696235	-	VSAL_I2831	-	putative nucleotidyltransferases
2602	 40.92	0	3070724..3071356	+	210	209696236	-	VSAL_I2832	-	putative exonuclease
2603	 45.49	+1	3071562..3073511	+	649	209696237	acs	VSAL_I2833	-	acetyl-coenzyme A synthetase
2604	 40.67	0	3073970..3074419	+	149	209696238	aroQ	VSAL_I2834	-	3-dehydroquinate dehydratase
2605	 45.83	+2	3074450..3074905	+	151	209696239	accB	VSAL_I2835	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
2606	 42.56	+1	3074918..3076261	+	447	209696240	accC	VSAL_I2836	-	biotin carboxylase (acetyl-CoA carboxylase subunit A)
2607	 44.07	+1	3076378..3077262	+	294	209696241	prmA	VSAL_I2837	-	ribosomal protein L11 methyltransferase
2608	 44.99	+1	3077458..3078426	+	322	209696242	dusB	VSAL_I2838	-	tRNA-dihydrouridine synthase B
2609	 39.39	0	3078449..3078745	+	98	209696243	fis	VSAL_I2839	-	DNA-binding protein Fis
2610	 44.06	+1	3078885..3079229	-	114	209696244	-	VSAL_I2840	-	hypothetical protein
2611	 35.95	-1	3079278..3079697	-	139	209696245	-	VSAL_I2841	-	HTH-type transcriptional regulator, MerR-family
2612	 45.70	+2	3079982..3081574	+	530	209696246	purH	VSAL_I2842	-	bifunctional purine biosynthesis protein PurH
2613	 45.94	+2	3081756..3083048	+	430	209696247	purD	VSAL_I2843	-	phosphoribosylamine--glycine ligase
2614	 39.14	0	3083164..3084489	+	441	209696248	-	VSAL_I2844	-	transposase
2615	 38.44	0	3084535..3085239	-	234	209696249	-	VSAL_I2845	-	putative lipoprotein
2616	 41.76	0	3085279..3085551	-	90	209696250	hupA	VSAL_I2846	-	DNA-binding protein HU-alpha
2617	 39.55	0	3085774..3086835	+	353	209696251	-	VSAL_I2847	-	putative modulator of ion transport
2618	 35.35	-1	3086932..3087525	-	197	209696252	-	VSAL_I2848	-	hypothetical protein
2619	 35.19	-1	3087597..3088511	+	304	209696253	-	VSAL_I2849	-	putative D-isomer specific 2-hydroxyacid dehydrogenase, NAD binding domain
2620	 36.62	0	3088552..3089007	-	151	209696254	-	VSAL_I2850	-	hypothetical protein
2621	 41.76	0	3089204..3090271	-	355	209696255	hemE	VSAL_I2851	-	uroporphyrinogen decarboxylase
2622	 40.79	0	3091004..3092197	+	397	209696256	-	VSAL_I2853	-	transposase
2623	 36.86	0	3092825..3093334	+	169	209696257	-	VSAL_I2854	-	Regulator of RNA polymerase sigma (70) subunit
2624	 38.06	0	3094233..3094634	-	133	209696258	csgF	VSAL_I2856	-	assembly/transport component in curli production, CsgF precursor
2625	 33.77	-1	3094644..3095105	-	153	209696259	csgE	VSAL_I2857	-	assembly/transport component in curli production, CsgE precursor
2626	 28.55	-2	3095102..3095749	-	215	209696260	csgD	VSAL_I2858	-	probable CsgAB operon transcriptional regulatory protein
2627	 34.04	-1	3096149..3096715	-	188	209696261	-	VSAL_I2860	-	transposase
2628	 35.70	-1	3096733..3097155	-	140	209696262	-	VSAL_I2861	-	transposase
2629	 35.94	-1	3097957..3098838	-	293	209696263	-	VSAL_I2863	-	transposase
2630	 35.13	-1	3099392..3100336	+	314	209696264	csgA	VSAL_I2864	-	curlin associated precursor, CsgA like
2631	 43.25	+1	3100411..3104616	-	1401	209696265	rpoC	VSAL_I2865	-	DNA-directed RNA polymerase beta' chain
2632	 42.05	0	3104688..3108716	-	1342	209696266	rpoB	VSAL_I2866	-	DNA-directed RNA polymerase, beta-subunit
2633	 45.08	+1	3108948..3109313	-	121	209696267	rplL	VSAL_I2867	-	50S ribosomal subunit protein L7/L12
2634	 44.44	+1	3109369..3109863	-	164	209696268	rplJ	VSAL_I2868	-	50S ribosomal subunit protein L10
2635	 42.13	0	3110109..3110813	-	234	209696269	rplA	VSAL_I2869	-	50S ribosomal protein L1
2636	 44.52	+1	3110818..3111246	-	142	209696270	rplK	VSAL_I2870	-	50S ribosomal protein L11
2637	 40.66	0	3111366..3111911	-	181	209696271	nusG	VSAL_I2871	-	transcription antitermination protein NusG
2638	 39.15	0	3111924..3112301	-	125	209696272	secE	VSAL_I2872b	-	preprotein translocase sece subunit
2639	 35.94	-1	3114297..3115178	+	293	209696273	-	VSAL_I2874	-	transposase
2640	 31.82	-2	3115312..3116235	+	307	209696274	coaA	VSAL_I2875	-	pantothenate kinase
2641	 38.65	0	3116236..3117195	-	319	209696275	birA	VSAL_I2876	-	bifunctional protein BirA, biotin operon repressor and biotin-[acetyl-CoA carboxylase] synthetase
2642	 33.43	-1	3117192..3118232	-	346	209696276	murB	VSAL_I2877	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2643	 29.60	-2	3118304..3118732	+	142	209696277	-	VSAL_I2878	-	hypothetical protein
2644	 35.33	-1	3118812..3120164	+	450	209696278	pssA	VSAL_I2879	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
2645	 37.78	0	3120327..3120641	+	104	209696279	-	VSAL_I2880	-	transposase
2646	 36.21	-1	3120638..3120985	+	115	209696280	-	VSAL_I2881	-	transposase
2647	 39.78	0	3121057..3122544	+	495	209696281	-	VSAL_I2882	-	transposase
2648	 36.21	-1	3128367..3128852	+	161	209696282	-	VSAL_I2883	-	putative RNA binding protein
2649	 34.46	-1	3128806..3129603	-	265	209696283	murI	VSAL_I2884	-	glutamate racemase
2650	 37.80	0	3129664..3130335	-	223	209696284	-	VSAL_I2885	-	hypothetical protein
2651	 38.02	0	3130386..3132242	-	618	209696285	-	VSAL_I2886	-	putative outer membrane associated TonB dependent receptor
2652	 37.49	0	3132667..3133773	+	368	209696286	trmA	VSAL_I2887	-	tRNA (uracil-5)-methyltransferase
2653	 37.07	0	3133846..3134220	-	124	209696287	-	VSAL_I2888	-	inner membrane protein
2654	 41.06	0	3134265..3134963	-	232	209696288	-	VSAL_I2889	-	HTH-type transcriptional regulator, TetR-family
2655	 40.47	0	3135177..3136592	+	471	209696289	sthA	VSAL_I2890	-	soluble pyridine nucleotide transhydrogenase
2656	 39.26	0	3136681..3138012	-	443	209696290	vcmD	VSAL_I2891	-	multidrug efflux pump
39.44	MEAN

3.11	STD DEV
