IslandPath Analysis: Solibacter usitatus Ellin6076

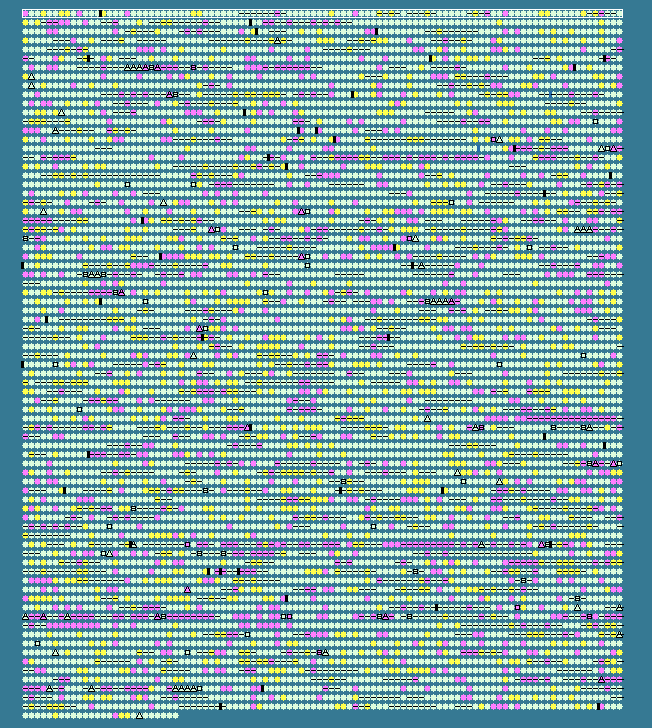

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.86 STD DEV: 3.38
Solibacter usitatus Ellin6076, complete genome - 1..9965640
7826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 56.47	-1	89..1402	+	437	116619146	-	Acid_0001	-	chromosomal replication initiator protein DnaA
2	 60.77	0	1637..2755	+	372	116619147	-	Acid_0002	-	DNA polymerase III, beta subunit
3	 59.52	0	2781..5228	+	815	116619148	-	Acid_0003	-	DNA gyrase subunit B
4	 66.54	+1	5232..6827	-	531	116619149	-	Acid_0004	-	TPR repeat-containing protein
5	 62.86	0	6844..8496	-	550	116619150	-	Acid_0005	-	peptidase M28
6	 65.12	0	8627..9400	+	257	116619151	-	Acid_0006	-	electron transport protein SCO1/SenC
7	 66.92	+1	9397..10986	+	529	116619152	-	Acid_0007	-	TPR repeat-containing protein
8	 65.86	+1	10983..11723	+	246	116619153	-	Acid_0008	-	methyltransferase type 11
9	 61.45	0	12211..12804	+	197	116619154	-	Acid_0009	-	hypothetical protein
10	 55.17	-1	12823..12996	+	57	116619155	-	Acid_0010	-	hypothetical protein
11	 60.09	0	13323..13550	-	75	116619156	-	Acid_0011	-	hypothetical protein
12	 60.88	0	13560..17015	-	1151	116619157	-	Acid_0012	-	DNA polymerase III, alpha subunit
13	 64.12	0	17148..19577	-	809	116619158	-	Acid_0013	-	hypothetical protein
14	 65.51	+1	19776..20984	-	402	116619159	-	Acid_0014	-	phosphoribosylamine--glycine ligase
15	 62.59	0	20991..22805	+	604	116619160	-	Acid_0015	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
16	 58.46	-1	22890..23669	+	259	116619161	-	Acid_0016	-	chromosome segregation ATPase
17	 61.42	0	23764..24564	+	266	116619162	-	Acid_0017	-	chromosome segregation DNA-binding protein
18	 55.38	-1	24595..24975	-	126	116619163	-	Acid_0018	-	MerR family transcriptional regulator
19	 63.35	0	24996..26984	-	662	116619164	-	Acid_0019	-	hypothetical protein
20	 64.72	0	26968..28866	-	632	116619165	-	Acid_0020	-	tetratricopeptide domain-containing protein
21	 65.20	0	28979..32245	+	1088	116619166	-	Acid_0021	-	multi-sensor signal transduction histidine kinase
22	 61.86	0	32271..33581	-	436	116619167	-	Acid_0022	-	ankyrin
23	 62.55	0	33776..35110	+	444	116619168	-	Acid_0023	-	oxidoreductase domain-containing protein
24	 64.69	0	35408..38041	+	877	116619169	-	Acid_0024	-	serine/threonine protein kinase
25	 59.52	0	38053..38304	+	83	116619170	-	Acid_0025	-	hypothetical protein
26	 60.18	0	38320..38874	+	184	116619171	-	Acid_0026	-	deaminase-reductase domain-containing protein
27	 65.05	0	38894..39757	-	287	116619172	-	Acid_0027	-	xylose isomerase domain-containing protein
28	 59.63	0	39793..40659	+	288	116619173	-	Acid_0028	-	hypothetical protein
29	 69.53	+2	41069..44032	+	987	116619174	-	Acid_0029	-	ATP-dependent nuclease subunit B-like protein
30	 68.90	+2	44163..47429	+	1088	116619175	-	Acid_0030	-	UvrD/REP helicase
31	 64.58	0	47426..48145	-	239	116619176	-	Acid_0031	-	hypothetical protein
32	 64.53	0	48142..48609	-	155	116619177	-	Acid_0032	-	Rieske (2Fe-2S) domain-containing protein
33	 62.51	0	48638..49552	-	304	116619178	-	Acid_0033	-	hypothetical protein
34	 64.70	0	49557..51587	-	676	116619179	-	Acid_0034	-	hypothetical protein
35	 64.44	0	51764..55318	+	1184	116619180	-	Acid_0035	-	hypothetical protein
36	 61.73	0	55331..57457	+	708	116619181	-	Acid_0036	-	hypothetical protein
37	 64.51	0	57495..58931	-	478	116619182	-	Acid_0037	-	lactaldehyde dehydrogenase
38	 65.20	0	58984..60966	+	660	116619183	-	Acid_0038	-	heparinase II/III family protein
39	 61.84	0	61055..62317	+	420	116619184	-	Acid_0039	-	glutamate dehydrogenase (NADP)
40	 62.04	0	62416..63582	+	388	116619185	-	Acid_0040	-	acyl-CoA dehydrogenase domain-containing protein
41	 59.80	0	63617..65656	+	679	116619186	-	Acid_0041	-	integral membrane protein-like protein
42	 61.72	0	65775..69452	+	1225	116619187	-	Acid_0042	-	hypothetical protein
43	 56.81	-1	69600..70208	+	202	116619188	-	Acid_0043	-	outer membrane lipoprotein carrier protein LolA
44	 58.40	-1	70211..71419	+	402	116619189	-	Acid_0044	-	type II secretion system protein
45	 59.78	0	71430..73055	+	541	116619190	-	Acid_0045	-	type II secretion system protein E
46	 62.95	0	73298..74185	+	295	116619191	-	Acid_0046	-	hypothetical protein
47	 59.30	0	74236..74751	+	171	116619192	-	Acid_0047	-	hypothetical protein
48	 60.94	0	74735..75397	+	220	116619193	-	Acid_0048	-	fimbrial assembly family protein
49	 63.14	0	75394..76158	+	254	116619194	-	Acid_0049	-	hypothetical protein
50	 65.17	0	76187..77653	+	488	116619195	-	Acid_0050	-	hypothetical protein
51	 63.09	0	77679..78377	+	232	116619196	-	Acid_0051	-	cytidylate kinase
52	 65.92	+1	78374..79846	+	490	116619197	-	Acid_0052	-	aspartate kinase
53	 60.36	0	79904..81838	+	644	116619198	-	Acid_0053	-	PpiC-type peptidyl-prolyl cis-trans isomerase
54	 64.07	0	81841..82494	+	217	116619199	-	Acid_0054	-	hypothetical protein
55	 63.40	0	82491..83102	-	203	116619200	-	Acid_0055	-	hypothetical protein
56	 57.78	-1	83153..83332	+	59	116619201	-	Acid_0056	-	hypothetical protein
57	 63.01	0	83455..85095	+	546	116619202	-	Acid_0057	-	dihydroorotase
58	 65.10	0	85040..86248	-	402	116619203	-	Acid_0058	-	aspartate aminotransferase
59	 61.41	0	86376..87650	+	424	116619204	-	Acid_0059	-	major facilitator transporter
60	 66.77	+1	87655..89523	+	622	116619205	-	Acid_0060	-	hypothetical protein
61	 64.98	0	89536..90186	+	216	116619206	-	Acid_0061	-	allophanate hydrolase subunit 1
62	 67.86	+1	90225..91064	+	279	116619207	-	Acid_0062	-	urea amidolyase related protein
63	 64.61	0	91061..91741	+	226	116619208	-	Acid_0063	-	LamB/YcsF family protein
64	 64.01	0	91747..93324	+	525	116619209	-	Acid_0064	-	hypothetical protein
65	 62.91	0	93372..94967	-	531	116619210	-	Acid_0065	-	beta-lactamase
66	 63.87	0	94964..95785	-	273	116619211	-	Acid_0066	-	uroporphyrin-III C/tetrapyrrole methyltransferase
67	 60.92	0	95861..97270	+	469	116619212	-	Acid_0067	-	L-glutamine synthetase
68	 65.66	+1	97301..97795	+	164	116619213	-	Acid_0068	-	MOSC domain-containing protein
69	 64.72	0	97797..100523	+	908	116619214	-	Acid_0069	-	(glutamate--ammonia-ligase) adenylyltransferase
70	 63.79	0	100678..102174	+	498	116619215	-	Acid_0070	-	integral membrane sensor signal transduction histidine kinase
71	 62.59	0	102171..102857	+	228	116619216	-	Acid_0071	-	two component transcriptional regulator
72	 60.00	0	102923..103372	+	149	116619217	-	Acid_0072	-	hypothetical protein
73	 61.45	0	103564..105270	+	568	116619218	-	Acid_0073	-	potassium-transporting ATPase subunit A
74	 64.16	0	105272..107386	+	704	116619219	-	Acid_0074	-	K+-transporting ATPase, B subunit
75	 64.60	0	107397..107978	+	193	116619220	-	Acid_0075	-	potassium-transporting ATPase, C subunit
76	 66.57	+1	108011..109051	+	346	116619221	-	Acid_0076	-	osmosensitive K+ channel histidine kinase sensor subunit
77	 63.78	0	109048..110085	+	345	116619222	-	Acid_0077	-	osmosensitive K+ channel His kinase sensor
78	 57.83	-1	110105..110953	+	282	116619223	-	Acid_0078	-	hypothetical protein
79	 62.66	0	111050..111973	+	307	116619224	-	Acid_0079	-	ABC transporter related
80	 62.84	0	111970..114162	+	730	116619225	-	Acid_0080	-	ABC-2 type transporter
81	 56.81	-1	114049..115002	-	317	116619226	-	Acid_0081	-	metallophosphoesterase
82	 60.38	0	114999..115523	-	174	116619227	-	Acid_0082	-	hypothetical protein
83	 60.46	0	115513..116607	-	364	116619228	-	Acid_0083	-	phosphatidylserine/phosphatidylglycerophosphate/cardiolipin synthase-like protein
84	 61.99	0	116688..117692	+	334	116619229	-	Acid_0084	-	hypothetical protein
85	 61.93	0	117791..119605	-	604	116619230	-	Acid_0085	-	ABC transporter related
86	 62.35	0	119653..120510	-	285	116619231	-	Acid_0086	-	alpha/beta hydrolase fold
87	 69.16	+2	120686..121687	-	333	116619232	-	Acid_0087	-	electron transfer flavoprotein alpha subunit-like protein
88	 66.67	+1	121689..122501	-	270	116619233	-	Acid_0088	-	electron transfer flavoprotein beta subunit-like protein
89	 65.31	+1	122655..123905	-	416	116619234	-	Acid_0089	-	GDSL family lipase
90	 62.14	0	124015..125736	+	573	116619235	-	Acid_0090	-	hypothetical protein
91	 62.21	0	125733..126203	+	156	116619236	-	Acid_0091	-	hypothetical protein
92	 64.65	0	126485..127969	+	494	116619237	-	Acid_0092	-	carboxylesterase, type B
93	 64.92	0	127987..129822	-	611	116619238	-	Acid_0093	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
94	 67.16	+1	129819..132029	-	736	116619239	-	Acid_0094	-	acyl-CoA dehydrogenase domain-containing protein
95	 60.11	0	132219..132584	+	121	116619240	-	Acid_0095	-	hypothetical protein
96	 66.61	+1	132586..134412	-	608	116619241	-	Acid_0096	-	peptidase M56, BlaR1
97	 57.96	-1	134399..134800	-	133	116619242	-	Acid_0097	-	CopY family transcriptional regulator
98	 62.55	0	135455..136426	+	323	116619243	-	Acid_0099	-	hypothetical protein
99	 59.24	0	136401..137168	-	255	116619244	-	Acid_0100	-	hypothetical protein
100	 63.41	0	137244..137489	-	81	116619245	-	Acid_0101	-	hypothetical protein
61.86	MEAN

3.38	STD DEV
